Part #: RZR-05300

Features:

• 1.75" longer wheelbase for better hill climbing, descents, and improved high-speed stability

• High-clearance boxed front A-arms and rear trailing arms provide 1.25” of additional ground clearance

• Front tube mounts are 1.25” in diameter—larger than stock—with Delrin bushings for increased strength and durability

• TIG-welded by hand for strength and aesthetics

• Laser-cut construction for precise fit and finish

• CNC-cut chromoly mounting points for increased integrity

• Manufactured with HCR Elite Alloy, 30% stronger than 4130 chromoly

• Improved approach angles reduce surface attraction and friction

Description

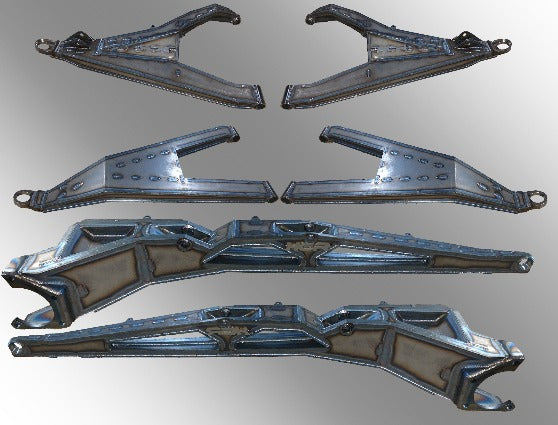

HCR’s Dual Sport Replacement Suspension Kit for Polaris RZR XP 1000 and Polaris RZR XP Turbo provides a 1.75-inch longer wheelbase, 1.25 inches of additional ground clearance, and an unbeatable upgrade in strength. HCR's proprietary billet, slot, and tab design and honeycomb boxed A-arms are built to withstand the beatings of off-road riding. The custom alloy used to manufacture every HCR kit is 30% stronger in tensile and yield strength compared to 4130 chromoly. This HCR custom material endures several treatments and is hardened for better wear resistance and overall strength.

Kit Includes:

• 4 front A-arms (2 upper, 2 lower)

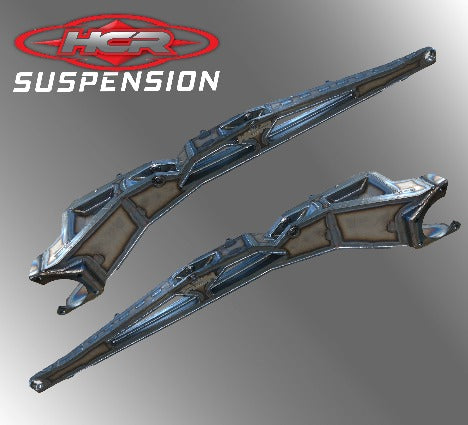

• 2 rear trailing arms

• Replacement bushings

• Brake line mounting hardware

• Shock bolts

Fitment:

Polaris RZR XP 1000: 2014-2023
Polaris RZR XP 4 1000: 2014-2023
Polaris RZR XP Turbo: 2016-2021
Polaris RZR XP 4 Turbo: 2016-2021

NOTE: You will re-use OEM ball joints in the front A-arms unless you have ordered OEM equivalents, or if you order the Spherical Bearing upgrade, A-arm mounting bolts and nuts, Trailing arm radial bearings, trailing arm mounting bolts except the shock bolts, sway bar and hardware. No radius links are included in the kit and are an available option to purchase as an additional option.
