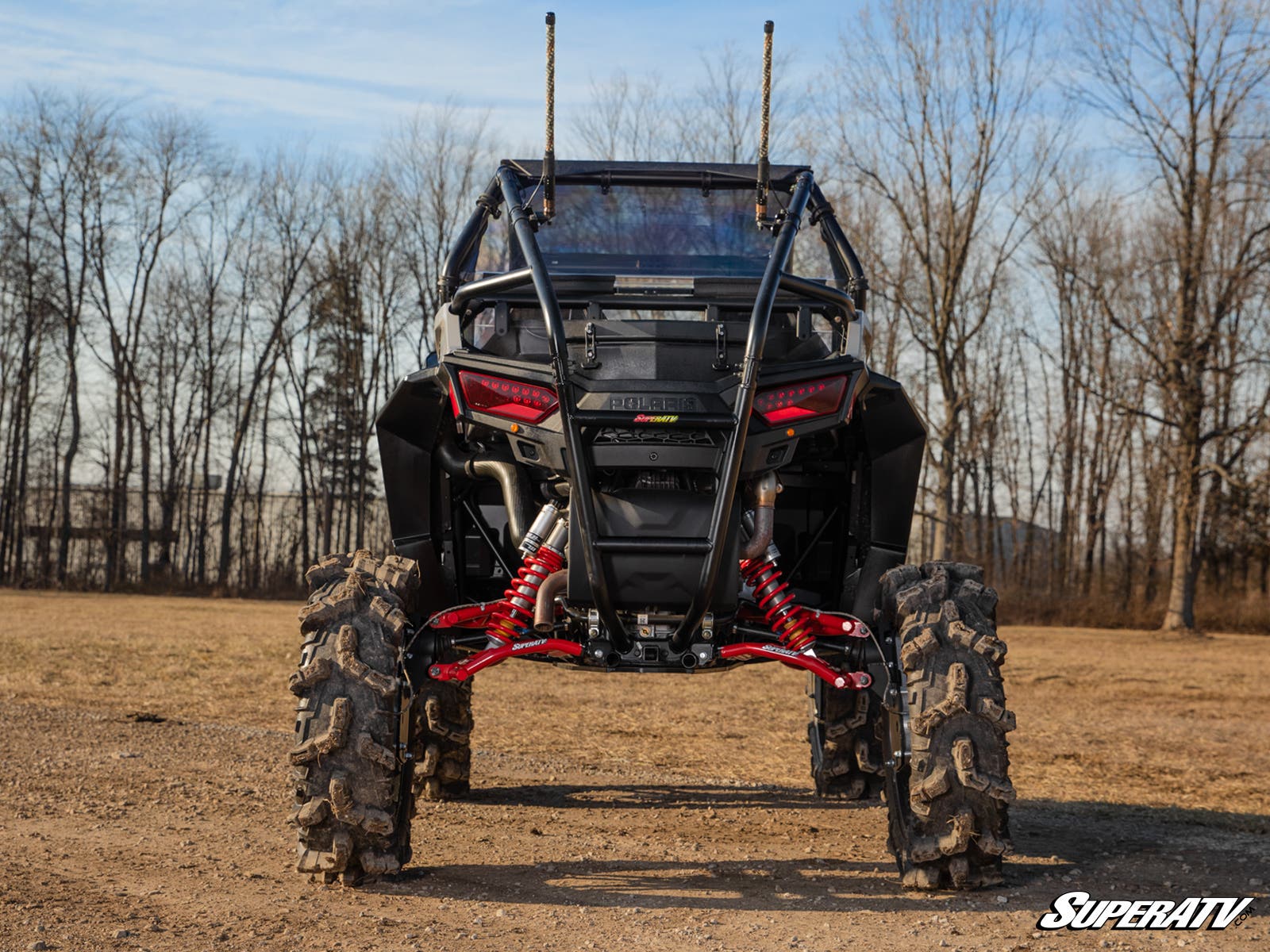

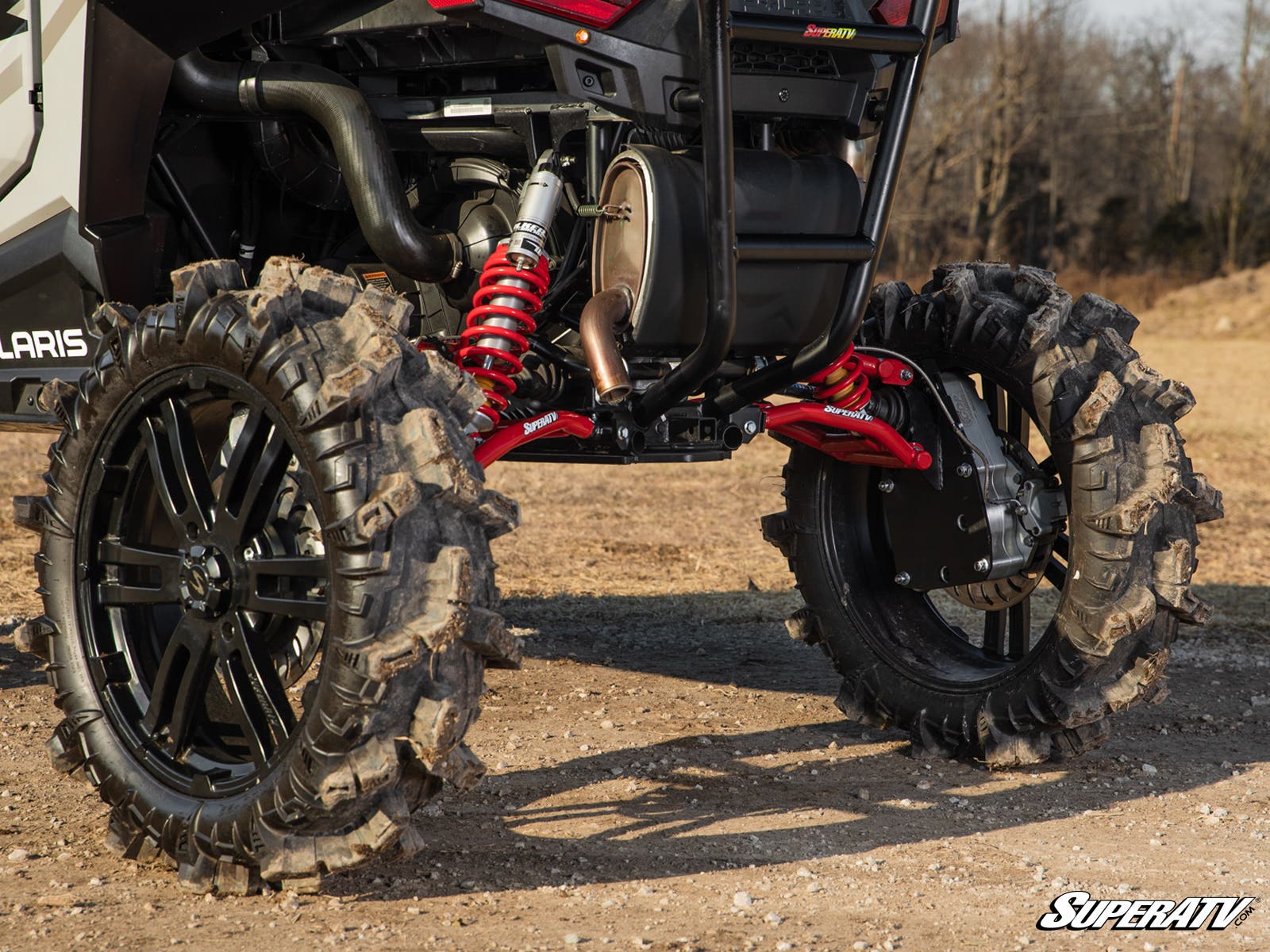

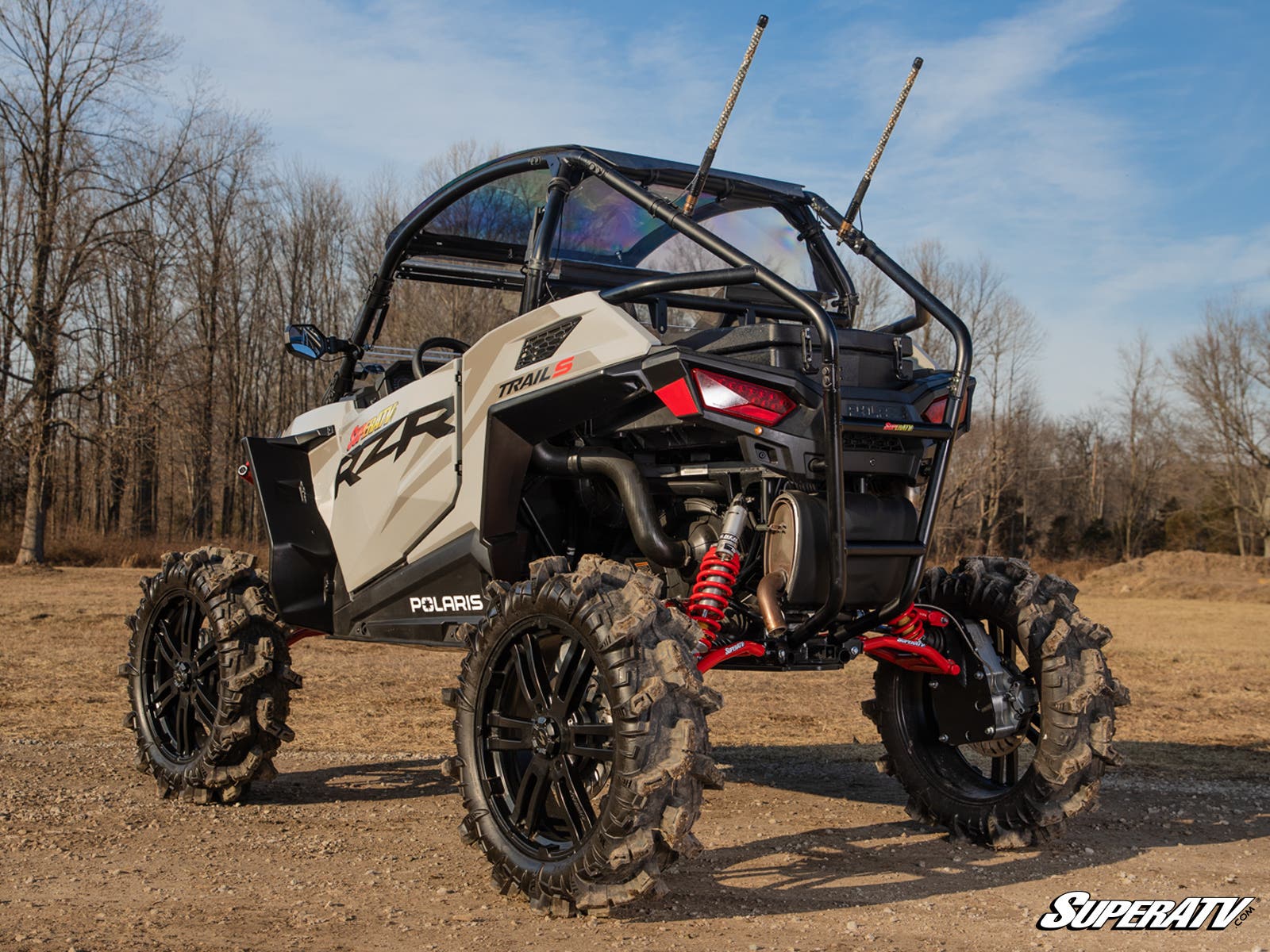

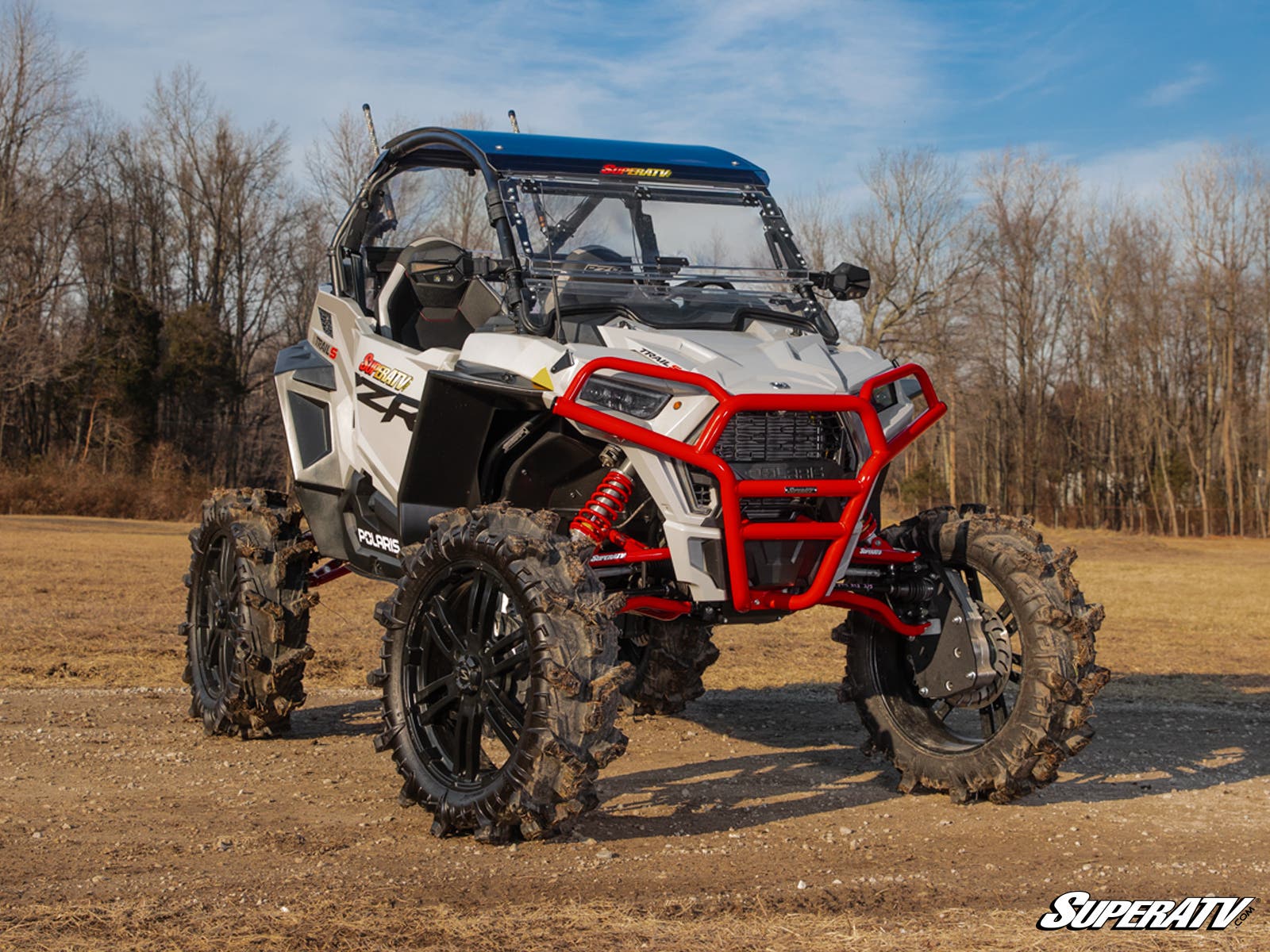

SuperATV Polaris RZR Trail S 900 8"� Portal Gear Lift

Gen 3 Portals Are Geared for All
Take a second and imagine what it would be like to ride 8" higher and with a whole lot more power. Sounds like fun, huh? With this GDP Portal Gear Lift on your Polaris RZR Trail S 900, that imagination becomes reality. These portals give you the incredible clearance and unbeatable torque you need to tackle any terrain. They also give you optionschoose between cast or billet aluminum housings and a 45% or 60% gear reduction. What are you waiting for? GDP is ready and waiting to transform your ride.

GDPthe Most Trusted Name in Portals
Not sure if GDP is right for you? We think it is, but why don't you ask one of the thousands of riders already using portals every week? More riders roll on GDP portals than any other portal system. That means we've got experience that no one else has. When it comes to reliability, quality, and performance, nothing's as trail-proven as GDP.

Perfect for Mud
It seems like we see more RZRs in the mud every time we go outit's a great side-by-side for it. But with 8" portals and a 45% or huge 60% gear reduction, it becomes the ultimate mud UTV. You'll have room for bigger tires and all that torque means you can push through anything, if the mud's even deep enough to reach your skid plate.

A Gear Reduction That Protects Your Drivetrain
Portals put the gear reduction right in the hub. That matters because putting it after your drivetrain components will make them last longer. GDP reduces the stress on your axles, differential, prop shaft, and transmission even if you're rolling on huge tires.

Learn more about how tire size and gear reduction can unleash your machine's potential.

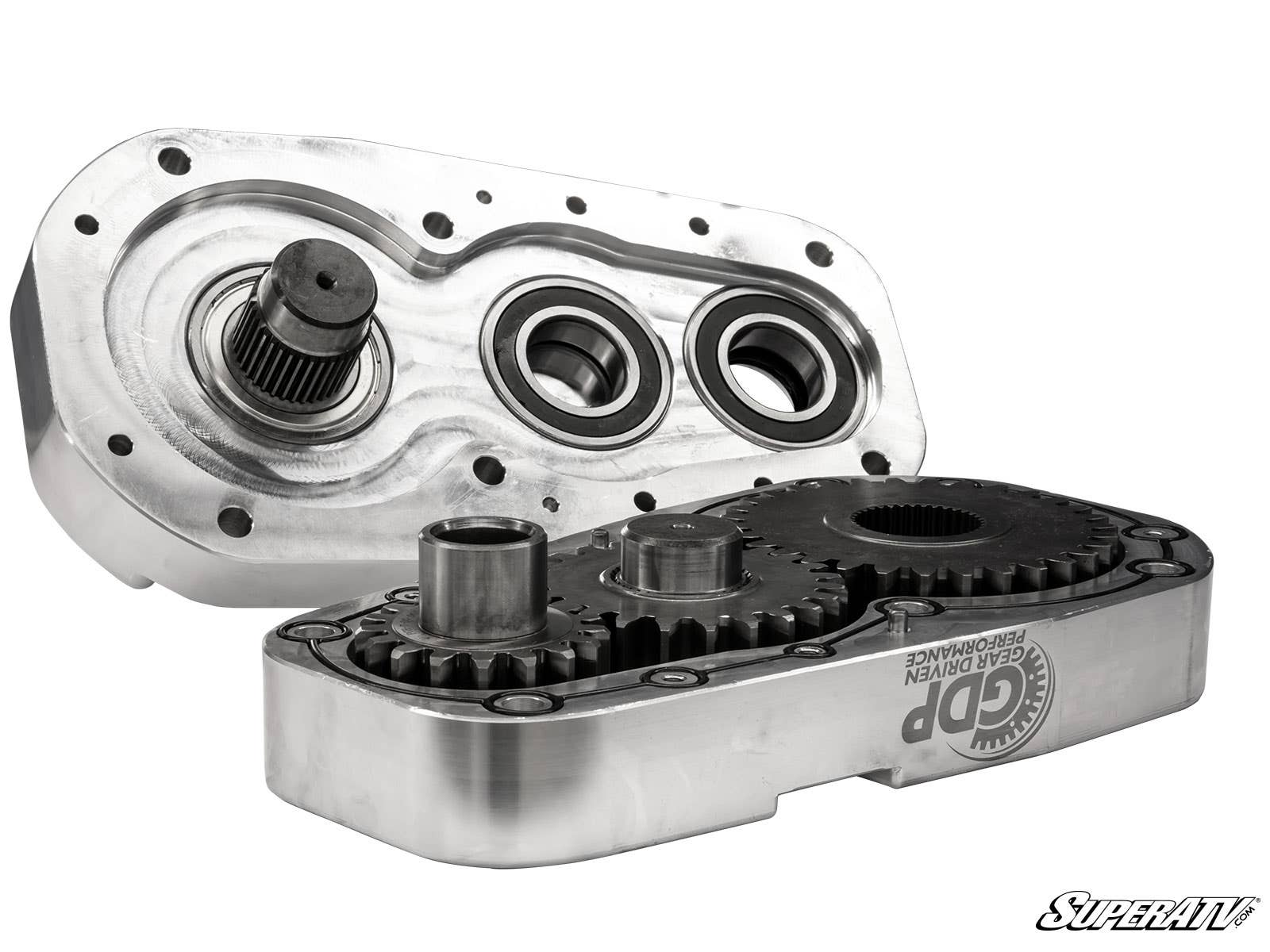

Unmatched Gear Material

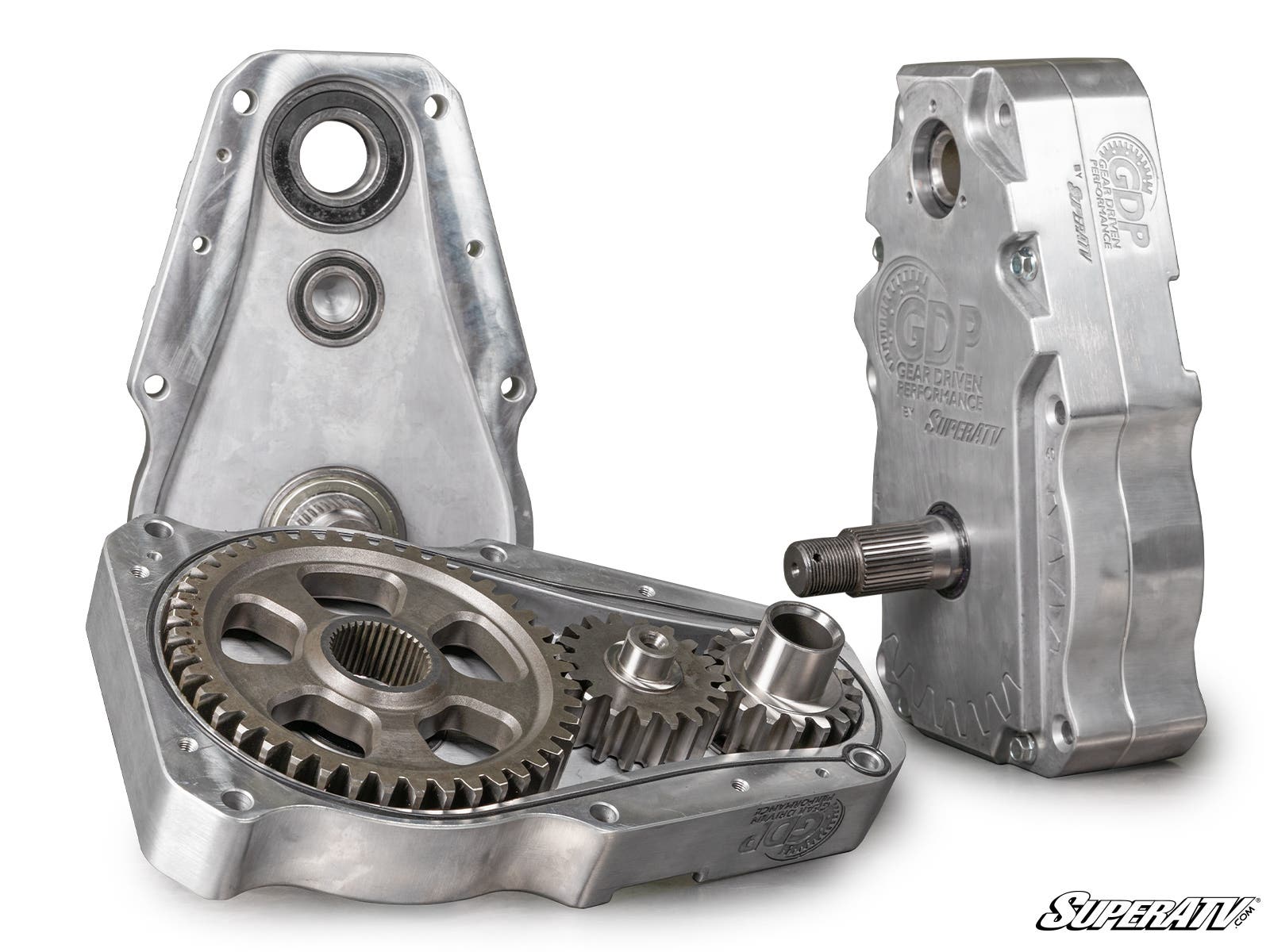

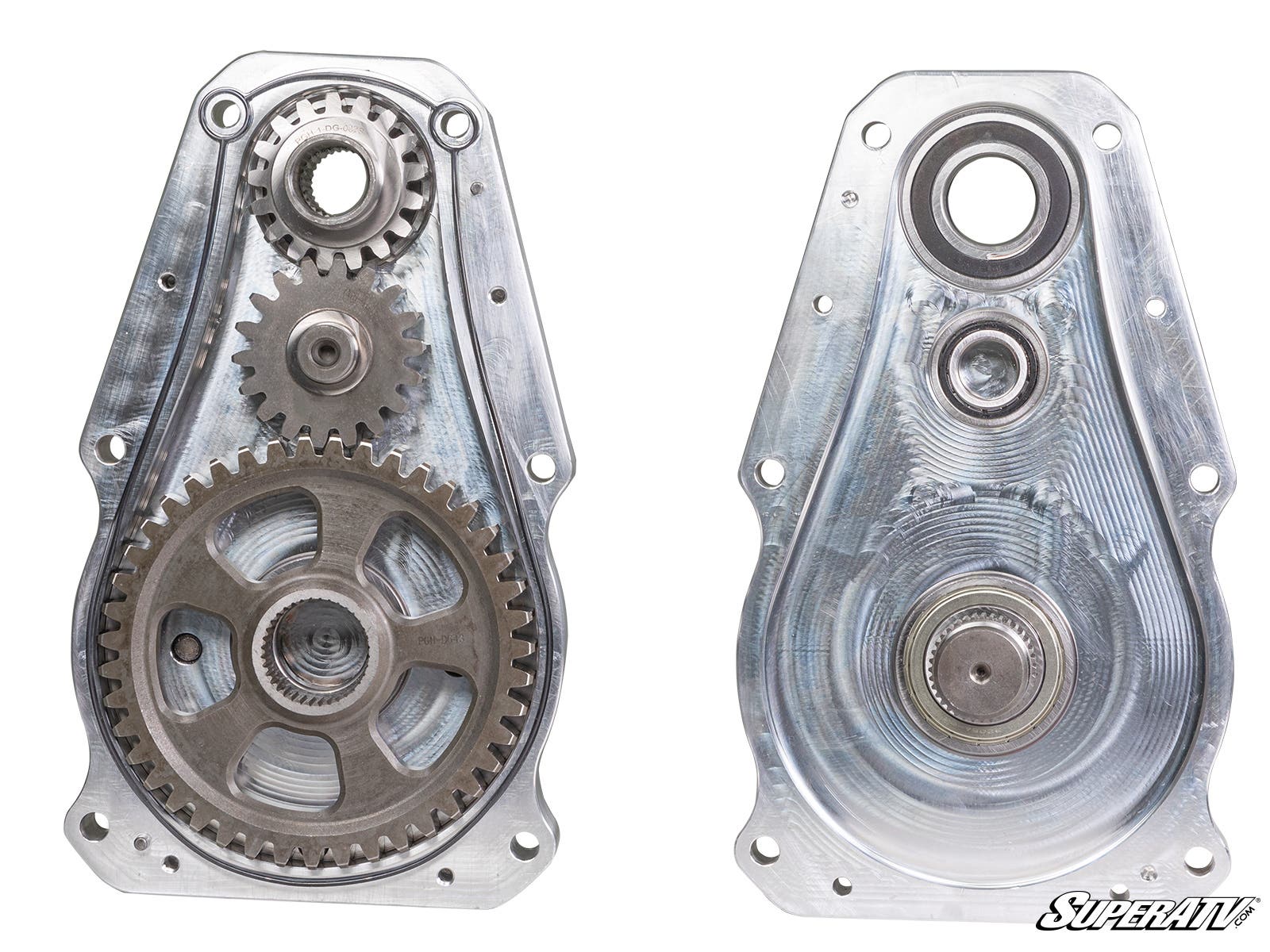

What's more important than gears in a portal gear lift? Nothing. That's why our top-of-the-line gears are made from precision-ground 9310 alloy steel. They mate perfectly every time and give you smooth, quiet portals no matter how fast you go. GDP gives you luxury-grade performance.

Stronger Housings by Design

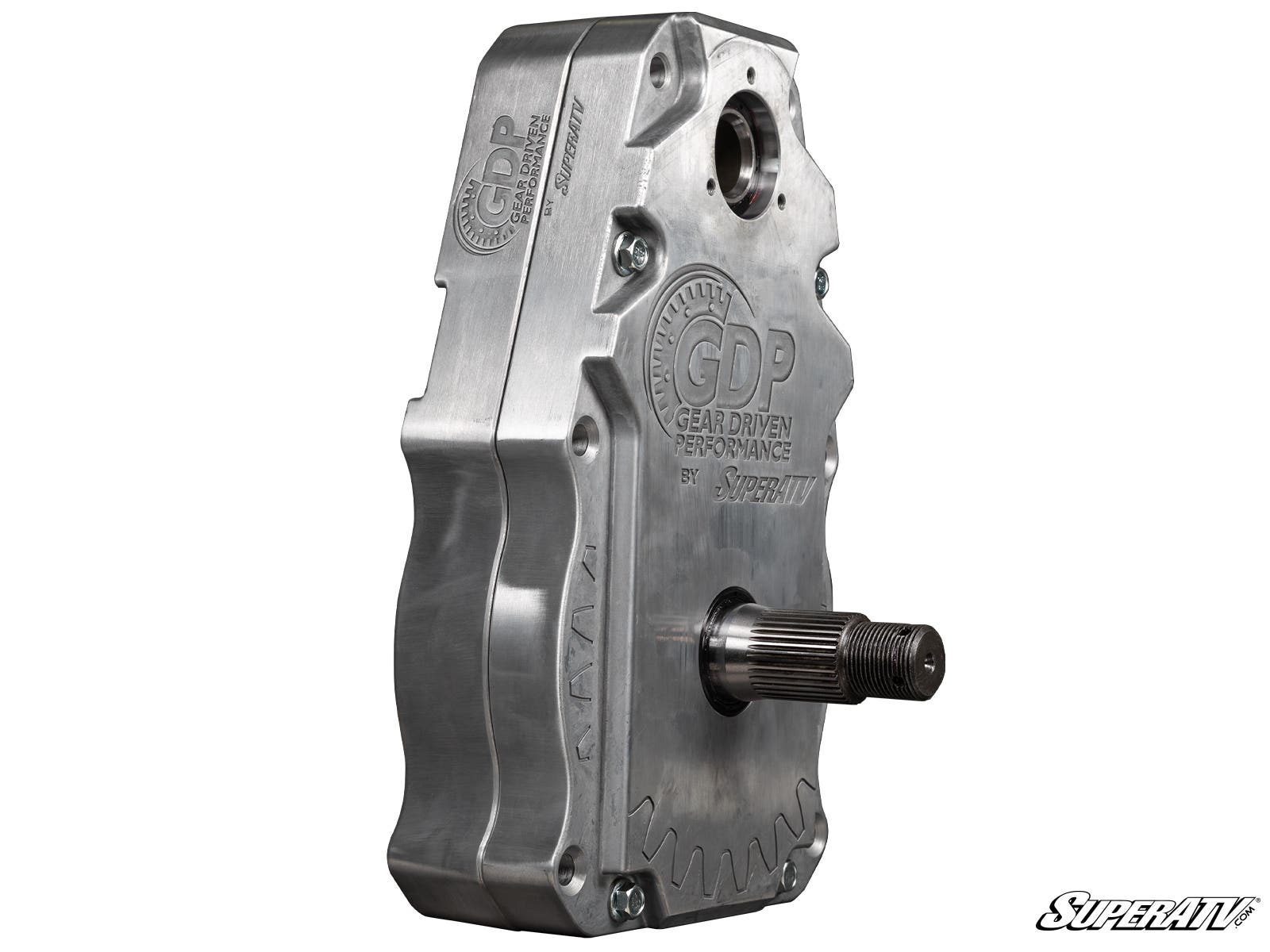

Some might think you can use brute force to make a better housing. They'd be wrong. We use precise design honed over years and backed by hundreds of thousands of ride hours to make the strongest portal boxes in the industry. So whether you want cast or USA-made billet aluminum for your housings, you know your getting high-quality, precision hardware that will stand up to any ride.

• Our housings are reinforced in all the right places
• They're built with better oil flow and gearing forces in mind
• There are no gimmicks and no vents because vents do more harm than goodwe know because we tested them

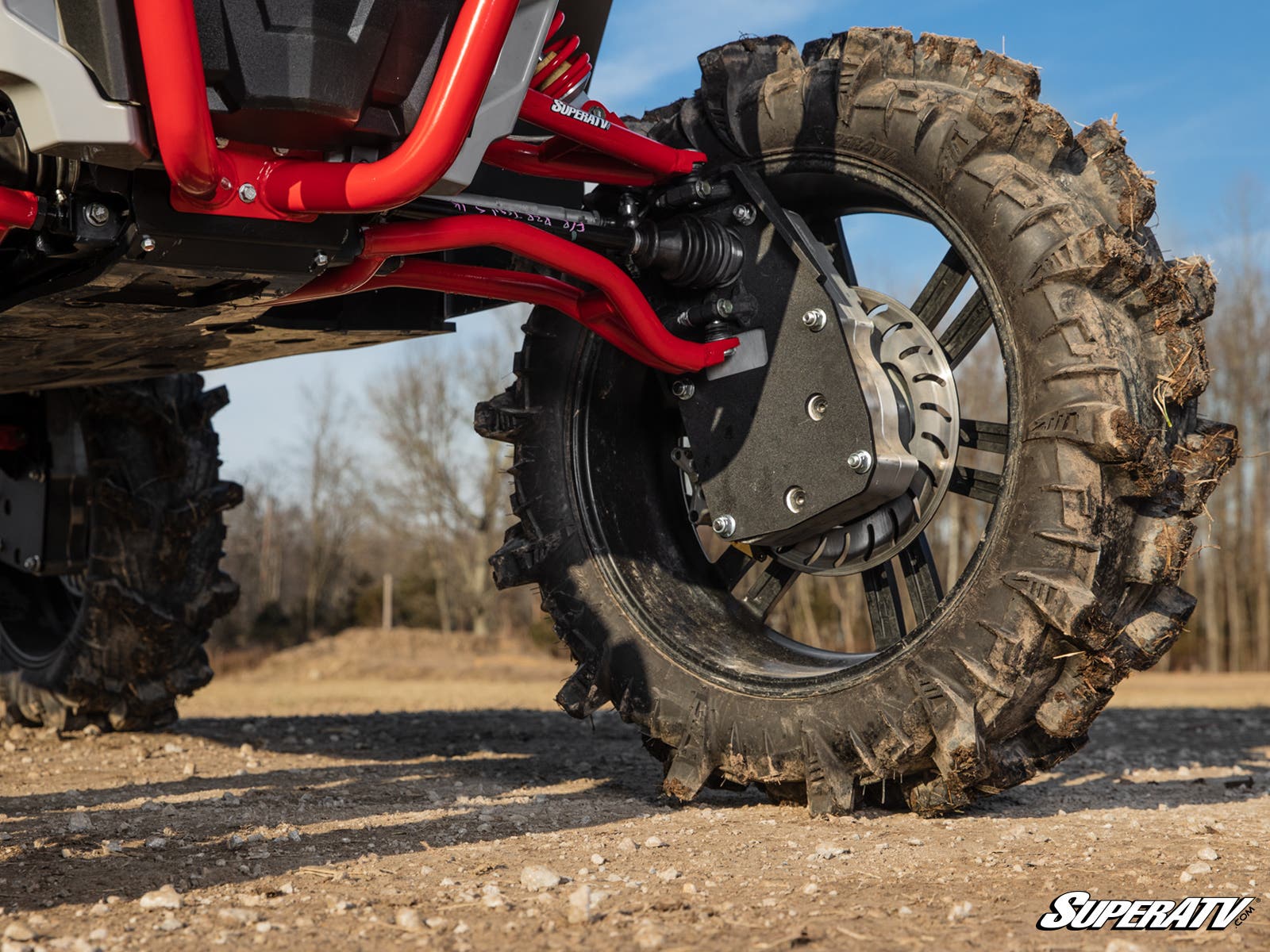

The Strongest Portal Backing Plates You Can Get
How do we make the strongest backing plates on the planet? We start with an advanced steel alloy that's even stronger pound-for-pound than chromoly. Then, we make it 5/16 inches thick, and, finally, we hand-weld gussets and pivot blocks to it. We went all out on strength because if you're backing plate doesn't hold up, you're done playing. So keep playing with GDP.

Advanced Gaskets and Seals
Whether you go with cast or billet, both housings use:

• Advanced gaskets to keep oil in and water out. They have excellent oil resistance and a lower deterioration rate than Kevlar gaskets
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout. You can forget about oil leaksnothing's getting in or out, ever

Bearings That Rock
All the strongest housings, gears, plates, and hardware would mean nothing if we had just average bearings. But, like everything else, we opted to make them as good as possible. With a double-angular contact bearing on the output shaft that can take hit after hit, you can rest easy knowing that even GDP's bearings are built for battle.

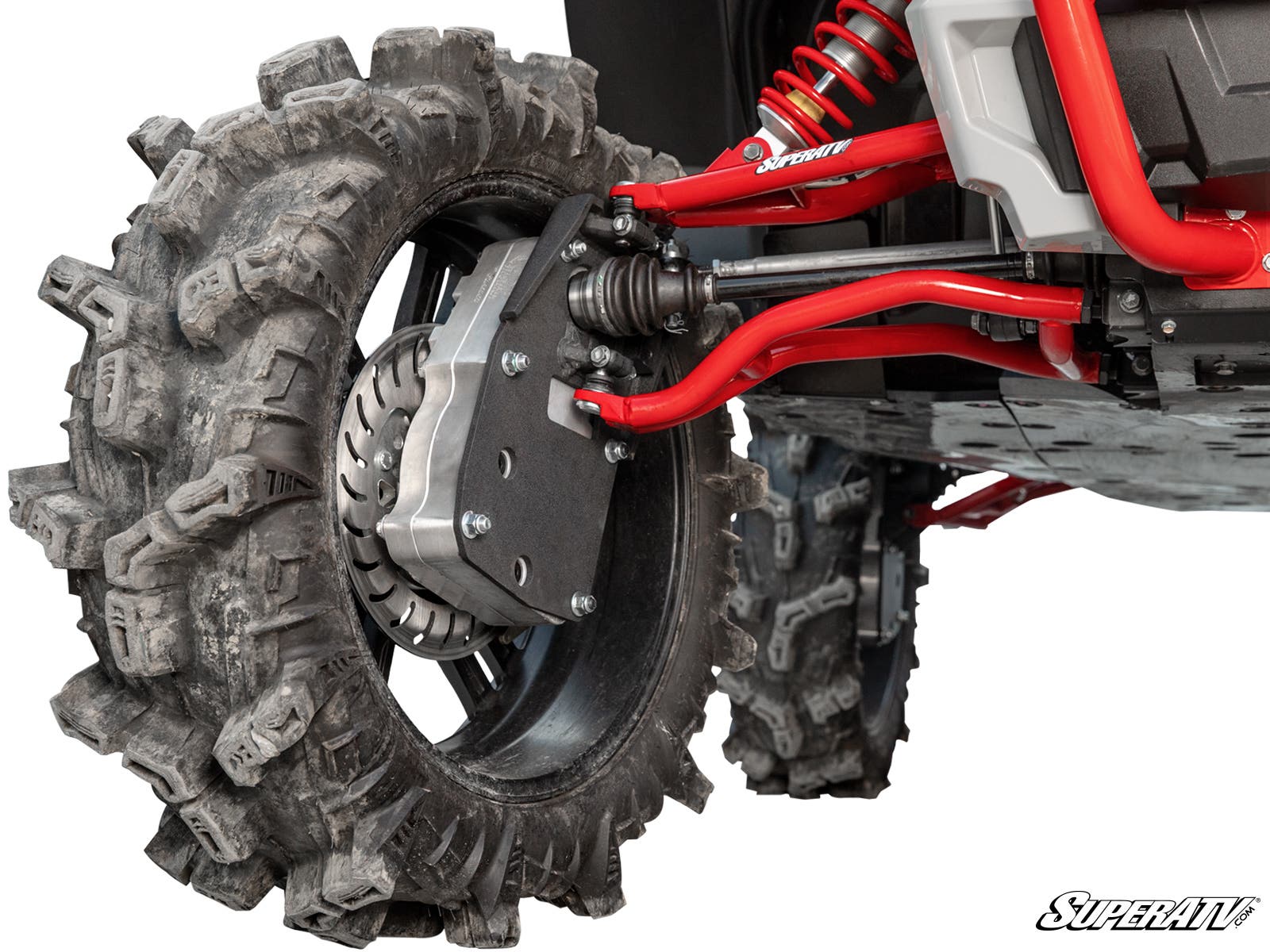

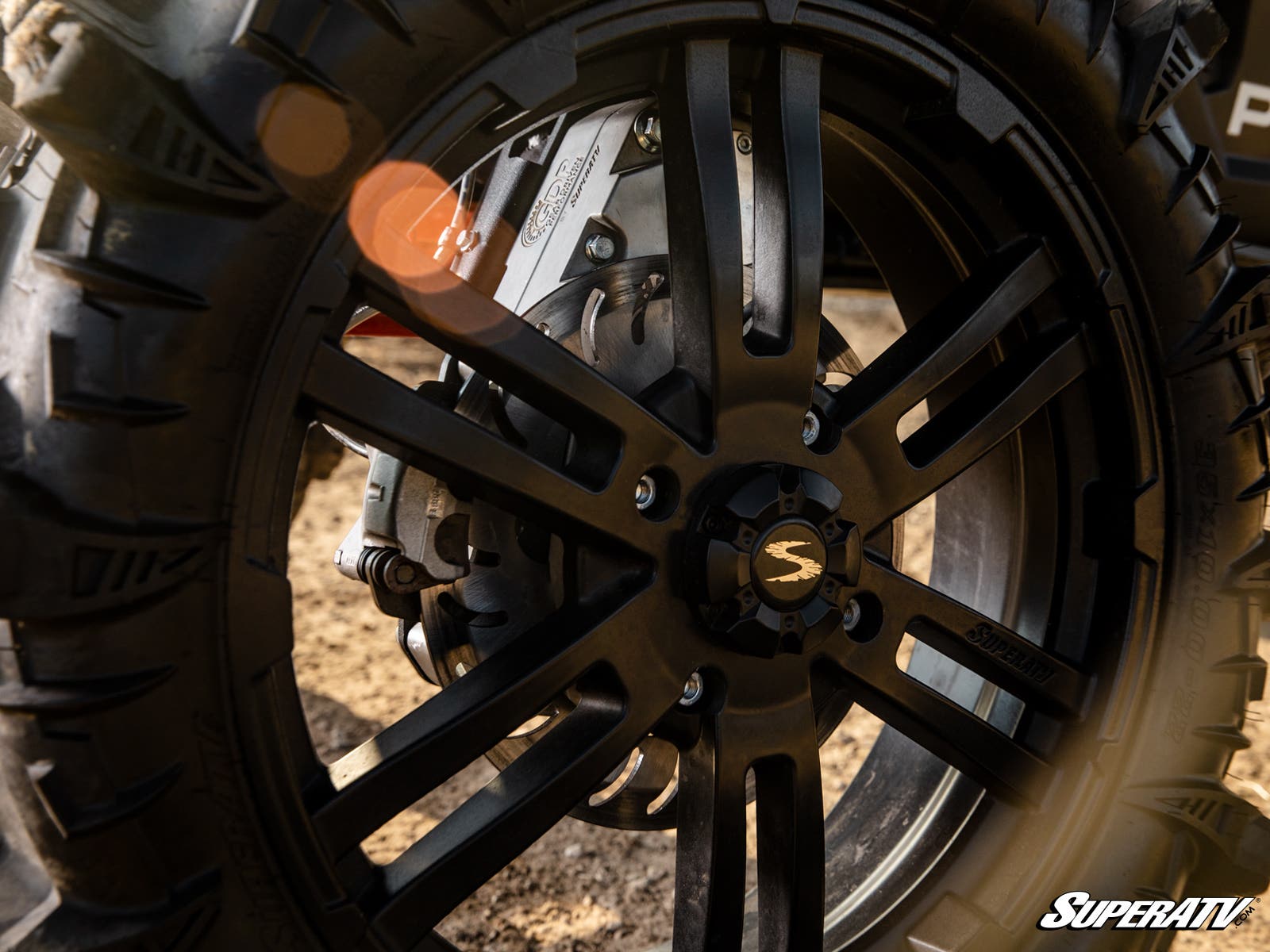

Universal Hubs and Slotted Rotors
Our precision-ground, stainless steel slotted rotors stay cool to give you the braking power you need when you need it. They come with 4/156, 4/137, 4/115, and 4/110 bolt patterns and lugs so you can use wheels from just about any side-by-side. We invented the tapered output shaft that our hubs attach to, which provides a more secure lock that won't wobble or wear over time.

Frame Stiffener Required
These 8" portals are big, beefy, and powerful. In fact, they give you such a big lift that your RZR needs a frame stiffener to keep from bending its chassis. We've put it through its paces and bent plenty of frames. Trust us and get a frame stiffener.

Top-Rated Customer Service
Still need a little help getting exactly what you need? We've got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.

If you're not sure which gear reduction is right for you, check out our portal gear reduction calculator. Just plug in your original tire size, new tire size, and top speed to find out what a reduction can do for your ride.

8" Portal Gear Lift Includes:

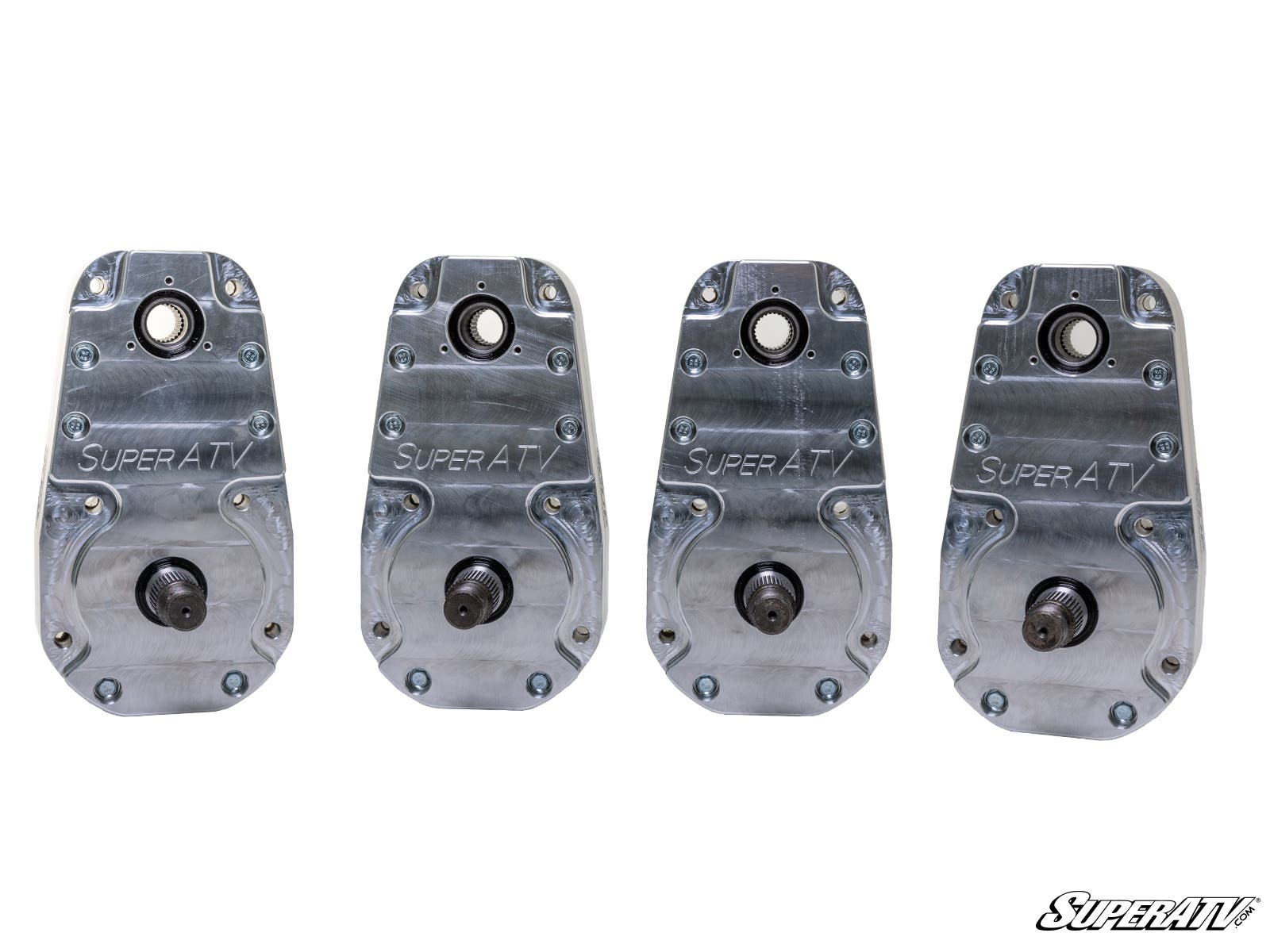

(4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
(4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
(4) Specialized steel alloy backing plates
(2) Steel caliper mounting plates
Extended brake lines
All required hardware, including recessed castle nut socket
Frame stiffener (must select at checkout)

Polaris RZR S 1000 Portal Gear Suspension Recommendations
Max Tire Size	Required Suspension Setup with 8" Portals
36"	Stock
41"	1.5" Forward Front A-Arms
43"	7-10" Lift Kit
If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator.
Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.

Patent # 11,299,042

• Available with billet or cast aluminum housing
• Cool, quiet, precision ground gears made from 9310 alloy billet steel
• 1.5 in. diameter 4340 hardened steel drive shaft
• Increases width by 4 in. per side (8 in. total)
• 1.5 in. forward and rear offset
• Housings use advanced gaskets that don't let anything through
• Universal hub fits all major bolt patterns
• Gear reduction reduces stress on your drivetrain

• Polaris RZR Trail S 900 Sport : 2021+

Wheel Requirements:

• 22" or larger wheel required
• Wheels cannot exceed 5" backspacing
• Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
