SuperATV Yamaha Wolverine X2/X4 850 4" Portal Gear Lift
SuperATV Yamaha Wolverine X2/X4 850 4" Portal Gear Lift - Single / Billet / 15% is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Most R1 Industries products are shipped via USPS Priority mail and typically arrive within 2-5 business days, depending on location, however, please note that shipping times can be affected by supply-chain issues, which may result in delayed shipping
SuperATV Yamaha Wolverine X2/X4 850 4" Portal Gear Lift
SuperATV Yamaha Wolverine X2/X4 850 4" Portal Gear Lift
Overview
The SuperATV Yamaha Wolverine X2/X4 850 4" Portal Gear Lift is a premium gear lift designed for unparalleled performance and power. Whether you're tackling rugged trails, sandy dunes, or rocky climbs, this upgrade is built for superior durability and control.
Key Features of SuperATV Yamaha Wolverine X2/X4 850 4" Portal Gear Lift
-
Available with Billet or Cast Aluminum Housing
- Choose the material that best fits your riding style for optimal performance. -
Dual Idler Gear Configuration
- Maximizes strength and ensures reliable torque transfer for enhanced performance. -
Precision Ground 9310 Alloy Billet Steel Gears
- Provides cool, quiet operation and increases the lifespan of your gear lift. -
Increased Width
- Increases vehicle width by 4 inches per side, enhancing stability on any terrain.
Why Choose SuperATV Yamaha Wolverine X2/X4 850 4" Portal Gear Lift?
The SuperATV Yamaha Wolverine X2/X4 850 4" Portal Gear Lift is an essential upgrade for riders looking to enhance their off-road experience. Built with high-quality materials and engineered for maximum power, this gear lift ensures superior performance on any terrain.
Frequently Asked Questions (FAQs)
- Will this fit my machine? See below for fitment.
- Is installation difficult? No, installation is quick and easy with basic tools.
- How does this compare to similar products? This gear lift stands out due to its innovative dual idler configuration and robust design.
What Customers Are Saying
⭐ ⭐ ⭐ ⭐ ⭐ "The build quality is excellent. It performs well, and I’ve had no issues so far." - Mark R.
⭐ ⭐ ⭐ ⭐ ⭐ "Straightforward install. Feels solid, but I’ll have to test it out longer to know for sure." - Lisa J.
⭐ ⭐ ⭐ ⭐ ⭐ "Good upgrade. Does what it should, and I’d recommend it to others." - Tom S.
Optimize Your Experience with Accessories
Pair the SuperATV Yamaha Wolverine X2/X4 850 4" Portal Gear Lift with other premium accessories for enhanced performance. Browse our collection of compatible UTV accessories to complete your setup.
Get Yours Today
Upgrade your off-road experience with the SuperATV Yamaha Wolverine X2/X4 850 4" Portal Gear Lift. Designed for durability and performance, this is the perfect addition for any serious rider.
Customers Also Searched For
- Best Portal Gear Lift for Yamaha Wolverine
- Top-rated gear lifts for off-road performance
- Durable and reliable UTV accessories
- High-quality gear lifts for extreme terrain
Description
Give your YamahaWolverine X2 850 or X4 850 the gift of power and performance with SuperATV's GDP 4" Portal Gear Lift. Choose from 15% or 30% gear reductions and cast or billet aluminum housings so you can optimize for the kind of riding that you do. Or take your strength over the top by upgrading to dual idlers. With GDP, your Wolverine is limitless.

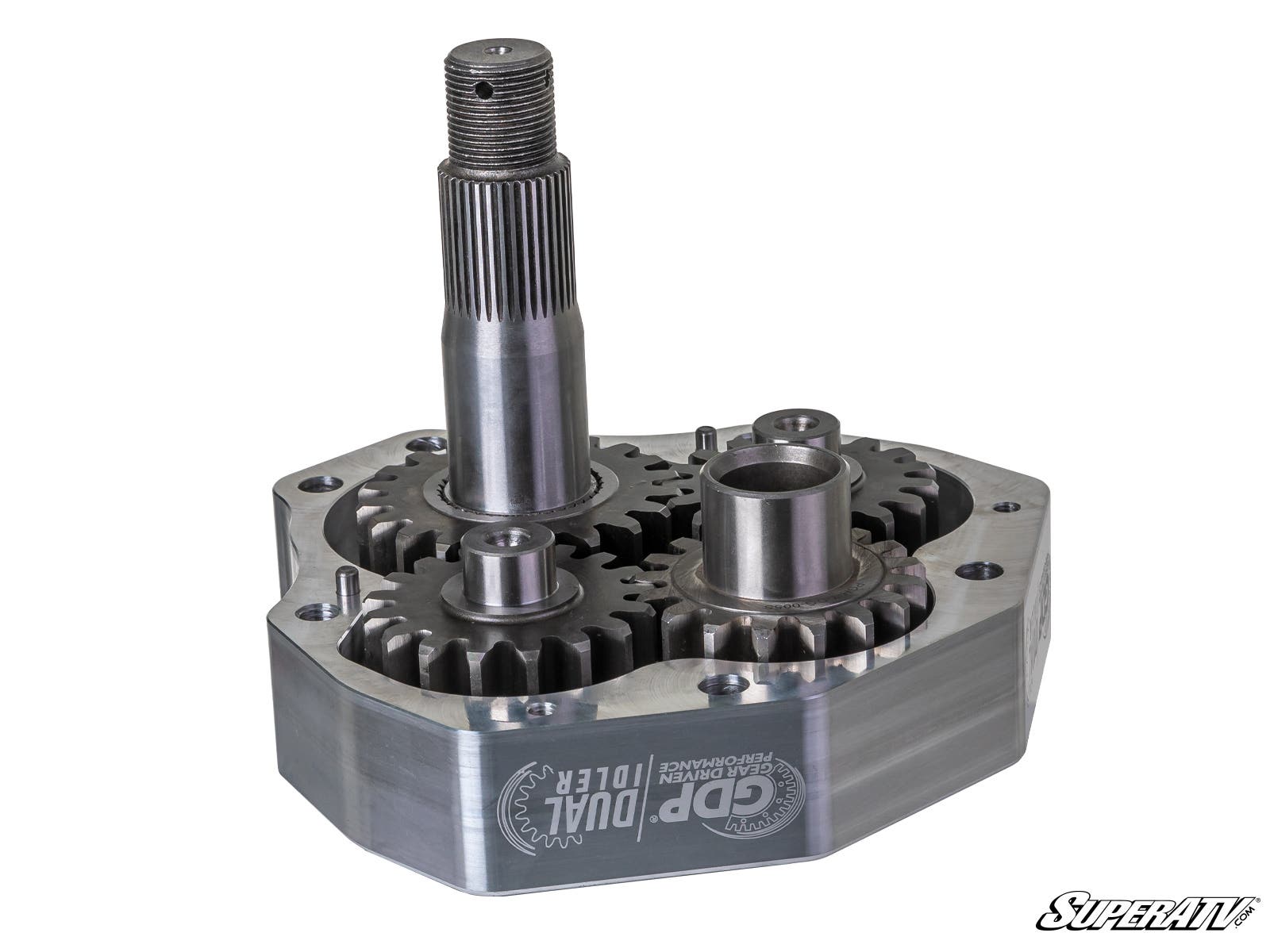

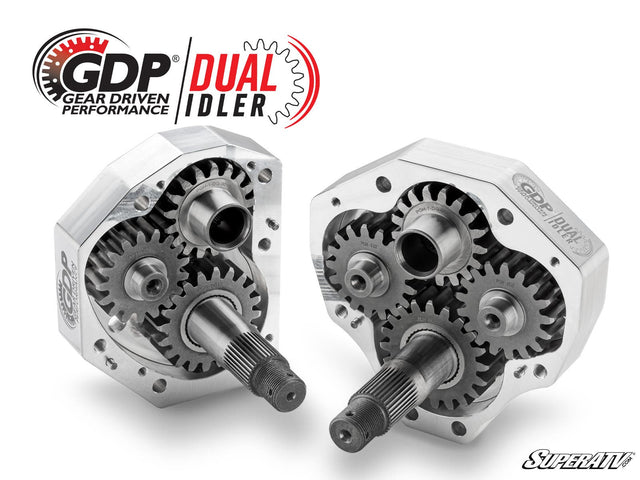

What is a Dual Idler®?
Perfection takes time. After years of research and development, we've made our dual idler gear portals unlike any other. By placing a second idler gear in the portal box, the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears don't do a thing if they're not mated perfectly, though. Precision CNC grinding ensures ours do. Our gears are made from the industry's toughest 9310 steel alloy. Didn't think dual idlers mattered? With GDP's quality and experience, they finally do.
Perfect for All Kinds of Rides
Whether you're carving through mountain trails or chest-deep in mud, GDP Portals can take your Wolverine further. A 30% gear reduction gives you tons of torque to turn big tires through mud or over rocks. A 15% gear reduction still gives you punchy torque while letting you get wild with on open throttle on trails and tracks. No matter what you're doing, there's a GDP Portal setup that can help.
A Gear Reduction That Protects Your Drivetrain
Because GDP Portals put the gear reduction directly in the hub, your entire drivetrain benefits. Your axles, differential, drive shaft, and transmission all work less and wear less with a portal gear lift. You can put the pedal down and have a blast without wrecking your ride.

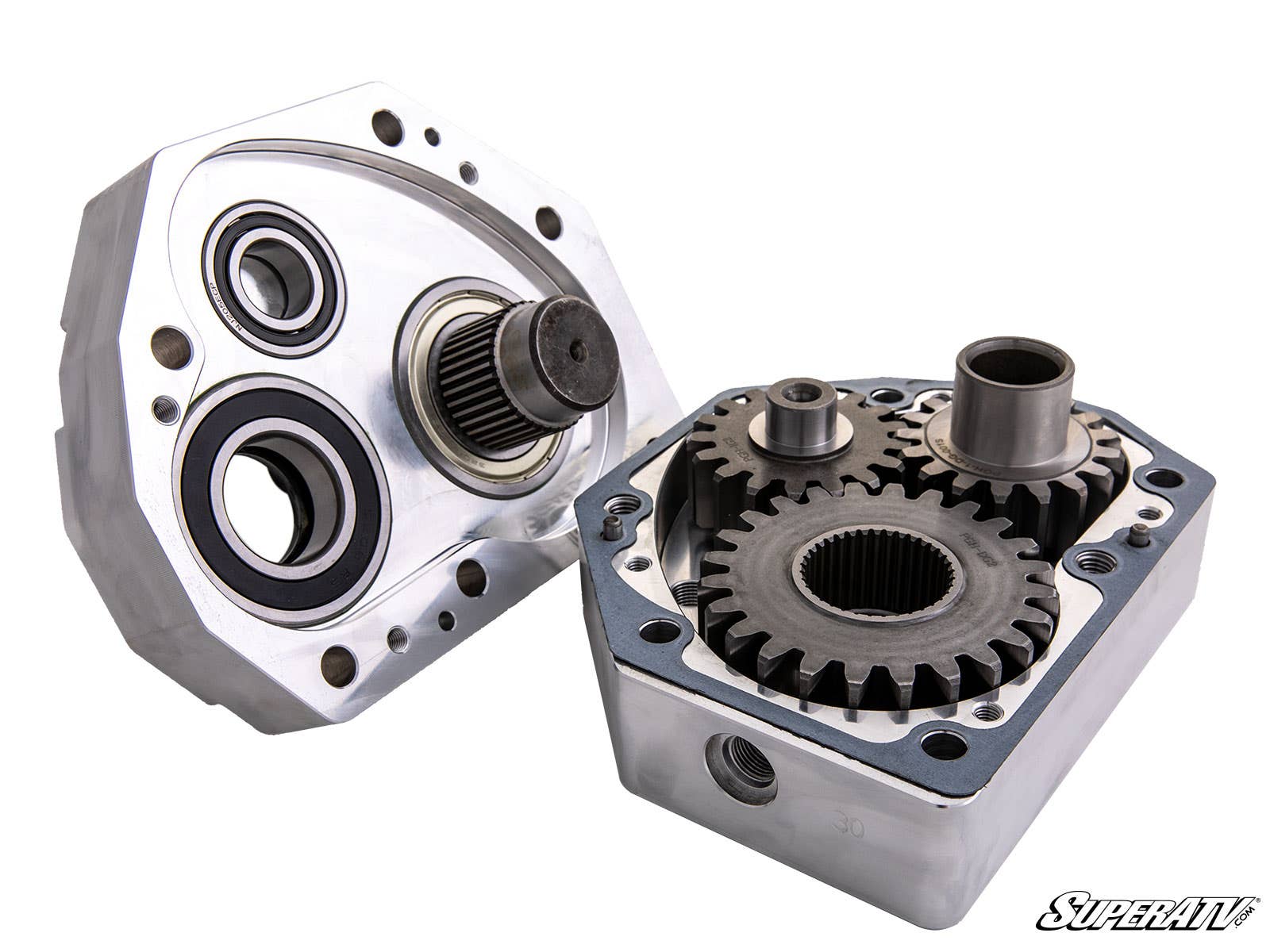

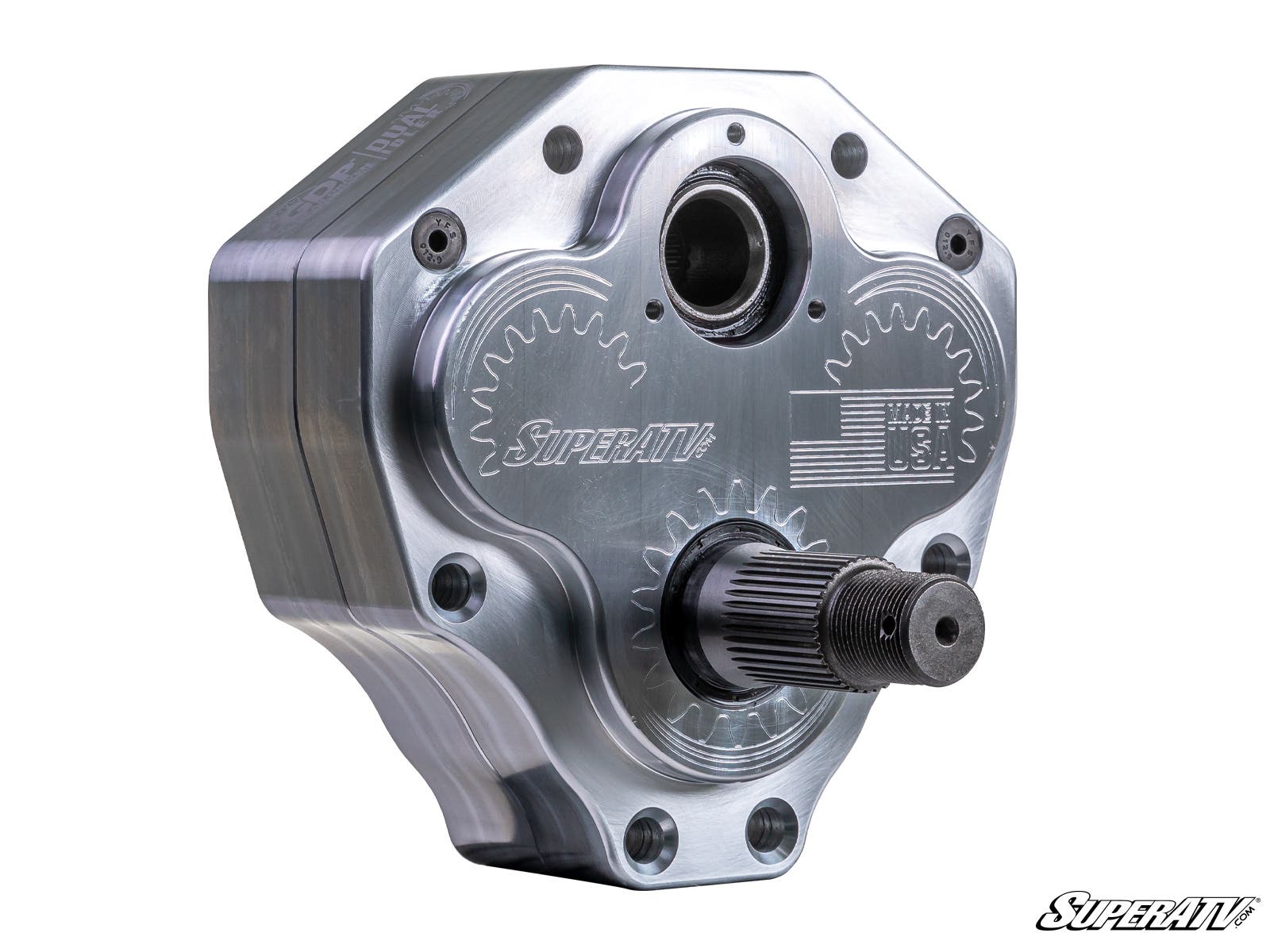

Stronger Portals by Design
GDP Portals are built to be unmatched. Our housings are well researched and long tested. And you get a choicego with cast or USA-made, CNC-machined 6061 billet aluminum. They're supported by beefy backing plates made of an advanced steel alloy you won't find in any other portal system. For robust, trail-proven strength, GDP is the only choice.
- Our housings are reinforced for gear retention and optimized for oil flow
- Advanced steel alloy backing plates are stronger than chromoly
- Enhance with Portal Bloodgear oil formulated for GDP Portals
- There are no gimmicks and no vents because vents do more harm than goodwe know because we tested them

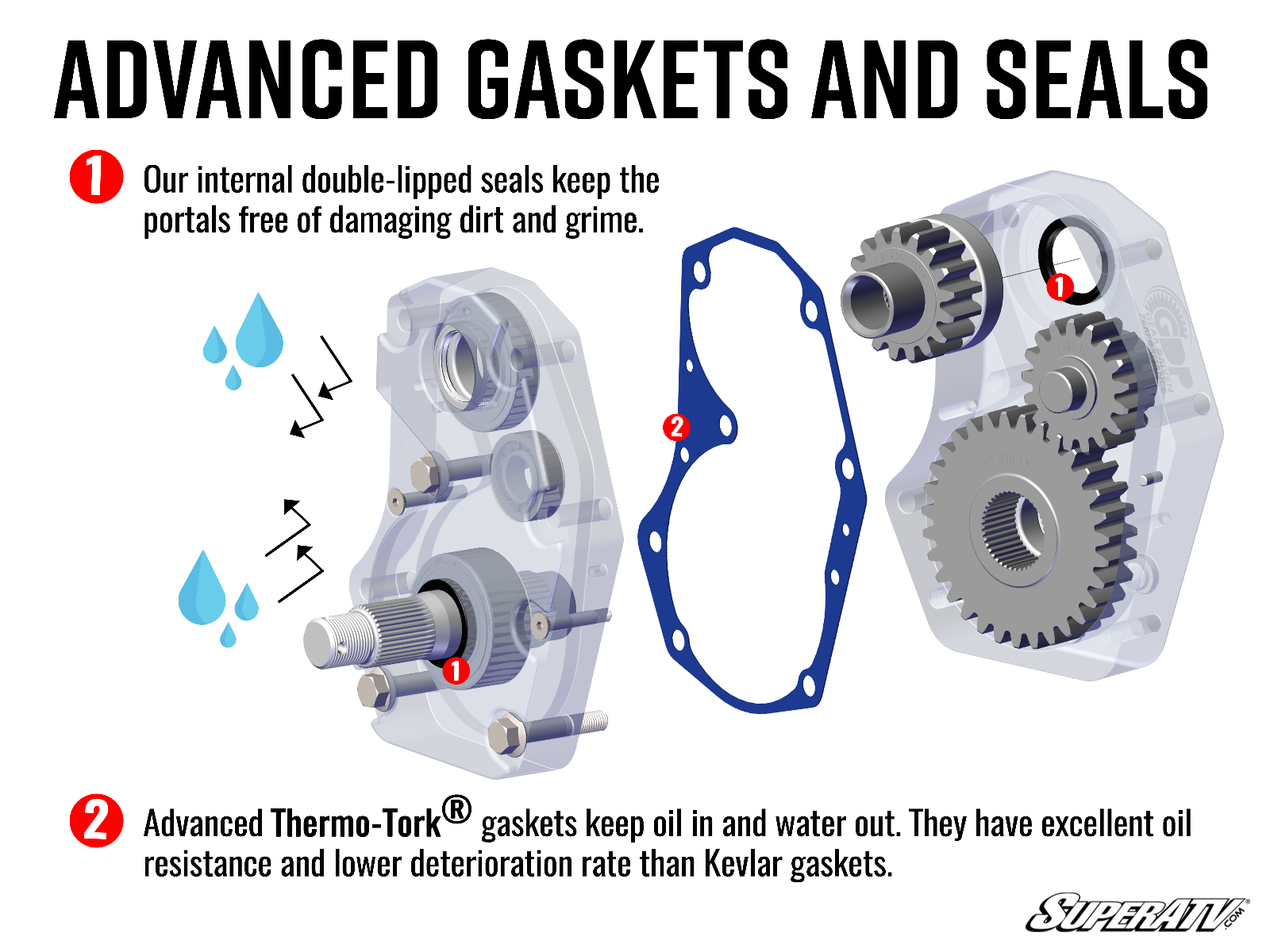

Advanced Gaskets, Seals, and Bearings
Our portals use:
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
- Double-angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
Top-Rated Customer Service
Still need a little help getting exactly what you need? We've got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today
| 4" Portal Gear Lift Includes: | ||
|---|---|---|
| (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings | ||
| (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs | ||
| (4) Specialized steel alloy backing plates | ||
| (4) Steel caliper mounting plates | ||
| (4) Caliper mounting plate shims | ||
| (2) Steel steering arms | ||
| Extended brake lines | ||
| All required hardware, including recessed castle nut socket | ||
| Yamaha Wolverine X2 Max Tire Size | ||
|---|---|---|
| Tire Size | Required Suspension Setup with 4" Portals | |
| Up to 28" | Stock | |
| Yamaha Wolverine X4 Max Tire Size | ||
|---|---|---|
| Tire Size | Required Suspension Setup with 4" Portals | |
| Up to 28" | Stock | |
| Up to 28" | 2" Lift Kit | |
| 29.5" | 2" Lift Kit and removing inner wheel well guard | |
| If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator. | ||
| Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used. | ||
Patent # 11,299,042
Patent # 11,318,787
WARNING: This product can impact machine operation. Customer and/or user is responsible for ensuring that this product is compatible with their machine as currently configured, properly installed, and understands any impact this product has or might have on the machine's operation.
California Proposition 65 Warning
WARNING: This product may contain a chemical known to the State of California to cause cancer or birth defects or other reproductive harm.
Features
- Available with billet or cast aluminum housing
- Dual idler gear configuration maximizes strength
- Cool, quiet, precision ground gears made from 9310 alloy billet steel
- Increases width by 4 in. per side (8 in. total)
- 1.5 in. diameter 4340 hardened steel drive shaft
- No leak bearings and seals
- Universal hub fits all major bolt patterns
- Gear reduction reduces stress on your drivetrain
- Dual idler gear configuration adds a 1" offset
- Lighter than the competition
Fitment
- Yamaha Wolverine X2 : 2019+
- Yamaha Wolverine X4 : 2018+
- 14" or larger wheel required
- Wheels cannot exceed 5" backspacing
- If using factory 14" wheels, you must run 1" wheel spacers
- Not compatible with dual beadlock wheels
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
