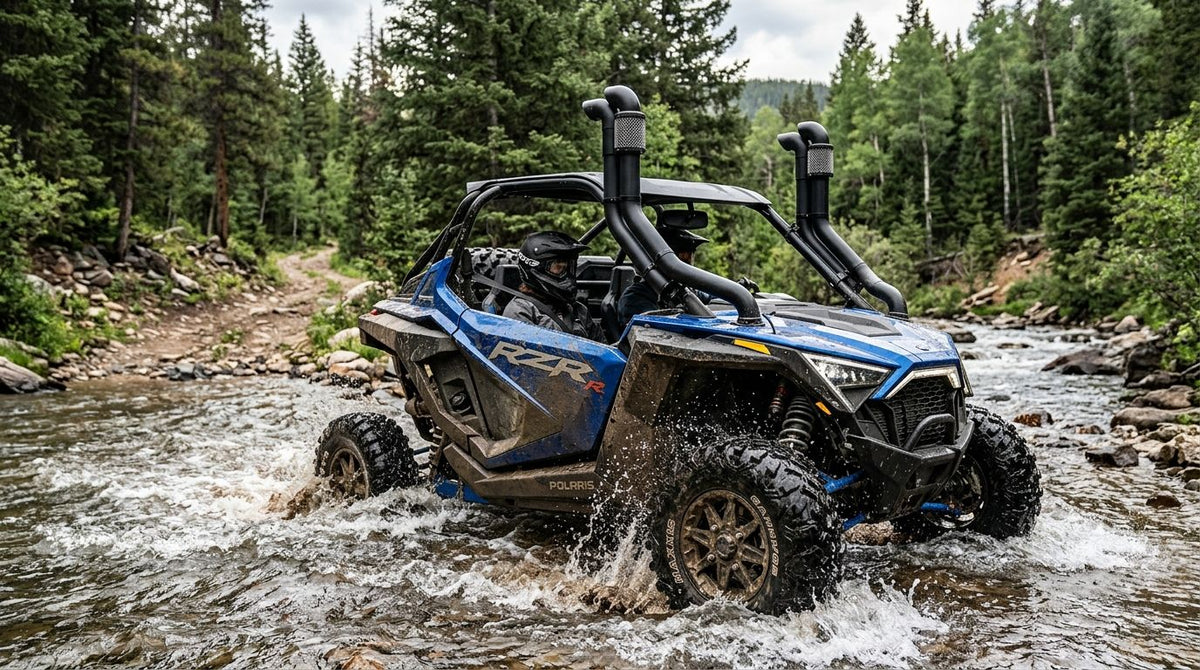

A snorkel kit for UTV water crossing protection reroutes your engine's air intake and CVT housing vents above the waterline, so a river crossing or flooded wash doesn't end with a hydrolocked motor. This guide is built for riders who cross water on purpose — dune runners hitting flooded washes, mud-trail riders working sendero routes, and hunters fording creek beds to reach a stand — not the weekend driver who never leaves dry desert loops.
- A snorkel kit for UTV water crossing raises intake and CVT vents above the waterline — skip it if you never cross water past your door sills.
- Hydrolock comes from water pulled into the engine through the intake, not water splashing into the cabin.
- CVT housing vents fail more often than the visible snorkel tube itself; reroute both or the kit is half-finished.
- Skid plates and sealed axle boots matter as much as the snorkel once crossings get deeper than a few inches.
Why snorkel kits matter for water-crossing riders
Stock UTV air intakes and CVT vents sit low and open, which is fine for dust and mud but a liability the moment you're pushing through a flooded trail section. Water doesn't need to reach the cabin to kill the engine — it just needs to reach the intake tract or the CVT housing, and a hydrolocked motor or a glazed, water-soaked drive belt can end a ride miles from the truck.
Riders who stick to dunes and dry desert rarely need this. Riders who run mud trails, creek crossings, or coastal routes in Polaris RZR, Can-Am Maverick X3, or Kawasaki KRX platforms deal with standing water often enough that a rock slider setup and a snorkel kit go hand in hand — one protects the underbody from submerged rocks, the other protects the motor from the water itself.
Step 1: Assess your typical crossing depth
Before you buy anything, know what you're actually crossing. A snorkel kit is overkill for puddles; it's mandatory for anything deeper than your door sills.
- Measure or estimate the depth of your regular crossing points at the deepest part of the season
- Note whether crossings are moving water (rivers, flooded washes) or standing water (mud holes, ruts)
- Check where your factory air intake and CVT inlet sit relative to that depth
- Flag any crossing that requires you to slow to a crawl — that's where hydrolock risk climbs
Step 2: Identify every vent point, not just the intake
Most riders think snorkel means one tube to the airbox. The engine intake is one vent — the CVT housing, differential breathers, and transmission vent are others, and any one of them can pull in water.
- Locate the factory CVT intake and exhaust vents on the housing
- Trace the differential and transmission breather lines
- Check for any open crankcase vent routed low on the frame
- Mark each point before you start fabricating or installing anything
Step 3: Reroute or extend the CVT housing vents
The CVT belt is usually the first casualty of a bad crossing, not the engine. A wet belt slips and glazes before the motor ever hydrolocks, so this step matters as much as the intake snorkel itself.
- Extend CVT intake and exhaust tubing to a height above your worst-case crossing depth
- Use high-temp tubing rated for the heat coming off the belt housing, not generic hose
- Seal every clamp connection with a hose clamp rated for vibration, not a zip tie
- Route the tubing away from exhaust heat to avoid melting or hardening the material
Step 4: Install the engine intake snorkel
This is the piece most riders picture when they hear snorkel kit for UTV, and it's the step that actually stops water from reaching the cylinders.
- Route intake tubing to the highest practical point on the roll cage or A-pillar
- Use a pre-filter or cap that keeps out rain and splash without choking airflow
- Confirm the new intake path doesn't restrict flow enough to hurt throttle response
- Test-fit before final clamping — vibration will find any weak connection within a season
Step 5: Seal electrical connections and axle boots
A snorkel kit protects the motor, but water finds every other opening on the machine. Axle boots, wiring harness connectors, and battery terminals are common failure points during a deep crossing.
- Check CV boots for cracks before every crossing season
- Dielectric grease on exposed electrical connectors, especially near the CVT and starter
- Confirm battery terminals are tight and free of corrosion
- Route any low-hanging wiring harness sections higher on the frame if they sit below your typical crossing depth
Step 6: Add underbody and door protection
A snorkel kit handles the air path; it does nothing for rocks, logs, or debris hiding under murky water. Skid plates and side protection close that gap.
- Run full underbody skid plating to protect the belly pan and drivetrain from submerged obstacles
- Add hard doors or panels to cut down on water and mud reaching the cabin floor
- Install rubber floor mats rated for water and mud so cabin cleanup isn't a daily chore
- Check that side protection sits low enough to guard rocker panels during a crossing, not just on dry trail
Step 7: Test in shallow water before you commit to a deep crossing
Never debut a new snorkel setup on the deepest crossing of the day. Test it shallow first.
- Run the machine through a controlled, shallow crossing at low speed
- Watch for water intrusion at the intake, CVT vents, and door seals
- Check the CVT belt and oil for any sign of water contamination after the test
- Only move to deeper crossings once the shallow test comes back clean
Step 8: Maintain the setup after every crossing season
A snorkel kit isn't a one-and-done install. Clamps loosen, tubing cracks with UV exposure, and seals age.
- Recheck all tubing clamps and connections before the season starts, not mid-season
- Change engine oil and inspect the CVT belt more often if you cross water regularly in 2026
- Inspect pre-filters and intake caps for cracking from sun exposure
- Replace any CV boot or seal showing wear before it becomes a mid-trail failure
Comparison: snorkel kit options for water-crossing riders
| Option | Best For | Key Limitation |
|---|---|---|
| DIY tubing snorkel to factory airbox | Budget builds, occasional water crossing | Requires fabrication skill; no factory fit guarantee |
| Vehicle-specific bolt-on snorkel kit | Frequent water riders wanting a clean, repeatable install | Fitment is model-specific; doesn't cover CVT vents alone |
| CVT vent relocation only, no intake snorkel | Riders who only hit shallow, brief water | Leaves the engine intake exposed on deeper crossings |
| Full package: snorkel + CVT vent kit + sealed electrical | Mud and water-heavy trail riders, hunters crossing creeks regularly | Longest install time; seals need re-checking every season |
Verdict: the full package wins for anyone crossing water more than a handful of times a season in 2026 — a snorkel tube alone without CVT venting and sealed electrical is an incomplete fix. Buy the full package if water crossings are a regular part of your riding; hold off on anything beyond CVT venting if your crossings stay shallow and rare.
Common mistakes UTV owners make with snorkel kits
- Snorkeling the intake and forgetting the CVT vents — the belt housing floods just as easily as the airbox, and it's usually the first thing to fail
- Using standard hose clamps instead of vibration-rated clamps — trail vibration works connections loose over a season, and a loose clamp defeats the whole kit
- Skipping the shallow-water test — riders find out their seals leak on the deepest crossing of the trip instead of on a controlled test run
- Ignoring axle boots and electrical connections — a perfect snorkel install still leaves the machine vulnerable if CV boots are cracked or connectors are exposed
- Treating the kit as permanent — UV-cracked tubing and corroded clamps are a maintenance item, not a one-time install
FAQ
What does a snorkel kit for UTV actually do?
It reroutes the engine's air intake and, on a complete setup, the CVT housing vents to a point above the waterline so water can't be pulled into the motor or belt housing during a deep crossing.
Do I need a snorkel kit if I only ride dunes?
No. Snorkel kits address water crossing risk specifically, and dune riding rarely involves standing or moving water deep enough to reach the intake or CVT vents.
How deep can a UTV cross water without a snorkel kit?
Most stock machines handle a brief pass through water up to roughly door-sill height. Anything deeper, or any crossing done regularly, raises real hydrolock and CVT flooding risk without a rerouted intake.
Is a snorkel kit the same as a CVT vent kit?
No. A snorkel kit typically refers to the engine intake reroute, while a full water-crossing setup also reroutes the CVT intake and exhaust vents separately, since the belt housing floods independently of the engine.
Can I build a snorkel kit myself instead of buying one?
Yes, a DIY tubing setup routed to the factory airbox works for occasional crossings, but it takes fabrication skill and doesn't come with the guaranteed fit of a vehicle-specific kit.
What fails first in a bad water crossing, the engine or the CVT belt?
The CVT belt usually fails first. A wet belt slips and glazes on the pulleys before the engine itself hydrolocks, which is why CVT vent routing matters as much as the intake snorkel.
Does a snorkel kit protect against mud, or only water?
A snorkel kit is built for water intrusion specifically. Mud protection for the underbody and drivetrain comes from skid plates and sealed housings, not the intake routing.
How often should I inspect a snorkel kit installation?
Check clamps, tubing, and pre-filters at the start of each crossing season in 2026, and again mid-season if you cross water weekly. UV exposure and trail vibration are the two most common failure causes.
One last thing
The engine rarely dies first in a bad water crossing — the CVT belt does. A belt that gets wet slips and glazes on the pulleys within seconds, which means a snorkel setup that ignores CVT venting is solving half the problem in 2026, no matter how clean the intake tube looks.
