4 Link Rod End Kit - 7/8" Chromoly Heim - 1.75" OD Tubing

50 Caliber Racing 4 Link Rod End Fab Kit - 7/8-14 x 7/8" Bore Chromoly Heims & Bungs for 1.75" OD Tubing, .120 or .250 Wall

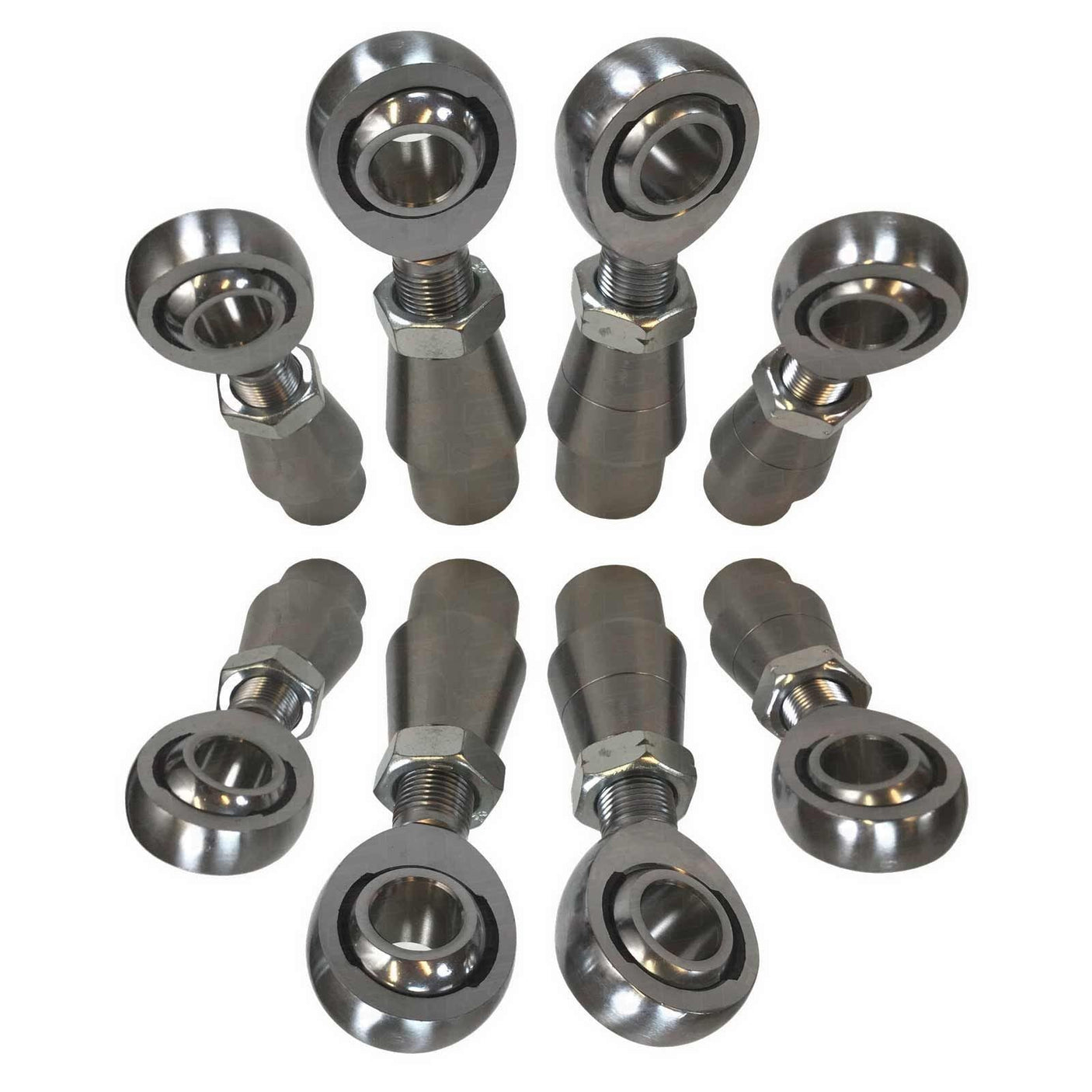

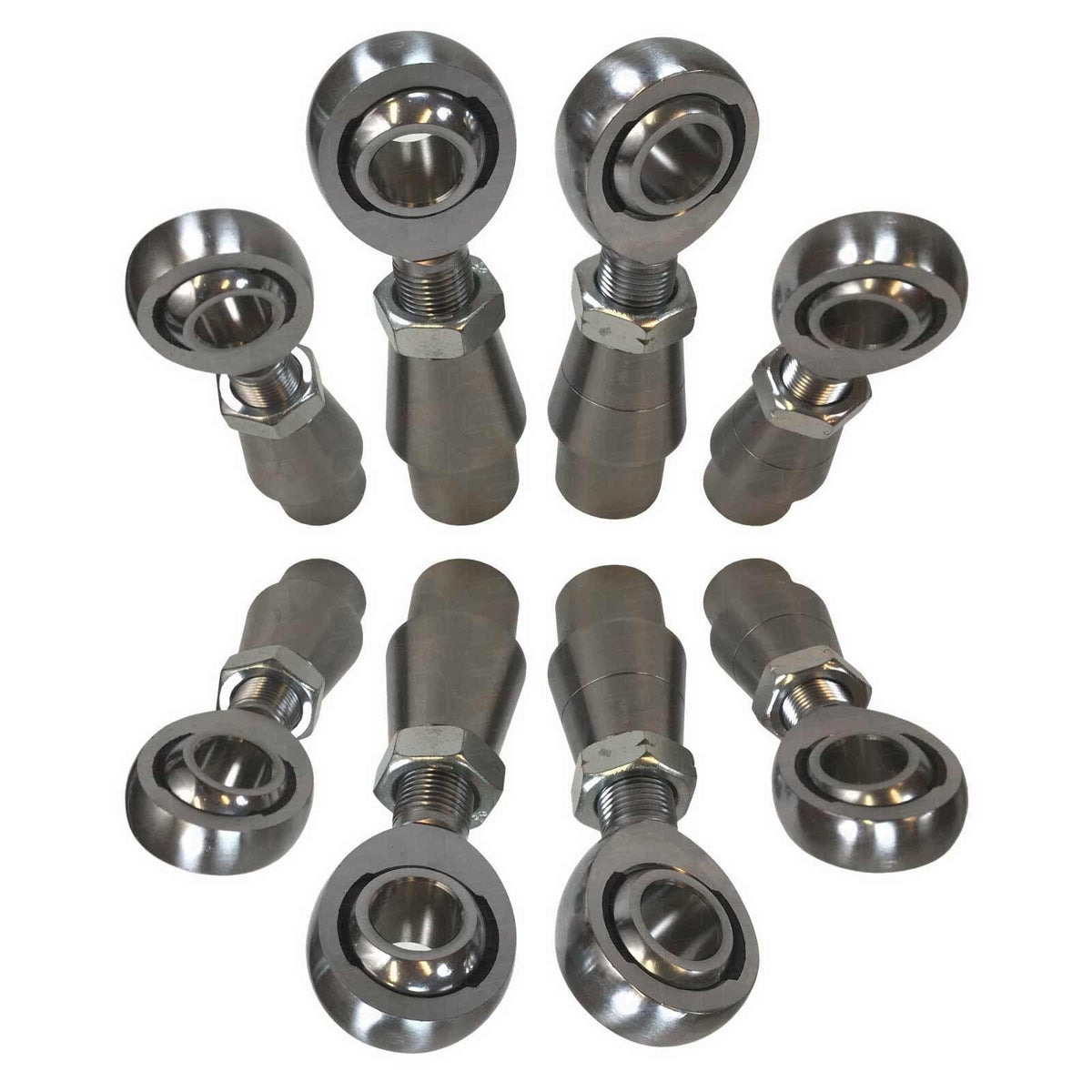

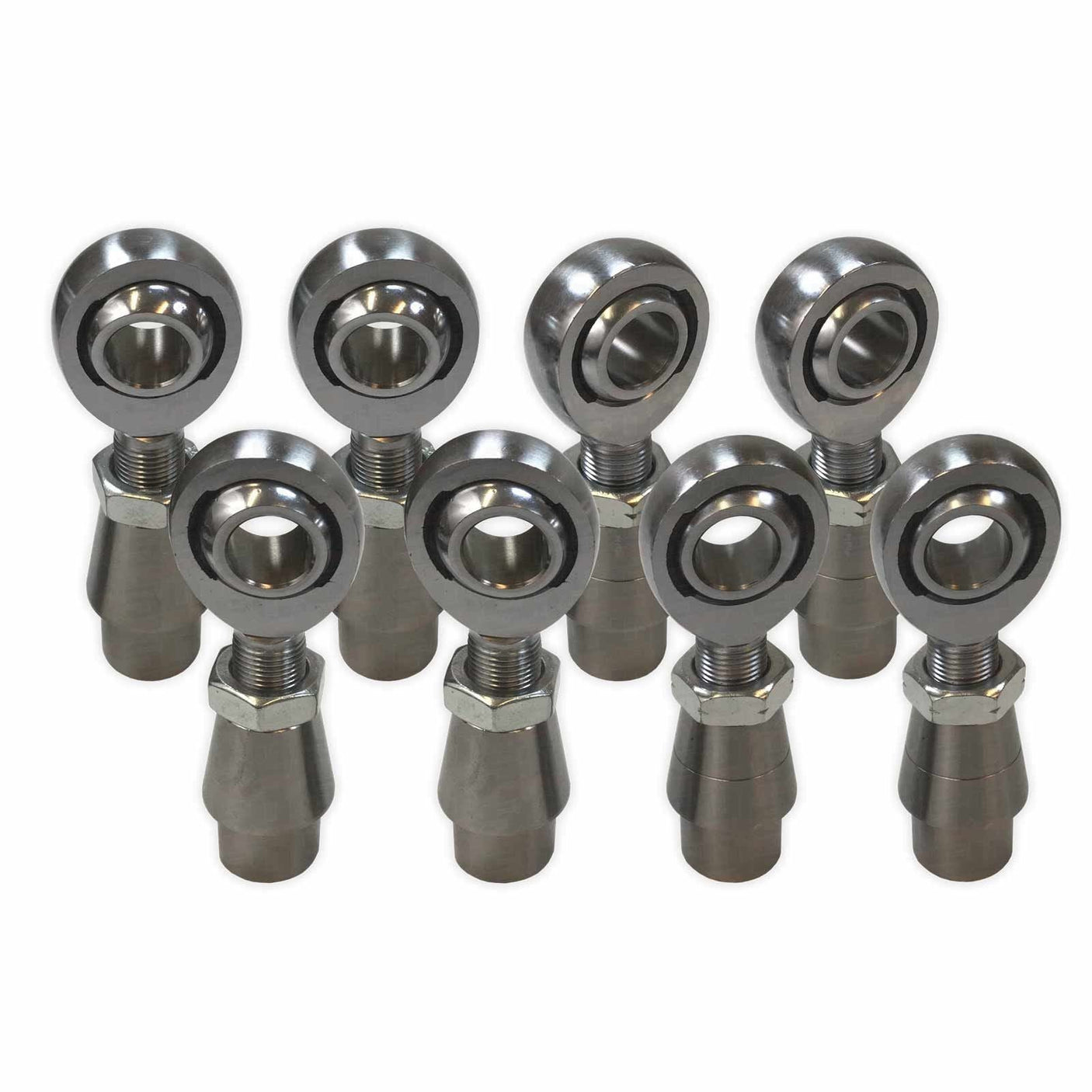

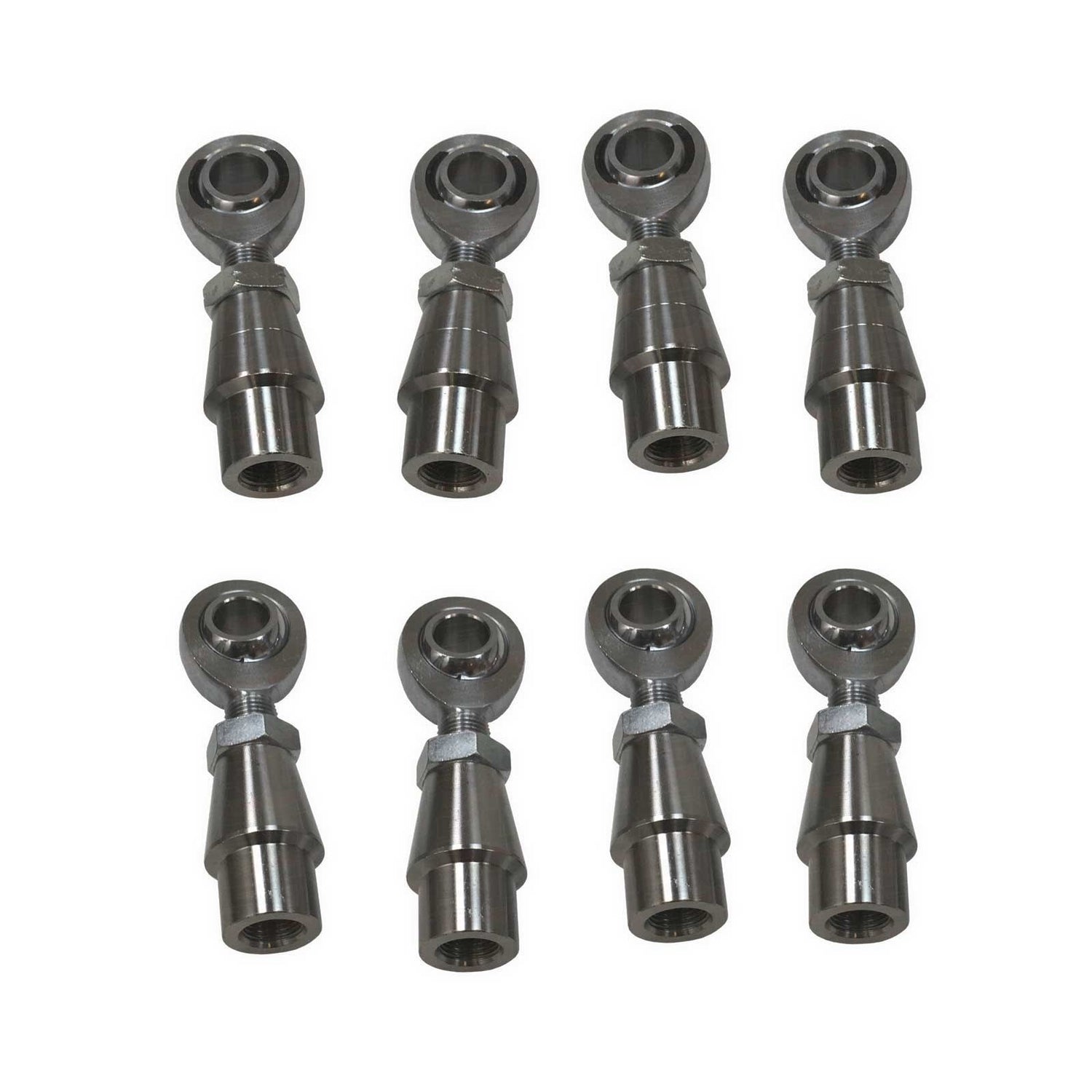

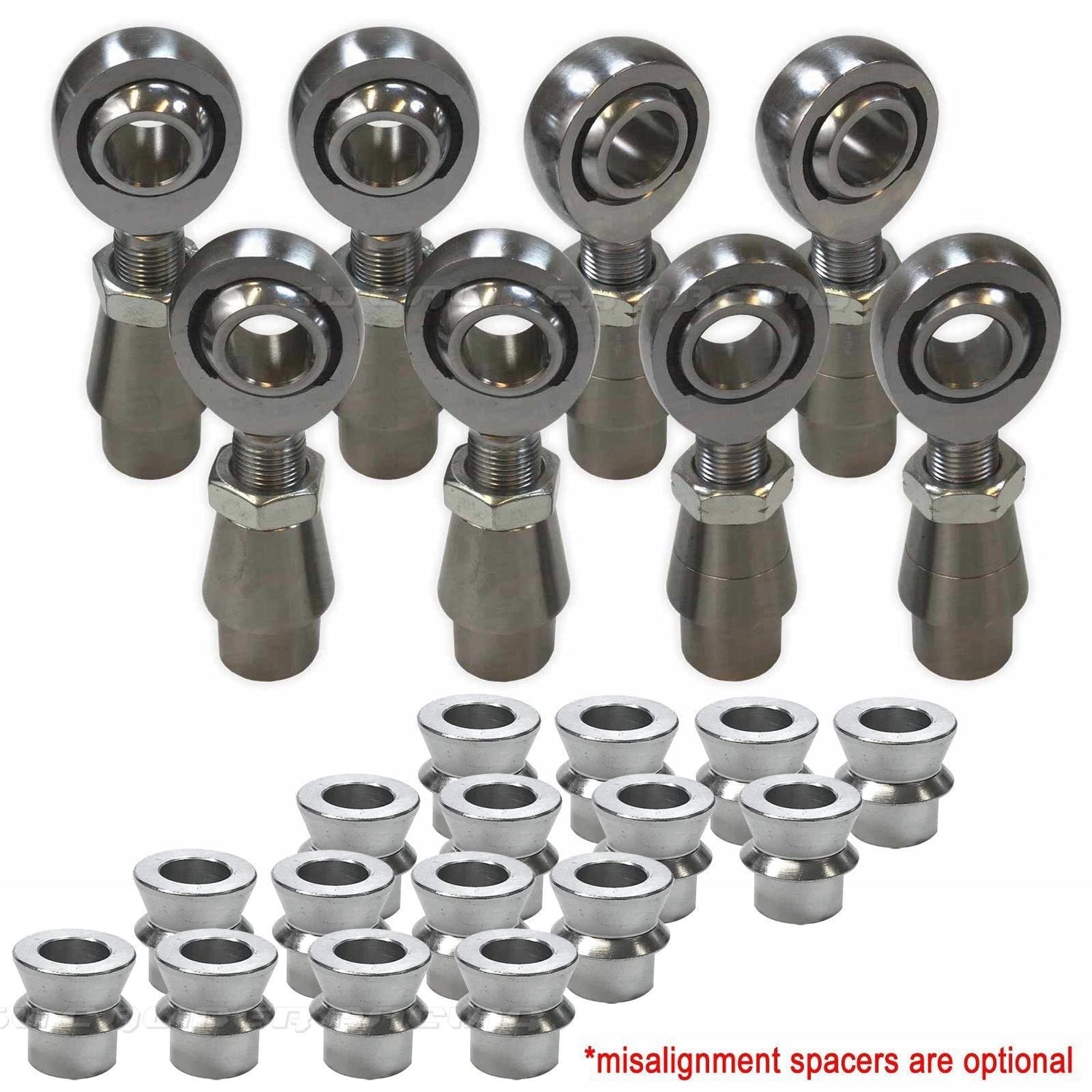

Rod end fabrication kit complete with 7/8" thread x 7/8" bore chromoly heim joints, jam nuts, and chromoly weld in bungs (tube adapter). Designed to fit 1.75" OD tubing, with wall thickness of .120 or .250. Heim joints are made from 4130 Chromoly steel, with a nylon / teflon PTFE liner. The load rating and size make these excellent for building custom sway bar links, tie rods and radius arms for cars, trucks, sand rails and more.  Includes 8 heim joints (4 left, 4 right), jam nuts, and matching bungs. Available with or without high misalignment spacers.

Includes:
- (4) 7/8-14 x 7/8" bore Heims - RH Thread
- (4) 7/8-14 x 7/8" bore Heims - LH Thread
- (4) RH Jam Nuts
- (4) LH Jam Nuts
- (4) RH Weld in Bungs (tubing adapter)
- (4) LH Weld in Bungs (tubing adapter)
Optional:

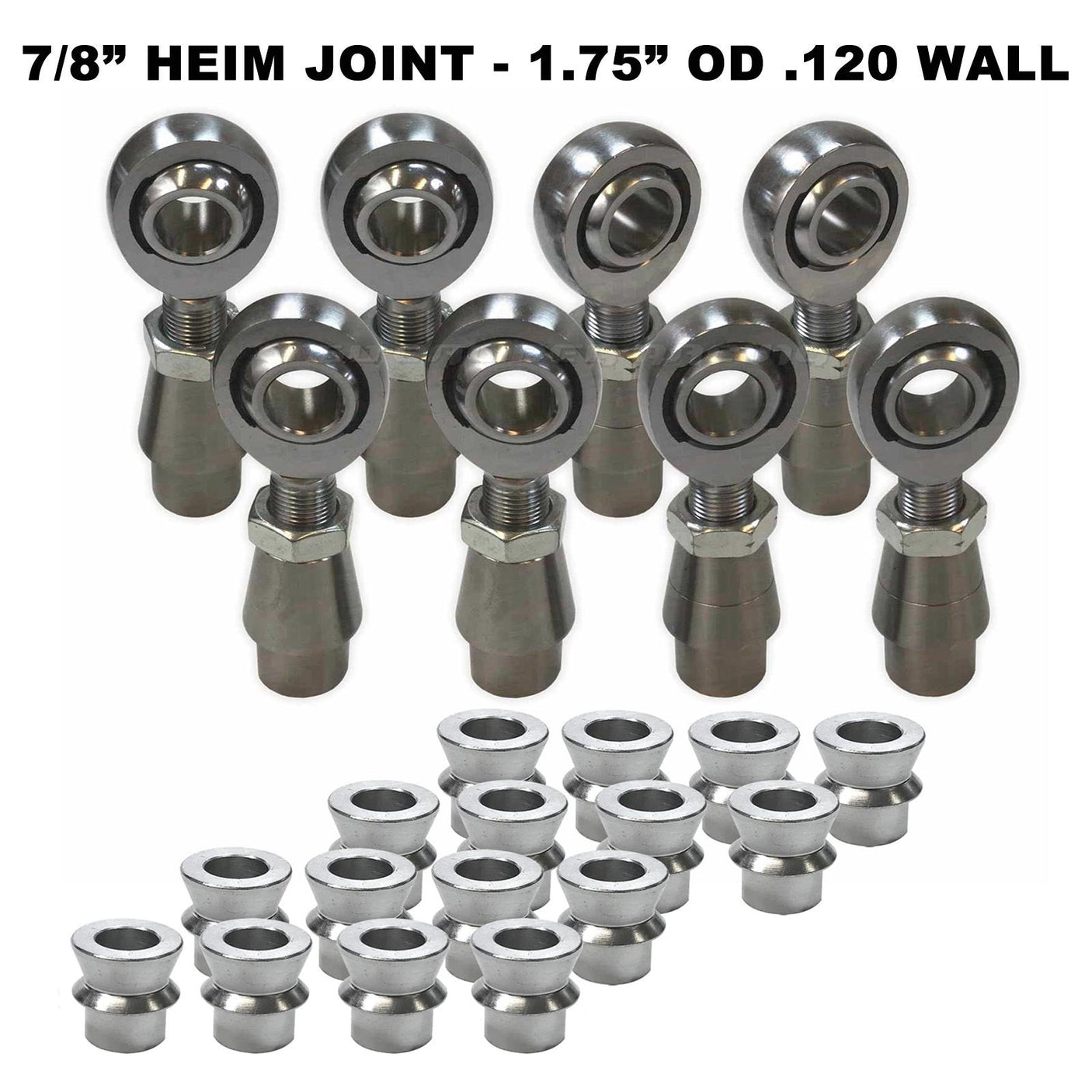

- (16) Misalignment spacers

Specifications:

Heim Joints:
- 4130 Chromoly Steel, Nylon / Teflon (PTFE) Liner
- 52100 hardened bearing steel ball
- Static radial load rating: 45,051 lb
- Thread pitch: 7/8"-14
- Thread length: 2.00"
- Bore: 7/8"
- Socket end diameter: 2.00"
- Socket width: .765"
- Ball width: .875"
- Center line length: 3.375"

Bung:
- Thread: Female 7/8"-14
- Material: Chromoly Steel
- Thread Length: Full length
- Choose from 2 different tube sizes:

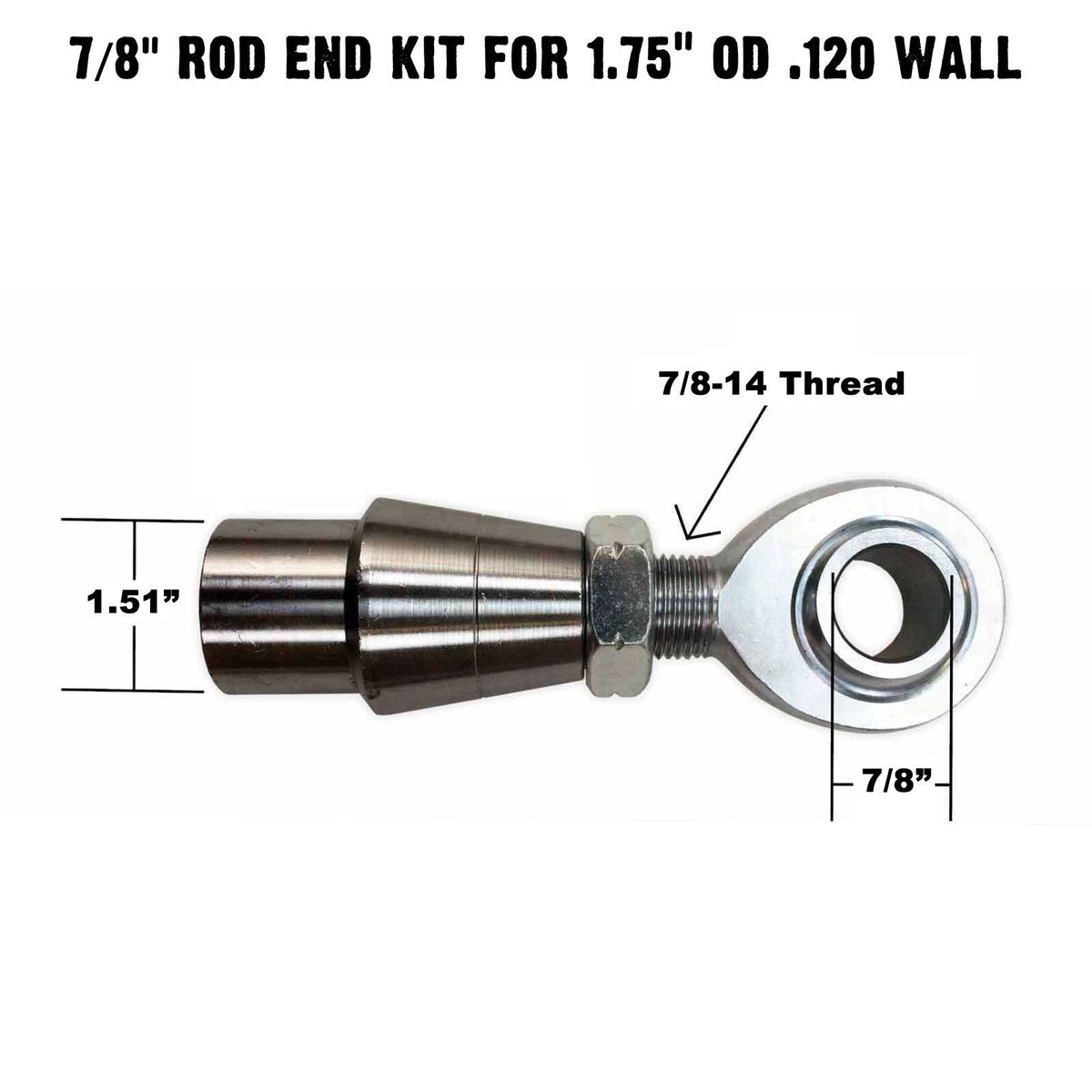

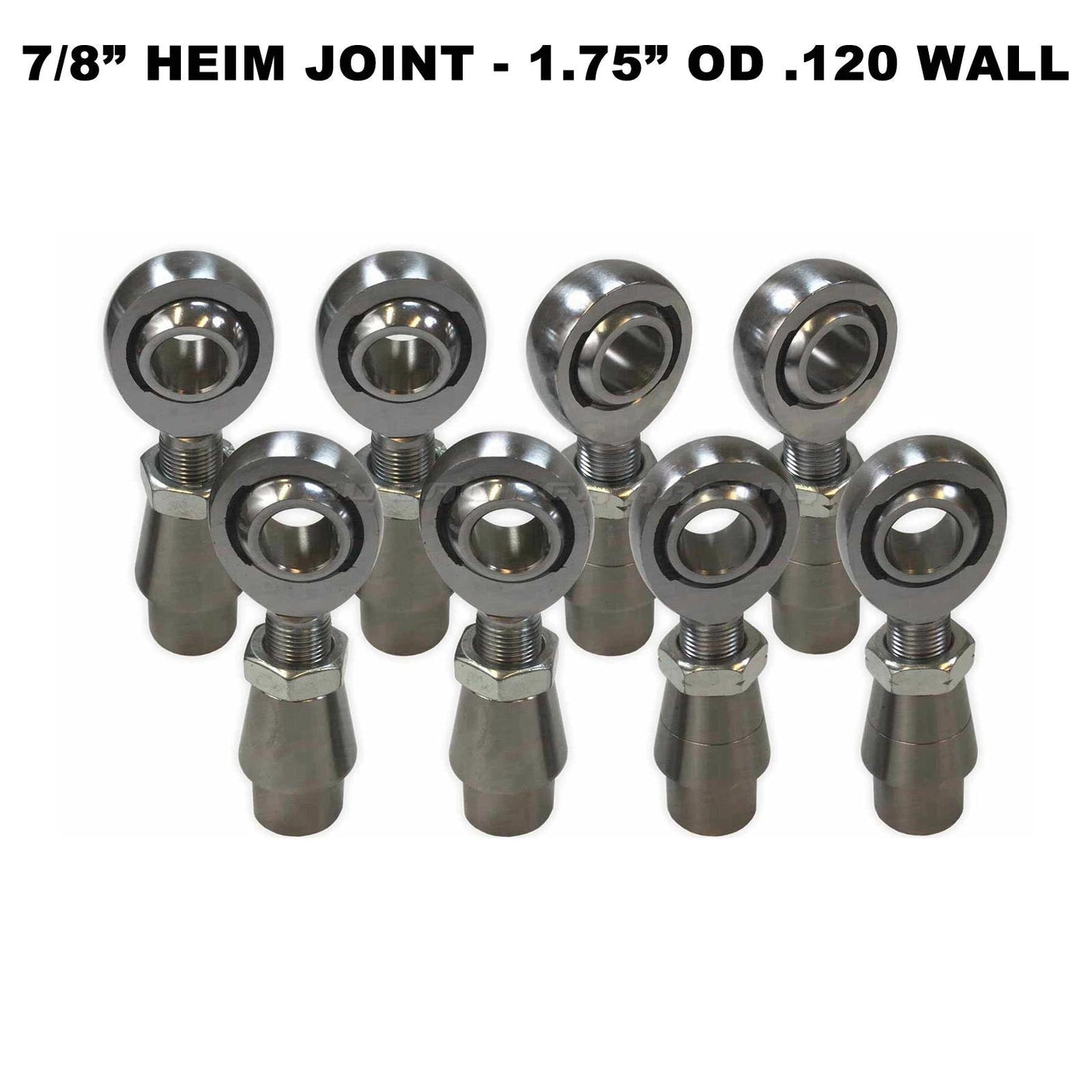

    1.75" OD. x .120 Wall x 1.51" ID

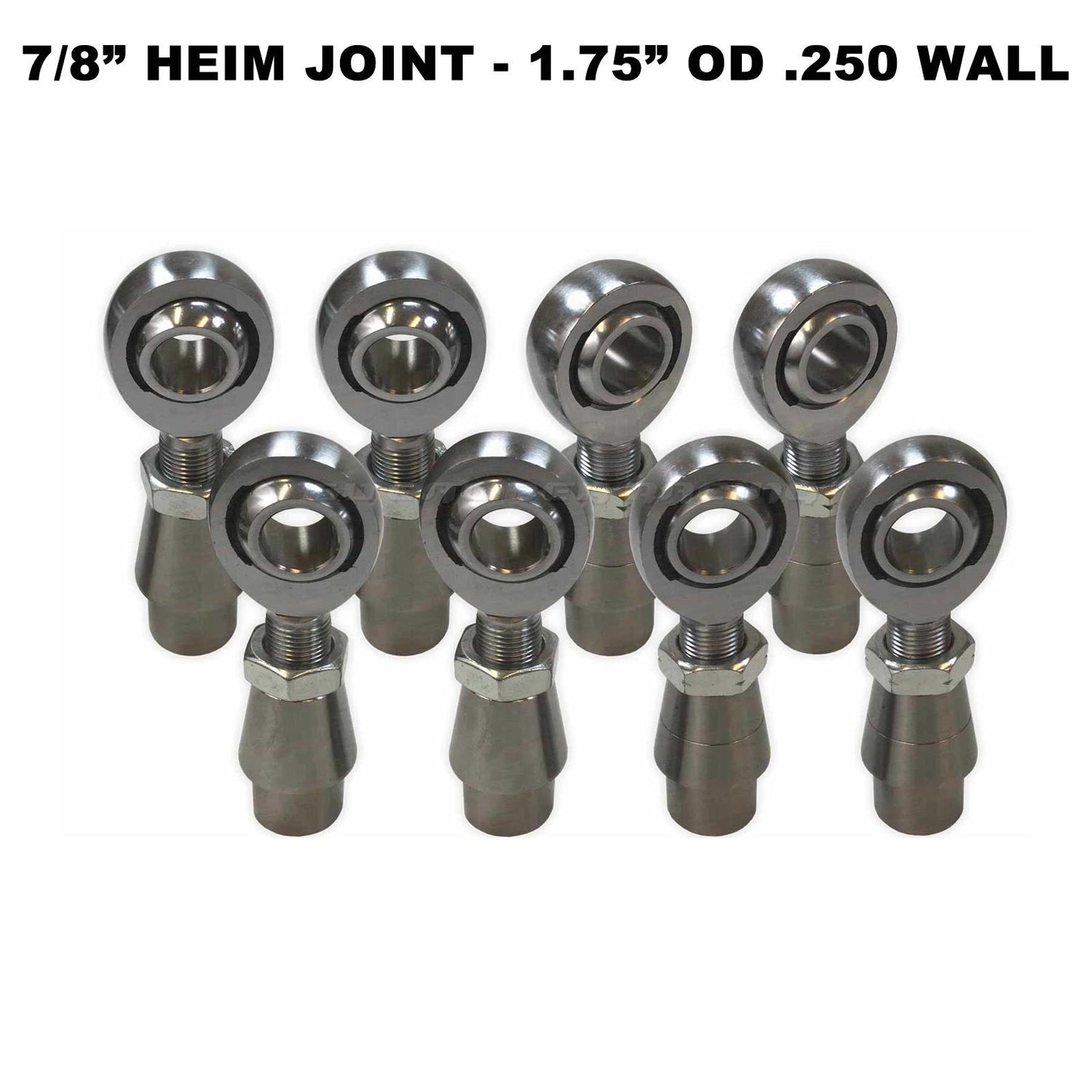

    1.75" OD x .250 Wall x 1.25" ID

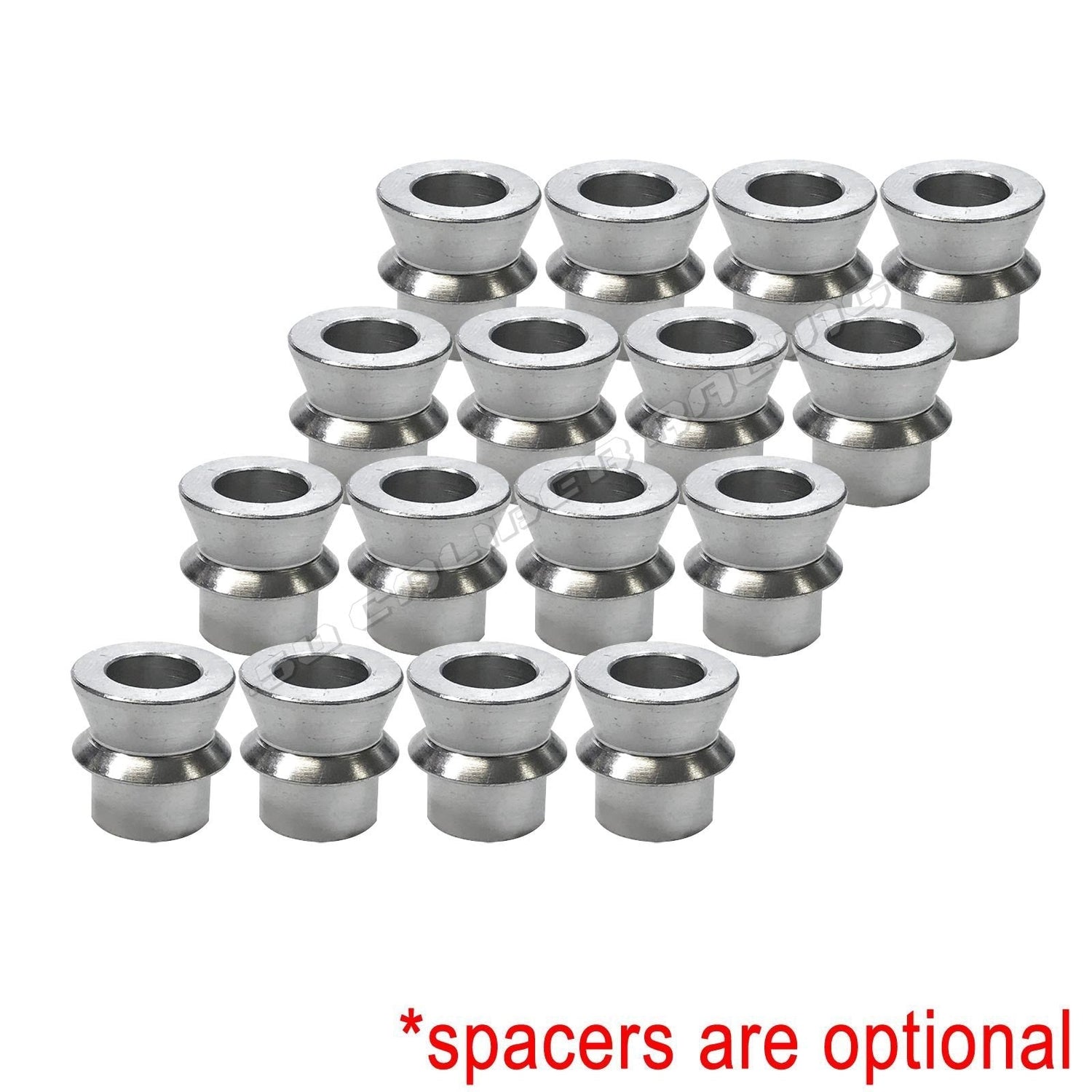

High Misalignment Spacers (optional)
- Material: Chromoly Steel
- Surface finish: Zinc plated
- .750" ID x .869" OD x .926" W
- Compatible with 3/4" bolt size

Perfect for fabricating custom suspension and steering linkage on your 4x4, rock crawler, sand rail, hot rod, race care, Jeep and more!

- 3 and 4 Link Radius Rods
- Watts Links
- Tie rods
- Control arms
- Sway bar links
- Panhard bar / trackbar
- Hi Steer
- Custom Mounts
