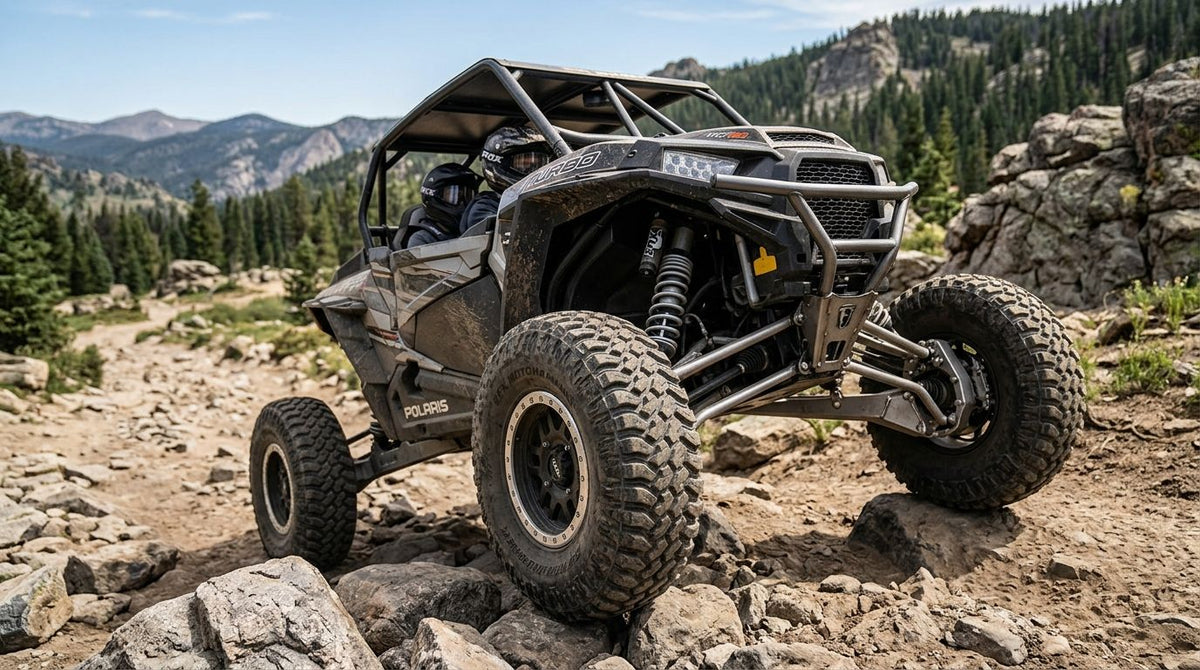

Polaris RZR portal gear lifts move the axle centerline up instead of just stretching springs, adding 3 to 6 inches of real ground clearance for Turbo R, Pro R, and XP 1000 builds running 32-inch-plus tires. Rock crawlers and dune racers ask different things of a lift than a trail rider does, and that difference decides which portal setup — or whether a portal at all — is the right call for 2026.
- Portal gear lifts for Polaris RZR builds add 3-6 inches of real ground clearance, not just ride height.
- Match the kit to your exact RZR trim and year — Turbo R and Pro R spline counts differ.
- Budget for CV axles, driveshafts, and a tender spring kit alongside the portal box itself.
- Skip portals if you only need 1.5-2 inches — high-clearance A-arms cost less and skip the gear ratio change.
- R1 Industries stocks the tender spring kits and suspension hardware that support a portal build.
Why this matters
A stock RZR Turbo R or Pro R clears rocks fine on a groomed trail. Put 34s on it and start crawling ledges, and the diff housing becomes the first thing to hit — not the skid plate, not the A-arm. Spring lifts and forward-offset A-arms buy you geometry, not axle height, and they run out of room fast once tire size grows past what the stock knuckle was designed around.
This portal gear lift guide covers the mechanical tradeoffs in more depth, but the short version for RZR owners in 2026: portals solve a clearance problem suspension parts alone can't, at the cost of a heavier build and a driveline that now needs matching upgrades.
Measure your current ground clearance and find the pinch points
Don't guess at what a portal lift needs to clear. Get under the RZR and find the actual failure points before spending a dollar.
- Tape-measure diff housing height at ride height and again at full droop
- Mark where the skid plate or belly pan currently scrapes on rocks and whoops
- Check CV boot angle at full droop — a maxed-out boot tears before anything else does
- Log current tire diameter against fender well clearance
- Note whether the front or rear end runs out of clearance first on your terrain
Match the portal lift to your RZR trim and model year
RZR portal kits are not universal. Spline count, hub bolt pattern, and knuckle mounting differ between Turbo R, Pro R, and the older XP 1000 platform.
- Confirm front and rear diff spline count matches the kit's listed fitment
- Check whether the kit requires stock A-arms or a specific high-clearance pairing
- Cross-reference brake caliper clearance — portal hubs push the wheel outboard
- Verify the kit lists your exact model year, since Pro R and Turbo R geometry changed across build years
- Confirm whether the kit is designed around stock or aftermarket radius rods
Reinforce suspension geometry before bolting on a portal box
A portal box adds unsprung weight and leverage at the wheel end. Stock A-arms, ball joints, and radius rods were not engineered for that load, and this is where most builds crack a part inside the first season.
- Upgrade to billet or forged knuckles rated for the added leverage
- Swap to a high-clearance radius rod set built for the same trim
- Replace stock ball joints with a rebuildable, heavier-duty design
- Add a bolt kit rated to the higher torque loads a lifted RZR sees on rock
Budget for the drivetrain changes the added leverage creates
The portal box itself is rarely the full bill. Extra leverage on axles and driveshafts is what actually breaks parts on 2026 builds that skip this step.
- Spec CV axles rated for the added length and operating angle a portal creates
- Check driveshaft U-joint angle at full articulation — portals push it toward the limit
- Plan a clutch or gearing retune if the portal's internal reduction changes final drive ratio
- Add wheel spacers only if the portal hub pushes wheel offset past caliper clearance
Retune ride quality with a tender spring kit
Portal boxes add weight at the wheel end, and that shifts sag and ride height even if your springs are otherwise fine. Skipping this step is why lifted RZRs nose-dive under braking.
- Reset front sag numbers after the added unsprung weight
- Match spring rate to the new sprung-to-unsprung ratio, not the stock chart
- Re-check low-speed compression damping — a heavier wheel end needs more control
- Confirm ride height is even side to side after the swap
The RZR 1000 XP tender spring swap kit is built for exactly this kind of ride-height correction on 1000 XP-based platforms.
Upgrade tires to actually use the new clearance
A portal lift without a tire upgrade is wasted clearance. Pick tires rated for the terrain you ride, not the biggest diameter that fits.
- Size tires to the portal kit's rated maximum, not fender clearance alone
- Choose a medium-hard terrain tread if your riding mixes rock and hardpack
- Confirm bead retention if you air down for dune or sand runs
- Re-torque wheel lugs after the first ride on the new tire and wheel combo
The Tusk Terrabite radial tire is a common pairing for RZR builds running mixed rock-and-trail terrain after a lift.
Verify torque specs and inspect after the first 100 miles
A lifted RZR exposes lines and hoses that used to sit higher and safer. Treat the first 100 miles after install as an inspection window, not a victory lap.
- Torque every portal, knuckle, and radius rod bolt to the kit spec sheet, not "close enough"
- Re-check toe alignment before the first hard drive
- Inspect U-joints and CV boots after the first rock crawling or dune trip
- Re-torque wheel lugs again after 20-30 miles of break-in
Comparison: clearance options for Polaris RZR builds
| Option | Best for | Key limitation | Verdict |
|---|---|---|---|
| Full portal gear lift kit | Turbo R and Pro R owners running 34-inch-plus tires on rock and dune | Needs matching CV axles, driveshaft, often a clutch retune | Buy |
| High-clearance forward-offset A-arms | Owners wanting 1.5-2 inches without a gear ratio change | Caps out well short of true portal clearance | Hold |
| Wheel spacers plus larger tires | Budget clearance bump on a stock or lightly built RZR | Adds scrub radius stress on bearings and ball joints | Skip for rock crawling |
| Tender spring kit alone | Correcting sag and ride height after adding weight | Adds no clearance under the differentials | Hold — pair it, don't substitute |
A portal gear lift is the right call when the diff housing is the first thing hitting rock, not the A-arms. If your clearance problem is geometry rather than axle height, the A-arm route is cheaper and simpler for a 2026 build.
“If the diff housing hits before the skid plate does, no spring kit on earth fixes it.”
Common mistakes RZR owners make
- Buying a "universal" portal kit that doesn't match Turbo R versus Pro R spline count
- Skipping the CV axle and driveshaft upgrade, then snapping axles under the added leverage
- Ignoring ride-height correction after the portal box shifts weight to the wheel ends
- Running stock radius rods and ball joints past their rated flex angle post-lift
- Forgetting to re-torque and inspect U-joints after the first hard rock or dune trip
FAQ
What's the best portal gear lift for a Polaris RZR?
The right portal gear lift depends on your exact RZR trim and year, because Turbo R, Pro R, and XP 1000 use different spline counts and hub patterns. Fitment matters more than brand here — confirm your model year first.
How much ground clearance do portal gear lifts add?
Portal gear lifts typically add 3 to 6 inches of real ground clearance on a Polaris RZR because they raise the axle centerline rather than just ride height. That is well beyond what forward-offset A-arms deliver alone.
Do portal gear lifts change my RZR's gearing or top speed?
Yes. The internal gear reduction inside a portal box changes your effective final drive ratio, so most 2026 builds need a clutch or gearing retune to keep throttle response close to stock.
Are portal gear lifts better than high-clearance A-arms for a RZR?
Portal lifts add more clearance, but A-arms cost less and require no driveline retune. Choose A-arms if you need 1.5-2 inches; choose a portal lift when the diff housing itself is striking terrain.
Do I need new CV axles after installing a portal lift?
In most cases yes. Portal lifts change axle length and operating angle enough that stock CV axles run outside their rated range, which is why axle upgrades belong in the same budget as the kit.
How much does a portal gear lift cost for a RZR?
Cost varies by kit and fitment, and the portal box is only part of it — axles, driveshafts, and hardware add to the total. Check current listings for exact pricing on your trim.
Is a portal gear lift worth it for dune riding or rock crawling?
Rock crawlers get the most value because axle-height clearance directly prevents diff strikes. Dune riders usually gain more from tire size and suspension travel than from a portal box.
One last thing
The part of a portal build that catches RZR owners off guard in 2026 isn't the box — it's the gear ratio shift inside it. Bigger tires plus portal gearing stack up, and throttle response feels sluggish until the clutch or primary gearing gets retuned. That step gets skipped more than any other on portal gear lifts for Polaris RZR builds.
