Portal gear lifts change your UTV's ground clearance by moving the axle centerline up through a gear reduction hub, not by stretching your shocks — and picking the right one comes down to matching gear ratio, tire size, and axle strength to how you actually ride.
- Portal gear lifts add roughly 3 to 6 inches of clearance by relocating the axle centerline through a hub-mounted gear reduction, not longer shocks.
- Gear ratio changes stress axles and CV joints harder, so heavy duty axles are not optional on a real portal lift build.
- Bolt-on portal hubs suit weekend trail riders; integrated portal boxes suit dedicated dune and rock rigs run hard in 2026.
- Bigger tires paired with a portal lift multiply torque load again, so plan the tire size before you buy the gearbox.
Why portal gear lifts matter
A suspension lift raises your UTV by extending travel. A portal gear lift raises it by relocating where the axle meets the wheel, using a small gearbox at the hub. That distinction matters because it changes torque math at every point in the drivetrain, not just ride height.
Riders searching for portal gear setups in 2026 are usually chasing one of two things: real clearance for 32-inch-plus tires, or a lower center of gravity fix after a lift kit made the rig top-heavy. Both are valid reasons. Neither one forgives skipping the axle and CV upgrade that portal gearing demands.

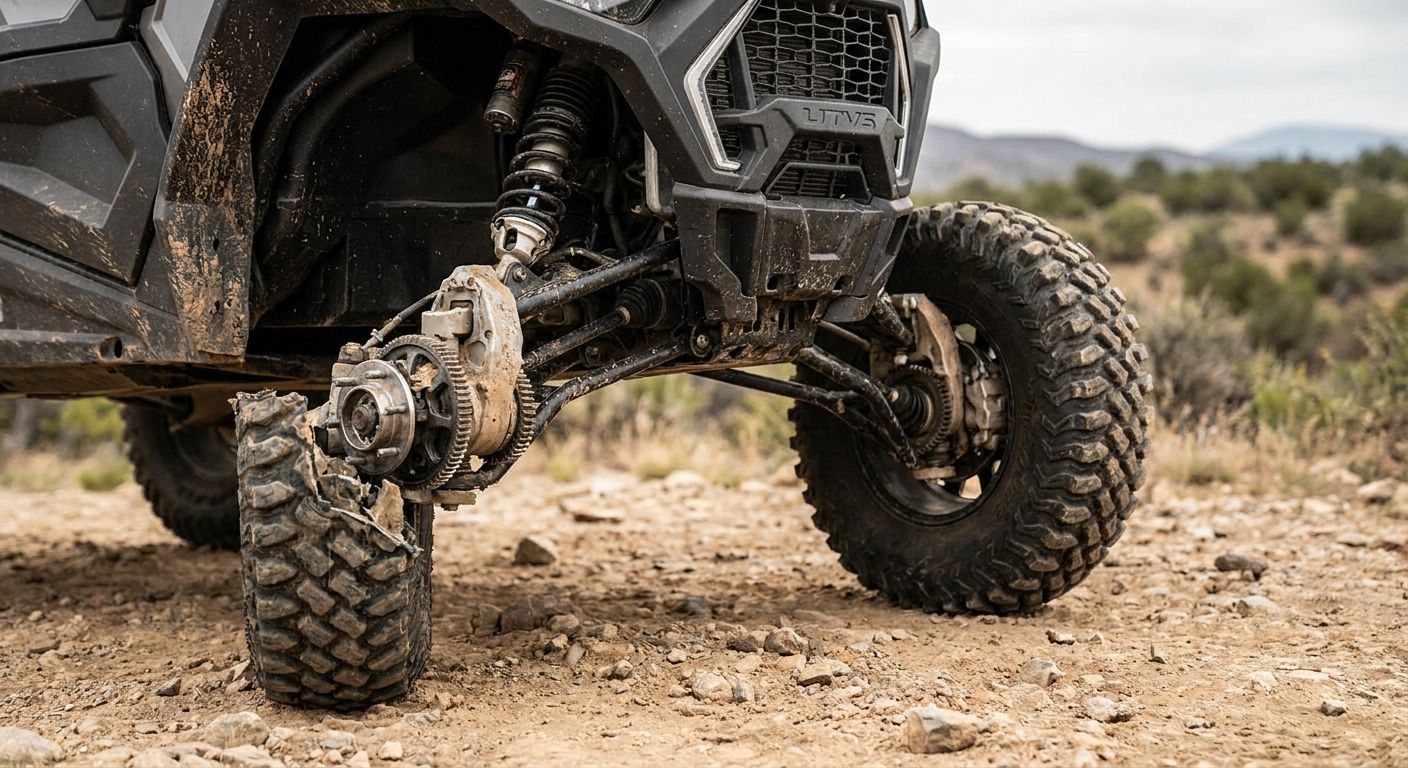

How to choose portal gear lifts for your UTV
Start with three questions before you look at a single part number: how much clearance do you actually need, what tire size are you running or planning, and can your current axles handle the added torque multiplication. A heavy duty axle upgrade belongs in the same cart as any portal gear purchase — treat it as one system, not two separate decisions.
| Factor | Bolt-on portal hub | Integrated portal box |
|---|---|---|
| Typical clearance gain | 3 to 4 inches | 4 to 6 inches |
| Install complexity | Moderate, hub swap | High, often full driveline work |
| Best for | Weekend trail riders adding tire clearance | Dedicated dune and rock builds run hard |
| Axle stress | Elevated | Significantly elevated |
| Verdict | Buy for moderate lifts | Buy for serious builds only |
Bolt-on portal hubs: best for trail riders adding clearance
Bolt-on hubs replace the stock hub assembly with a geared unit, usually without touching the rest of the driveline. Best for riders adding 30 to 32-inch tires who want more clearance without rebuilding the whole front and rear end. Pros: simpler install, lower parts count, easier to service. Cons: less total lift than an integrated box, and you still need axles rated for the added torque. Verdict: Buy if your build stays under 32-inch tires and moderate trail use.
Integrated portal boxes: best for dune and rock-crawler builds
Integrated systems replace more of the axle housing and gearing, often paired with radius rod and A-arm changes to keep geometry correct at the new ride height. Best for riders running 33-inch-plus tires or competing in rock sections where axle articulation and clearance both matter. Pros: bigger clearance gain, better geometry correction at extreme lift heights. Cons: higher labor cost, more points of failure if axles and radius rods aren't upgraded together. Verdict: Buy only if you're also budgeting for billet radius rods and matched axles — a portal box on stock axles is a warranty claim waiting to happen.
“A portal gear box changes the math on every axle behind it, so buy the driveline upgrade at the same time you buy the gearbox.”
Why portal gear lift specs vary
Portal gear pricing and clearance numbers shift more than most UTV parts because the category spans everything from hub-only kits to full driveline conversions. Here's what actually drives the spread:
- Tire size target — bigger tire plans mean bigger gear reduction and higher parts cost
- Axle and CV rating — portal gearing multiplies torque, so undersized axles fail faster and get replaced sooner
- Vehicle platform — RZR, Can-Am X3, and General drivetrains all mount portal gearing differently, which changes labor time
- Geometry correction parts — radius rods, A-arms, and wheel spacers often need to change alongside the gearbox to keep alignment correct
- Ride style — dune running and rock crawling put different load patterns on the same gearbox, which affects service intervals
- Install labor — integrated portal boxes routinely take longer in the bay than bolt-on hub swaps
Related questions about portal gear lifts
Do I need new axles with a portal gear lift?
Yes — a portal gear lift changes torque distribution at the hub, and stock axles are rated for stock gearing, not the reduction ratio a portal box introduces. Pair any portal lift with RZR XP 1000 heavy duty axles or the equivalent for your platform before you put real miles on it.
Will a portal gear lift affect my UTV's top speed?
A portal gear lift can lower top speed because the gear reduction trades speed for torque, similar to running a lower final drive gear. Riders running bigger tires alongside the lift usually see less of a speed penalty because tire diameter partially offsets the reduction.
What tire size works best with a portal gear lift?
Most portal gear lifts are built around 30 to 35-inch tire ranges, with the gearbox sized to match. Going bigger than the kit's rated tire size adds unplanned stress to axles and bearings that the reduction ratio wasn't designed to handle.
Can I install a portal gear lift myself?
Bolt-on portal hubs are within reach for a rider comfortable doing axle and hub work at home in 2026, while integrated portal boxes typically need a lift, alignment tools, and driveline experience. Get a shop quote before committing to a DIY integrated install — the geometry work is where most self-installs go wrong.
R1 Industries stocks the gear cases, oil, and axle hardware that a portal gear build leans on once the gearbox itself is installed, and that's the part riders forget to budget for. A portal gear lift without matched gear oil and a rated differential case is a shortcut to a service bay visit inside the first season.
FAQ
What is a portal gear lift on a UTV?
A portal gear lift is a hub-mounted gearbox that raises ground clearance by relocating the axle centerline, instead of stretching suspension travel like a standard lift kit. It typically adds 3 to 6 inches of clearance depending on whether it's a bolt-on hub or a full integrated box.
How much clearance does a portal gear lift add?
Most portal gear lifts add 3 to 6 inches of ground clearance, with bolt-on hubs on the lower end and integrated portal boxes on the higher end. The exact gain depends on the platform and how much geometry correction the kit includes.
Is a portal gear lift better than a suspension lift kit?
Neither is universally better — a portal gear lift changes axle centerline height and works well for big tire clearance, while a suspension lift kit changes ride height through longer travel and suits riders who don't need the extra torque handling. Riders running 33-inch-plus tires generally get more usable clearance from a portal setup.
Do portal gear lifts hurt fuel economy?
Portal gear lifts can reduce fuel economy slightly because the added gear reduction and rotating mass increase drivetrain load, especially when paired with larger tires. The effect is usually secondary to the bigger factor: tire size and rider habits.
What UTVs commonly get portal gear lifts?
Polaris RZR, Can-Am Maverick X3, and Kawasaki KRX platforms are the most common candidates for portal gear lifts in 2026 because of their aftermarket support and the availability of matched axle and radius rod upgrades. Less popular platforms have fewer kit options and longer install times.
Can I run bigger tires without a portal gear lift?
Yes, up to a point — many riders run 30 to 32-inch tires on standard suspension lifts without a portal gearbox, but clearance and rub become issues past that range on most platforms. A portal system becomes worth considering once tire size pushes toward 33 inches and up.
How often does portal gear oil need to be changed?
Portal gearboxes run gear oil under higher stress than stock differentials, so more frequent checks and changes are standard practice, especially after the first heavy-use season. Following the gearbox manufacturer's service interval matters more than a generic mileage number here.
One last thing
The number riders underestimate most isn't the clearance gain — it's the torque multiplication hitting everything behind the gearbox. A portal gear lift that isn't paired with rated axles, Tusk Terrabite tires sized to the kit, and fresh gear oil is the fastest way to turn a clearance upgrade into a driveline repair bill by mid-2026 trail season.
