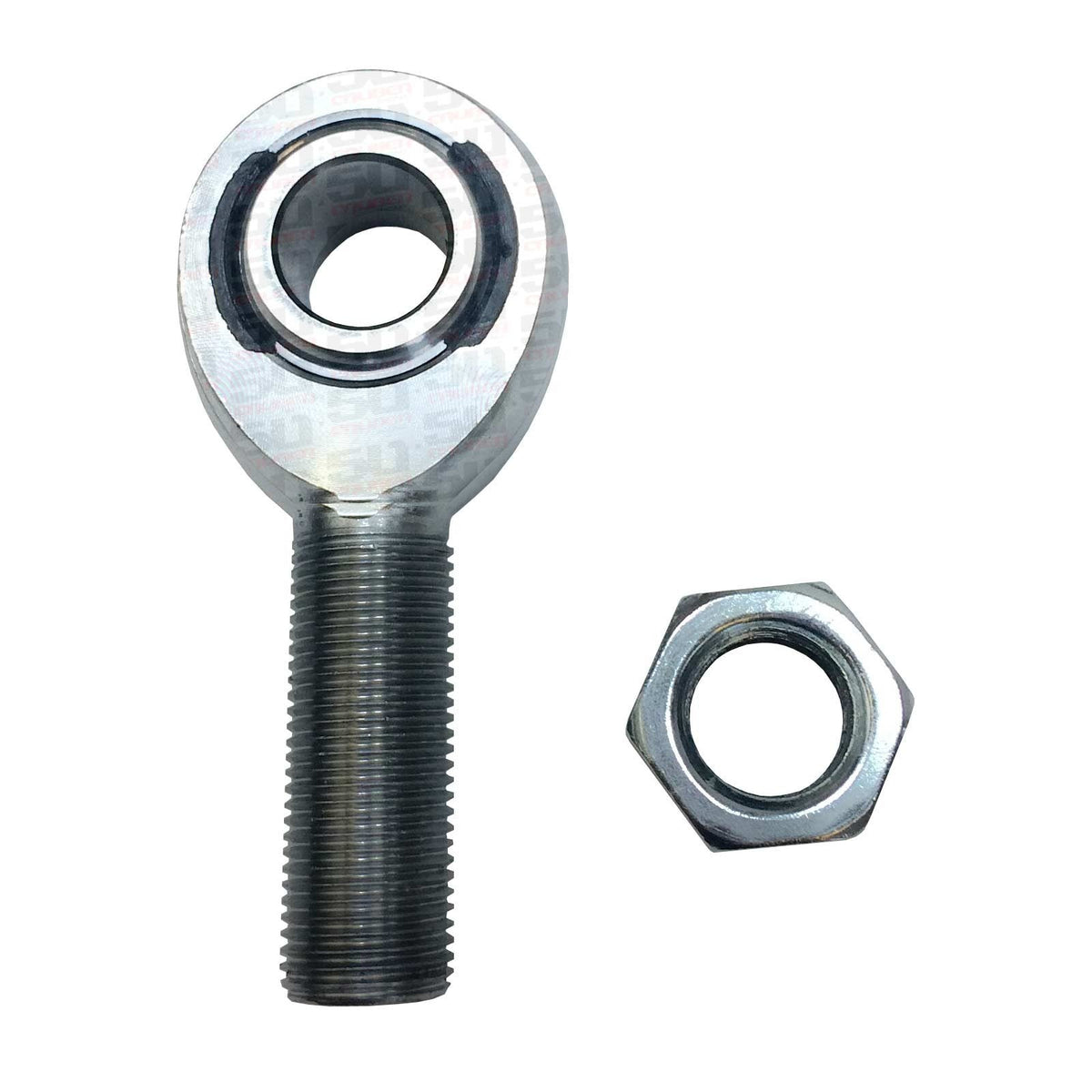

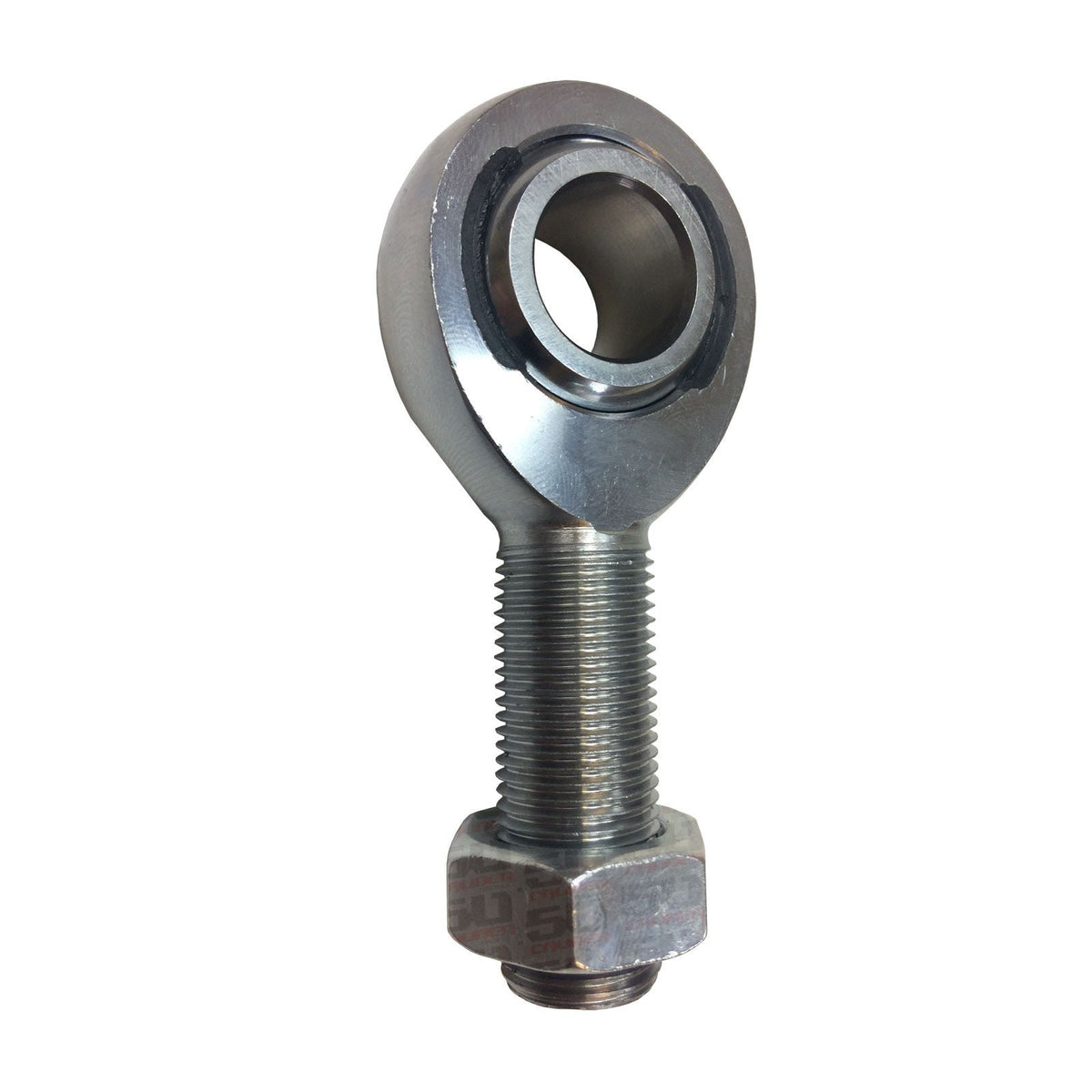

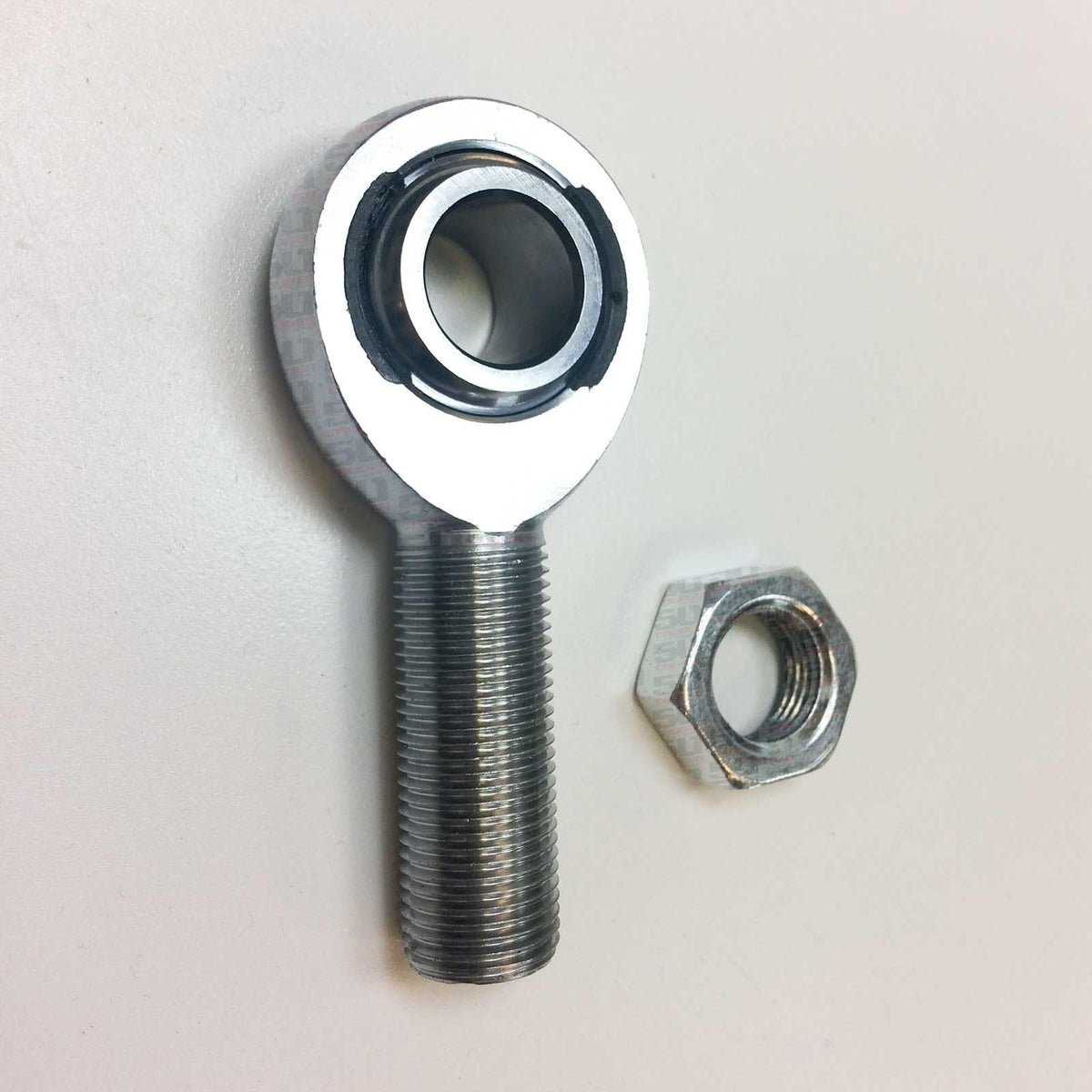

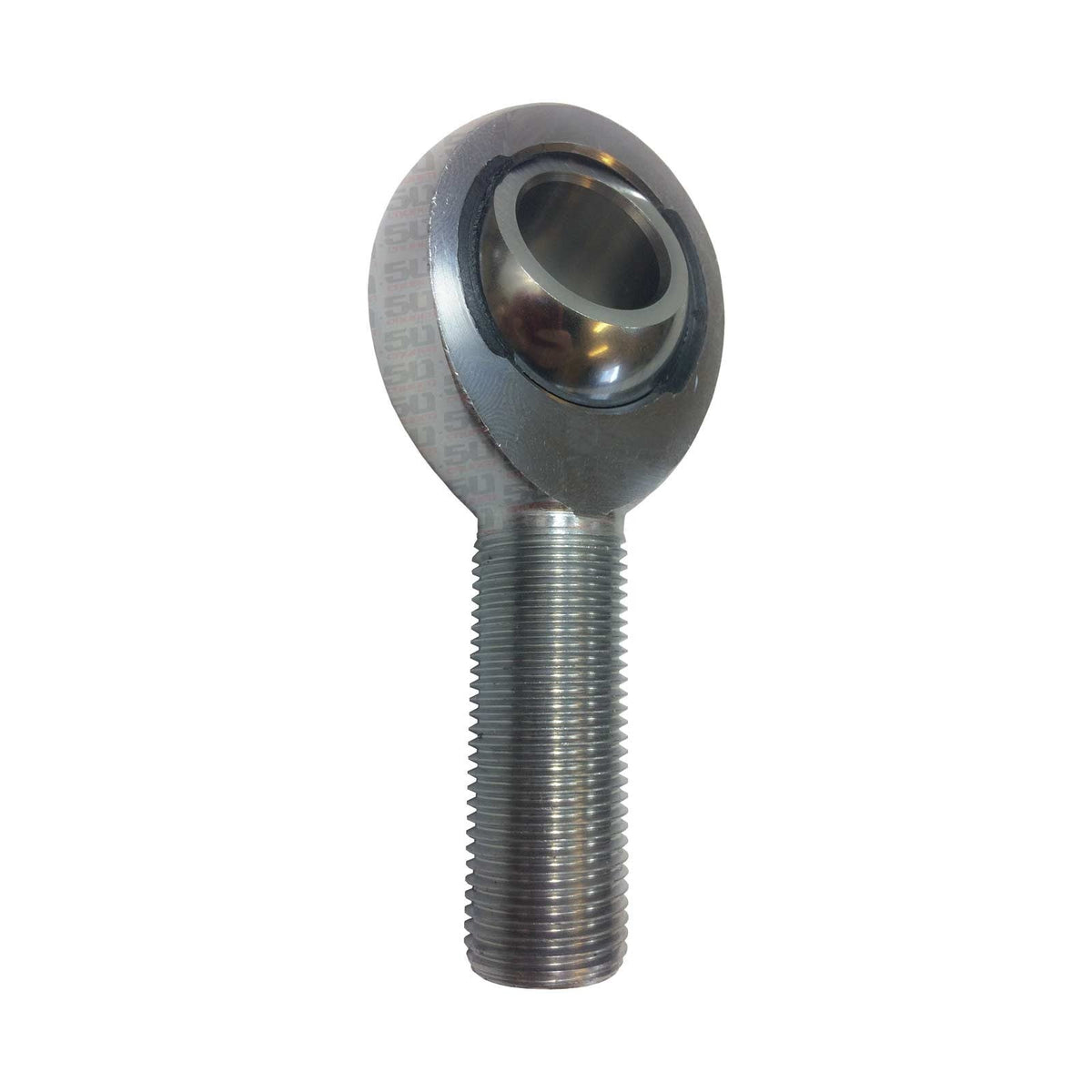

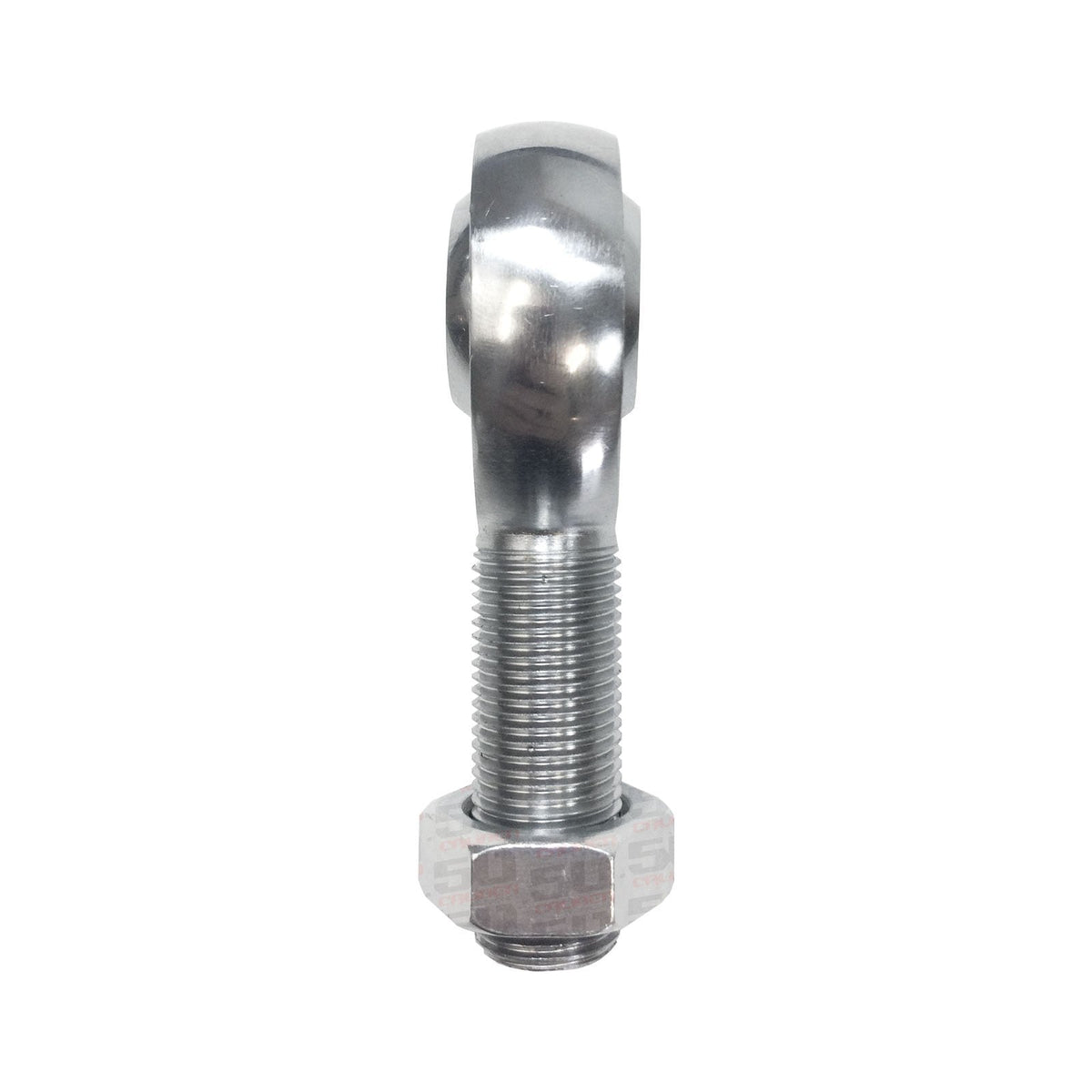

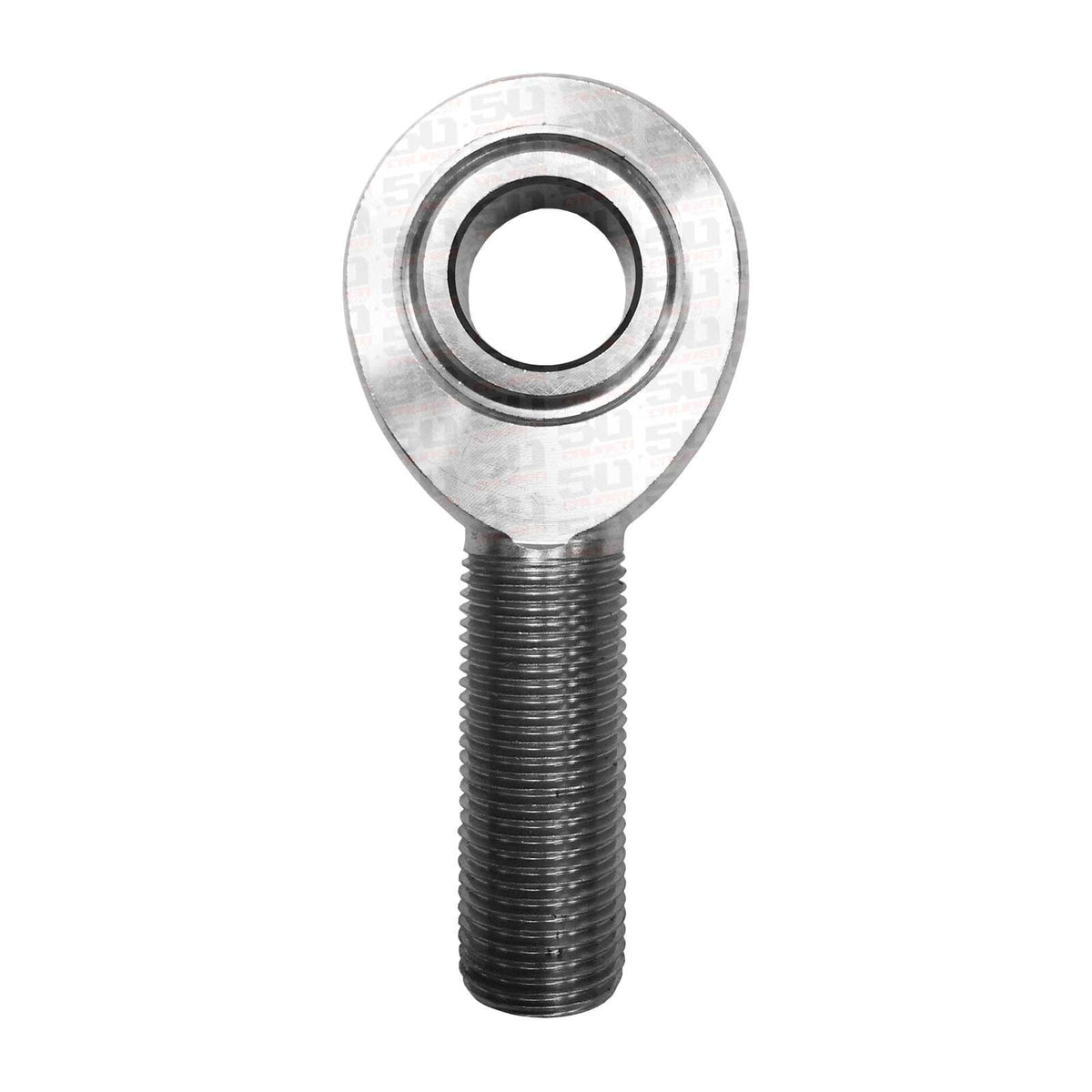

Heavy Duty 4130 Chromoly Heim Joints with Nylon / PTFE Liner - Male Right Hand Thread in 1/2" up to 7/8"

Heavy duty male threaded heim joint rod end with nylon / PTFE liner. Made from 4130 Chromoly alloy and rated at nearly 18,000 pounds.The load rating and size make these excellent for building custom tie rods and radius arms for UTVs, and many more. Includes jam nut. Available in RH or LH thread.

Specifications:
- 4130 Chromoly Alloy
- Nylon / PTFE Liner
- Jam nut included (silver zinc plated)

Perfect for fabricating suspension parts on your 4x4, sand rail, hot rod, race car, utv and more!

- Radius rods
- Sway bar links
- Tie rods
- Drag links
- Control arms
- 4 Link setups
- Panhard bar
- Hi steer

Specifications:

1/2"-20 Male RH Threaded Heim Joint

- Static radial load: 16,238 lbs

- Ball width: .625"

- Central line length: 2.44"

- Thread length 1.5"

- Bore 1/2"

- Ball end diameter: 1.312"

- Socket width: .5"

5/8"-18 Male RH Threaded Heim Joint

- Static radial load: 17,955 lbs

- Ball width: .75"

- Central line length: 2.63"

- Thread length 1.63"

- Bore 5/8"

- Ball end diameter: 1.5"

- Socket width: .562"

3/4"-16 Male RH Threaded Heim Joint

- Static radial load: 28,081 lbs

- Ball width: .875"

- Central line length: 2.88"

- Thread length 1.75"

- Bore 3/4"

- Ball end diameter: 1.75"

- Socket width: .687"

7/8"-14 Male RH Threaded Heim Joint

- Static radial load: 45,051 lbs

- Ball width: .875"

- Central line length: 3.38"

- Thread length 2"

- Bore 7/8"

- Ball end diameter: 2"

- Socket width: .765"
