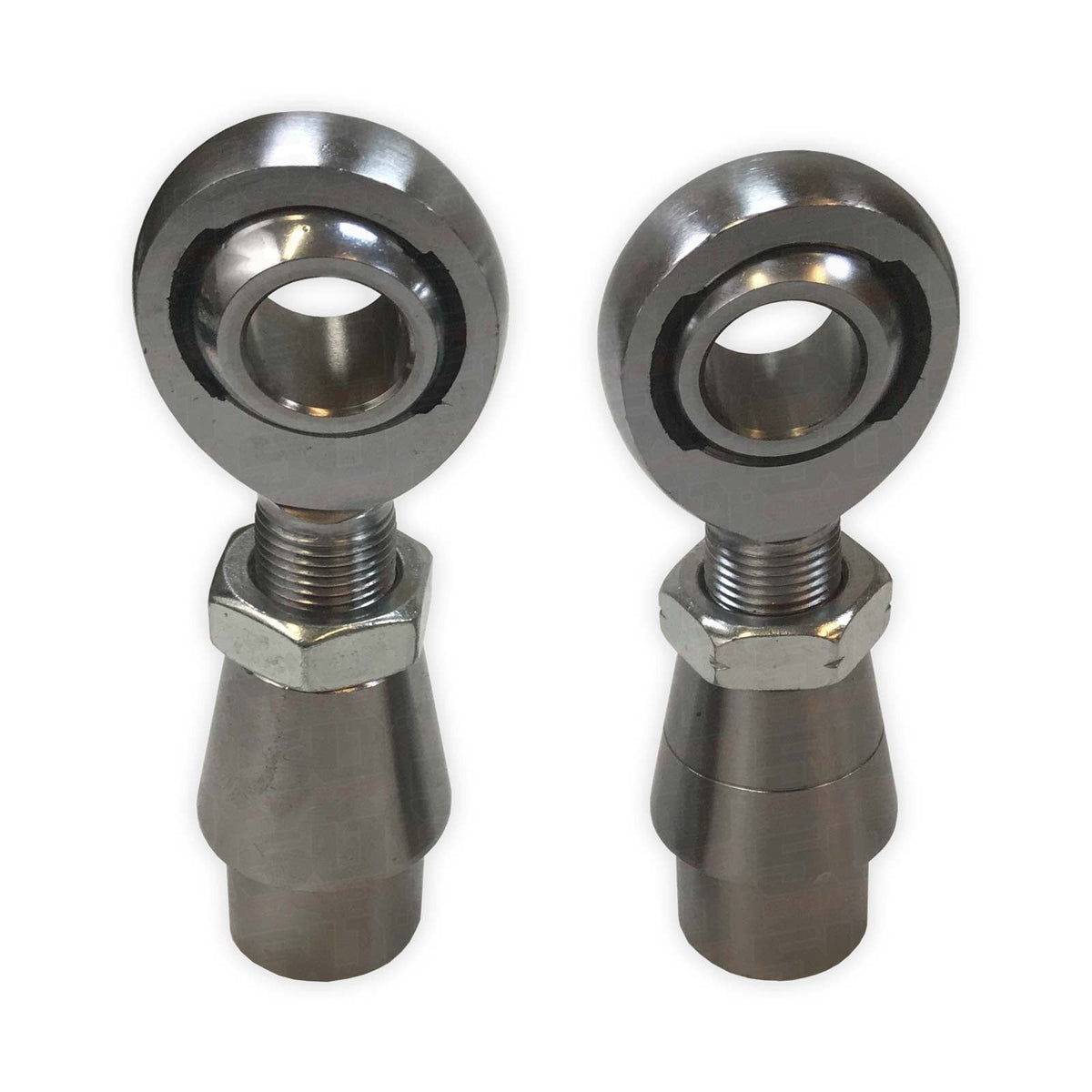

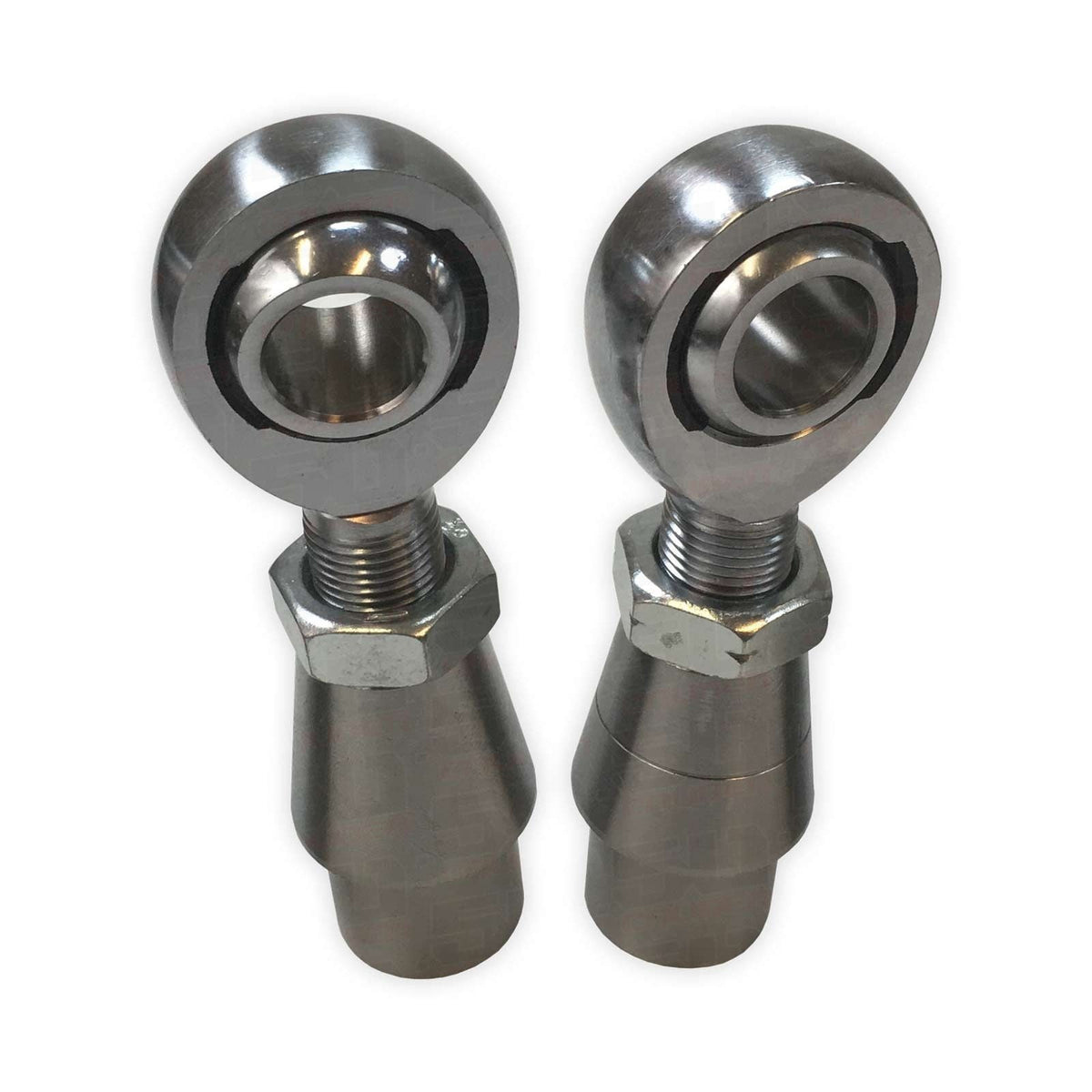

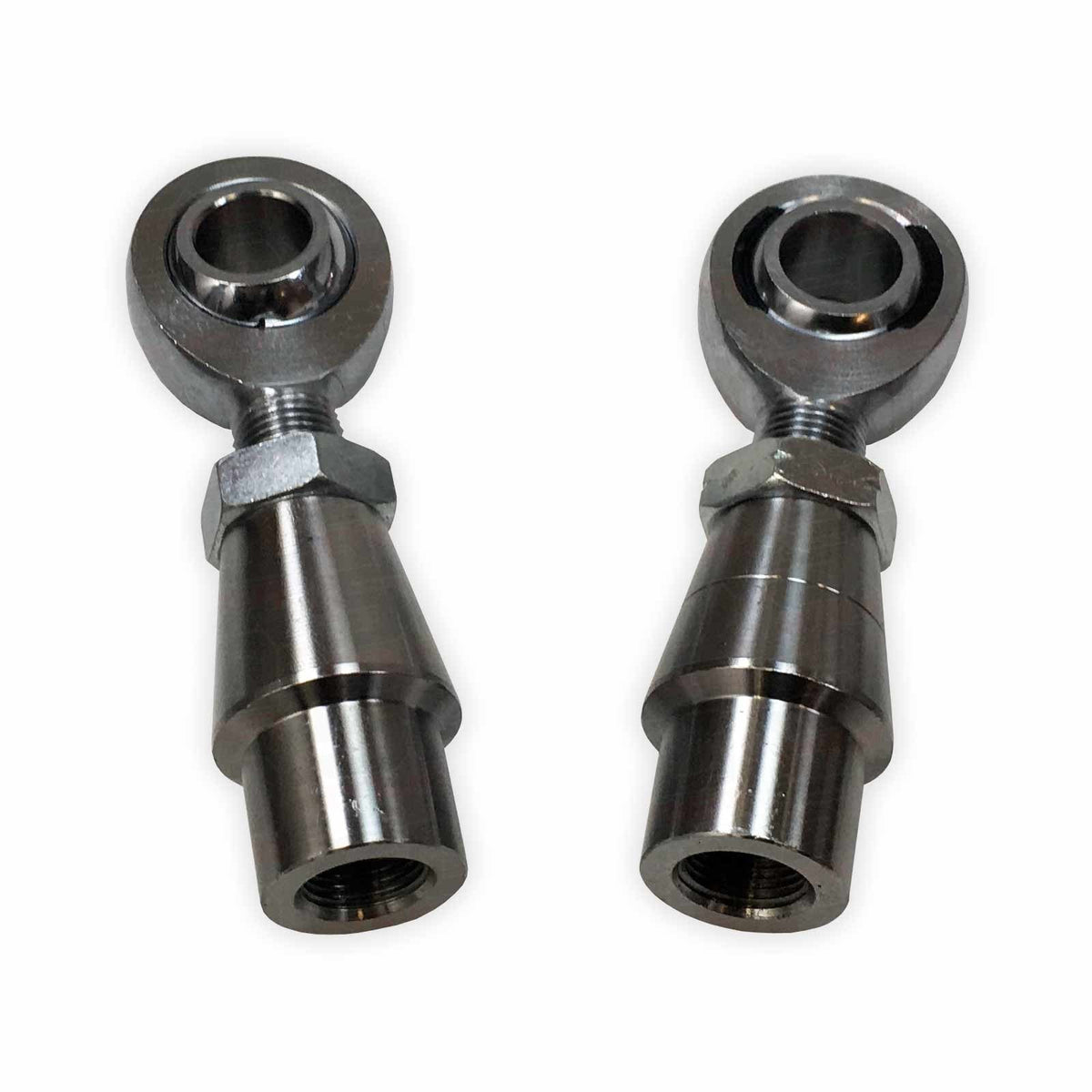

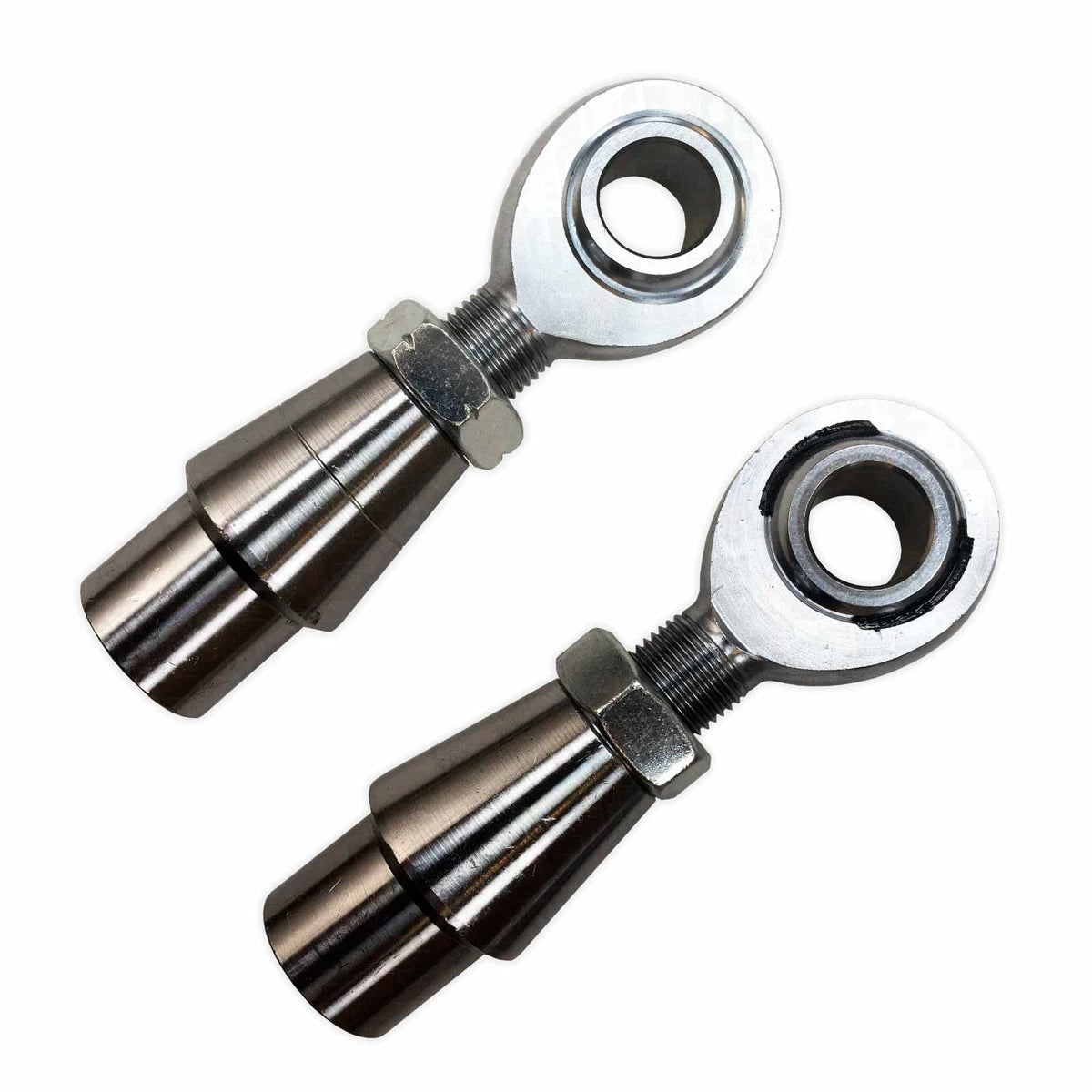

50 Caliber Racing Panhard Bar Rod End Kit - 7/8"-14 x 7/8" Bore Chromoly Heims, Bungs for 1.5" OD Tubing, .120 or .250 Wall

Rod end fabrication kit complete with 7/8" thread x 7/8" bore chromoly heim joints, jam nuts, and chromoly weld in bungs (tube adapters). Designed specifically for 1.5" OD tubing with with wall thicknesses of .120 or .250. Heim joints are made from 4130 Chromoly steel, with a nylon / teflon PTFE liner. The extreme load rating and size make these excellent for building a custom panhard bar (trackbar), tie rods and radius arms for cars, trucks, 4x4s & more. Includes heim joints, jam nuts and matching bungs. Available with or without high misalignment spacers.

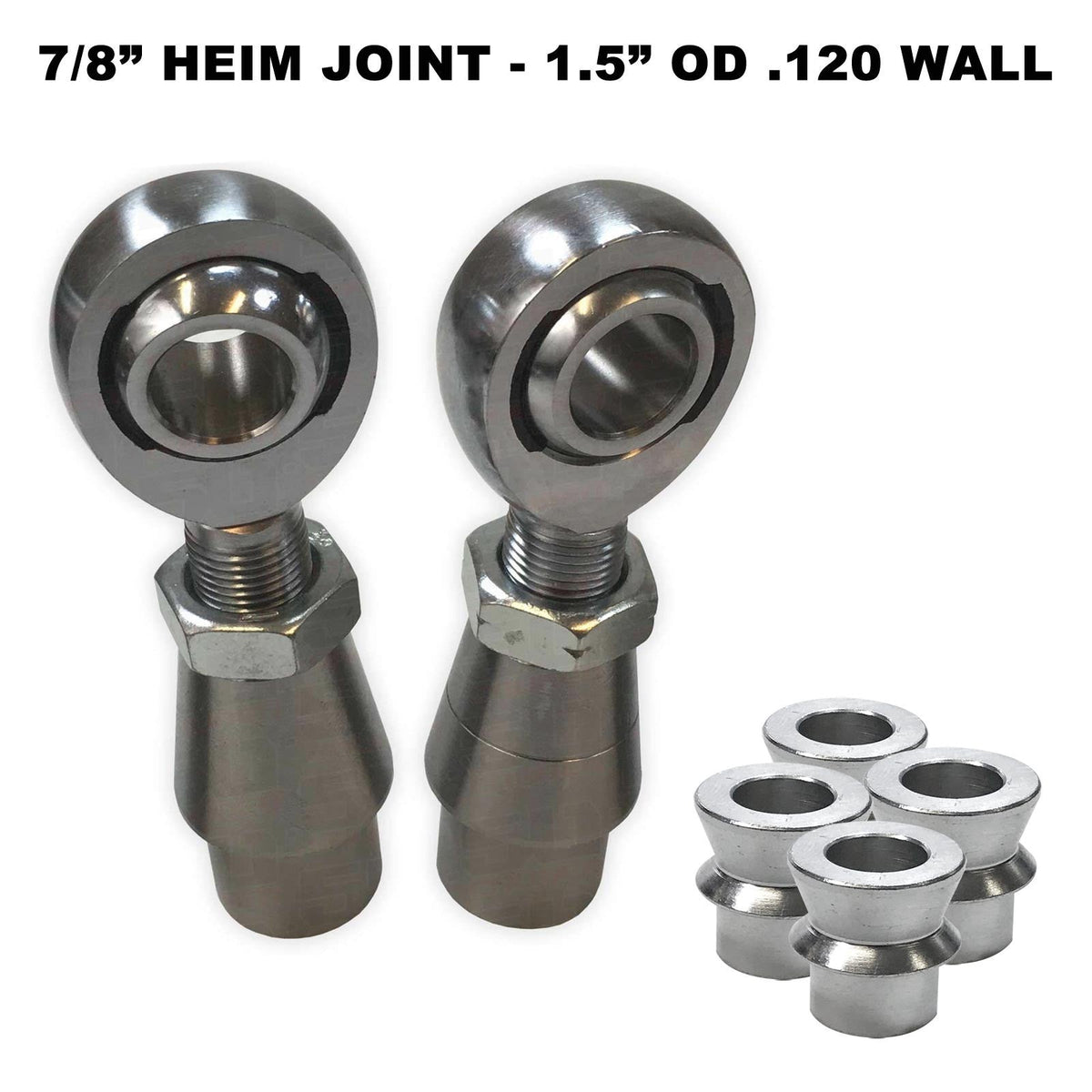

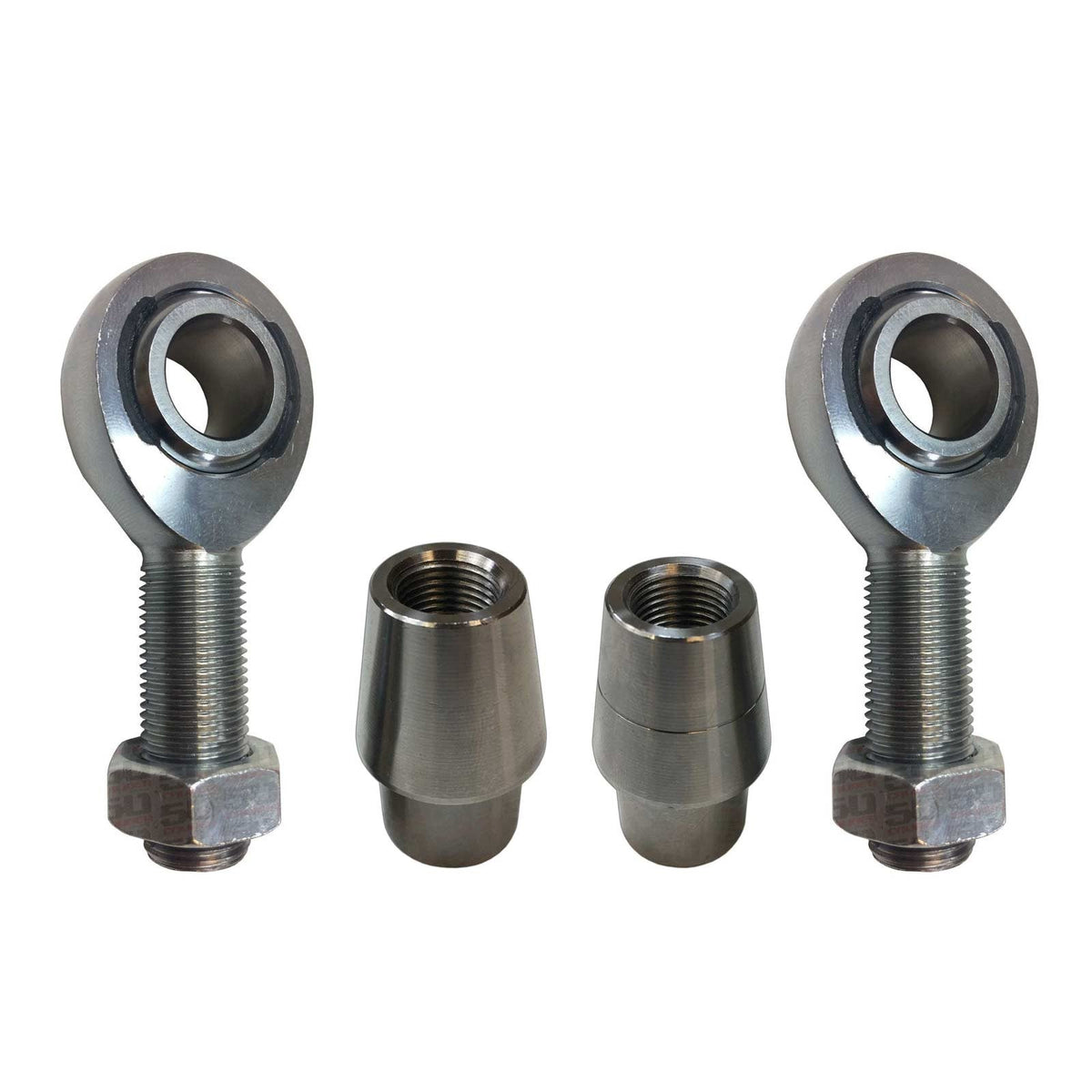

Includes:
- (1) 7/8-14 x 7/8 bore Heim - RH Thread
- (1) 7/8-14 x 7/8 bore Heim - LH Thread
- (1) RH Jam Nut
- (1) LH Jam Nut
- (1) RH Weld in Bung (tubing adapter)
- (1) LH Weld in Bung (tubing adapter)
Optional:
- (4) High Misalignment Spacers

Specifications:

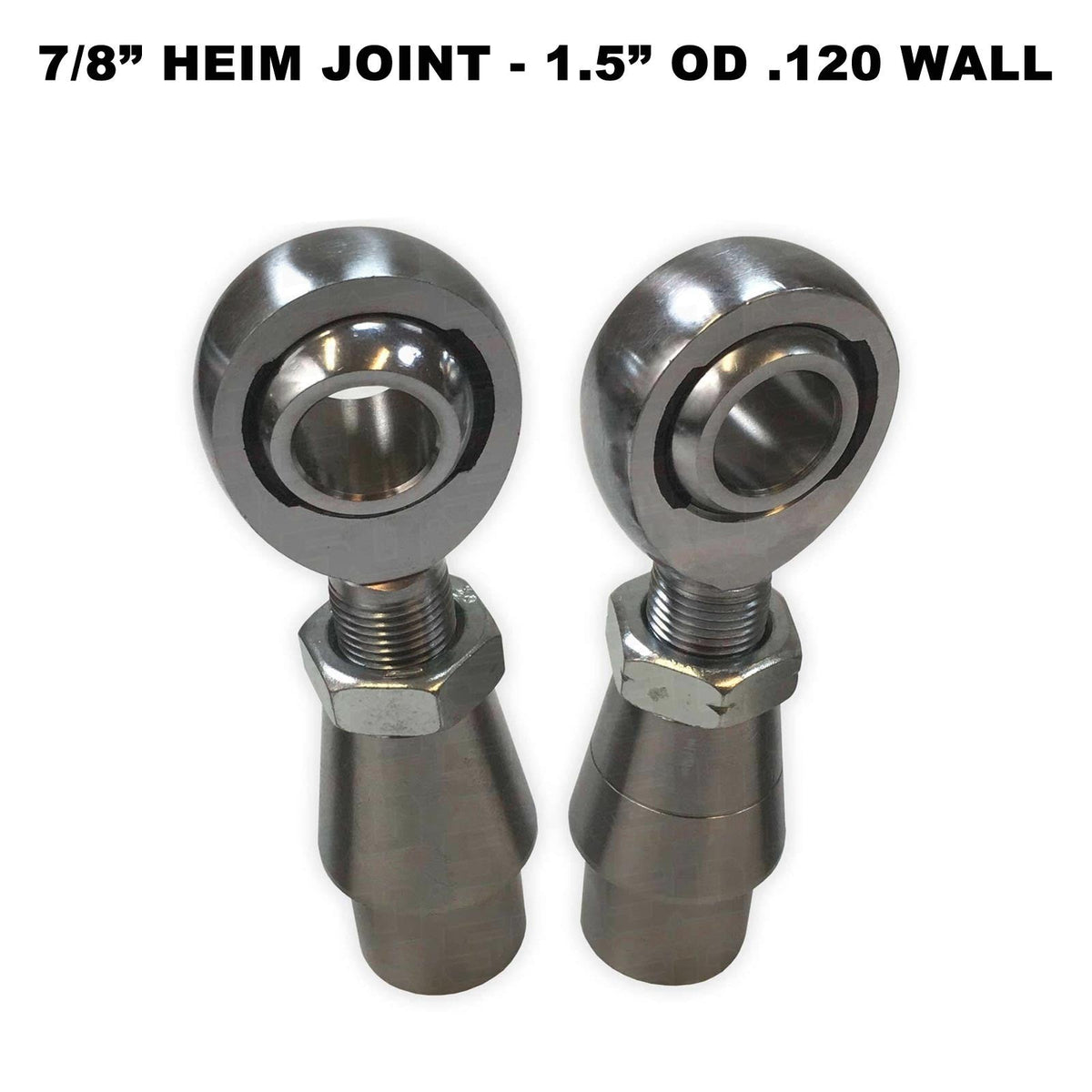

Heim Joints:
- 4130 Chromoly Steel, Nylon / Teflon (PTFE) Liner
- 52100 hardened bearing steel ball
- Static radial load rating: 45,051 lb
- Thread pitch: 7/8"-14
- Thread length: 2.00"
- Bore: 7/8"
- Socket end diameter: 2.00"
- Socket width: .765"
- Ball width: .875"
- Center line length: 3.375"

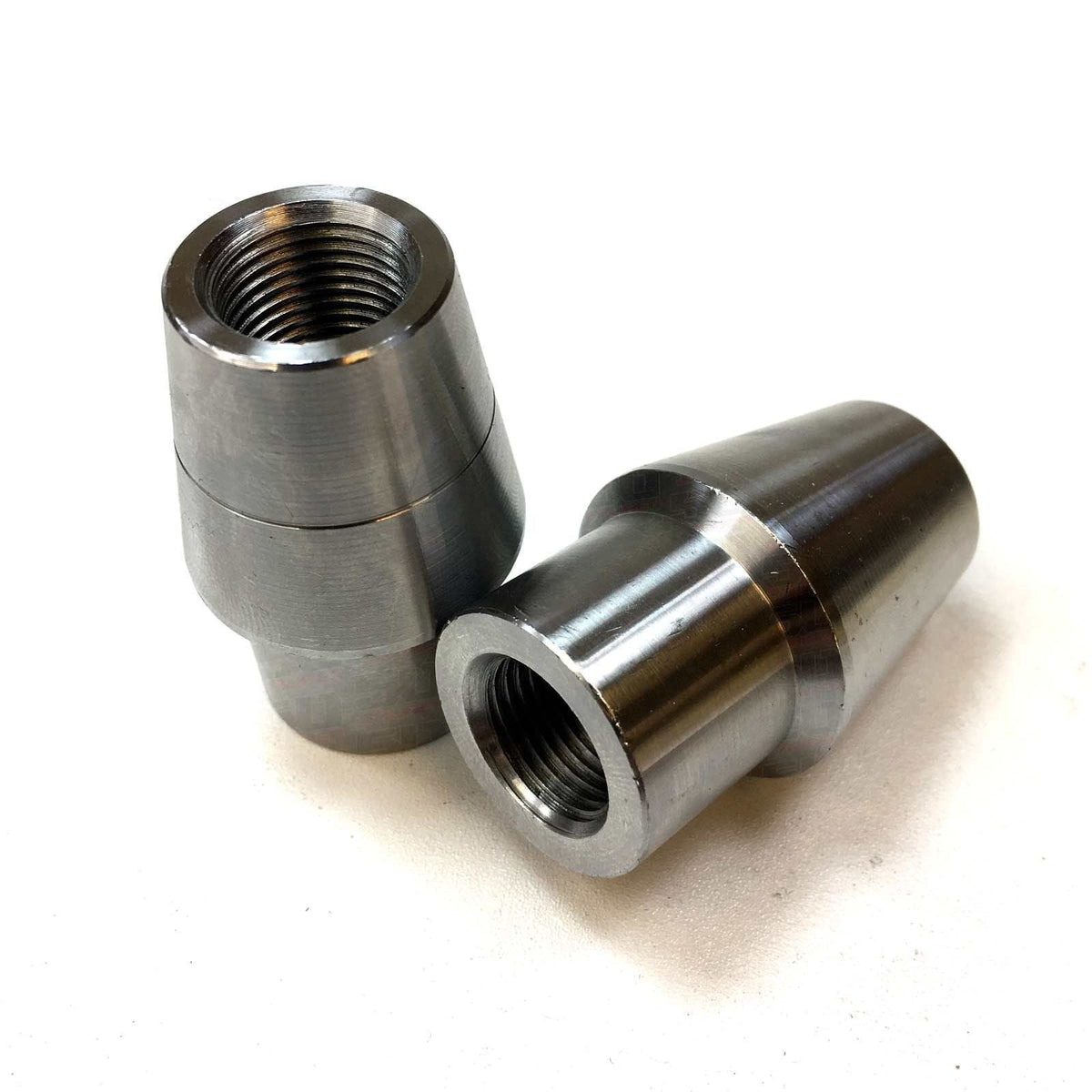

Bung:
- Thread: Female 7/8"-14
- Material: Chromoly Steel
- Thread Length: Full length
- Choose from 2 different tube sizes:

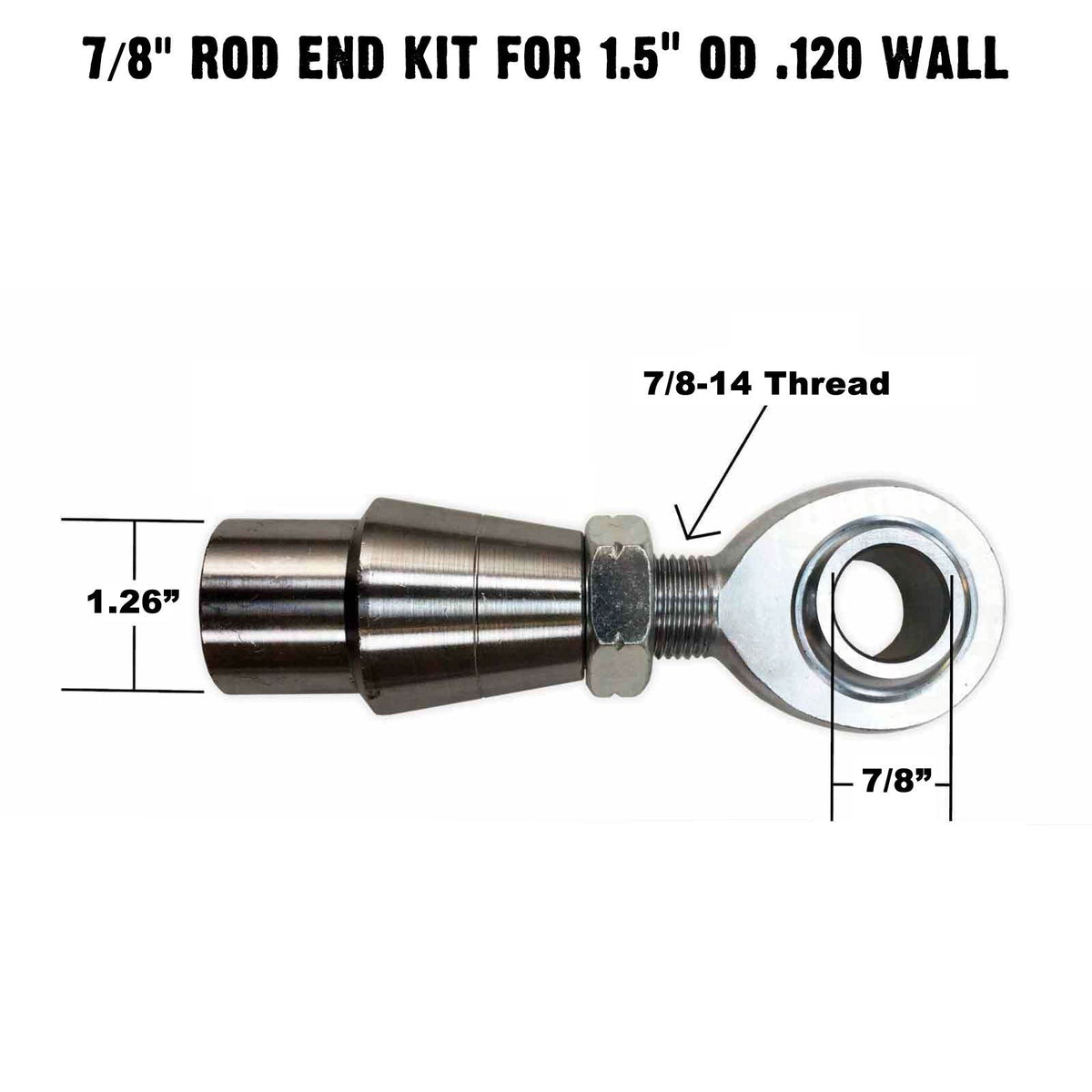

    1.5" OD. x .120 Wall x 1.26" ID

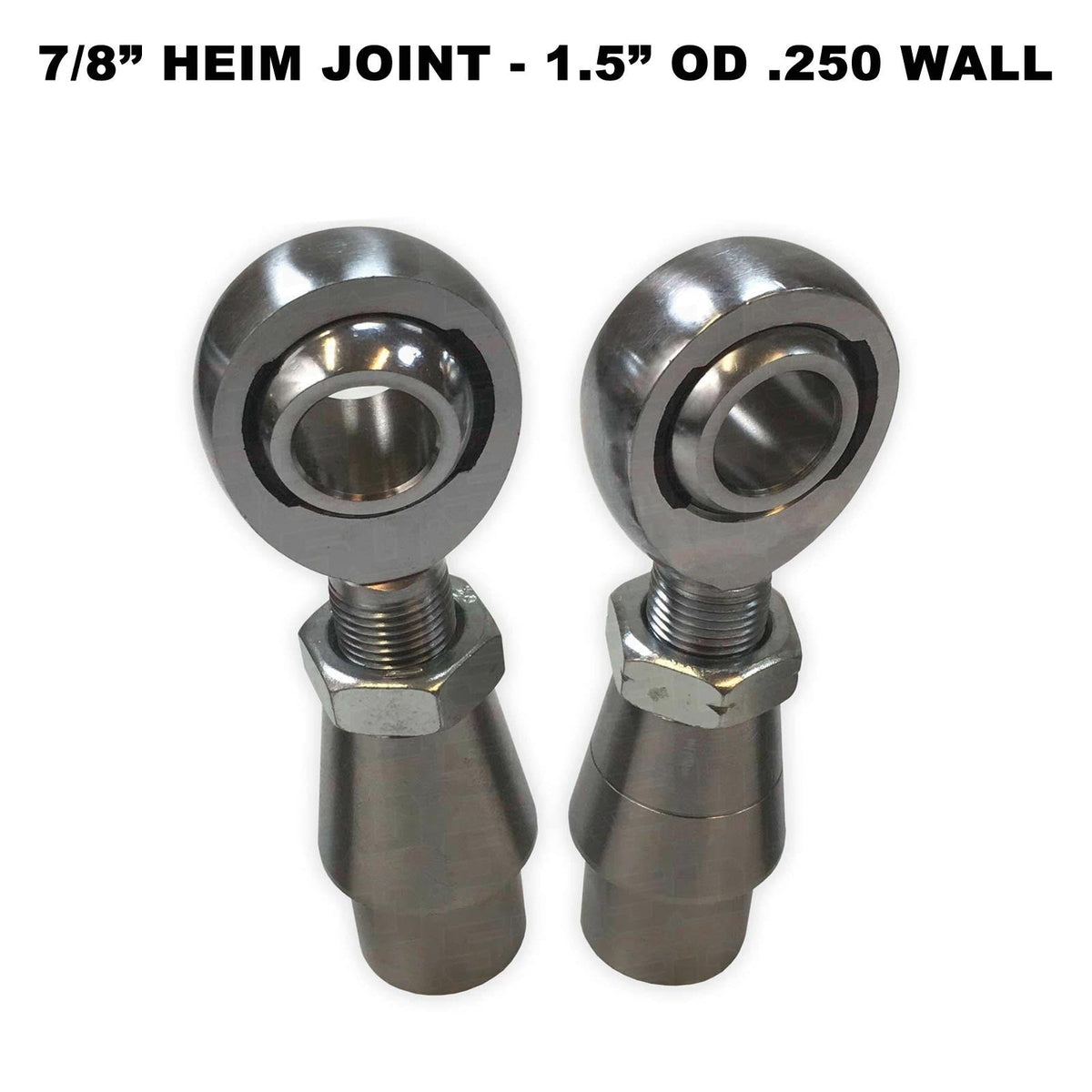

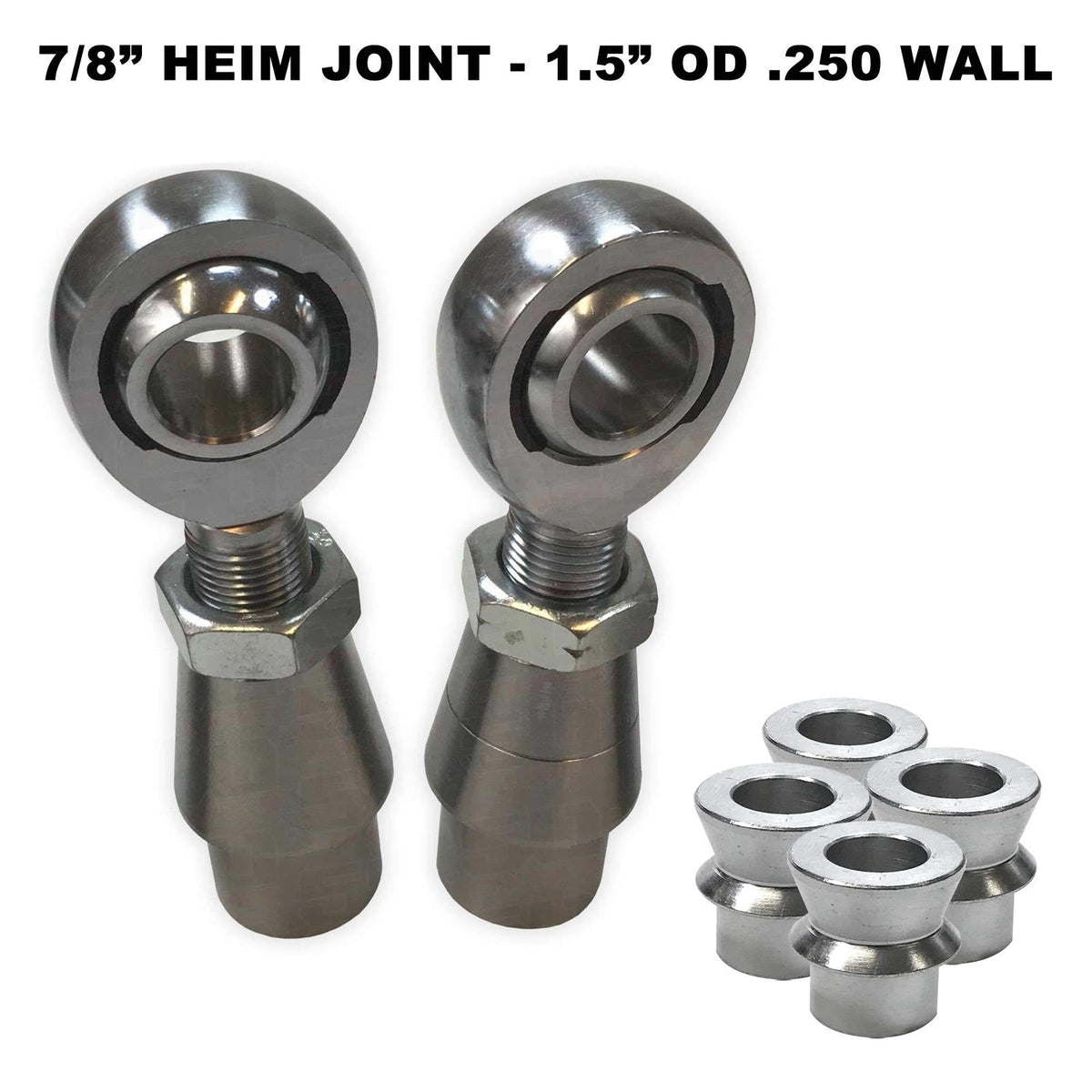

    1.5" OD x .250 Wall x 1.00" ID

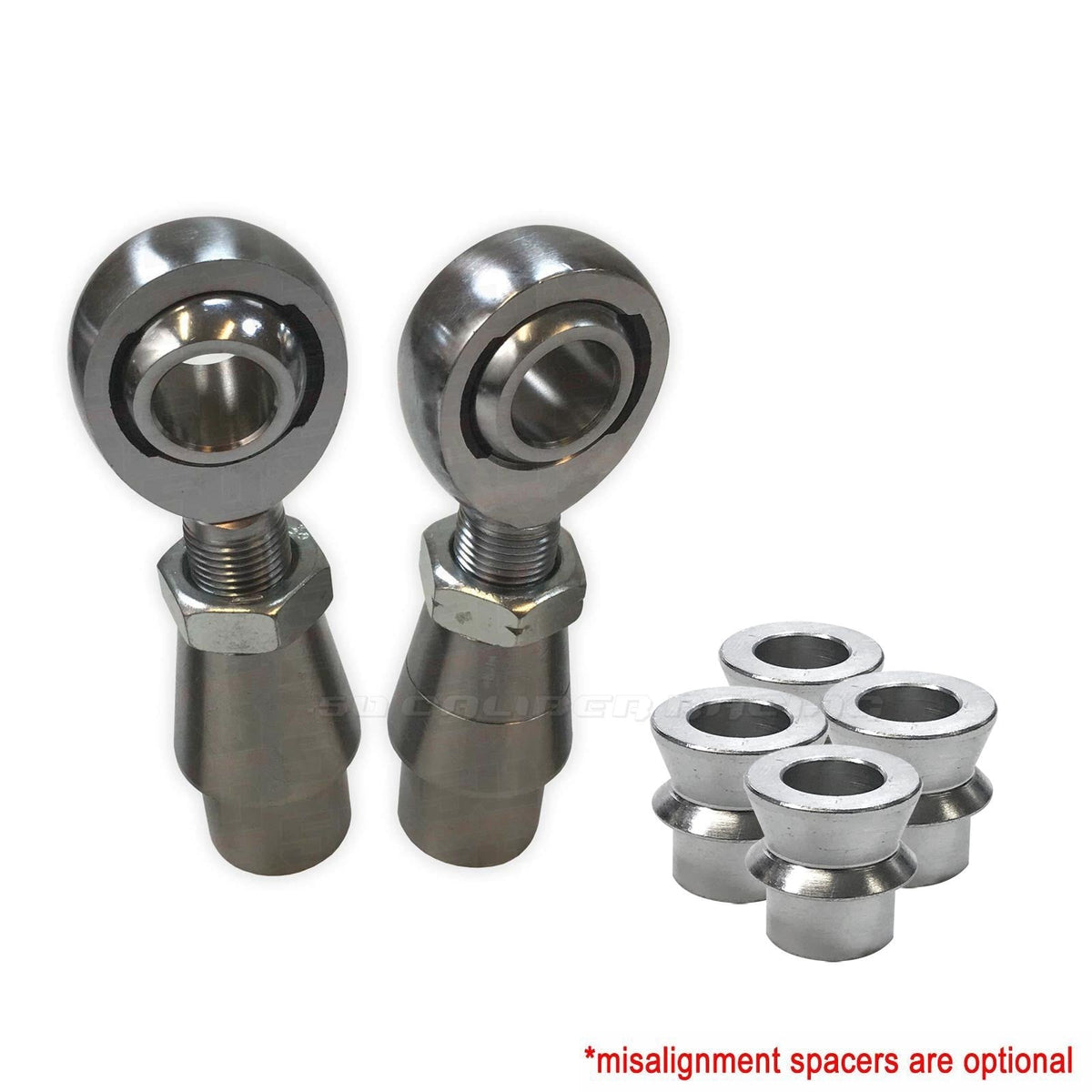

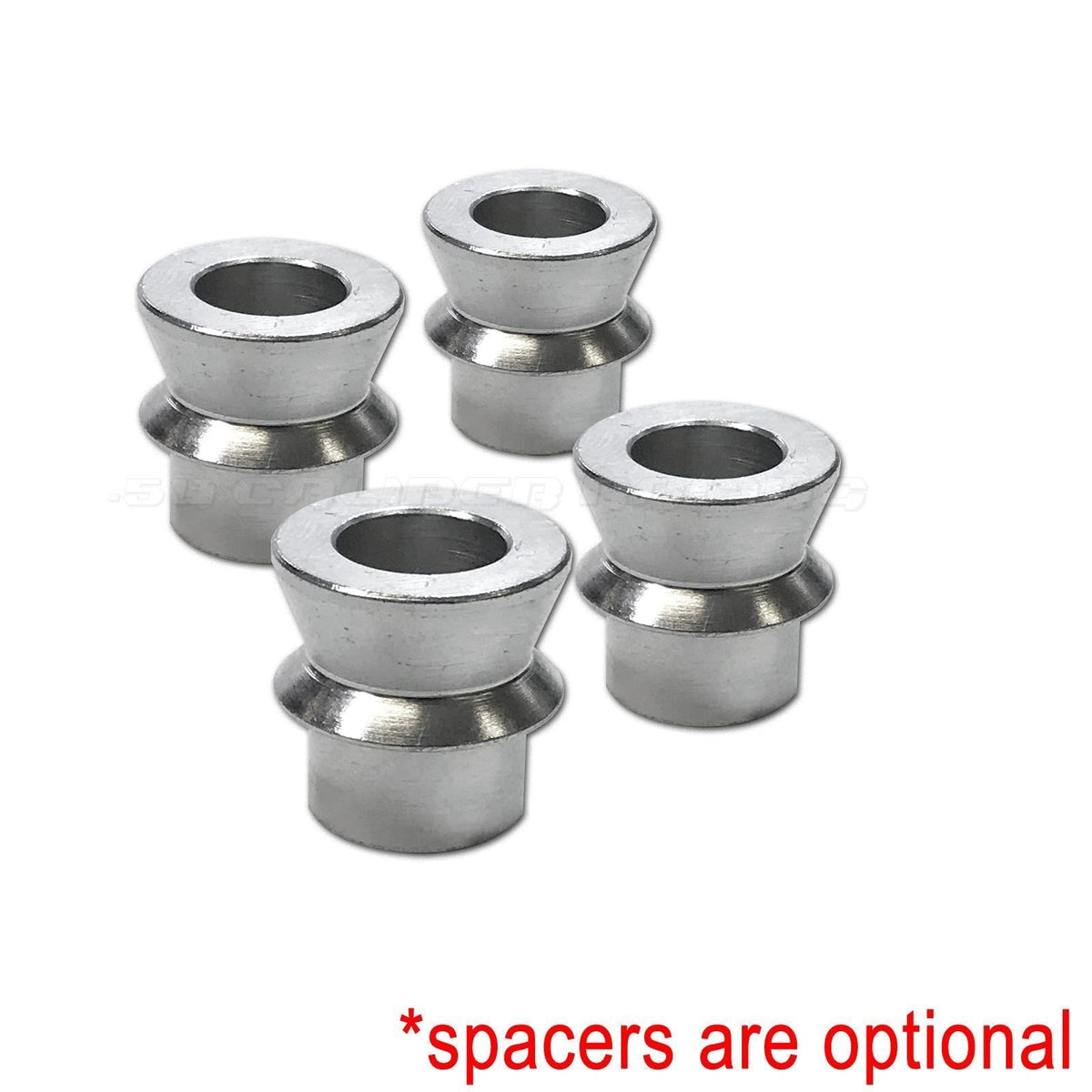

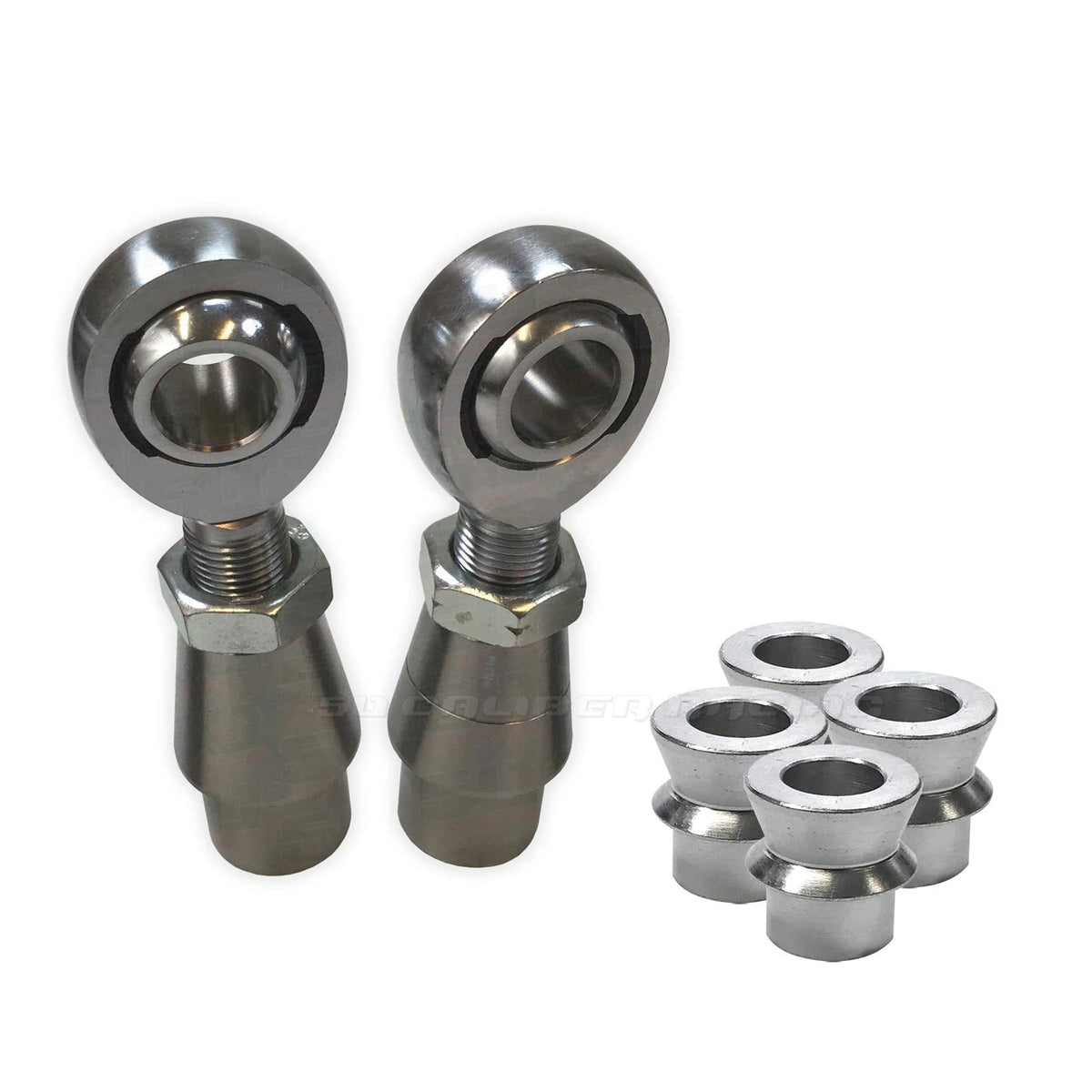

High Misalignment Spacers (optional)
- Material: Chromoly Steel
- Surface finish: Zinc plated
- .750" ID x .869" OD x .926" W
- Compatible with 3/4" bolt size

Perfect for fabricating custom suspension and steering links on your 4x4, rock crawler, sand rail, hot rod, Jeep and more!

- Panhard bar / Trackbar
- Drag link
- Hi steer components
- Radius rods
- Sway bar links
- Tie rods
- Control arms
- 3 Link / 4 Link
- Custom Mounts
