50 Caliber Racing Rod End Kit - Single Joint - 5/8 Chromoly Heim Joint with Bung for 1.25" OD Tubing

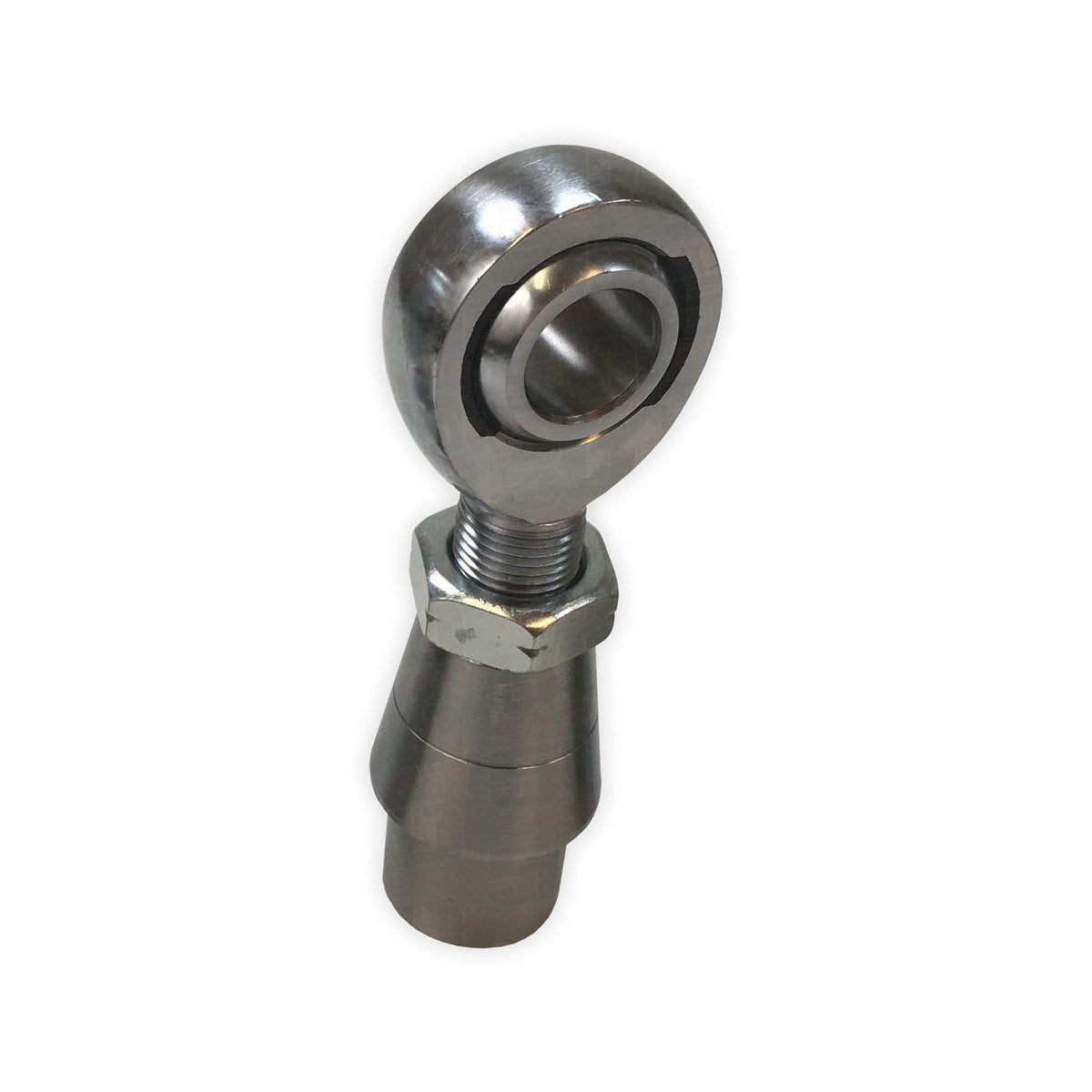

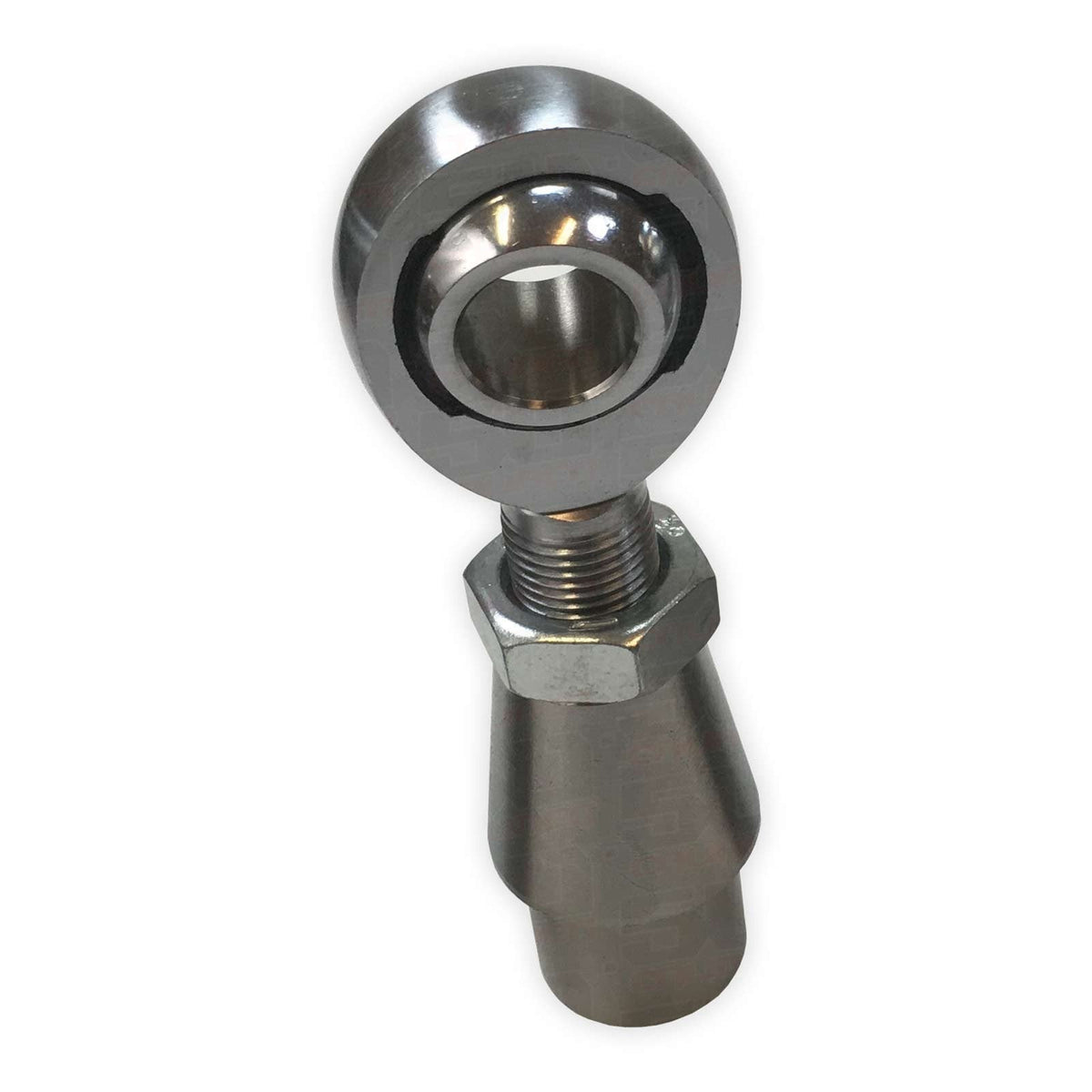

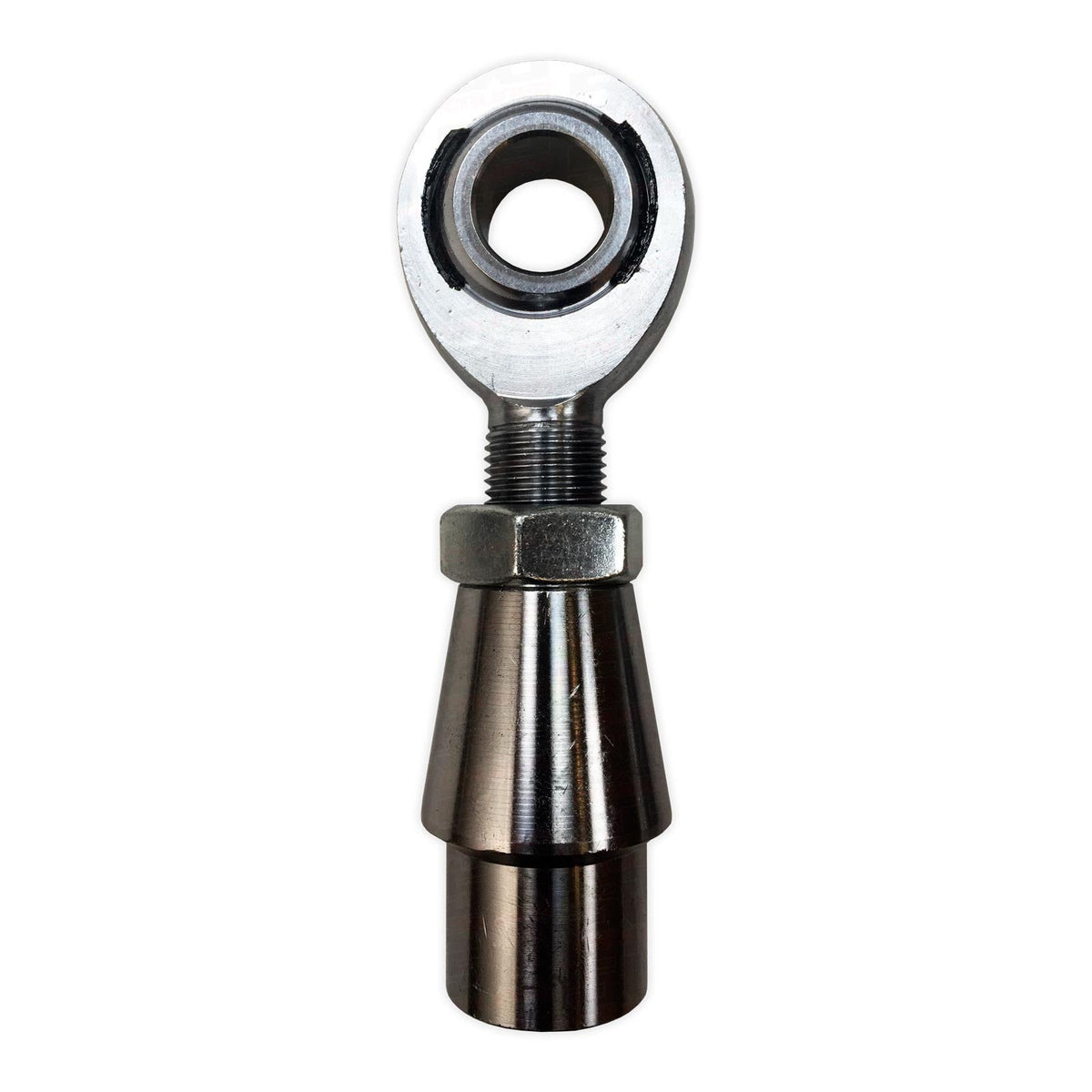

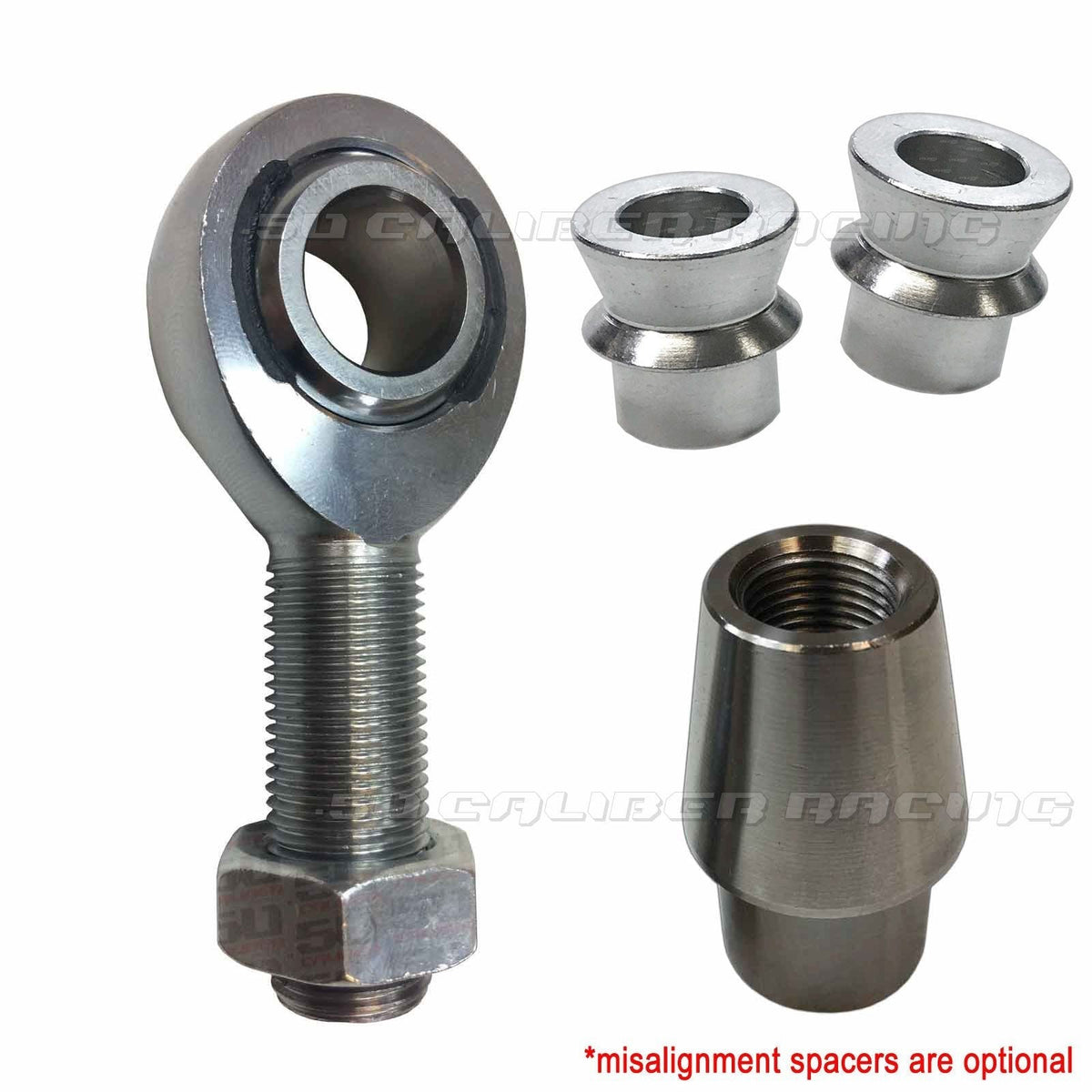

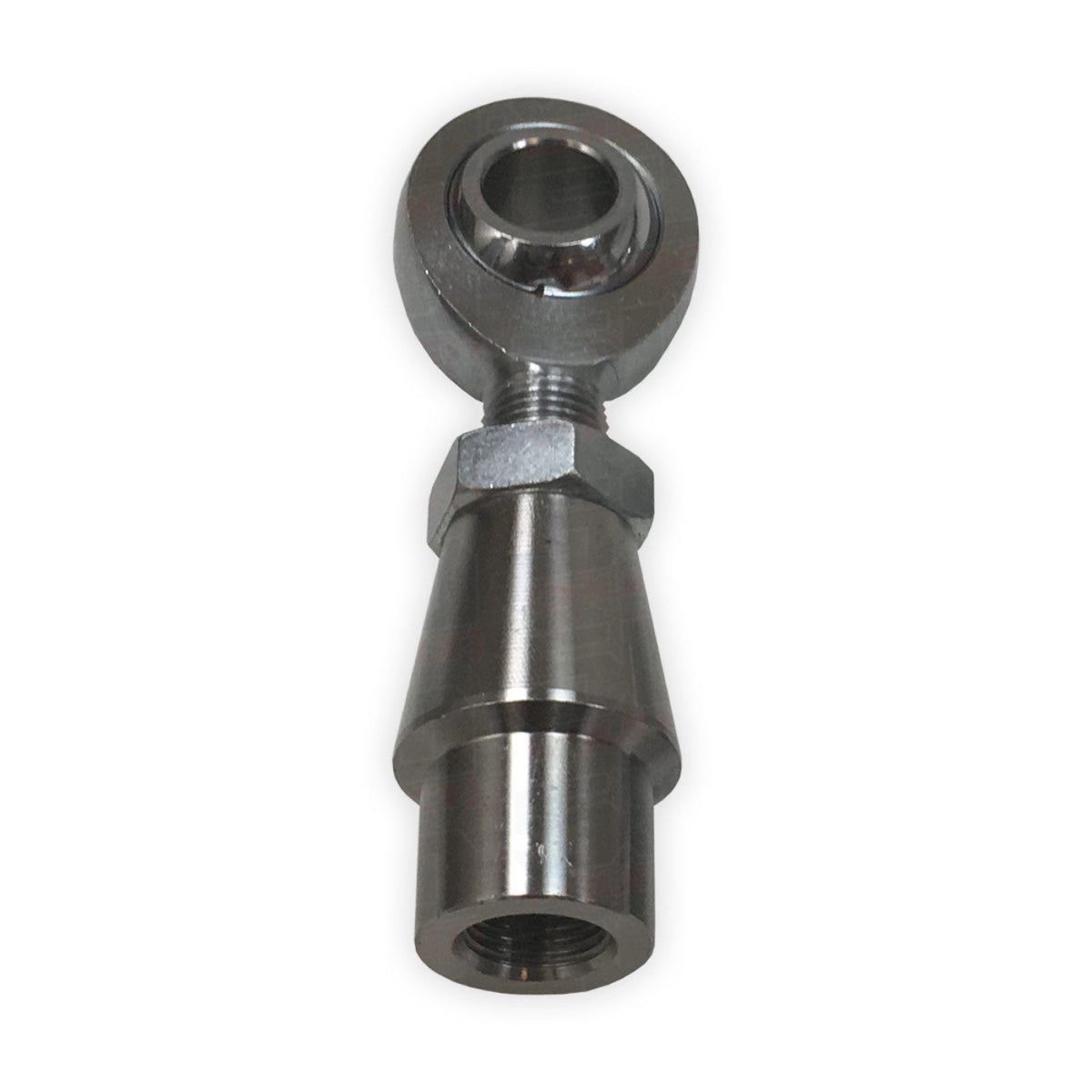

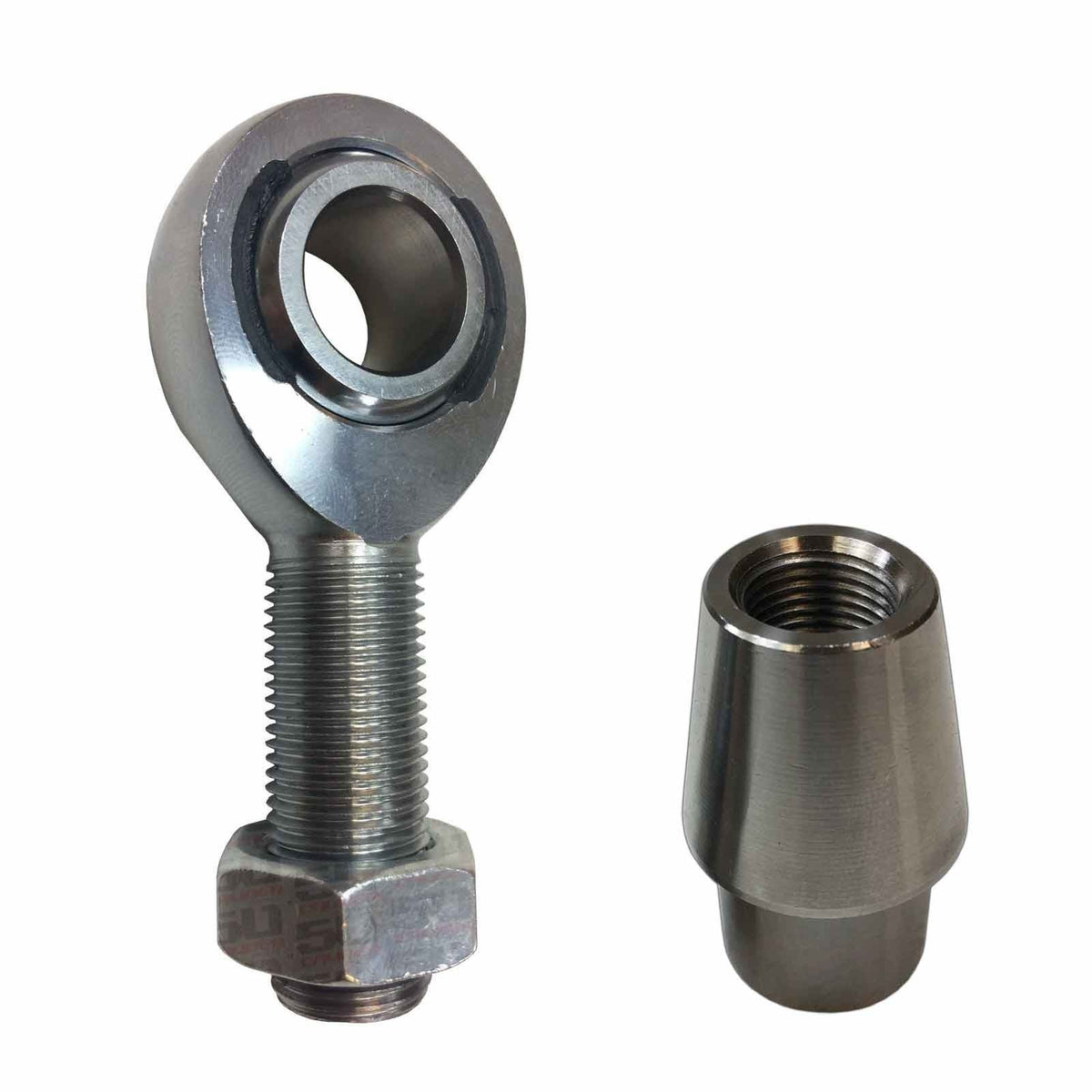

Single rod end kit including a 5/8 x 5/8 heat treated heim joint, jam nut, and a steel weld in bung tube adapter. Designed specifically for 1.25" OD tubing with with wall thicknesses of .095 or .120. Our heim joints are made from 4130 Chromoly steel, with a nylon/teflon (PTFE)  liner. The load rating and size make these excellent for building custom sway bar links, tie rods and radius arms for UTVs, go karts, and more. Available with or without misalignment spacers.


Specifications:

Heim Joints:
- 4130 Chromoly Steel, Nylon / Teflon (PTFE) Liner
- Static radial load rating: 17,955 lb
- Thread pitch: 5/8" - 18
- Bore: 5/8"
- Ball end diameter: 1.5"
- Socket width: .562"
- Ball width: .75
- Overall length: 3.37"
- Center line length: 2.63"

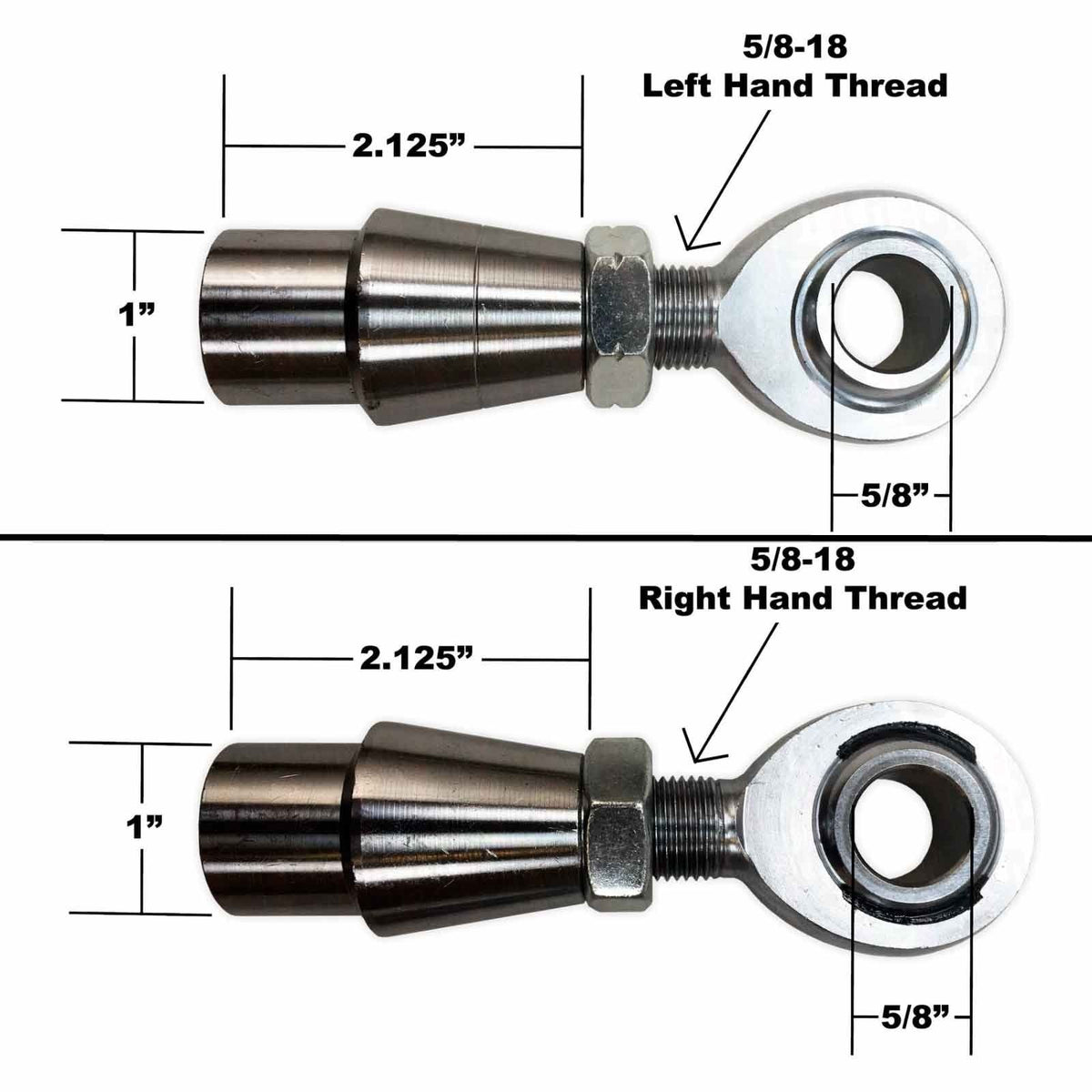

Bung:
- Thread: Female 5/8"-18
- Material: Chromoly Steel
- Thread Length: Full length
- Choose from 2 different tube sizes:
    1.25" OD. x .095 Wall x 1.06" ID
    1.25" OD x .120 Wall x 1.0" ID

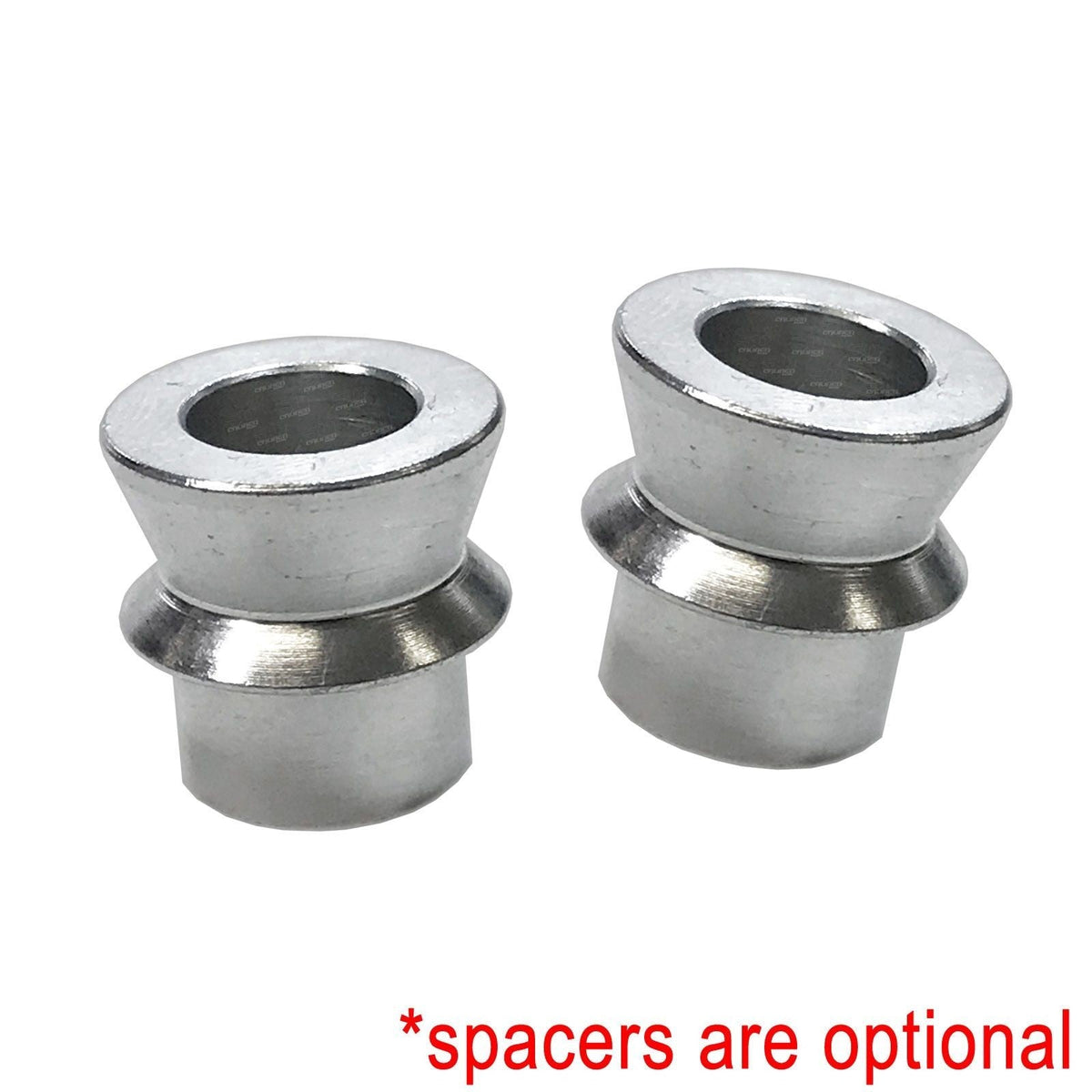

High Misalignment Spacers (optional)
- Material: Chromoly Steel
- Surface finish: Zinc plated
- .500" ID x .619" OD x .672" W
- Compatible with 1/2" bolt size


Perfect for fabricating custom suspension and steering links on your 4x4, sand rail, hot rod, race car, utv and more! car, utv and more!

- Shock mounts
- Radius rods
- Sway bar links
- Tie rods
- Drag links
- Control arms
- 4 Link setups
- Panhard bar
- Hi steer
- Custom Mounts
