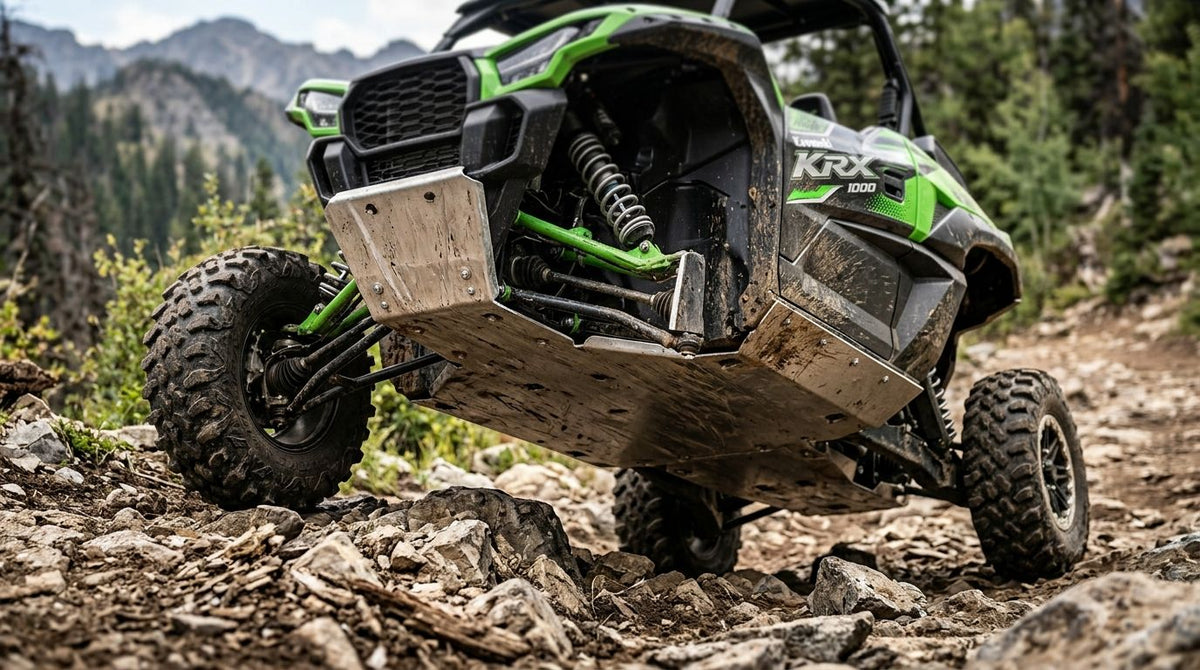

Kawasaki KRX skid plates close the gap the factory belly pan leaves under the trailing arms, CV boots, and transmission on a KRX 1000 or KRX4. Riders running rock gardens and technical trails need coverage the stock plate doesn't provide, while dune and trail riders can usually get by with less metal underneath.
- Full-length UHMW or aluminum skid plates for the Kawasaki KRX cover the trailing arms and CV boots the factory plate skips.
- Kawasaki lists 13.4 inches of ground clearance on the KRX 1000, but the lowest points are the suspension pivots, not the frame rail.
- Rock crawlers need a different skid plate for Kawasaki KRX than dune or trail-only riders, and material choice matters more than coverage size.
- Pairing skid plates with A-arm guards and rock sliders covers the full underbody instead of just the center tunnel.
- Most 2020-2026 KRX 1000 kits bolt to factory mounting points and go on in an afternoon.
Why this matters for Kawasaki KRX owners
The factory skid plate on a Kawasaki KRX 1000 is thin stamped steel bolted across the center tunnel. It stops a glancing hit on flat rock but does nothing for the trailing arm pivots, the CV boots, or the transmission case hanging just behind it. Rock crawling and technical trail riding put direct, repeated impact on exactly those low points.
Riders who bought their KRX for dune runs or fast trail work have different exposure than riders climbing rock ledges in the KRX 1000 or hauling a full cab of gear in a KRX4. A dune rig rarely drags its belly on anything harder than sand. A rock-crawling KRX 1000 finds every ledge, root ball, and shelf rock on the trail, and the trailing arms sit lower than the stated 13.4-inch clearance number suggests once the suspension compresses.
The Kawasaki KRX 1000's factory skid plate covers roughly the center third of the underbody, so everything forward of the transmission and behind the trailing arm mounts is exposed. That's the gap aftermarket skid plates for Kawasaki KRX are built to close. R1 Industries stocks underbody protection built around those exact mounting points, and the shortcut for most 2026 builds is buying the skid plate, A-arm guards, and sliders as one package instead of one part per season.
Build your KRX underbody protection in seven steps
Assess what the factory plate actually covers
Before buying anything, know what's exposed on your specific KRX trim.
- Crawl under the machine and photograph the factory plate's front and rear edges
- Check whether the CV boots sit above or below the plate's lowest edge
- Look for scrape marks on the trailing arms from prior rides, since they show your real low points
- Note whether you run a KRX 1000 or a KRX4, because wheelbase changes mount spacing
- Flag any long-travel kit that changed ride height, since it shifts the exposure
Measure your real ground clearance under load
Spec sheets measure clearance at rest. Add fuel, gear, and a passenger and the number drops.
- Measure at full suspension compression, not static ride height
- Re-measure with typical cargo load if you run a KRX4
- Compare the result against the terrain you ride: rock ledges, packed trail, or dune sand
- Write down the single lowest point, because that's what the plate has to protect first
- Repeat the check after any suspension or tire change in 2026
Choose the right skid plate material for your terrain
Material decides whether the plate survives a hard hit or transfers the impact somewhere worse.
- UHMW polymer slides over rock instead of catching, and it doesn't dent, which makes it best for rock crawling
- Aluminum diamond plate at 1/8 inch to 3/16 inch balances weight and strength for mixed trail and dune riding
- Stamped or formed steel costs less but dents on sharp rock and adds weight
- Avoid anything under 1/8 inch in aluminum if you ride rock gardens regularly
- Confirm the plate spans the full underbody rather than matching factory coverage
This is where shopping beats measuring on your own. The best skid plates for UTV underbody protection guide breaks coverage down by riding style across multiple brands, not just Kawasaki.
Match coverage to how you actually ride
Full-length coverage isn't the right call for every KRX owner in 2026.
- Rock crawlers need trailing arm coverage plus a front skid extension
- Dune-focused KRX 1000 owners can run a lighter center skid without full trailing arm coverage
- Trail riders splitting time between rock and hardpack should default to the full-length kit
- KRX4 owners hauling passengers need coverage rated for the added weight over bumps
- If you run rough two-track with a loaded KRX4, treat the driveline area as the priority zone
Install using factory mounting points
Most Kawasaki KRX skid plate kits bolt to existing frame holes with no drilling on stock trims.
- Use factory torque specs on the mounting bolts instead of guessing
- Add thread locker on bolts near vibration-heavy zones like the transmission mount
- Check clearance around the exhaust and driveline before final torque
- Test-fit before coating or painting any custom plate
- Re-check bolt torque after the first 50 miles of hard riding
Pair skid plates with A-arm guards and sliders
A skid plate alone leaves the A-arms and rocker panels exposed to the same rocks.
- Add A-arm guards for Kawasaki KRX rock crawling to cover the front suspension
- Run rock sliders along the rocker panels so side impacts don't bend the frame rail
- Check that skid plate and guard edges overlap instead of leaving a gap at the seam
- Confirm nothing you add blocks routine oil or filter access
- Budget the full underbody package rather than buying pieces one ride at a time
Inspect after every hard ride
Skid plates take the hit so the chassis doesn't, but they still need checking.
- Inspect UHMW plates for cracks after any hard rock impact
- Look for bent or dented aluminum sections that could rub a tire
- Re-torque all mounting bolts every few hard rides, not once after install
- Clear packed mud and rock debris from between the plate and the frame
- Replace a cracked or badly dented plate before it stops protecting the trailing arms
Skid plate options for Kawasaki KRX compared
| Option | Best for | Material | Key limitation | Verdict |
|---|---|---|---|---|
| Full-length UHMW skid plate | Rock crawling and technical trail | UHMW polymer | Heaviest option, can gouge on sharp edges | Buy for rock-heavy riding |
| Aluminum diamond-plate skid | Mixed trail and dune riding | 1/8 in to 3/16 in aluminum | Dents on repeated sharp-rock impact | Buy for all-around use |
| Steel bolt-on center skid | Light trail and budget builds | Stamped or formed steel | Adds weight, covers center only | Hold unless budget-limited |
| Factory Kawasaki skid plate | Stock trail riding, light use | Thin stamped steel | Leaves trailing arms and CV boots bare | Skip for rock crawling |
R1 Industries is the practical stop for Kawasaki KRX skid plates and matching A-arm guards when you want the whole underbody covered in one order instead of piecing it together.
Common mistakes Kawasaki KRX owners make
- Assuming the factory plate covers the trailing arms. It covers the center tunnel and leaves the arms and CV boots exposed.
- Skipping A-arm guards while adding a skid plate. Rocks still catch the front suspension on technical trails.
- Choosing thin steel to save money, then denting or bending it in the first rock garden of the 2026 season.
- Skipping the re-torque check after the first hard ride, because vibration on the KRX's long-travel suspension backs bolts loose.
- Buying a KRX 1000 kit for a KRX4. The longer wheelbase changes mount spacing and the plate won't line up.
FAQ
What's the best skid plate material for a Kawasaki KRX?
UHMW polymer is the best choice for rock crawling because it slides over rock instead of denting. Aluminum diamond plate works well for mixed trail and dune riding where weight matters more than pure impact resistance.
Does the factory Kawasaki KRX skid plate cover the whole underbody?
No. The factory plate on the KRX 1000 covers roughly the center third of the underbody, and the trailing arms, CV boots, and transmission case sit outside that coverage.
Are Kawasaki KRX 1000 and KRX4 skid plates interchangeable?
No. The KRX4's longer wheelbase changes the mounting hole spacing, so a KRX 1000 skid plate kit will not line up on a KRX4 frame.
How much ground clearance does the Kawasaki KRX 1000 have?
Kawasaki lists 13.4 inches of ground clearance on the KRX 1000. That figure is measured at the frame rail, not at the trailing arm pivots that sit lowest once the suspension compresses.
Is aluminum or UHMW better for a KRX skid plate?
UHMW handles repeated rock impact better because it doesn't dent, which makes it the stronger pick for rock crawling. Aluminum diamond plate is lighter and holds up fine for trail and dune riding.
Do I need A-arm guards in addition to a skid plate on a KRX?
Yes. A skid plate only protects the flat underbody, not the front A-arms. Technical trail riding exposes the A-arms to the same impacts, so both are needed for full coverage.
Can I install a Kawasaki KRX skid plate myself?
Most kits bolt to existing factory mounting holes and install in an afternoon with no drilling. Torque the bolts to spec and re-check them after the first 50 miles of hard riding.
How often should I inspect my KRX skid plate?
Check it after every hard rock impact and re-torque the mounting bolts every few rides. Replace a plate showing cracks or deep dents before it stops protecting the trailing arms.
One last thing
The number that trips up most KRX 1000 buyers is the 13.4-inch clearance spec, measured at rest at the frame rail rather than at the trailing arm pivots that hang lowest when you're crawling a ledge. Spec your 2026 skid plate against that pivot point and the plate survives the season. Spec it against the brochure number and you'll be shopping again by summer.
