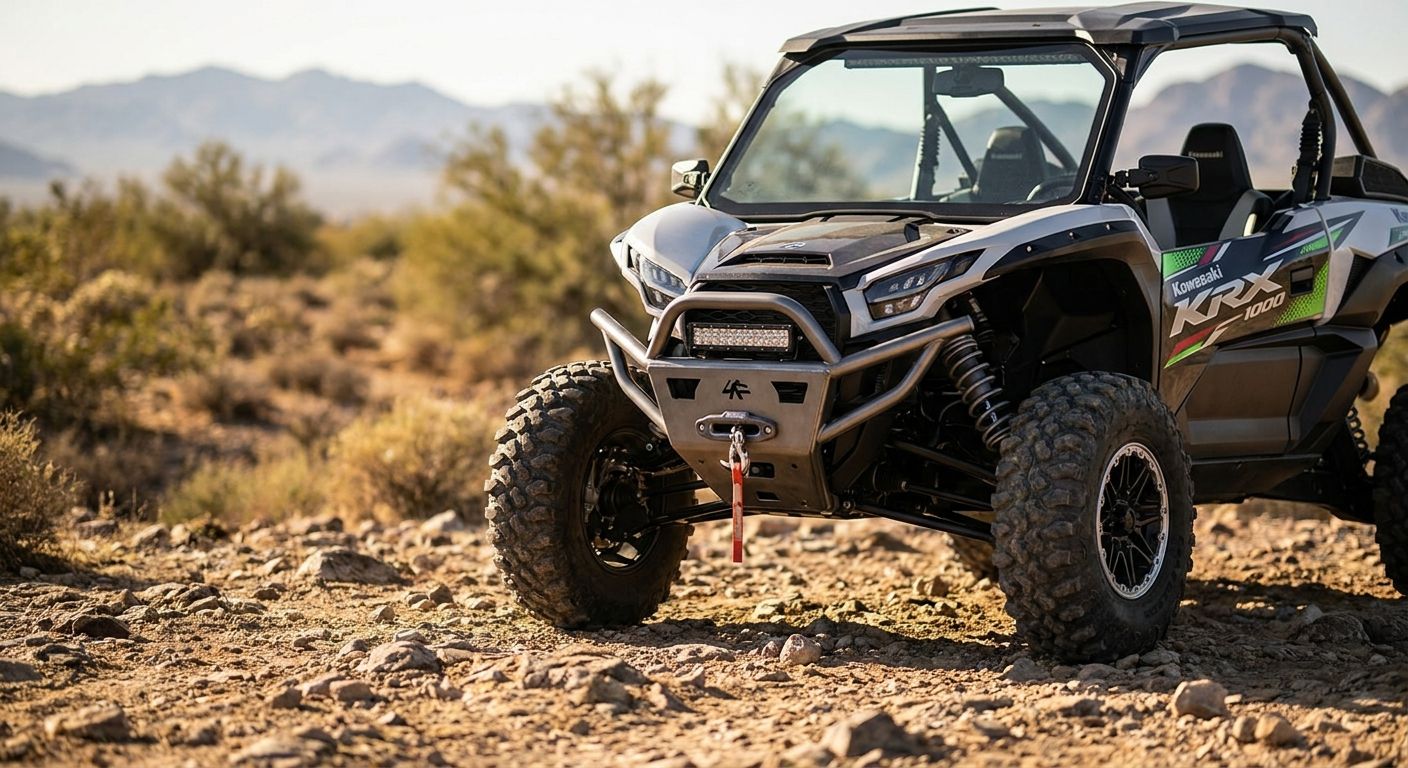

A Kawasaki KRX front bumper for trail builds is a bolt-on or weld-on guard that replaces or reinforces the factory front clip to protect the radiator, headlights, and frame rails from brush, deadfall, and low-speed impacts on marked trail systems rather than rock-crawling obstacles. Trail-focused KRX owners need something lighter and lower-profile than a rock-crawling bumper, because extra unsprung weight up front changes how the KRX 1000 and KRX 4 handle whoops and off-camber turns at speed.
- A tube-style KRX front bumper protects the radiator and grille without the weight penalty of a full plate bumper.
- Winch-ready bumpers only matter if you're actually running a winch on your KRX build.
- Full-width plate bumpers suit slow technical trails; tube bumpers suit fast, flowing trail riding.
- Check fairlead and grille clearance before buying any krx front bumper to avoid a return.
Why front bumpers matter for KRX trail builds
The stock front end on a Kawasaki KRX 1000 is plastic-heavy around the grille and headlight housings, and it sits close to the ground compared to dedicated rock rigs. On a trail build, that stock clip takes hits from branches, rocks kicked up by the vehicle ahead, and the occasional stump nobody saw at 40 mph. A front bumper spreads that impact across a tube or plate structure instead of the fascia and radiator support.
Trail riders also care about a different failure mode than rock crawlers: repeated small impacts over hundreds of miles, not one big hit. That's why fitment and weight distribution matter more here than maximum armor thickness. Pair a front bumper with rock sliders for Kawasaki KRX and you've covered the two spots that take the most abuse on a trail-oriented build: the nose and the rocker panels.
“A front bumper that doesn't clear your winch mount is dead weight before you ever hit the trail.”
Measure your KRX's stock mounting points
Start with the factory bolt pattern before you shop, because "universal fit" bumpers still rely on the stock frame tabs matching up.
- Note whether you're on a KRX 1000 or KRX 4 (2020-2026) — wheelbase differences affect some bumper brackets
- Check if you've already added a winch mount, since that changes bolt spacing at the frame horns
- Measure clearance between the stock grille and the radiator shroud
- Confirm your model year, since Kawasaki made small front-clip revisions across the 2020-2026 run
- Photograph the frame horns before ordering so you can compare against install instructions
Pick a bumper style built for trail speeds, not rock crawling
Most aftermarket options fall into two camps: tube bumpers and full-width plate bumpers. Trail builds lean tube.
- Tube bumpers use 1.5- to 2-inch diameter tubing, usually with 3/16-inch wall thickness, and keep weight low while still stopping brush and small impacts
- Full-width plate bumpers cover more surface area but add more weight and can trap mud and debris against the radiator
- Stubby bumpers protect just the winch and grille centerline, leaving the fenders exposed — fine for trail, risky for tight technical terrain
- Hybrid tube-and-plate designs add a lower skid section to the tube frame for partial radiator coverage without going full plate
Verdict: tube bumpers are the right call for most KRX trail builds — they cut weight without giving up meaningful protection at trail speeds.
Confirm winch compatibility before you buy
A lot of returns on front bumpers come down to fairlead spacing, not the bumper itself.
- Check the fairlead bolt pattern against your existing winch mount or planned winch
- Verify the bumper has a centered opening if you're running a synthetic rope fairlead versus a roller fairlead
- Confirm the bumper doesn't block access to the winch clutch lever
- If you're not running a winch in 2026, skip the winch-ready design entirely — it only adds cost and weight for nothing
Check ground clearance and approach angle changes
Any bumper you bolt to the front of a KRX changes the approach angle, even a small amount.
- Measure from the lowest point of the new bumper to the ground, not just the frame mount height
- Compare against your tire size — bigger tires on a trail build can offset a lower-hanging bumper
- Watch for bumpers that extend past the front tire's leading edge, since that's the first thing to catch on a log crossing
- If your build already runs a lift or portal gear kit, re-check clearance after that change, not before
Match tube diameter and wall thickness to your riding style
Thicker tube sounds better on paper but isn't automatically the right call for a trail rig.
- 1.5-inch tube with 3/16-inch wall handles brush and glancing impacts and keeps weight down
- 2-inch tube adds stiffness for riders who mix in some technical sections but adds noticeable front-end weight
- Powder-coated steel resists trail rash better than raw aluminum but is heavier per foot of tube
- Aluminum tube bumpers cut weight for pure trail speed builds but dent rather than bend on a hard hit
Add push bars or brush guards only if you need them
Extra attachments add weight and cost without adding real protection for most trail riders.
- A push bar helps if you're pulling a stuck buddy on the trail, otherwise it's dead weight
- Light bars mounted to the bumper need their own wiring plan — check clearance with any R1 Industries LED light whips or auxiliary lighting you're already running
- Brush guards matter more in dense tree-line trail systems than in open desert or dune terrain
- Skip stacking multiple accessories on one bumper mount if the bumper wasn't designed for the combined load
Torque and inspect after your first ride
A front bumper that's perfect on install day can loosen up fast on rough trail.
- Re-torque all mounting bolts after the first 20-30 miles of trail riding
- Check for paint or powder-coat cracking at weld points, which signals flex under load
- Inspect the frame tabs for stress marks where the bumper bolts through
- Re-check winch fairlead alignment if the bumper has taken any hits
Comparison: front bumper options for KRX trail builds
| Option | Best For | Key Limitation |
|---|---|---|
| Tube bumper (1.5") | Fast trail riding, weight-conscious builds | Less coverage than a plate bumper |
| Tube bumper (2") | Mixed trail and light technical terrain | Adds more front-end weight |
| Full-width plate bumper | Slow, obstacle-heavy trail systems | Heaviest option, traps debris against radiator |
| Stubby winch bumper | Riders who need a winch mount but not full coverage | Fenders and headlights stay exposed |
Verdict: for a Kawasaki KRX trail build in 2026, a 1.5-inch tube bumper without a winch mount is the practical default unless you're regularly pulling gear or another rig off the trail.
Common mistakes KRX trail builders make
- Buying a rock-crawling bumper for a fast trail rig. Full plate armor rated for slow technical crawling adds weight you'll feel in every whoop section.
- Ignoring fairlead clearance. A bumper that looks winch-ready on the listing page can still block the fairlead bolt pattern on your specific winch.
- Skipping the radiator clearance check. Full-width plate bumpers without a vented section can trap mud against the radiator core on wet trail days.
- Overtightening bolts into factory frame tabs. Stock KRX frame tabs aren't built for the torque specs of some aftermarket hardware — follow the bumper manufacturer's torque guidance, not a generic shop number.
- Treating the bumper as a standalone upgrade. A front bumper without matching A-arm guards still leaves the suspension arms exposed to the same trail hazards the bumper is meant to handle up front.
FAQ
What's the best front bumper for a Kawasaki KRX trail build?
A 1.5-inch tube bumper is the best default krx front bumper for trail riding in 2026 because it protects the grille and radiator without the weight penalty of a full plate bumper. Full-width plate bumpers only make sense if you're running slow, obstacle-heavy trails regularly.
Is a full-width bumper better than a stubby bumper for the KRX?
A full-width bumper covers more of the front end but weighs more and can trap debris against the radiator. A stubby bumper is lighter and fine for open trail riding but leaves the fenders and headlights exposed.
Do I need a winch-ready bumper for trail riding?
Only if you're actually running a winch. A winch-ready bumper adds cost and weight for a fairlead mount you won't use if you're not carrying a winch on your KRX.
Does a front bumper affect ground clearance on a KRX?
Yes, any bumper you bolt on changes your effective approach angle depending on how low it hangs. Measure from the lowest point of the bumper to the ground, not just the mounting height at the frame.
Can I install a KRX front bumper myself?
Most bolt-on tube bumpers use the stock frame tabs and mount with basic hand tools in an afternoon. Winch-ready models take longer if you're also routing wiring for lights or a winch control.
What's the difference between tube bumpers and plate bumpers?
Tube bumpers use round or square tubing welded into a frame and prioritize weight savings, while plate bumpers use solid sheet metal for wider coverage at a higher weight. Trail builds generally favor tube; slow technical builds favor plate.
Are aftermarket bumpers stronger than the stock KRX front end?
Yes, the stock KRX front clip is mostly plastic fascia around a thin radiator support, while aftermarket tube and plate bumpers use welded steel or aluminum designed to take repeated trail impacts.
How much weight does a front bumper add to a KRX?
Tube bumpers add less weight than full plate bumpers because they use less material, though exact weight varies by tube diameter and wall thickness. Check the specific product's listed weight before buying if your build is already weight-sensitive.
One last thing
The fitment mistake that costs KRX trail builders the most time in 2026 isn't the bumper itself — it's buying the winch-ready version and never mounting a winch. That fairlead cutout adds nothing but an open gap in your protection if there's no winch behind it. If you're not winching, buy the solid-face tube bumper and put the weight savings toward a set of rock sliders for Kawasaki KRX instead.
