Installing wheel spacers on your UTV means matching hub-centric spacers to your machine's exact bolt pattern, torquing the wheel studs to the spec in your owner's manual, and rechecking that torque within the first 50 miles of riding. Skip the recheck and the spacers back off before the tread wears in — that's the failure mode behind most spacer complaints, not a bad part.
- Wheel spacers on a UTV bolt to the hub — match bolt pattern first, thickness second.
- The Can-Am HD11 1.5-inch wheel spacers add stance without changing wheel offset or steering geometry.
- Recheck lug torque within 50 miles of the first ride — that's when most spacer failures actually happen.
- Spacers past 2 inches add enough leverage to stress wheel bearings and CV joints faster than stock.
Why this matters
Wheel spacers push your UTV's wheels outward for a wider stance, better cornering grip, and clearance for a bigger tire or a set of aftermarket A-arms. Done right in 2026, it's a bolt-on job most owners handle in a driveway. Done wrong, a mismatched bolt pattern or a skipped torque check turns into a bent stud or a wheel that walks loose mid-trail.
If you're running a Can-Am Maverick X3, the fitment details differ from a Polaris rig — the guide on wheel spacers for Can-Am Maverick X3 breaks down the stance and clearance numbers specific to that platform. Every other UTV brand has its own quirks, but the install fundamentals below apply across the board.

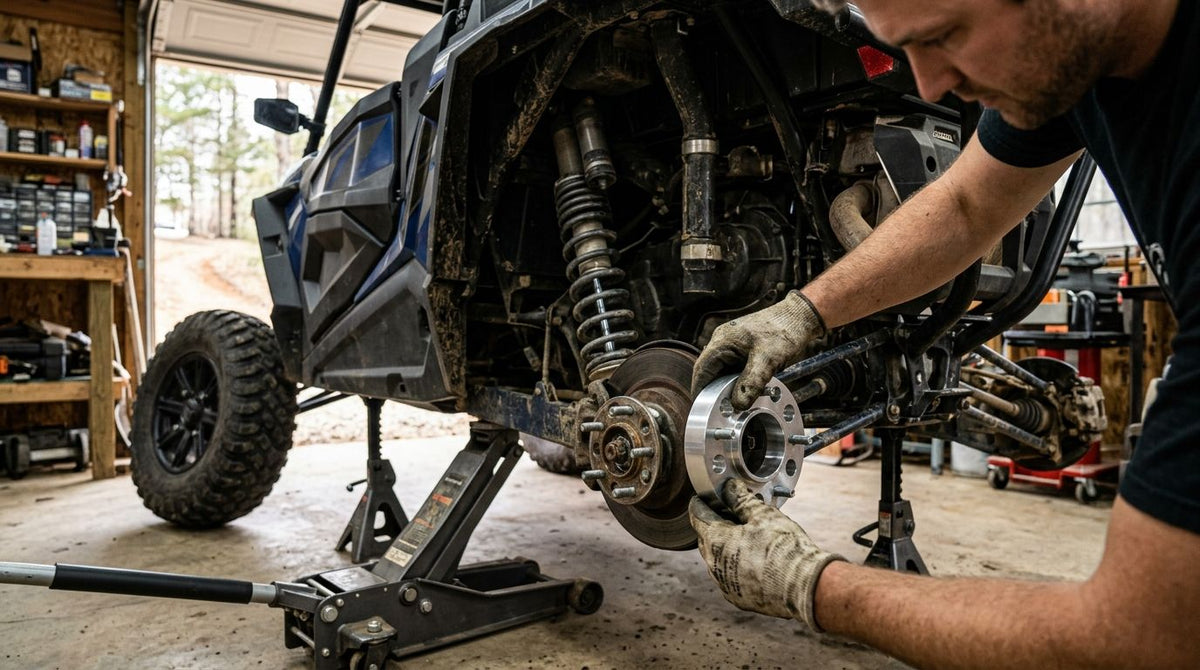

How to install wheel spacers on a UTV
Hub-centric spacers are the standard fitment across Polaris, Can-Am, and Kawasaki UTVs built through 2026, and the process is the same regardless of brand:
- Confirm your bolt pattern and hub bore before you order anything. Polaris RZR models commonly run a 4/137 bolt pattern while Can-Am Maverick X3 rigs run 4/156 — mix those up and the spacer never centers on the hub.
- Break the factory lug nuts loose while the tire is still on the ground. Cracking torque with the wheel free-spinning strips studs.
- Jack the corner and support it on a stand rated for the UTV's weight, then pull the wheel completely.
- Clean the hub face before bolting anything to it. Rust, mud, or old anti-seize between the hub and spacer keeps the spacer from sitting flush, and a spacer that isn't flush throws the wheel out of true no matter how tight the lug nuts are.
- Bolt the spacer to the hub using the studs it ships with, torquing in a star pattern to the spec listed in your owner's manual — not a generic number pulled off a forum.
- Remount the wheel onto the spacer's studs, torque the lug nuts in the same star pattern, lower the UTV, and drive it.
- Recheck every lug nut's torque within the first 50 miles. Hub-centric spacers settle slightly as the mating surfaces seat under load, and that first ride is when they lose the most torque.
Skip step seven and you're gambling on the spacer holding without ever confirming it did.
Can-Am HD11 1.5-inch wheel spacers: what 1.5 inches actually changes
The Can-Am HD11 1.5-inch wheel spacers bolt straight to the hub and add 1.5 inches of total stance without changing wheel offset, which keeps steering geometry close to stock. That's enough width to clear a wider tire — something like a Tusk Terrabite — without the tire rubbing the A-arms on most builds.
It's also enough added leverage on the wheel bearing that the 50-mile torque recheck matters more with spacers installed than it does after a plain wheel swap. Verdict: 1.5-inch hub-centric spacers are a safe stance upgrade for most trail UTVs when the bolt pattern is confirmed and torque is rechecked on schedule — skip either step and you're rolling the dice.
Why wheel spacer installs go wrong
- Wrong bolt pattern ordered. Polaris and Can-Am don't share a pattern, and a spacer that doesn't seat flush on the hub throws the wheel off-center from the first mile.
- Lug-centric spacers used on a hub-centric wheel. The wheel ends up riding on the lug nuts instead of the hub, and vibration works those nuts loose faster than normal.
- Skipping the star-pattern torque sequence. Tightening lug nuts in a circle instead of a star warps thinner spacers over repeated heat cycles.
- No 50-mile recheck after the first ride. This is the single most common cause of spacer-related lug loosening reported by UTV owners.
- Stacking spacers thicker than the A-arms and CV joints were designed to handle. Extra leverage at the wheel shortens CV boot life and stresses the ball joints.
- Running stock lug nuts on studs meant for longer aftermarket hardware. Too few threads engaged means the nut can back off under vibration even at correct torque.
Related questions about UTV wheel spacers
Do wheel spacers hurt UTV wheel bearings?
Wheel spacers add leverage on the wheel bearing by moving the tire's contact patch outward, and spacers over 1.5 inches increase that stress enough to shorten bearing life on machines already running heavier tires. Sticking to 1.5-inch hub-centric spacers keeps the added leverage modest enough that stock bearings handle it fine on most trail builds.
How much wider does a UTV get with 1.5-inch spacers?
A set of 1.5-inch spacers widens the UTV's overall track by roughly that same 1.5 inches, since the spec describes total width added across the axle rather than a per-side bonus stacked on top of stock track. That's usually enough to clear a wider tire swap without modifying the fender flares.
Do wheel spacers void a UTV warranty?
Warranty treatment of wheel spacers varies by manufacturer and there's no universal rule for 2026 model-year UTVs, so check the terms specific to your machine before installing anything. Some dealers treat any hub modification as an aftermarket change that affects drivetrain coverage, others don't touch it.
One more thing worth stating plainly: wheel spacers are a bolt pattern and torque discipline problem, not a horsepower problem. Get those two things right and the rest of the install is routine.
FAQ
What tools do I need to install UTV wheel spacers?
A torque wrench rated for your lug nut spec, a jack and a rated jack stand, and the lug wrench or impact that matches your factory lug pattern cover most installs. A torque wrench is non-negotiable — guessing torque by feel is how spacers back off.
Can I install wheel spacers myself without a lift?
Yes, a floor jack and a jack stand rated for your UTV's weight handle a spacer install fine — you don't need a shop lift. Work one corner at a time and never rely on the jack alone to hold the vehicle.
Are hub-centric or lug-centric wheel spacers better for a UTV?
Hub-centric spacers are the better choice for a UTV because the wheel rides on the hub rather than the lug nuts, which cuts down on vibration-related loosening. Lug-centric spacers work but require more frequent torque checks.
How much torque do wheel spacer lug nuts need?
Torque spec comes from your UTV's owner's manual, not a generic number, since it varies by brand and model year through 2026. Using the manufacturer spec and a star-pattern sequence is the only reliable method.
Do wheel spacers on a UTV need longer wheel studs?
Thicker spacers, generally past 1.5 to 2 inches, often need longer studs to keep full thread engagement on the lug nuts. Check the spacer's included hardware before assuming your factory studs will reach.
How often should I recheck wheel spacer torque?
Recheck torque within the first 50 miles after installing wheel spacers, since that's when hub-centric spacers settle the most. After that first check, a monthly recheck during active riding season is a reasonable habit.
Will wheel spacers make my UTV tip over easier?
A wider stance from wheel spacers generally improves cornering stability rather than hurting it, since the added track width lowers the vehicle's rollover tendency. Excessive spacer thickness can offset that benefit by adding stress elsewhere in the suspension.
One last thing
The torque wrench click during install isn't the end of the job — it's the start of a 50-mile trial period. Riders who skip that recheck are the ones posting bent studs and loose wheels on forums in 2026, not the riders running spacers a size thicker than stock. The spacer rarely fails on its own; the missed recheck does.
