Installing a long-travel suspension kit means pulling the factory A-arms, radius rods, and shocks and replacing them with longer-travel components, then correcting tie rod and panhard bar geometry so the axles track straight through the added range of motion. Skip the geometry correction and you'll get bump steer and uneven tire wear no matter how good the new arms are.
- Long-travel kits replace factory A-arms and radius rods with longer units — Can-Am X3 radius rods run 64 or 72 inches depending on the kit.
- Radius rod length changes trail geometry, so an alignment after install is not optional.
- CFMoto UForce U10 Pro 4 owners get a dedicated long travel kit built for that platform, not a universal fit.
- Tender spring kits add 2 to 4 inches of lift without a full long-travel swap — a cheaper first step if you're not chasing max travel.
Why This Matters
A lift kit raises ride height. A long-travel kit changes how far the suspension can compress and droop before it tops out or bottoms out — that's the difference between a UTV that soaks up whoops at speed and one that packs the shocks solid on the same trail. Riders researching long travel suspension kits for Can-Am Maverick X3 usually start here because the X3 platform has the widest range of radius rod lengths on the market right now.
Getting the install wrong doesn't just cost you ride quality. Mismatched radius rod length and stock tie rods bind the steering at full droop, and that shows up as clunking and premature ball joint wear within a season.

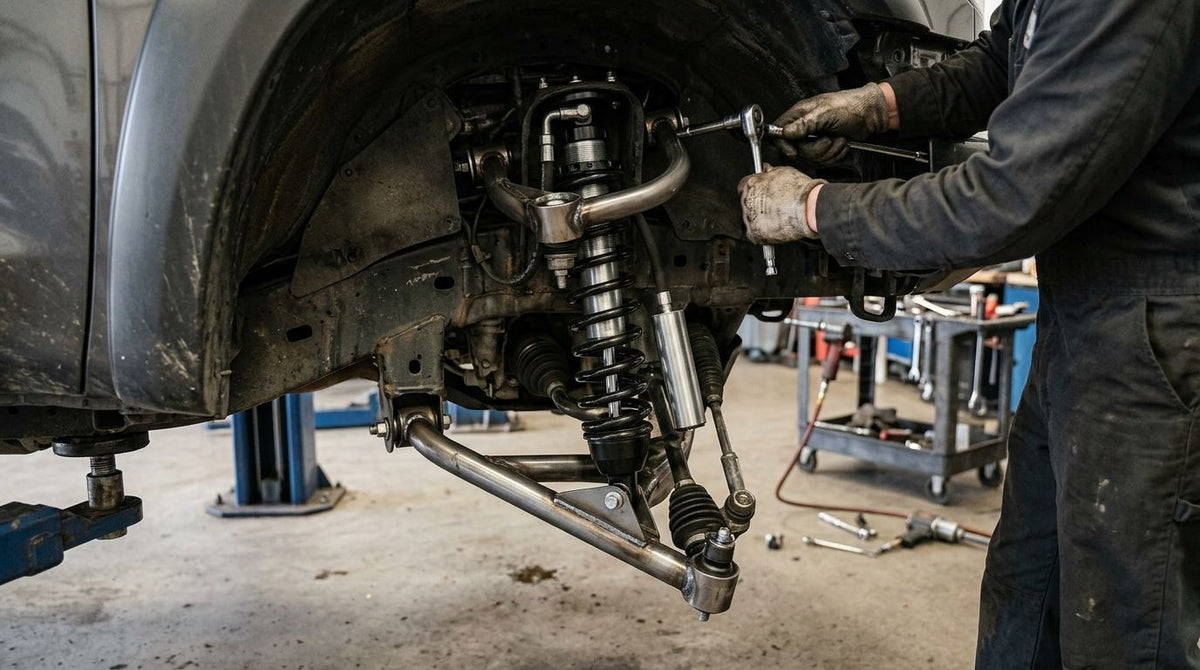

How Do You Install a Long-Travel Suspension Kit?
The install order is the same across most UTV platforms, whether you're working on a Can-Am Maverick X3, a Polaris RZR, or a CFMoto UForce U10.
- Support the frame on jack stands and pull the wheel and tire on the side you're starting with.
- Disconnect the sway bar end link, tie rod, and ball joints at the factory A-arms before unbolting the arms from the frame.
- Remove the factory radius rod and shock — mark the shock mount position if the new kit reuses the stock towers.
- Bolt in the new long-travel A-arms and radius rod, torquing frame-side bolts before wheel-side bolts to keep the arm from twisting under load.
- Install the new shock, matched to the kit's travel spec, and check that it clears the frame and bodywork through full compression by hand-cycling the arm.
- Reconnect the tie rod and adjust its length to bring toe back into a reasonable starting range — final toe gets set on the alignment.
- Repeat on the opposite side, then the rear axle if the kit covers both ends.
- Torque every fastener to the kit's spec sheet and cycle the full suspension travel before the UTV touches a trail.
- Get a full alignment — toe at minimum, camber if the kit changes upper arm geometry — before you drive it hard.
Skipping step 9 is the single most common mistake with long-travel installs in 2026: the arms bolt on fine, the geometry doesn't.
Can-Am X3 Radius Rods: 64-Inch vs 72-Inch Width
Radius rod length sets your rear track width and how much fender clearance you need for the added travel.
| Radius Rod | Width | Best For | Verdict |
|---|---|---|---|
| Can-Am X3 Billet Radius Rods | 64 in | Stock-width trail builds that don't need extra fender trimming | Buy |
| Black Ops Can-Am X3 Billet Radius Rods | 72 in | Wide-stance desert builds chasing stability at speed | Buy for desert, skip for tight trails |
The 72-inch Black Ops rod pushes the wheel further out, which stabilizes high-speed runs but forces fender flare or bodywork changes on most X3 trims. The 64-inch rod keeps you closer to stock width and bolts up with fewer clearance surprises.
CFMoto UForce U10 Pro 4: One Kit, Full Long Travel
The CFMoto UForce U10 Pro 4 long travel kit is built specifically for that platform rather than adapted from another chassis. That matters because a kit engineered around the U10 Pro 4's factory mounting points needs less on-the-fly fabrication than a universal kit forced onto a different frame.
Verdict: buy the platform-specific kit over a universal long-travel setup if one exists for your machine — it saves hours of trimming and re-drilling during install.
Why Installation Time Varies
No two long-travel installs take the same number of hours in the garage. The factors that actually move the needle:
- Radius rod width — a 72-inch rod usually means fender or bodywork trimming a 64-inch rod does not.
- Whether tie rods need upgrading — stock tie rods sometimes bind at full droop with the new geometry, forcing a mid-install parts run.
- Panhard bar fit — wider radius rods can shift axle centering enough that the panhard bar needs adjustment or replacement.
- Shock length and mounting changes — some kits reuse factory shock towers, others require new mounts welded or bolted in.
- Front-only vs front-and-rear — converting both axles roughly doubles the arm and shock work, not the alignment work.
- Alignment access — a shop alignment after install adds a day if you're not doing it yourself.
![[Open Box] Polaris RZR XP 1000 Tender Spring Kit - 2-4" Lift (Walker Evans) 2 Seater (2014-2018)](https://cdn.shopify.com/s/files/1/0265/4076/9342/files/unnamed_1_b62415b5-75db-4fc3-a7ee-a13cc4af7202.jpg?v=1788548216)
Do I need an alignment after installing a long-travel kit?
Yes — every long-travel install needs a full alignment because changing radius rod length and A-arm offset changes toe and, on some kits, camber. Driving on the new geometry without an alignment burns through tires within a few hundred miles.
Can I install a long-travel kit myself?
Most owners with a floor jack, jack stands, and standard hand tools can install a long-travel kit in a home garage over a weekend in 2026, though jobs that also require tie rod or panhard bar changes take longer than a straightforward arm-and-shock swap. Shops with a lift and alignment rack cut that time down significantly.
What's the difference between a long-travel kit and a tender spring kit?
A tender spring kit adds 2 to 4 inches of lift and softens the ride without touching the A-arms or radius rods, while a long-travel kit replaces those arms outright to increase how far the suspension can travel before bottoming out. Riders who just want a smoother ride at stock speeds often start with tender springs before committing to a full long-travel build.
FAQ
How long does it take to install a long-travel suspension kit?
Time depends on whether tie rods or the panhard bar also need replacing — a straightforward A-arm and radius rod swap on one axle is a weekend garage job in 2026, while a full front-and-rear conversion with geometry corrections runs longer.
Do I need a new alignment after a long-travel install?
Yes, every long-travel install changes toe and often camber, so a full alignment is required before hard driving.
What's the difference between 64-inch and 72-inch Can-Am X3 radius rods?
The 64-inch rod keeps the rear track close to stock width with fewer clearance issues, while the 72-inch Black Ops rod widens the stance for stability but usually requires fender or bodywork trimming.
Can I use a long-travel kit without upgrading the tie rods?
Stock tie rods sometimes bind at full droop once the new geometry is in place, so check clearance through the full range of motion before assuming the stock tie rod will work.
Is a long-travel kit the same as a lift kit?
No, a lift kit raises ride height while a long-travel kit changes how far the suspension can compress and droop before it bottoms or tops out — some kits do both.
Does the CFMoto UForce U10 Pro 4 have a dedicated long-travel kit?
Yes, the CFMoto UForce U10 Pro 4 long travel kit is built specifically for that platform's factory mounting points rather than adapted from another chassis.
Should I upgrade the panhard bar when installing radius rods?
Wider radius rods can shift axle centering enough that the stock panhard bar binds, so check axle centering through full travel before finishing the install.
One Last Thing
The part riders skip most often on a long-travel build isn't the A-arms — it's the panhard bar. A chromoly panhard bar fabrication kit with heims rated to 28,081 lb keeps the rear axle centered once radius rod length changes, and running the stock bar with a 72-inch rod is the fastest way to introduce bind nobody catches until the bushings wear out early.
