Kawasaki Teryx H2 Big Mouth Resonated Cat Delete Mid Pipe With E-Valve
Kawasaki Teryx H2 Big Mouth Resonated Cat Delete Mid Pipe With E-Valve
Kawasaki Teryx H2 Big Mouth Resonated Cat Delete Mid Pipe With E-Valve is built for Teryx H2 applications. Review the fitment notes, included components and available options below before ordering.
Product Details

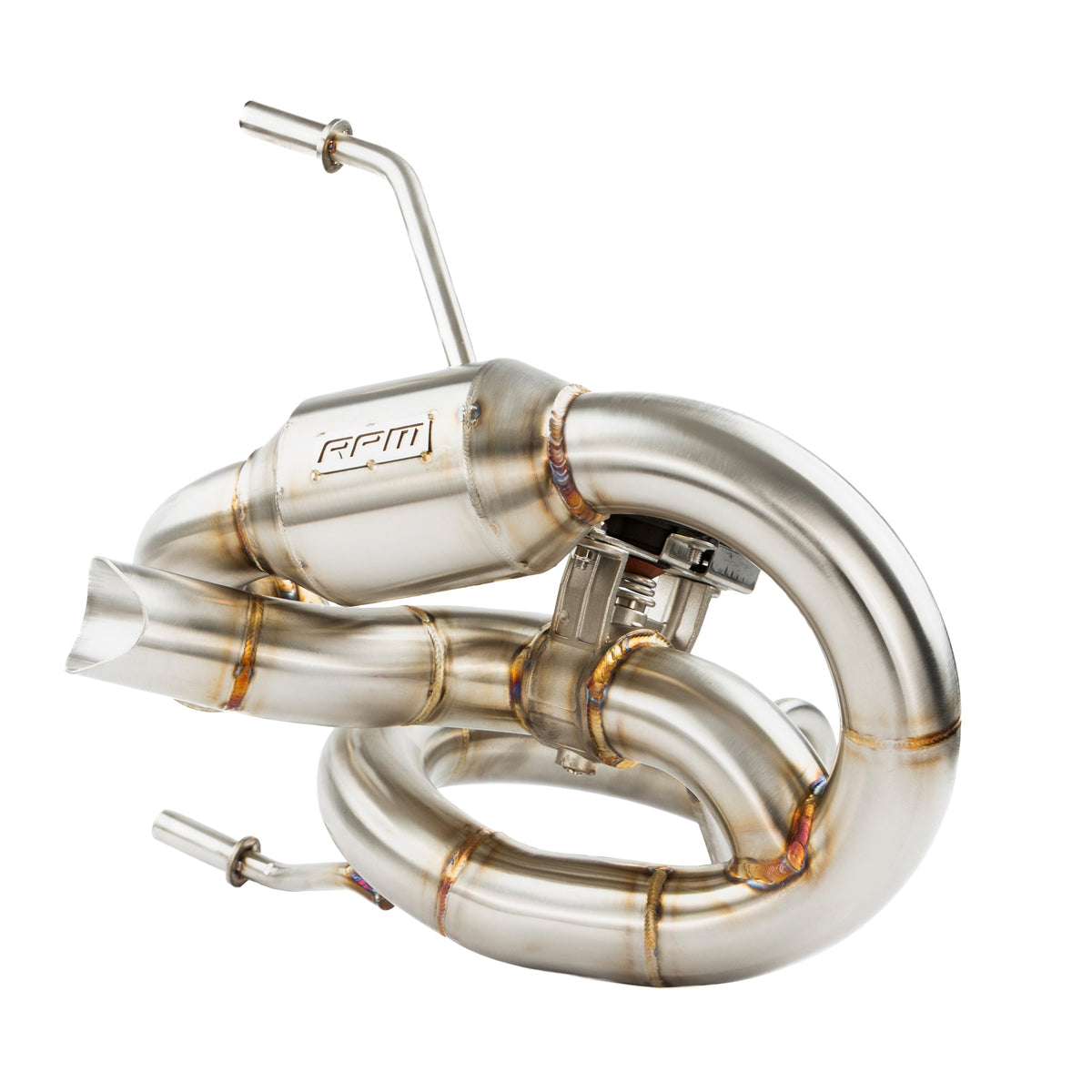

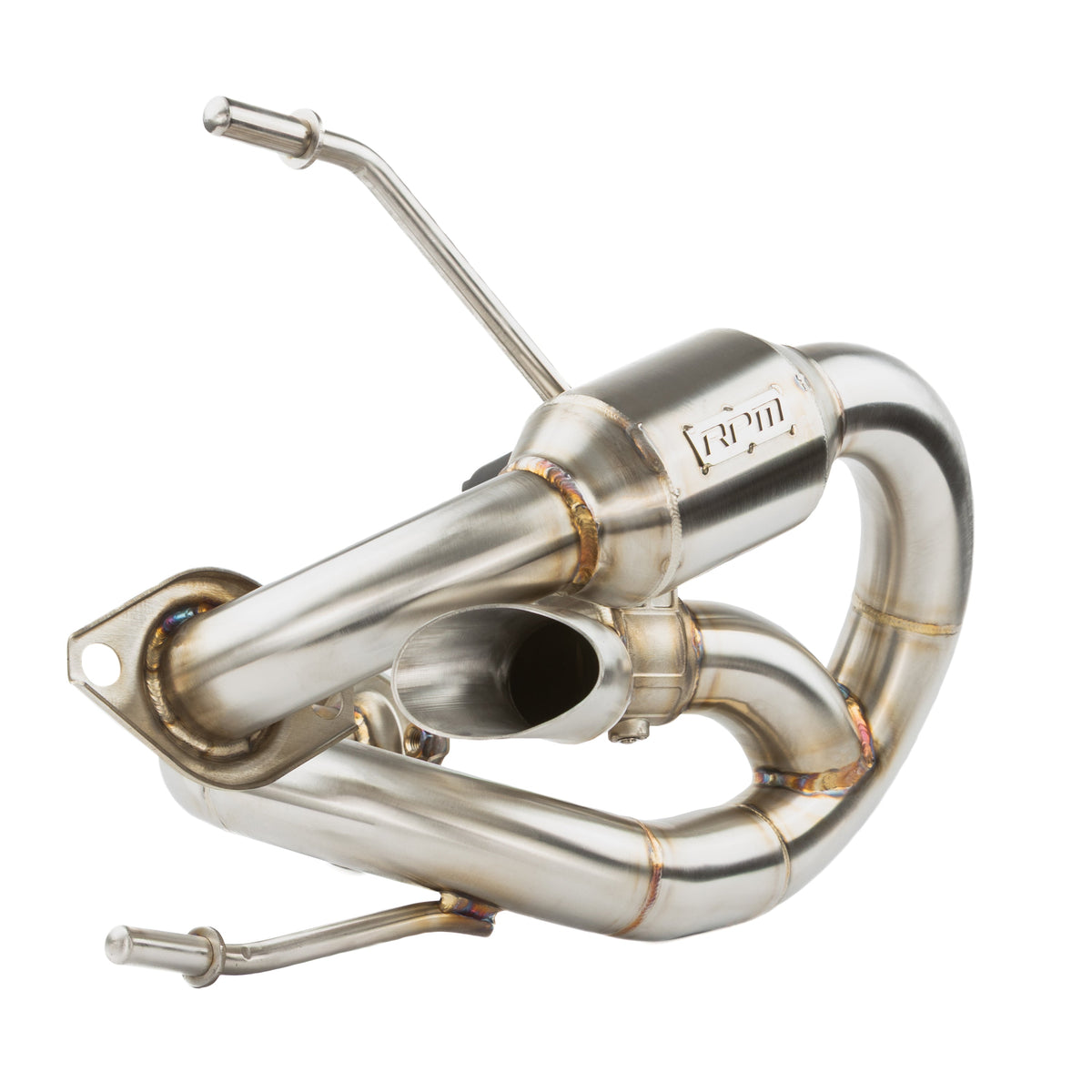

RPM Kawasaki H2 Big Mouth E-Valve Pre-muffler Replacement w/ 6" Resonator – Electronic Dump Valve
With many dyno comparisons, changes to tubing size and bends, we've landed here on the perfect OEM muffler replacement with integrated E-Valve. We added a 6" resonator for maximum flow efficiency and the smoothest possible performance, while significantly reducing rasp and unwanted noise from the exhaust tone. A slight increase to 50mm tubing created the ideal exhaust flow balance leading to the factory rear muffler.
This is a true direct replacement for the primary OEM muffler. Instead of a simple straight pipe or crude delete, we engineered a high-flow electronic dump valve followed immediately by an integrated 6" resonator.

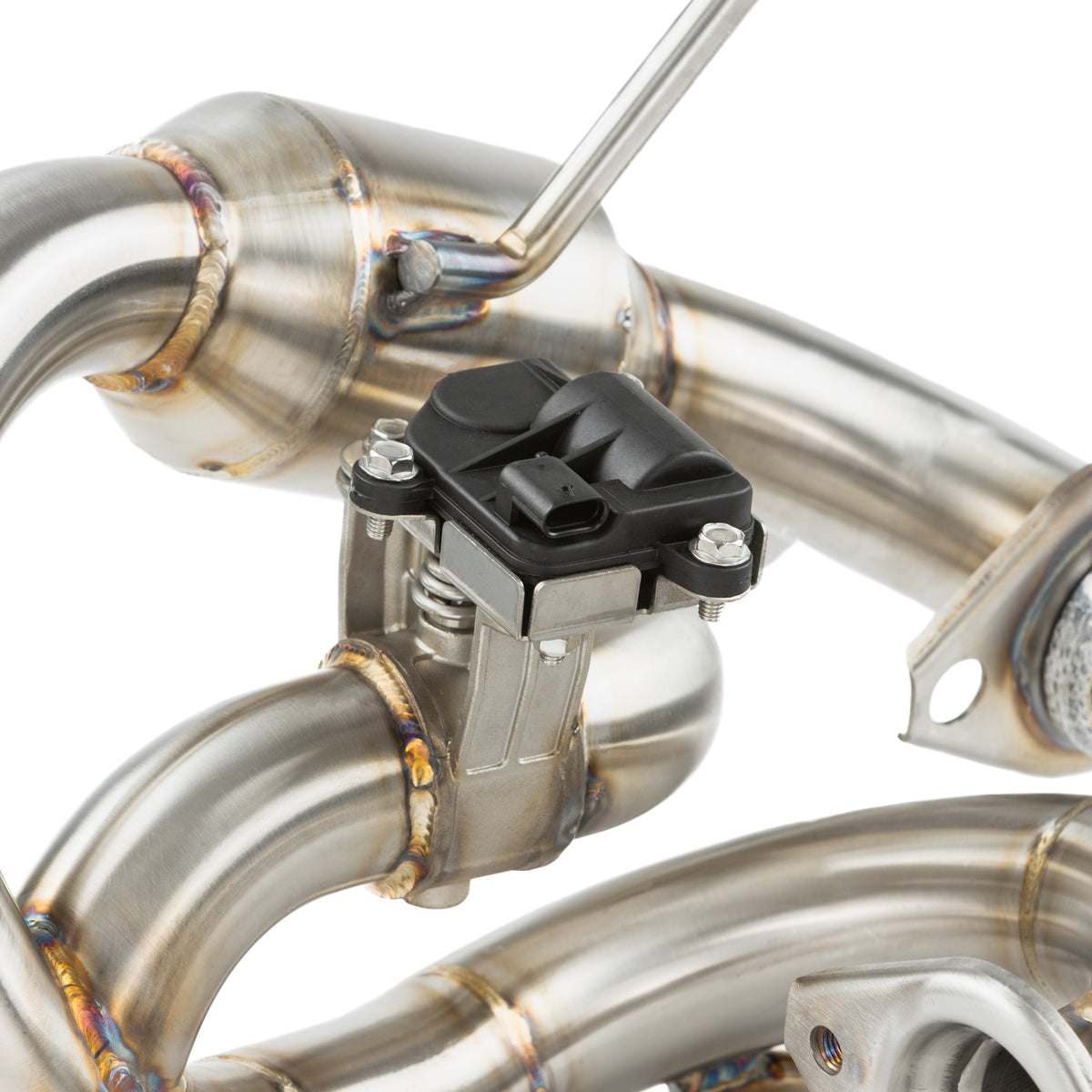

When the E-Valve is closed, the resonator knocks down the noise for a quieter, more refined tone. Flip the switch and the valve opens to unleash a loud, aggressive roar with even stronger power delivery. You get the best of both worlds: serious sound and performance on demand, without the constant rasp or drone of typical deletes.
It mounts using the factory mounting brackets, factory gaskets, and factory hardware. 100% bolt-on with zero cutting, welding, or modifications required. No tuning needed either. It installs exactly like the stock muffler.
Built from high quality stainless steel and precision TIG welded for maximum durability. This design unlocks real performance gains on a stock tune while reducing heat radiation compared to the stock muffler. Add a tune and the gains become even more phenomenal.

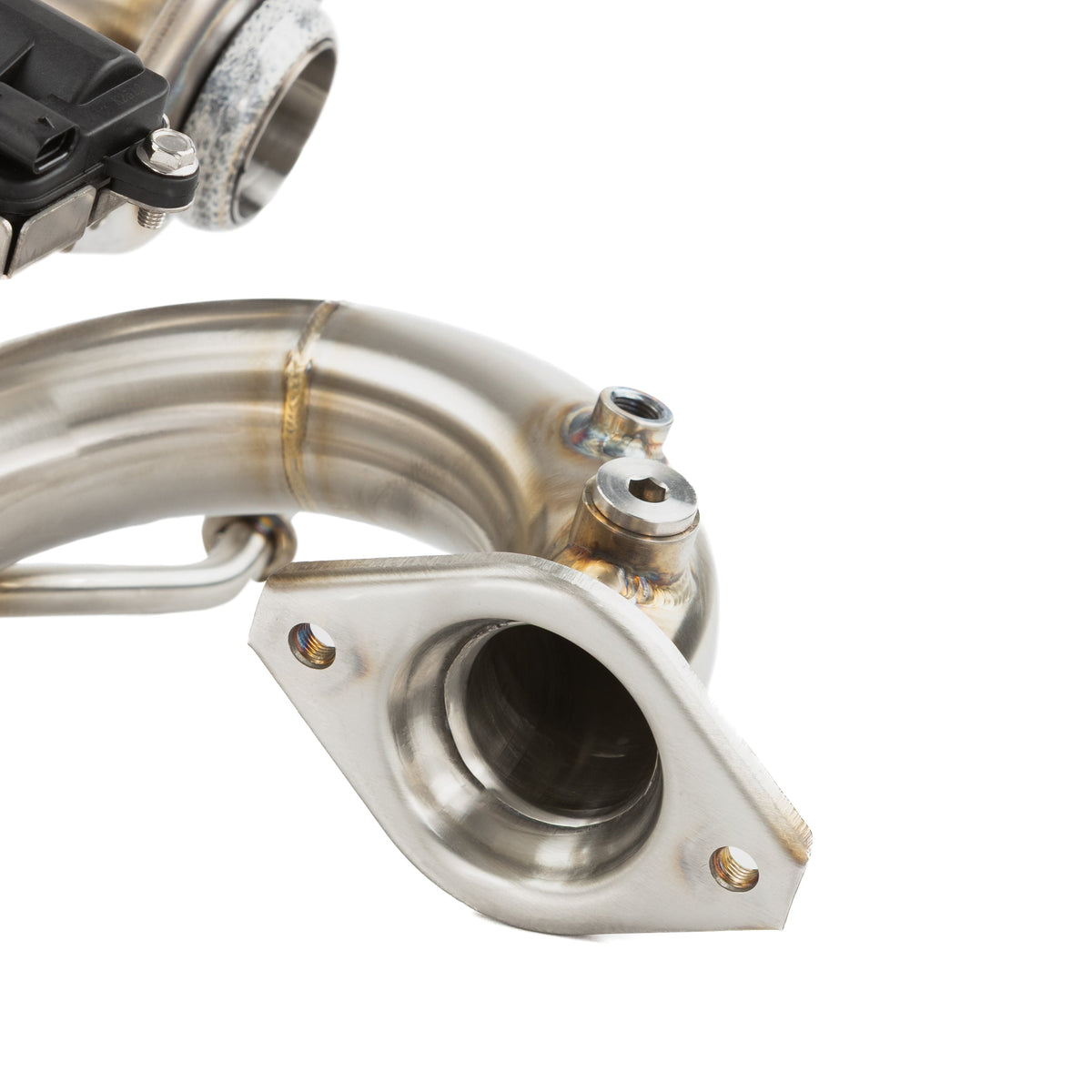

We've added a second 18mm O2 bung for easy dyno work or wideband data logging, while keeping the factory O2 sensor location fully intact for normal operation. A muffler-side gasket is included although we recommend replacing the header side gasket at the same time (not required).
Key Features & Benefits
- Direct replacement for the primary OEM muffler
- Electronic E-valve with integrated 6" resonator for smart sound control
- Slight 50mm tubing increase for ideal flow to the factory rear muffler
- Uses all factory mounting brackets, gaskets, and hardware
- No tuning, no modifications, no cutting required
- Retains factory O2 bung + second 18mm O2 bung for dyno/data logging
- Plug & play wiring harness with backlit switch included
- Precision TIG welded stainless steel construction
- Reduces exhaust heat radiation

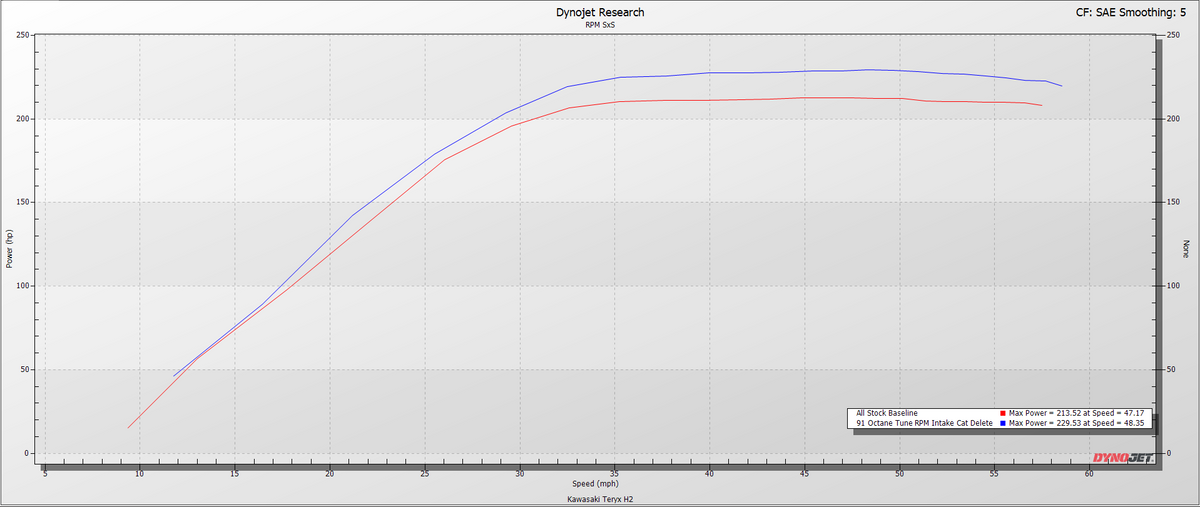

Exhaust Comparison
Power · Sound · Weight
| Configuration | Peak HP | Gain | dB @ 4k | dB w/ E-Valve Open @ 4k | Weight | Savings |
|---|---|---|---|---|---|---|
| Stock | 213.5 | Baseline | 92 | — | 48.9 lb | — |
| RPM Carbon Fiber Intake & Tune | 224.70+11.2 | +5% | 92 | — | 48.9 lb | — |
| Big Mouth E-ValvePre-Muffler Replacement w/ 6" Resonator | 229.53 +16.0 | +7% | 103.7 | 114.3 | 27.5 lb | −21.4 lb |
| 3/4 Exhaust2.5" Mid Pipe + Chambered Muffler | 231.70+18.1 | +9% | 104.8 | 114.3 | 33.6 lb | −15.3 lb |
| 2.5" Chambered Full ExhaustPopular | 236.64 +23.1 | +11% | 105.7 | 113.9 | 27.9 lb | −21.0 lb |
| 2.5" Dual Sport Full Exhaust | 241.24+27.7 | +13% MAX | 104.6 | 117.6 | 30.6 lb | −18.3 lb |
Fitment & Ordering
Confirm the vehicle year, model and selected options shown on this page before checkout. Contact R1 Industries if you need help validating compatibility.
Explore Related UTV Parts
Continue your build with Kawasaki Teryx H2 parts and accessories and UTV & ATV Exhaust Systems & Parts.
Shipping & Returns
Shipping details are shown at checkout. Review our shipping and return policies for complete information.
