50 Caliber Racing Sway Bar Fab Kit - 3/4-16 x 3/4" Bore Chromoly Heims & Bungs for 1.5" OD Tubing, .095 or .120 Wall

Rod end fabrication kit complete with 3/4 x 3/4 heat treated chromoly heim joints, jam nuts, and weld in bungs (tube adapter). Designed specifically for 1.5" OD tubing, with wall thickness of .095 or .120. Heim joints are made from 4130 Chromoly steel, with a nylon / teflon PTFE liner. The load rating and size make these excellent for building custom sway bar links, tie rods and radius arms for cars, trucks, sand rails and more. Includes two Left hand thread and two Right hand thread heim joints, and matching bungs. Available with or without high misalignment spacers.

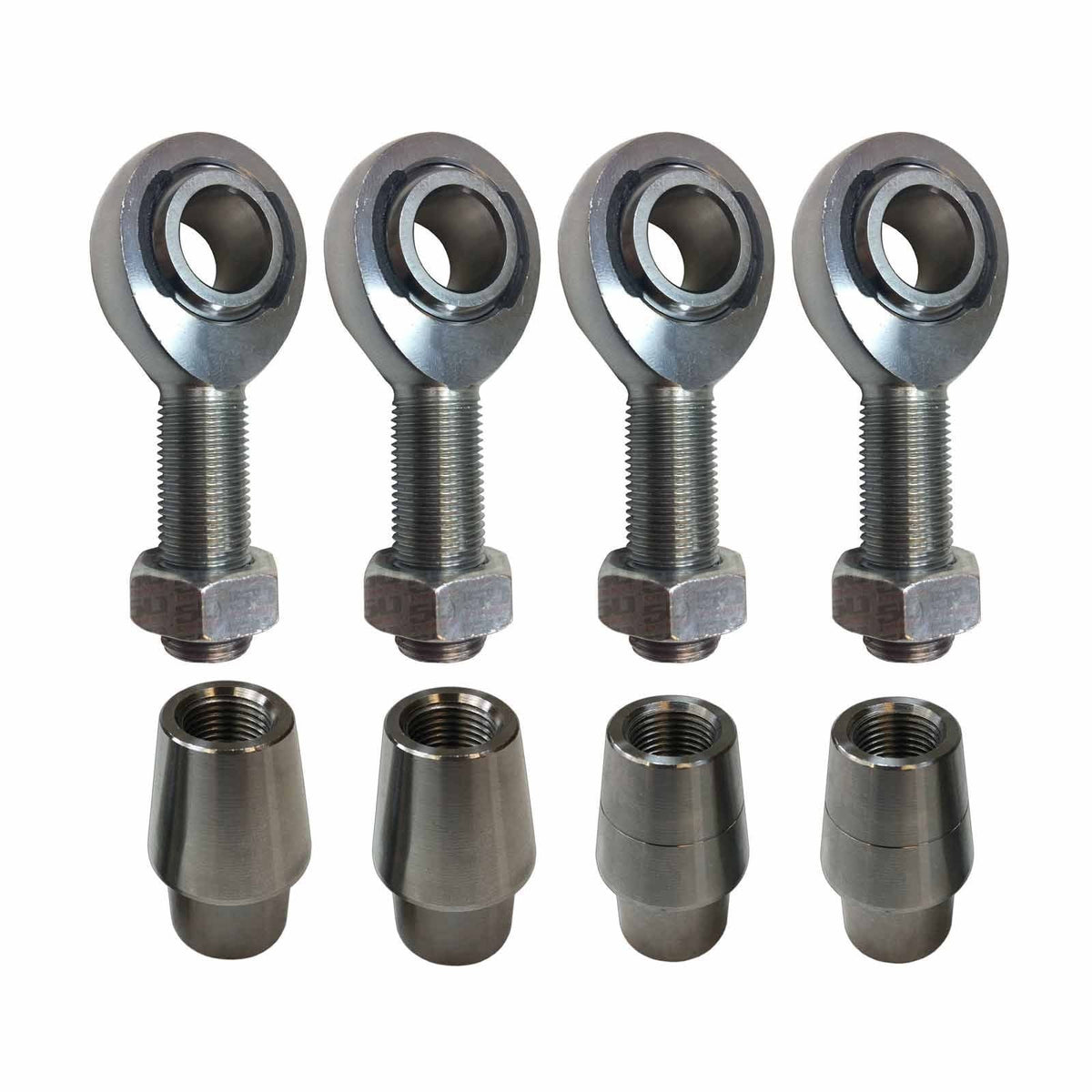

Includes:
- (2) 3/4-16 x 3/4" bore Heims - RH Thread
- (2) 3/4-16 x 3/4" bore Heims - LH Thread
- (2) RH Jam Nuts
- (2) LH Jam Nuts
- (2) RH Weld in Bungs (tubing adapter)
- (2) LH Weld in Bungs (tubing adapter)
Optional:
- (8) Misalignment spacers

Specifications:

Heim Joint:
- 4130 Chromoly Steel, Nylon / Teflon (PTFE) Liner
- Static radial load rating: 28,081 lb
- Thread pitch: 3/4"-16
- Bore: 3/4"
- Socket end diameter: 1.750"
- Socket width: .687"
- Ball width: .875"
- Center line length: 2.875"

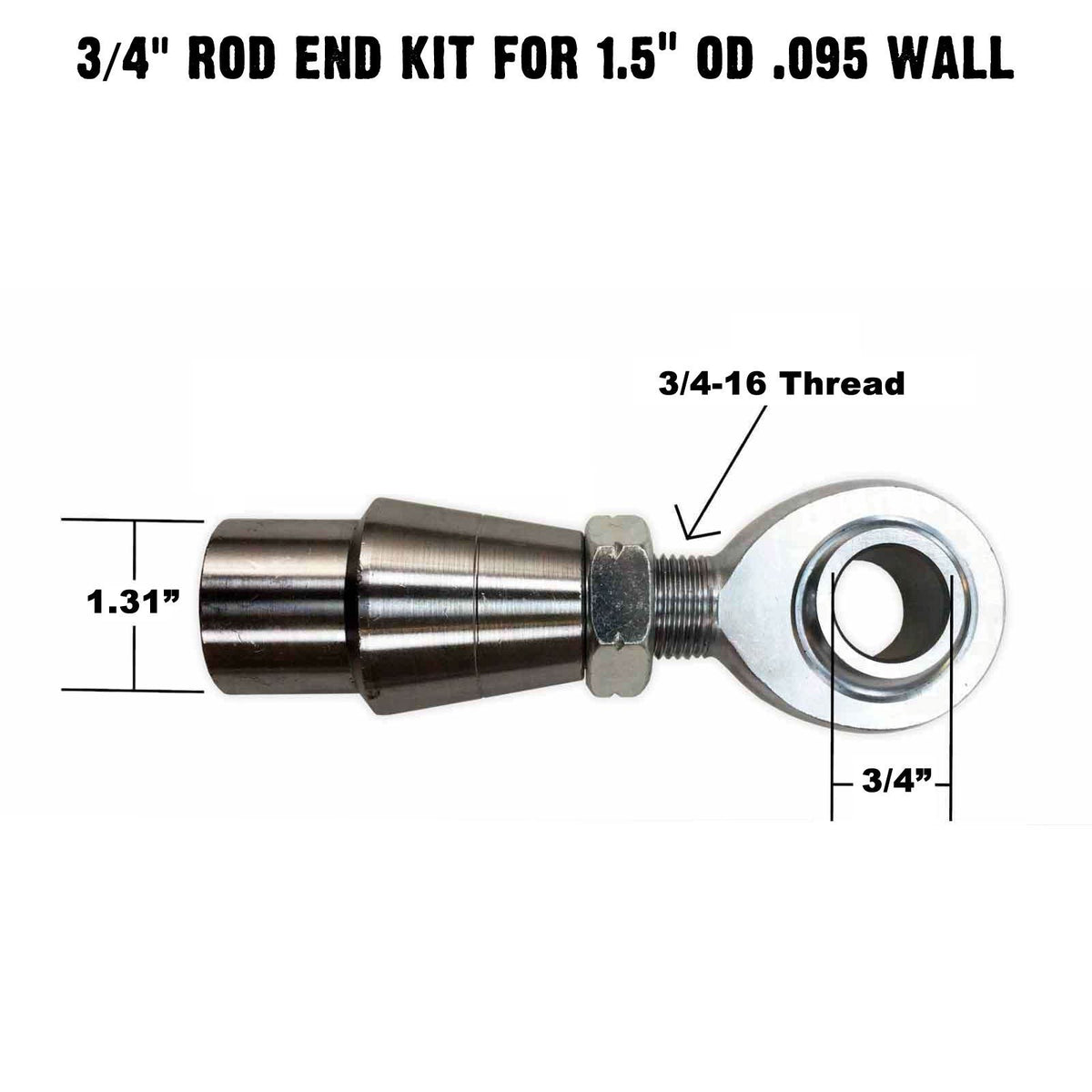

Bung:
- Thread: Female 3/4"-16
- Material: Chromoly Steel
- Thread Length: Full length
- Choose from 2 different tube sizes:
   1" OD x .095 Wall x 1.31" ID
   1" OD x .120 Wall x 1.26" ID

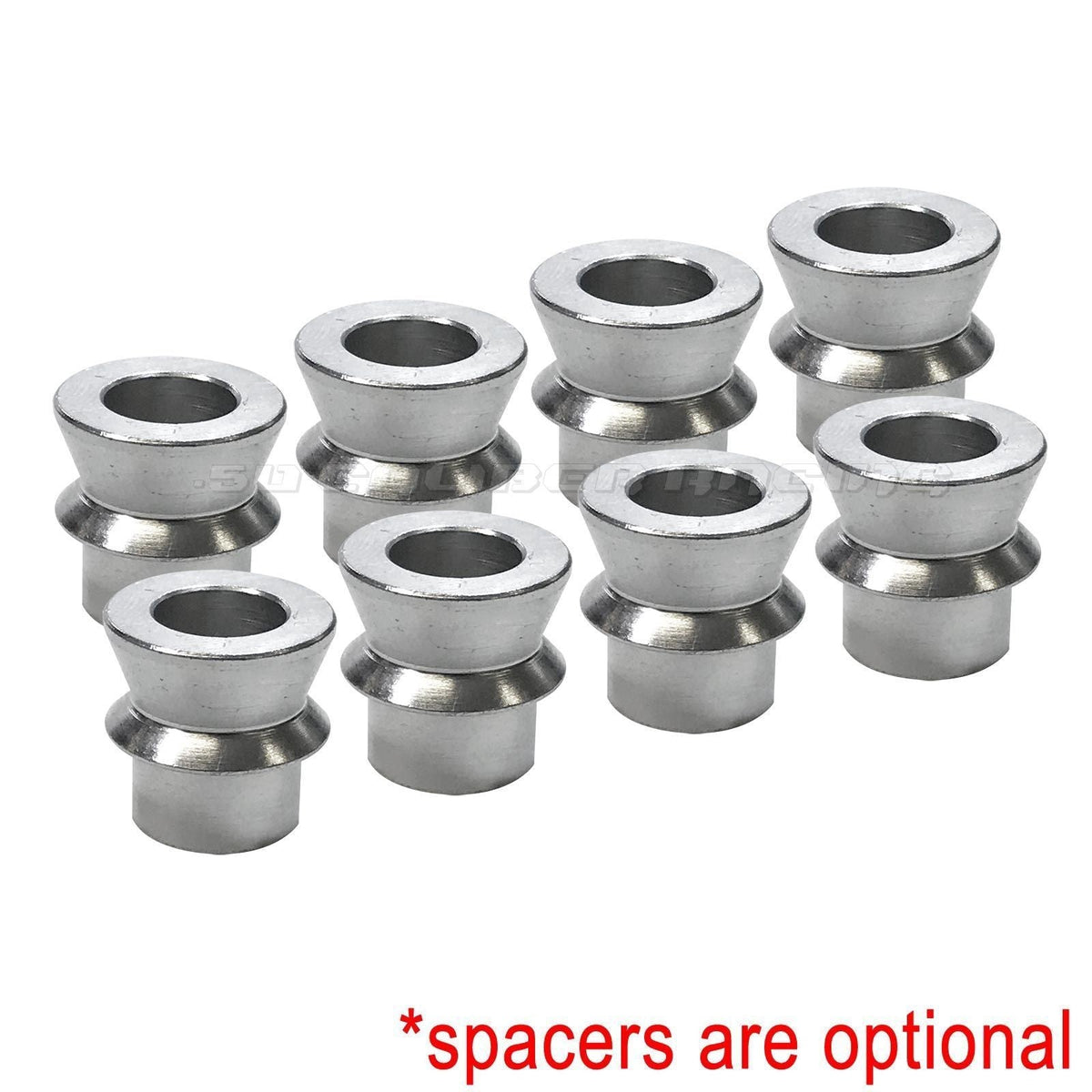

Misalignment Spacers (optional):
- Material: Chromoly Steel
- Surface finish: Zinc plated
- .625" ID x .743" OD x .922" W
- Compatible with 5/8" bolt size

Perfect for fabricating custom suspension and steering links on your go kart, sand rail, hot rod, race car, utv and more!

- Sway bar links
- Tie Rods
- Hi steer components
- Radius rods
- Panhard bar / trackbar
- Drag link
- Control arms
- 4 Link setups
- Custom Mounts
