HCR kits are made to order. Quality takes time.
PART# MAV-05200
Features
1.5" High clearance A-Arm design allows for added ground clearance under key components.
Manufactured with HCR Elite Alloy; 30% stronger than 4130 Series Chromoly
Delrin bushings included for increased strength to mounting points.
Internal catacomb design allow for increased strength from hollow factory design .
comparable weight to factory with added structure.

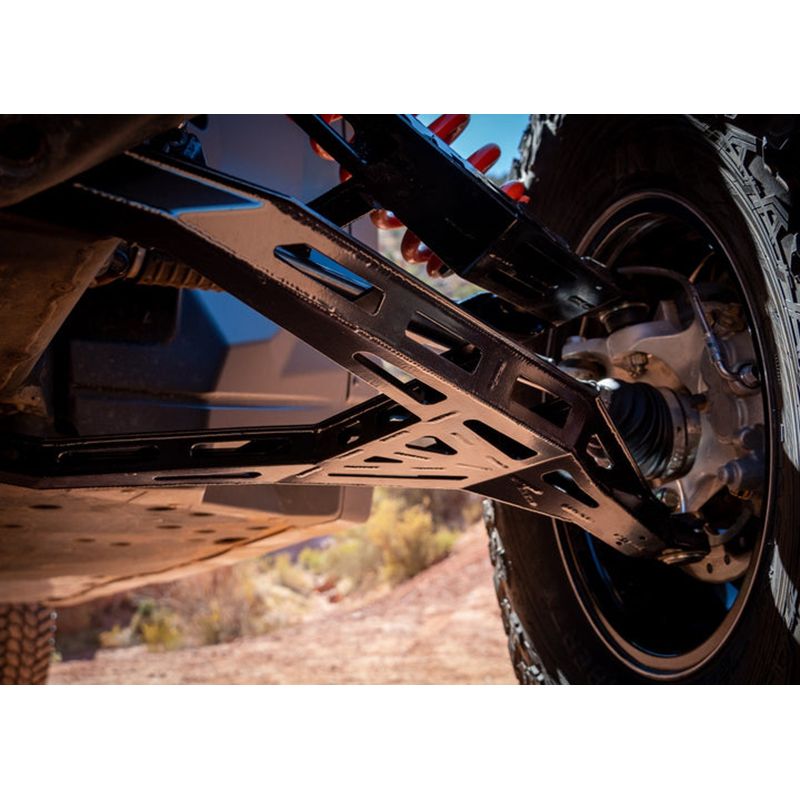

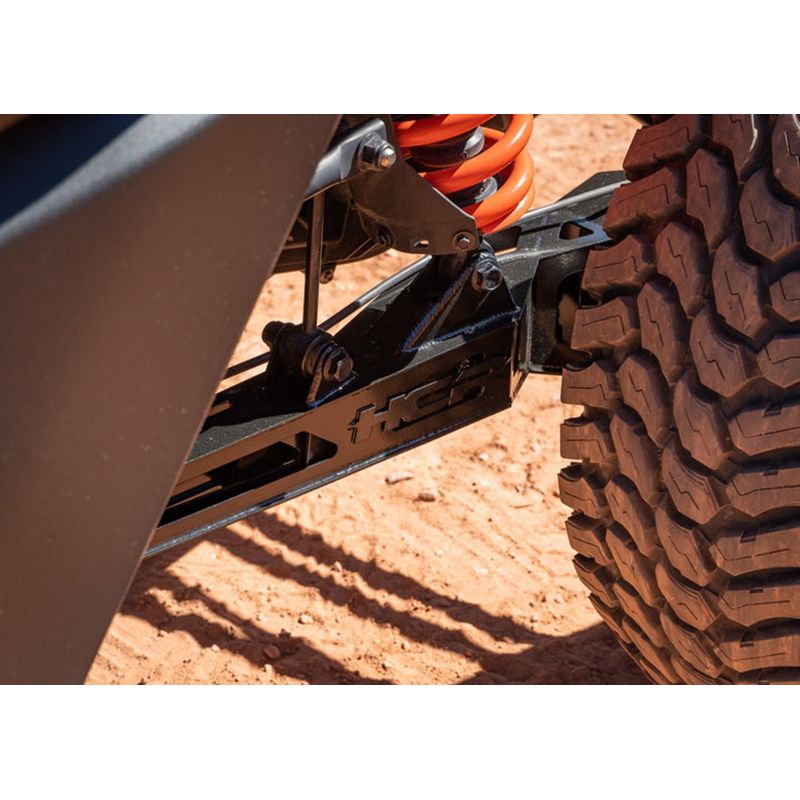

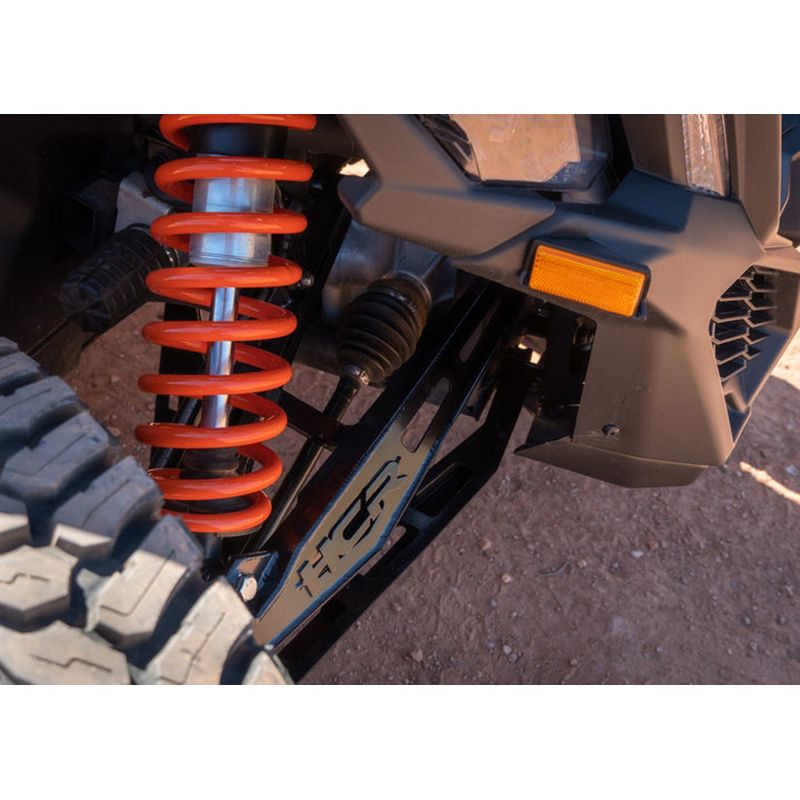

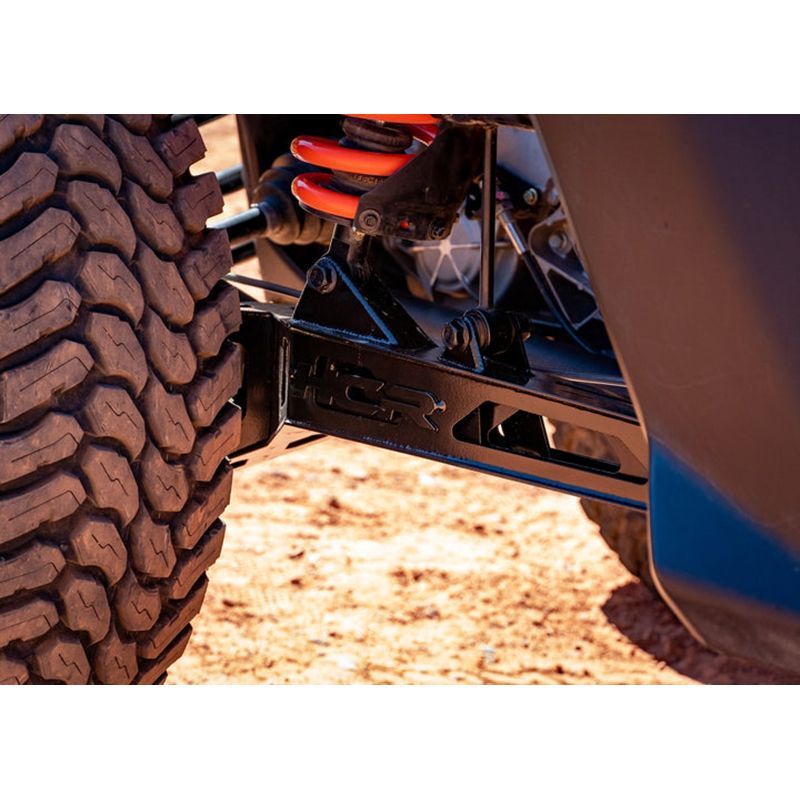

The HCR Racing Duner OEM Replacement Suspension Kit for the Can-Am Maverick X3 is the perfect upgrade to enhance both performance and appearance. The 1.5” high-clearance A-Arm design provides extra ground clearance, while the HCR Elite Alloy that’s 30% stronger than 4130 Chromoly, ensures durability and strength. With Delrin bushings and n internal catacomb design, this kit reinforces key components without adding extra weight.
Kit Includes
(4) Front A-arms
(2) Rear trailing arms
Front A-arm bushings
Hardware kit
Fitment
Can-Am Maverick X3 900: 2018
Can-Am Maverick X3 Turbo: 2017-2020
Can-Am Maverick X3 Turbo R: 2018-2020
Can-Am Maverick X3 X DS Turbo R: 2017-2020
Can-Am Maverick X3 DS Turbo R: 2021
Can-Am Maverick X3 X DS Turbo RR: 2020-2021
Can-Am Maverick X3 X MR Turbo: 2018-2021
Can-Am Maverick X3 X RC Turbo: 2018-2021
Can-Am Maverick X3 MAX Turbo: 2017-2020
Can-Am Maverick X3 MAX Turbo R: 2018-2020
Can-Am Maverick X3 MAX X DS Turbo: 2017-2019
Can-Am Maverick X3 MAX X DS Turbo R: 2020
Can-Am Maverick X3 MAX DS Turbo R: 2021
Note
Will not fit double shear hubs
Does not come with trailing arm radial bearings (Replace with Can-Am OEM hardware)
For this kit you will need to reuse or replace with OEM/aftermarket components: Ball joints in the front A-arms, Crush Sleeves and wear plates in the Front A-arms, Trailing arm Radial joints, mounting bolts and hardware otherwise not provided.
14" Wheels will not fit
HCR kits are made to order. Quality takes time
