Part # KAW-05400

Features

• 72" Width compared to 68" from factory

• Adds 10 pounds—roughly 2.5 lbs per corner

• Laser-cut construction for precise fit and finish

• CNC'd chromoly mounting points for increased integrity

• HCR custom alloy boasts 30% more strength than chromoly

• High-clearance boxed front A-arm design

• Each piece is TIG welded by hand for strength and aesthetics

• High-Clearance Rear Trailing Arms provide an increase of 1.75” in ground clearance

• 100% proudly made in the U.S.A

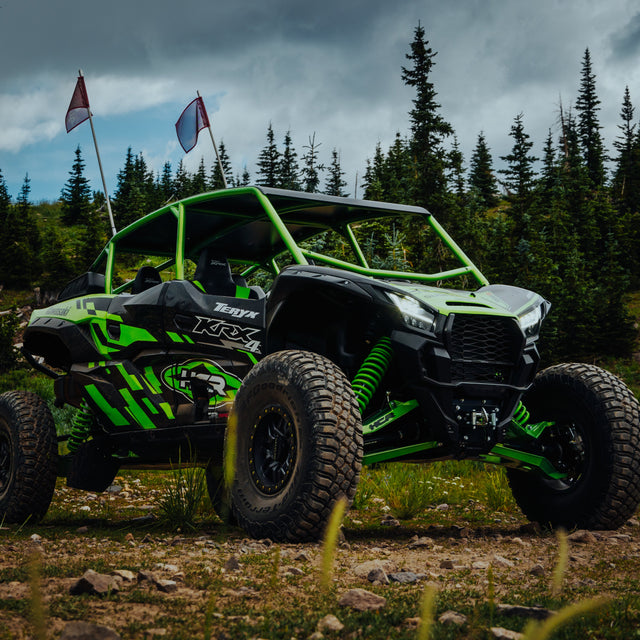

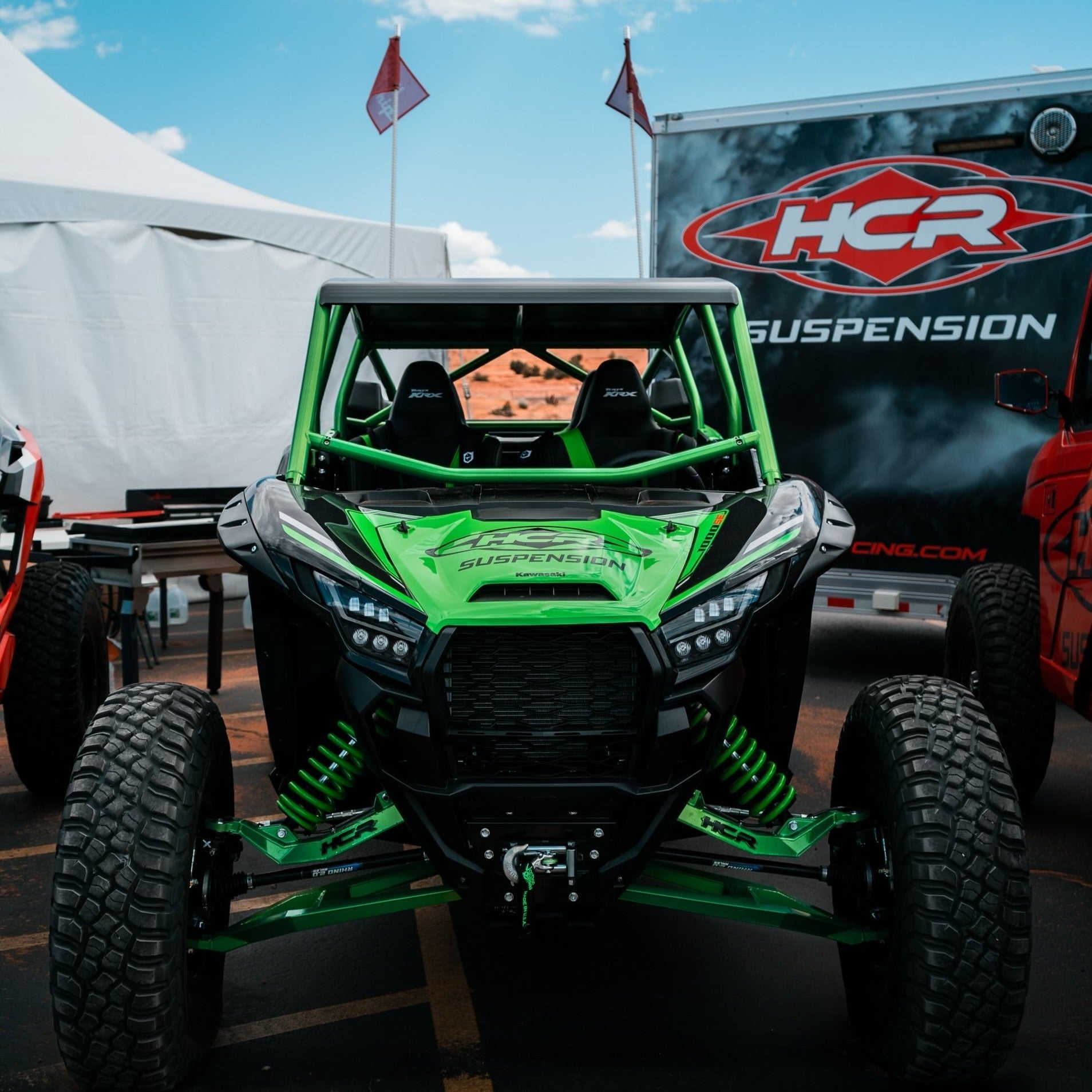

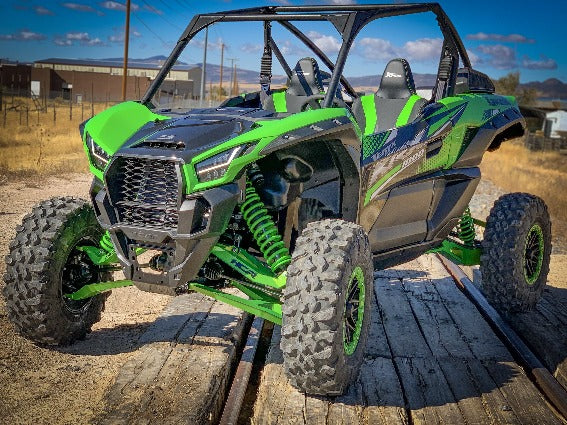

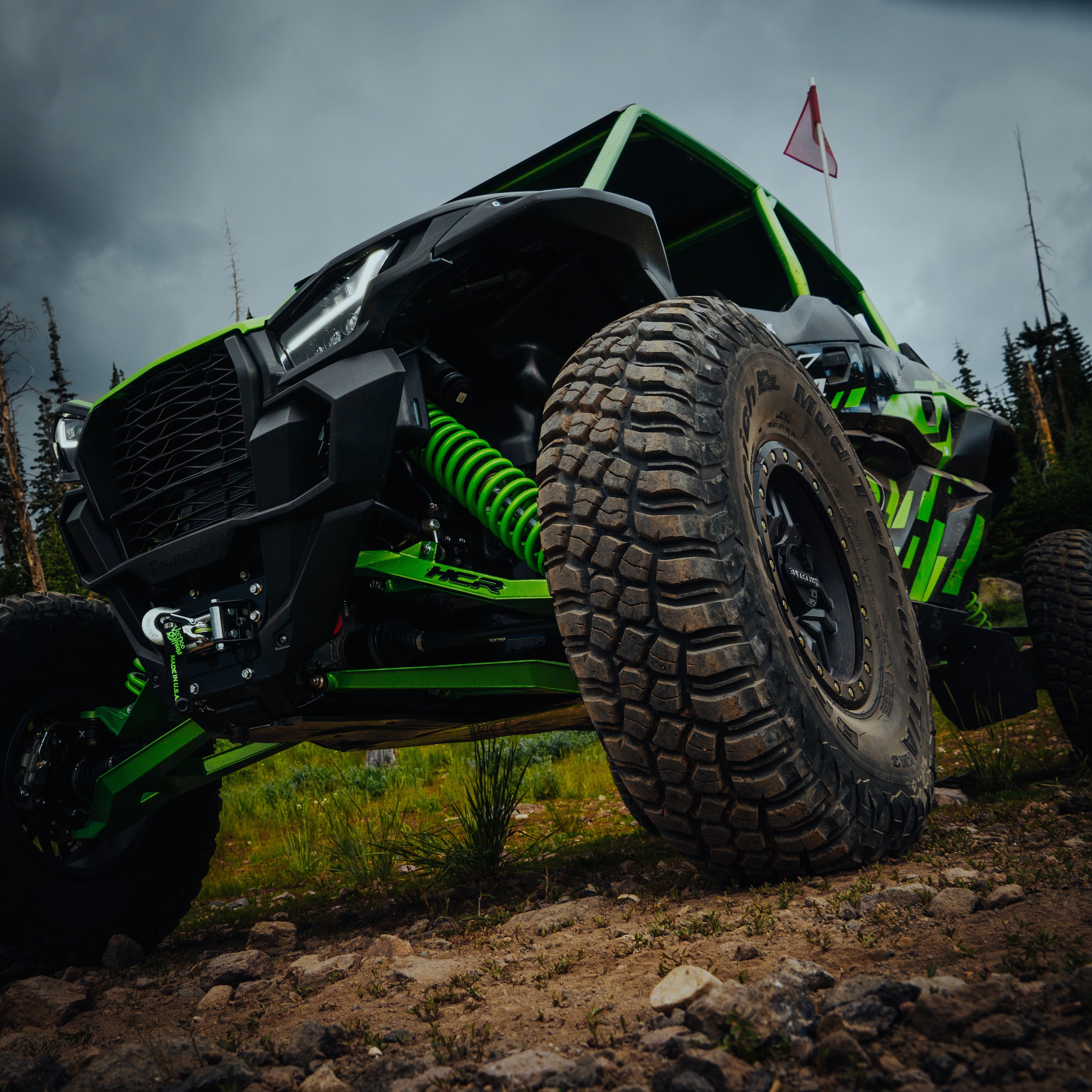

Add clearance, strength, and appeal to your KRX 1000 with the HCR Long-Travel Kit. This true boxed kit follows the HCR portfolio while adding to the aggressive stance of the KRX 1000, making the all-new KRX the ULTIMATE Rock Crawling SXS!

Rhino 2.0 Axles:

• Uses 4340 chromoly steel bars, CVs, and components
• Trusted by thousands of riders
• 18-month warranty

HCR Radius Rods

This suspension upgrade includes HCR’s high-clearance billet aluminum radius rods. Their impressive strength is ideal for performance applications.

• 7075 billet aluminum construction

• Black anodized finish

• Bolt-on replacement

Kit Includes:

• 4 Front A-arms

• 2 Rear Trailing Arms

• 6 Billet Aluminum High Clearance Radius Links - Anodized Black

• 4 RCV Extended Axle Bars

• Hardware

Fitment:

• Kawasaki Teryx KRX 1000 : 2020+
• Kawasaki Teryx KRX 4 1000 : 2023+

NOTES:

• Reuses factory shocks

• Estimated install time: 8 hours

• HCR kits are made to order. Quality takes time

• *Front Limit straps are recommended when using Rhino 2.0 axles due to larger diameter axle bar*
