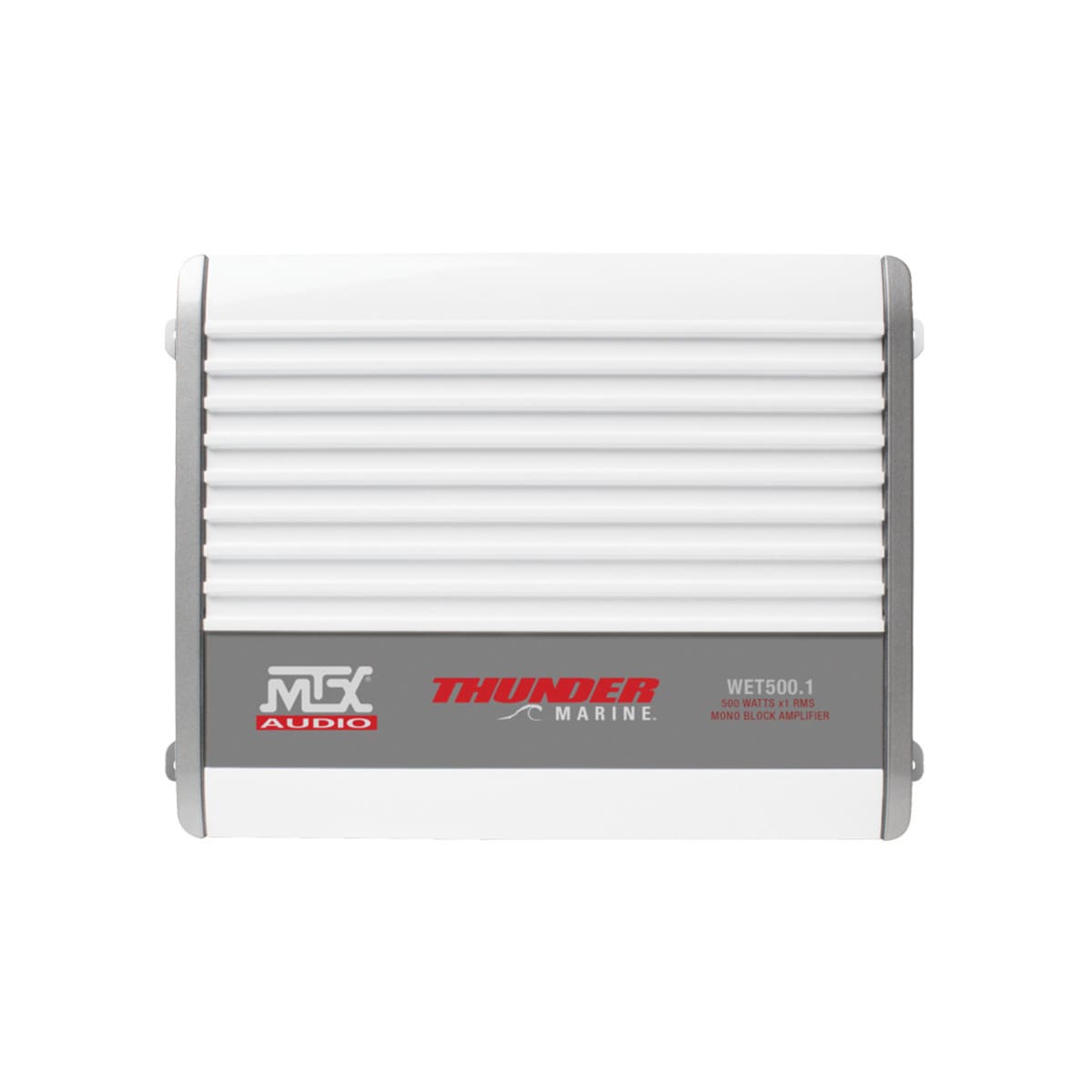

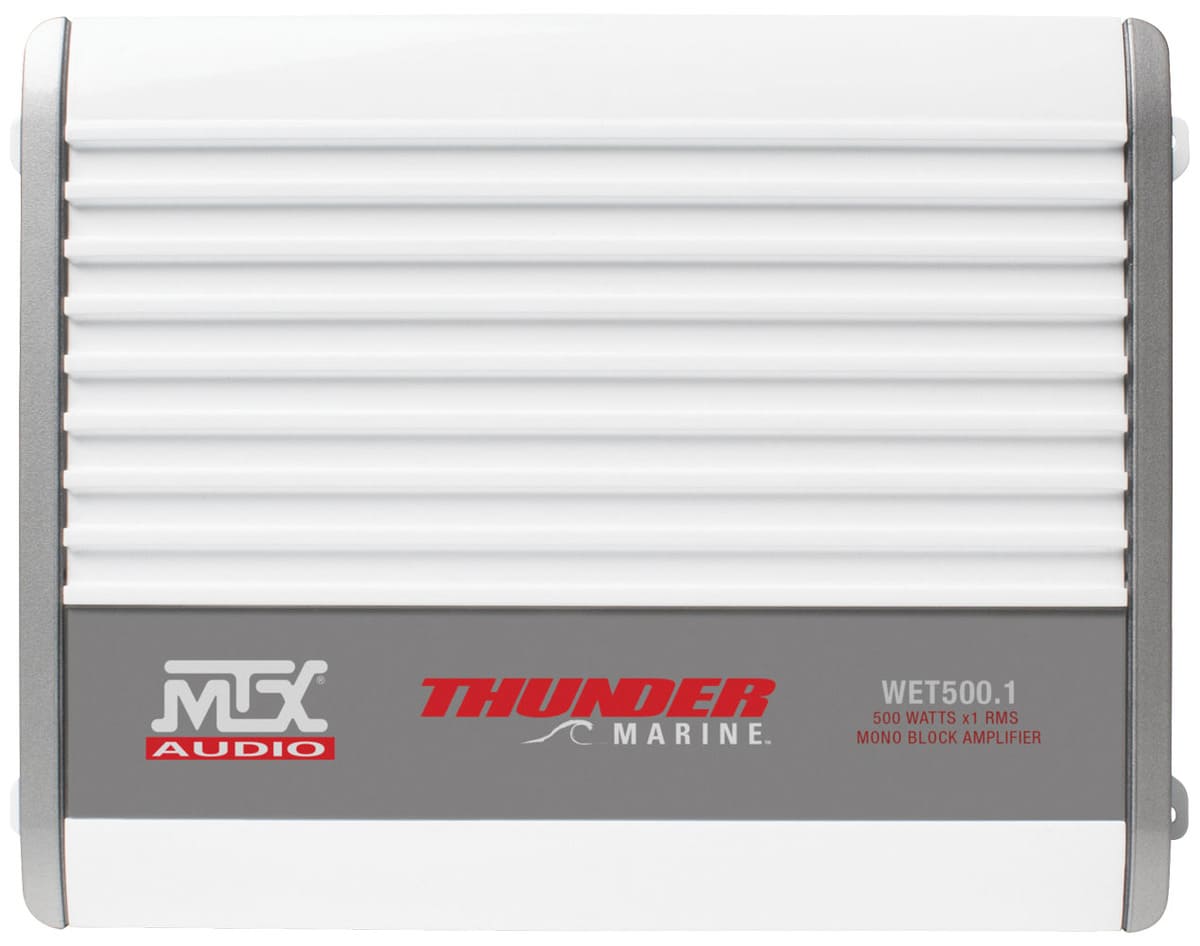

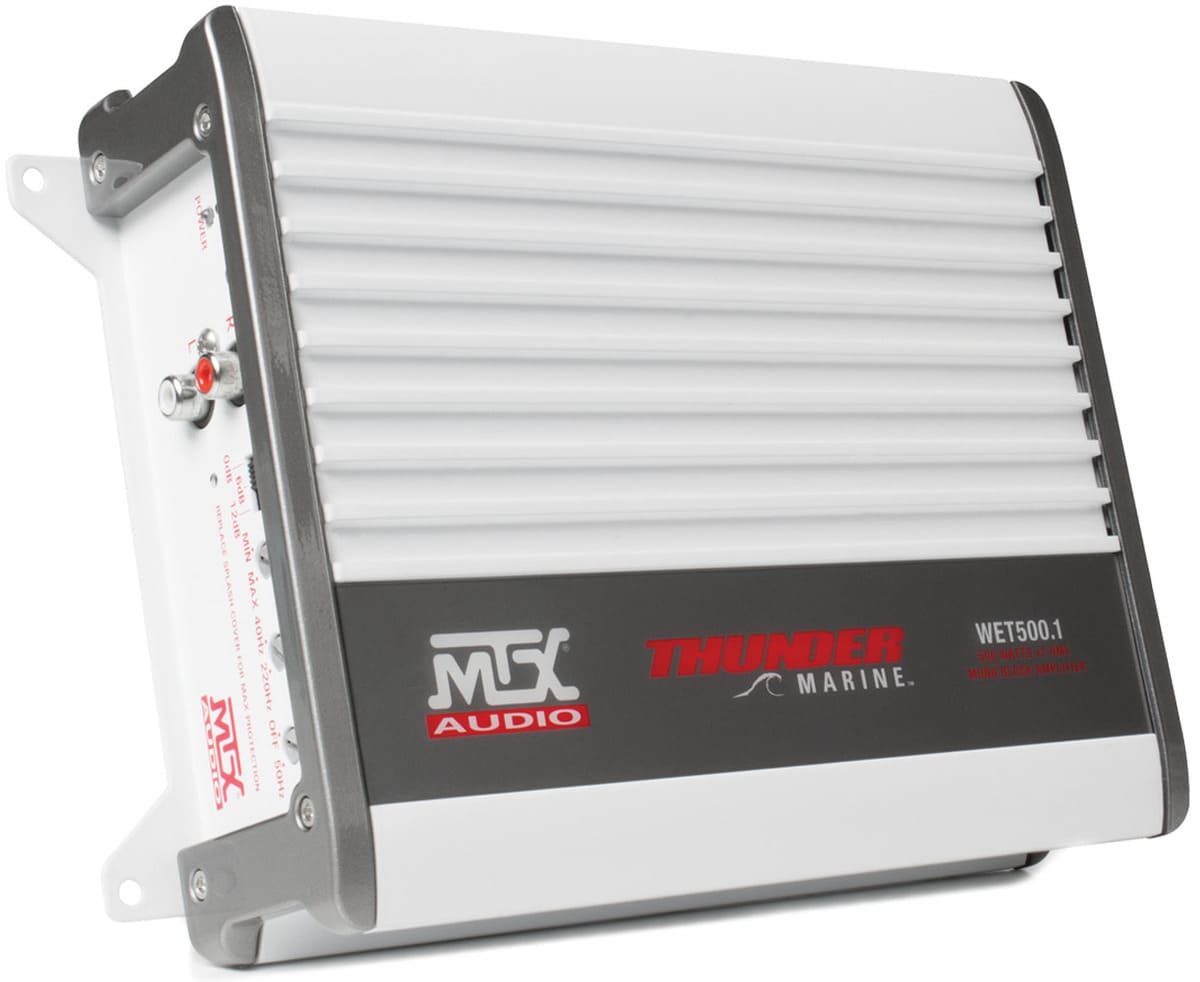

MTX Audio 500-Watt RMS Mono Block Class D Marine Amplifier

WET Series amplifiers from MTX Audio are designed to deliver all the power your system needs whether they are being used on a boat or off-road vehicle.

The WET500.1 is a mono block subwoofer amplifier with an incredibly small chassis. This amp is capable of producing up to 500W RMS and features 2Ω stability, making it the perfect choice to run two of the WET series subwoofers.

Ready for the Outdoors: WET Series amplifiers from MTX Audio are designed to deliver all the power your system needs whether they are being used on a boat, bike or off-road vehcile.

Rock Two Marine Subwoofers: The WET500.1 is a mono block subwoofer amplifier with an incredibly small chassis. This amp is capable of producing up to 500W RMS and features 2Ω stability, making it the perfect choice to run two of the WET series subwoofers.

Marine Hardened: The unit features a highly efficient class D design and small chassis with an extruded heat sink that effectively dissipates heat ensuring long play times. It also incorporates a surface mount design, which attaches critical parts more securely to the circuit board creating greater resistance to vibration which is very important in boat and off-road applications. This amplifier features a conformal coated circuit board making it resistant to moisture that may get into the the chassis. Other features include stainless steel hardware, rubber gaskets around interconnects, and plastic covers that cover the controls preventing moisture from getting into the amplifier.

Features:

• Mono block subwoofer amplifier delivering up to 500W RMS with 2Ω stability

• Highly efficient class D design for optimal power and heat management

• Compact chassis with extruded heat sink for effective heat dissipation

• Surface mount design for enhanced vibration resistance

• Conformal-coated circuit board provides moisture protection

• Stainless steel hardware and rubber gaskets around interconnects for durability

• Plastic covers over controls to prevent moisture intrusion


Specifications:

• Description: Mono Block

• 2Ω RMS Power Output: 500W x 1 Channel

• 4Ω RMS Power Output: 300W x 1 Channel

• Signal to Noise Ratio: 80dB

• Topology: Class D

• THD: <1%

• Crossover: Variable Low @ 40Hz to 220Hz 12dB/Oct

• Bass Boost: 0 6 12dB Switchable

• Max Sensitivity: 200mV

• Maximum Input Signal: 5V

• Height: 2-1/4"

• Width: 8-15/16"

• Depth: 6-3/8"

Installation Instructions:

• MTX004714B-WET-Series-Owners-Manual.pdf
