Polaris RZR Pro R/Turbo R 3-Piece Radius-Rod Plate
Polaris RZR Pro R/Turbo R 3-Piece Radius-Rod Plate
Polaris RZR Pro R/Turbo R 3-Piece Radius-Rod Plate from DRT Motorsports is built for the applications listed in the product information below. Explore the features, specifications and available options for your build.
PRORTRBOR | Polaris Pro R/Turbo R 3-PC Radius Rod Reinforcement Plate
Product #20010RR93200

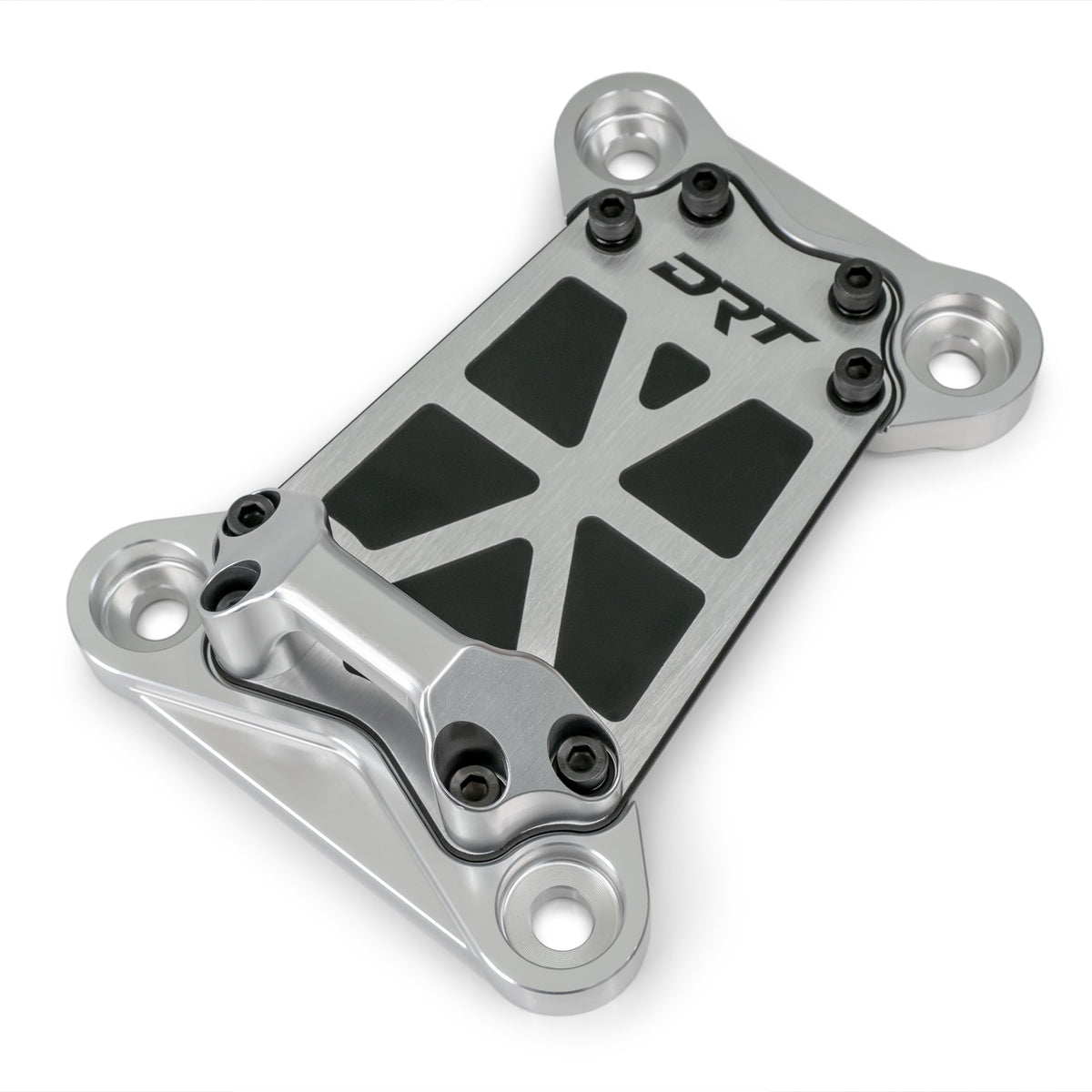

This DRT Motorsports three-piece modular radius-rod plate combines 6061-T6 aluminum braces, a machined hitching loop and a steel center plate with access for listed service points.
The upper and lower braces are made of thick aerospace-quality 6061-T6 billet material. The 3D machined hitching loop also starts from a billet aluminum block of 6061-T6 material. A thick sheet metal plate locks the unit together.

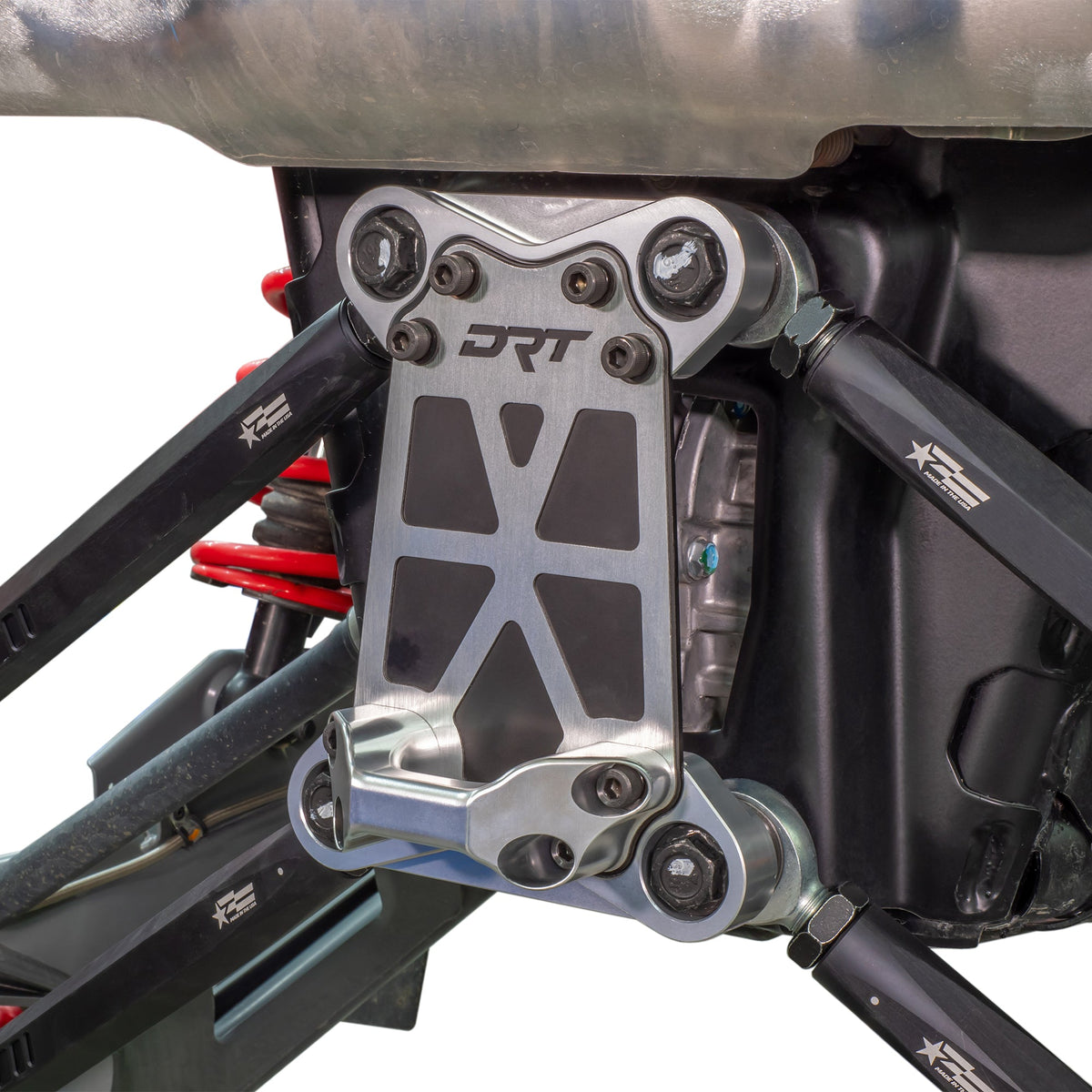

The upper and lower braces connect at the radius-rod mounting points, while the removable center steel plate allows access to the transmission fluid plug on Turbo R models.
This DRT Motorsports 3pc Modular Radius Rod Plate for the Pro R / Turbo R platform includes a 3D Billet machined hooking point which is not provided by OEM at this location.
DRT Motorsports P/N 20010RR93200 replaces OEM P/N 5267996-067, 5267996-293, 5267996-402, 5267996-458, 5267996-647, 5267996-696, 5267996-705
- Designed for Polaris RZR Pro R / Turbo R platforms
- Machined from aerospace grade 6061-T6 aluminum
- 3D Precision machined hitching loop included
- Military Specification clear anodized finish
- The steel portion is finished in a high-quality powder coat
- Includes replacement/upgraded radius rod bolts
- For use with or without rear exhaust cover OEM P/N 5455181-070
Polaris RZR Pro R / Turbo R, 2- and 4-seat models listed by DRT. Confirm your exact machine before ordering.
PATENT PENDING
Shop more DRT Motorsports UTV parts and accessories from R1 Industries.
Browse more DRT Motorsports UTV suspension parts.
RZR Pro R/Turbo R Radius-Rod Plate Questions
Which machines is this plate for?
DRT lists this plate for Polaris RZR Pro R and Turbo R two- and four-seat models. Because DRT’s source year line conflicts with the platform years shown in R1’s current fitment data, confirm the exact machine before ordering.
What is included?
The assembly uses upper and lower 6061-T6 aluminum braces, a machined 6061-T6 hitching loop, a steel center plate and replacement radius-rod bolts.
Can the Turbo R transmission plug still be serviced?
Yes. DRT states that the center steel plate is removable for access to the Turbo R transmission fluid plug.
Does it work with the factory rear exhaust cover?
DRT lists it for use with or without rear exhaust cover OEM part 5455181-070.
Which OEM plates does it replace?
DRT lists OEM numbers 5267996-067, -293, -402, -458, -647, -696 and -705. Match your machine and OEM part before ordering.
