Billet Aluminum High Clearance Radius Rod Set for Polaris Pro R/Turbo R
Billet Aluminum High Clearance Radius Rod Set for Polaris Pro R/Tur...
Billet Aluminum High Clearance Radius Rod Set for Polaris Pro R/Turbo R from DRT Motorsports is built for the applications listed in the product information below. Explore the features, specifications and available options for your build.
RZRPROR | Polaris RZR Pro R/Turbo R Billet Aluminum High Clearance Radius Rod Set
Product #20010RR66201

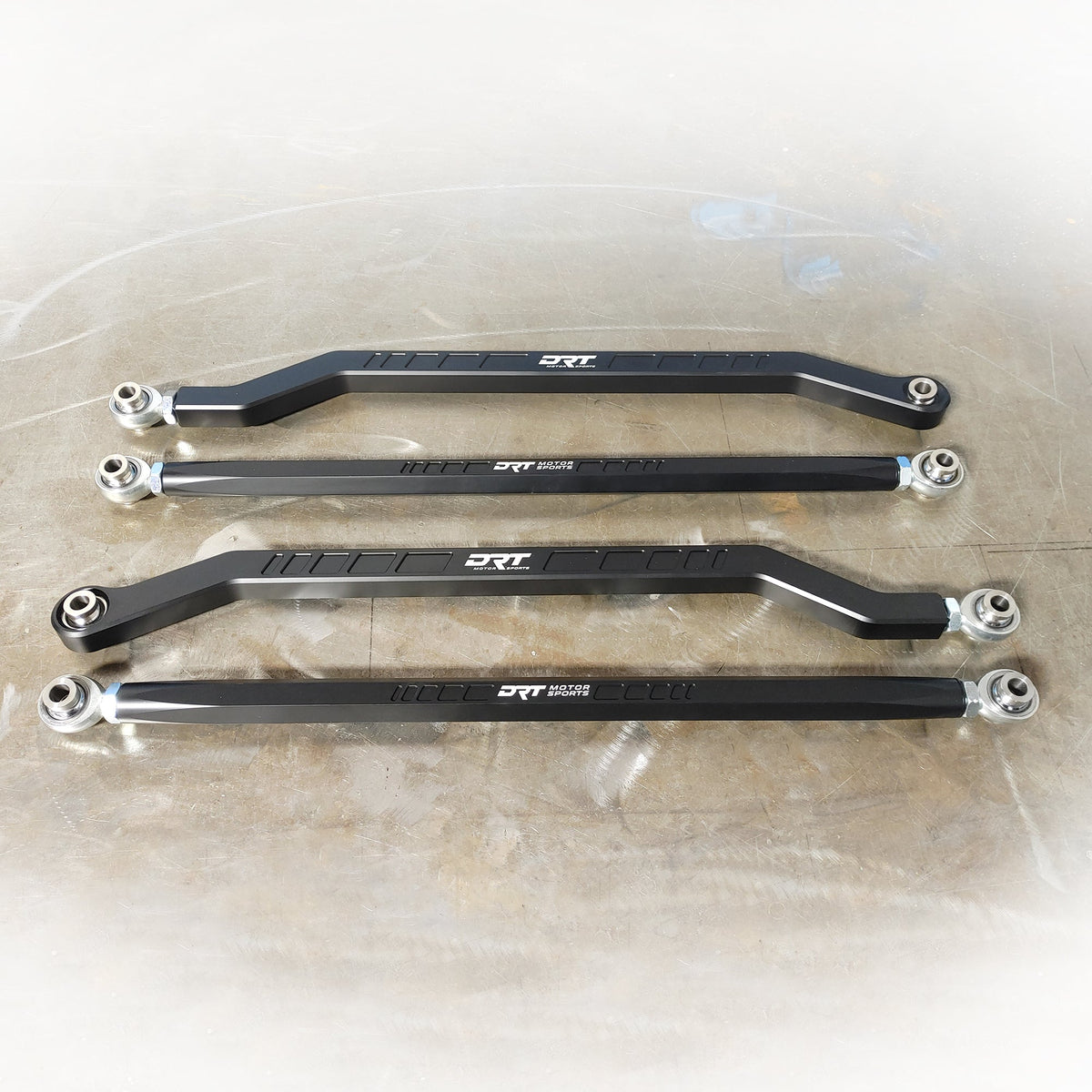

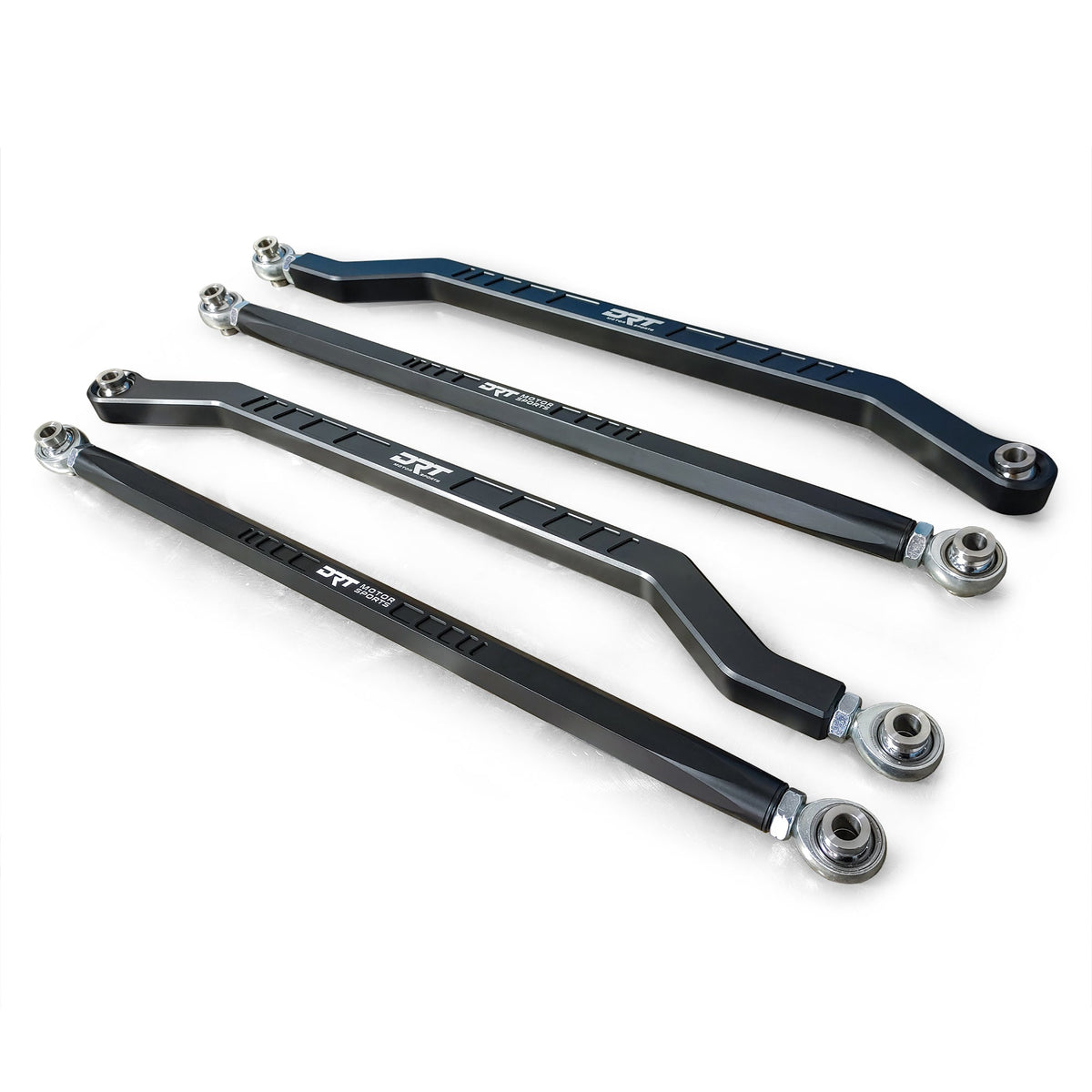

The DRT Motorsports High-Clearance Radius Rod Set is listed for the Polaris RZR Pro R and Turbo R applications shown below. The rods are machined from 6061-T6 aluminum and use an anodized finish.

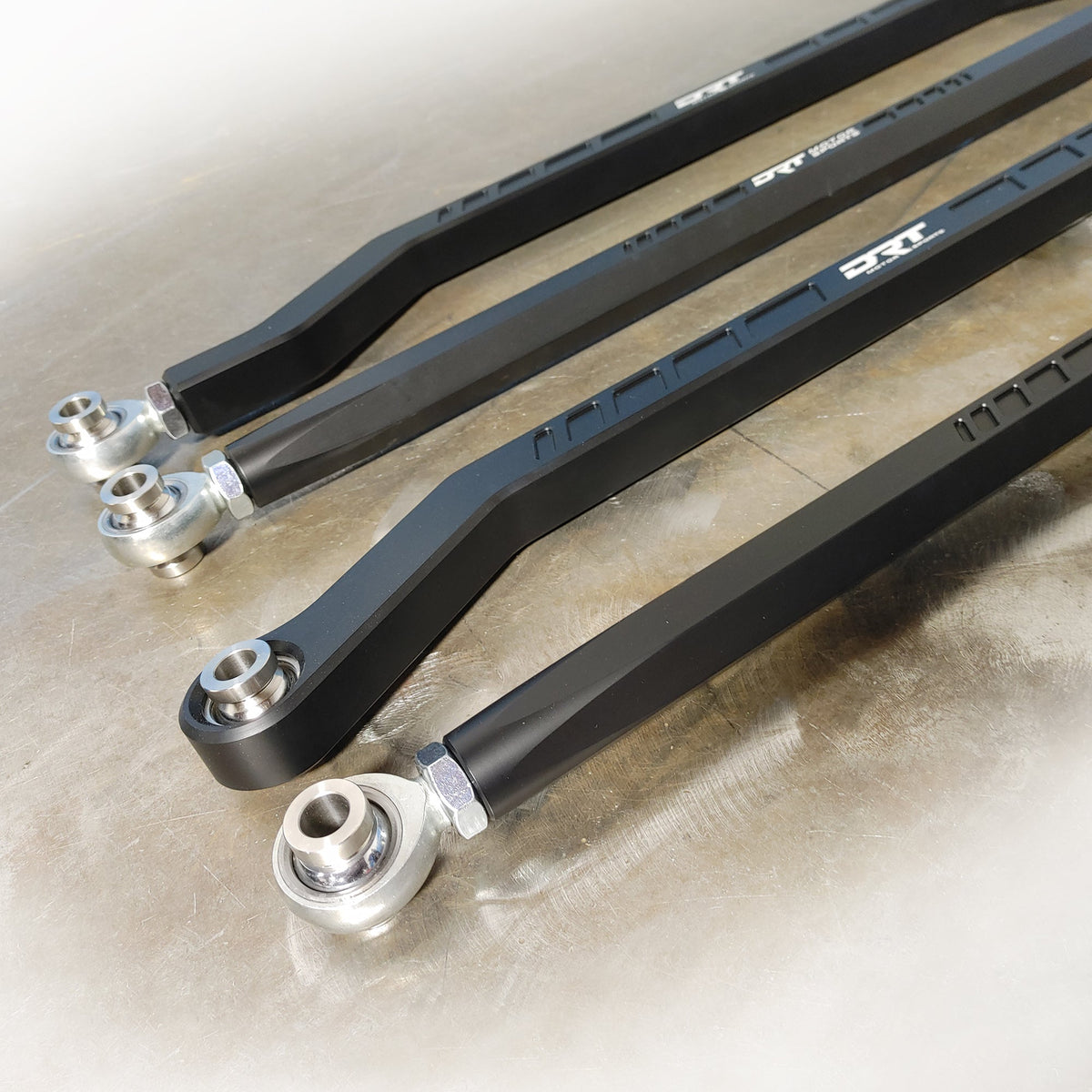

The lower rods use a press-fit 3/4-inch spherical bearing with stainless-steel spiral retaining rings on the chassis side and 3/4-inch chromoly-steel, PTFE-lined rod ends on the hub side for length adjustment.
The upper rods use right- and left-hand rod ends for camber adjustment. The set also uses 303 stainless-steel misalignment spacers.
Note: Verify jam nuts are tight and installed with thread locker. The use of paint check to visually verify movement is recommended. Jam nuts should be inspected before each ride to make sure everything is tight and secure.
- Fits 2020+ Polaris RZR Pro R/Turbo R / 4 all models
- Machined from aerospace grade 6061-T6 aluminum
- Military Specification Anodized finish
- Hex bar is used for wrench to lock rod ends
- 3 pieces PTFE lined Left/Right hand 5/8” rods ends
- Machined pockets; laser engraved
- 303 Stainless Steel rod end spacers
2020+ Polaris
RZR Pro R/ Turbo R, 2 and 4-door models
PATENT PENDING
Shop more DRT Motorsports UTV parts and accessories from R1 Industries.
Browse more DRT Motorsports UTV suspension parts.
Polaris RZR Pro R and Turbo R Radius Rod Buyer Answers
Which RZR models are listed for this radius rod set?
The listed applications are 2020+ Polaris RZR Pro R and Turbo R models in both 2- and 4-door configurations. Confirm your exact model and year against the applications before ordering.
How is the set adjustable?
The lower rods use 3/4-inch chromoly steel, PTFE-lined rod ends on the hub side to dial in length. The upper rods use right- and left-hand rod ends for quicker camber adjustment.
What maintenance does DRT specify?
DRT says to verify the jam nuts are tight, install them with thread locker, and inspect them before every ride. A paint check is recommended to make movement easier to spot.
Which materials and finish are listed?
DRT lists 6061-T6 aluminum rods with an anodized finish, chromoly-steel PTFE-lined rod ends and 303 stainless-steel misalignment spacers.
