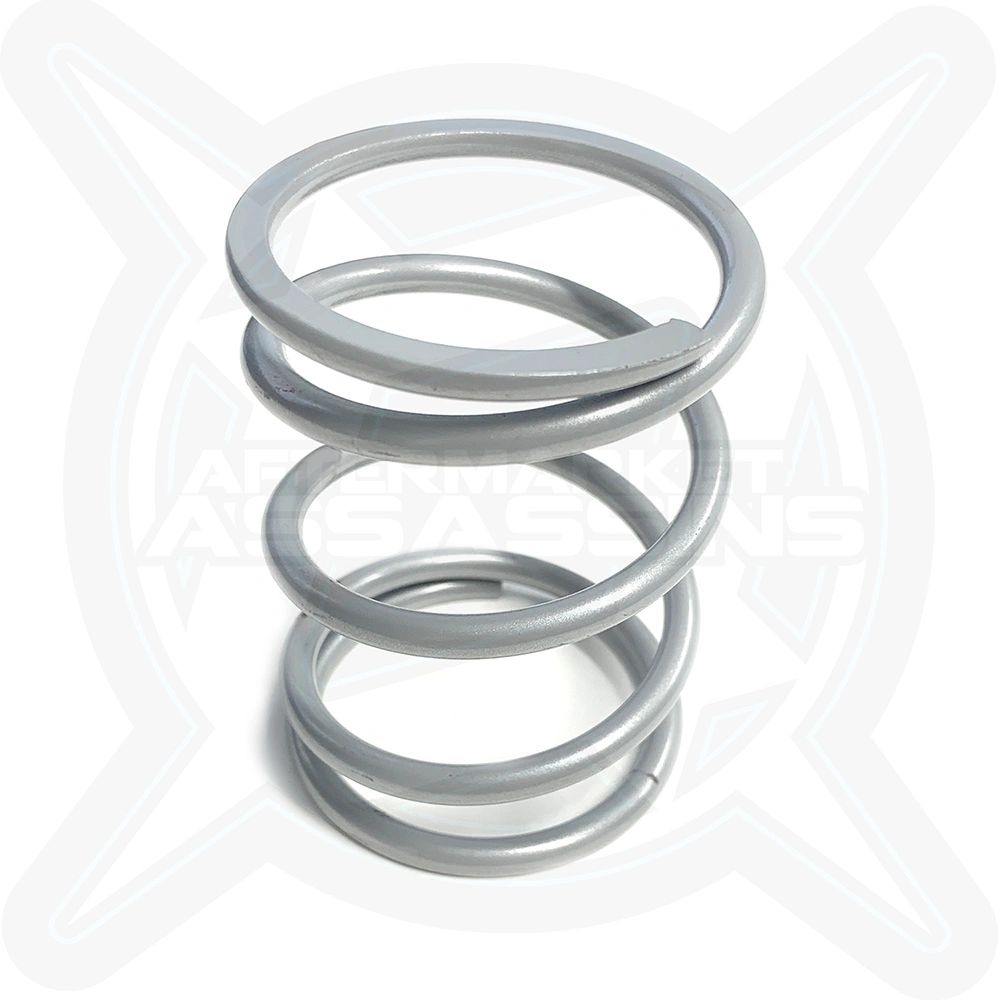

Primary clutch springs for the supplier-listed Polaris RZR models equipped with a P90X HD clutch.

• Springs are for replacing your AA clutch kit springs or for the tuner who knows what spring they want
• Rough engagement rates below with our AA clutch weights. Engagement will vary depending on clutch weight design and overall arm weight
• Unless advanced at clutch tuning we do not suggest running any springs without our clutch kit
• Measured at 2.45″ & 1.25″
• Part # 106-1-2001: Green/Silver 75-175 Spring: (Engagement 1650-1950 RPM) This is the lowest engagement spring we offer but also has a lower spring rate up top than our standard clutch kit springs, so you will lose 100-200 RPM and weights will need to be 1-2 magnets lighter to achieve the same peak RPM.
• Part # 106-1-2002:  Gray/Red 80-200 Spring: (Engagement 1700-2000 RPM) Excellent spring that is sometimes used in our clutch kits. Nice engagement while still keeping the final spring rate (full shift rate) up close to our standard gray/yellow spring.
• Part # 106-1-2003:  Gray/Yellow 85-240 Spring: (Engagement 1800-2100 RPM) This is our standard clutch spring found in our P90X HD clutch kits with an engagement of 1800-2100 in most cases.
• Part # 106-1-2004:  Gray/White 115-240 Spring: (Engagement 2500-2700 RPM) Race Spring. This spring has the same full shift rate found in our gray/yellow standard primary spring, but has a high engagement of 2500-2700 RPM. Keep in mind this spring will be harder on your already weak clutch because of the harsh engagement. Great to use with launch control if you want to risk it.
• Part # 106-1-2005:  Gray/Black 105-275 Spring: (Engagement 2200-2300 RPM) This is a great spring with a mildly higher engagement rate with a higher full shift rate which raises peak RPM around 200-300 RPM. Some may find this is a good dune spring if switching back/forth from dune to trail setups… you can install this spring when heading to the sand. This spring normally makes up most the RPM lost from the extra sand load, so adjusting weights may not be necessary.
