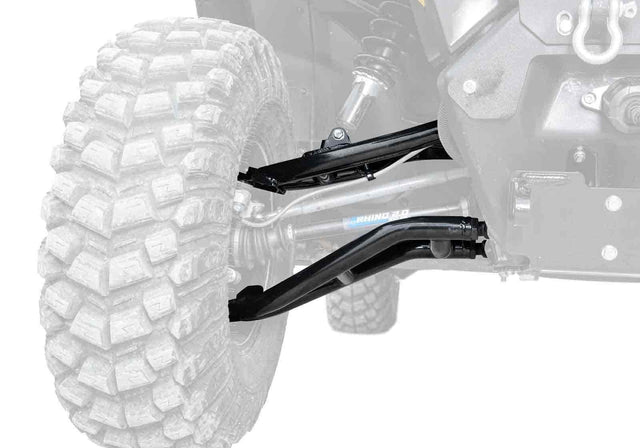

Your Defender is one heck of machine, but is it prepared for battle against the roughest terrain? Upgrade your suspension by adding SuperATV's Can-Am Defender HD10 Atlas Pro 2” Forward Offset A-Arms to your side-by-side. At 0.25” larger than our standard A-arms, they’re a major upgrade. We revamped our design to make the tubing bigger and stronger. It’s 1.5" in diameter, which is 0.5" larger than your OEM A-arms. And we’ve also added a 2” offset for more stability, giving you room for 32” tires. These high-clearance A-arms will up your style.

Massive Tubing and Hefty Parts = Atlas Pro A-Arms: We never take a back seat when it comes to A-Arms, and we really did ourselves one better with this design. Take your OEM A-arms and make them 50% bigger, and you get SuperATV’s Defender Atlas Pro A-Arms. The tubing is 1.5" in diameter and 0.5" larger than your stock A-arms, giving you massive A-arms that are incredibly strong. And for added durability, we've powder coated them to fight off rust and corrosion.

2” Offset for Added Stability: Our high-clearance bends give you 2” of ground clearance so you won’t bang into every rock or branch, making your ride smoother. And thanks to our 2” forward offset, your wheelbase is larger, increasing your stability and allowing you to run up to 32” tires. And the best part (besides the strength), is you get all of this without having to add a lift kit to your machine.

Adjustable Pivot Blocks: Do you want to add a lift kit or larger tires? Make sure you change your camber so that you don’t experience premature tire wear. Or are you wanting to leave your machine like it is? We’ve adjusted your pivot blocks to match your machine's specifications for you, so you don't have to mess with it if you don't want to. We're so confident in our A-arms that we're selling them with a lifetime warranty. So ride how you want, knowing we've got your back.

Let SuperATV Do the Work—Preassembly Available: Want to spend more time on the trails and less time in the garage? Purchase a set of SuperATV ball joints with your A-arms and we’ll install them for you for free! We save you money and time so you can get back to doing what you love.

Super Duty 300M Ball Joints: We took the strongest ball joint material on the market—300M grade steel—and combined it with our superior design engineering to make the strongest ball joint on the market. It comes with an easily-accessible grease zerk and an adjustable steel-on-steel design, making it easy to keep your ball joints maintained and flexible. At 2.25x stronger than stock, you won’t find a better ball joint.

Keller Ball Joints: Keller Ball Joints use a two-piece design that eliminates the need for a snap ring. They thread onto your A-arms like a nut and bolt, which makes these ball joints virtually impossible to pull out. The high-quality chromoly steel stud combined with an advanced tool-steel body makes them perfect for bigger machines, bigger tires, and bigger rides. And since they’re greaseable and rebuildable, you can keep them running perfectly.

Heavy-Duty Ball Joints: Our heavy-duty ball joints are designed with ultimate performance and convenience in mind. Whether you’re doing flips or chasing hills, our proprietary blend of hardened 4340 VAR steel and zinc plating means this ball joint can take it. Our heavy-duty ball joints also come with easily-accessible grease zerks and an adjustable design. Extensive lab and field testing shows that our heavy duty ball joints can withstand double the pressure of an OEM ball joint.

Features:

• Made with 1.5” x .138” wall steel DOM tubing
• Fit up to 32” tires
• Made with 2” diameter tubing
  • 0.5” larger than stock
  • 0.25” larger than our standard High-Clearance 2” Forward Offset A-Arms
• Adjustable 24 mm pivot blocks for full camber adjustability
• Utilizes stock A-arm bushings
• UV-resistant powder coat finish
• Easy to install
• Backed by a lifetime warranty

Fitment:

• Can-Am Defender HD 10 : 2020+
• Can-Am Defender HD 10 DPS : 2020+
• Can-Am Defender HD 10 Mossy Oak : 2020-2022
• Can-Am Defender HD 10 Pro : 2020+
• Can-Am Defender HD 10 Pro Ltd Cab : 2021+
• Can-Am Defender HD 10 XMR : 2018-2022
• Can-Am Defender HD 10 XT : 2020+
• Can-Am Defender HD 10 XT Cab : 2018-2022
• Can-Am Defender HD 10 XTP : 2020+
• Can-Am Defender Limited : 2020+
• Can-Am Defender MAX HD 10 : 2020+
• Can-Am Defender MAX HD 10 DPS : 2020+
• Can-Am Defender MAX HD 10 Lone Star Edition : 2018+
• Can-Am Defender MAX HD 10 XMR : 2019-2022
• Can-Am Defender MAX HD 10 XT : 2020+
• Can-Am Defender MAX HD 10 XT Cab : 2018-2022

Notes:

• You must re-use your stock ball joints if you don’t select a pre-installed ball joint at checkout.

Instructions:

• Instructions - AA-CA-DEF-2-002
