Installing A-arm guards on a UTV is a bolt-on afternoon job, not a fabrication project — most kits clamp around the existing arm tube with U-bolts or wrap-around brackets and need zero drilling or cutting. The part that trips people up isn't the guard itself; it's forgetting to cycle the suspension through full travel afterward to check for rub against ball joints, sway bar links, or the frame.
- Installing A-arm guards is a 6-step bolt-on job: jack the corner, pull the wheel, clamp the guard, torque it down.
- Most kits use U-bolts or wrap-around brackets — no drilling on RZR, Maverick X3, or KRX arms in 2026.
- Check suspension travel after install; a guard that rubs at full droop grinds through paint fast.
- Since the arm is exposed anyway, it's the easiest time to inspect ball joints and bushings.
Why this matters
A bare A-arm takes the full hit when a rock or stump catches it wrong — bent tubes and cracked welds are common repair bills after a rough dune or rock-crawling season. A guard spreads that impact across a wear plate instead of the structural tube, and it's a fraction of the labor of replacing an arm.
R1 Industries stocks A-arm guard kits and the bushing and ball-joint parts that often get swapped during the same job — worth a look at the R1 Industries catalog before you start pulling wheels in 2026.

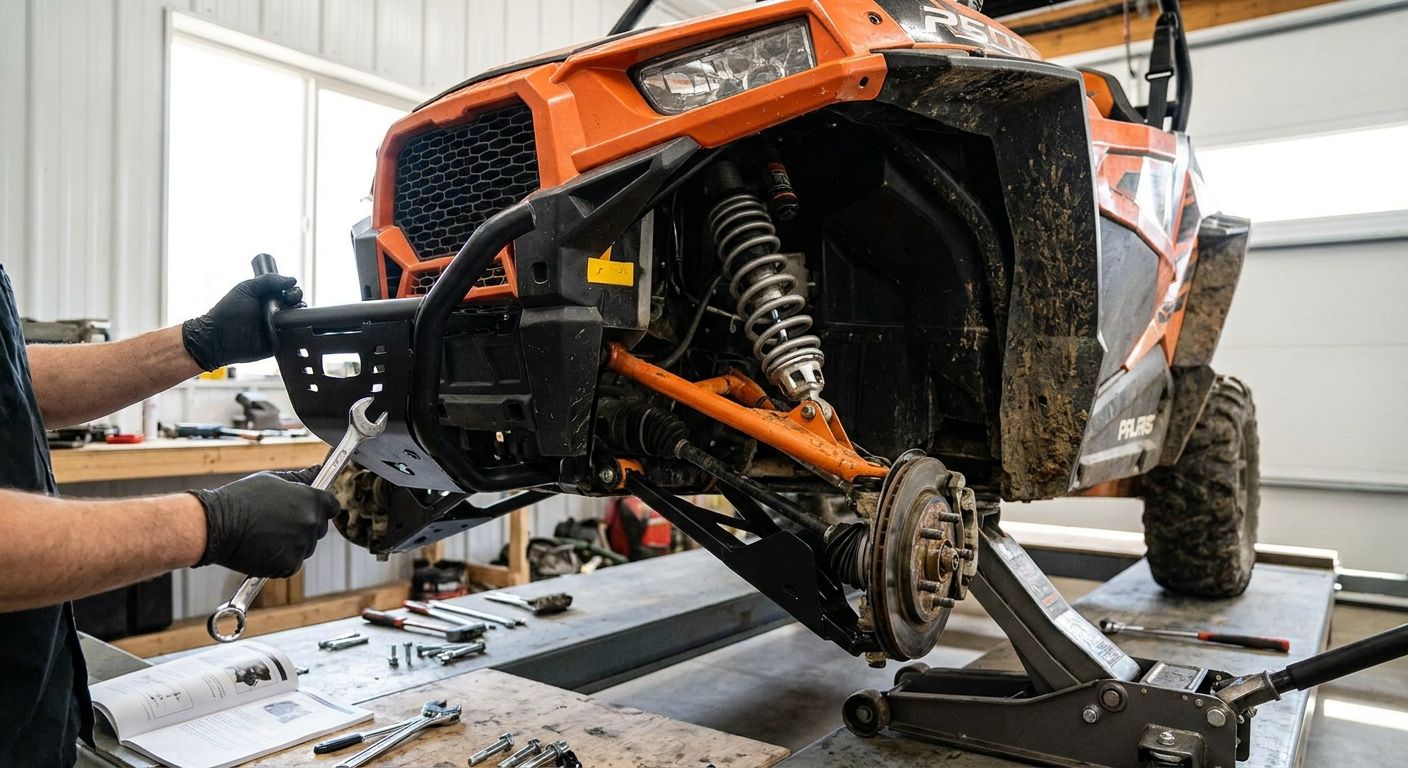

How do you install A-arm guards on a UTV?
The process is the same across most Polaris RZR, Can-Am Maverick X3, and Kawasaki KRX builds, since nearly all aftermarket guards are model-specific bolt-on kits matched to the stock arm shape.
- Park on level ground and chock the opposite wheels. Break the lug nuts loose before you jack the corner — it's easier with the tire still on the ground.
- Raise the corner and set it on a jack stand. Never work under a UTV supported only by a floor jack.
- Pull the wheel to expose the upper and lower A-arms fully.
- Test-fit the guard against the arm tube and confirm the U-bolt or bracket holes line up before tightening anything.
- Clamp the guard around the arm with the supplied hardware, snugging it by hand first so it sits flush.
- Torque the hardware to the arm manufacturer's spec, reinstall the wheel, and repeat on the other side.
For A-arm guards built for Polaris RZR rock crawling, the mounting pattern usually matches the factory arm holes, so step 4 goes faster than on universal-fit kits.
Tools and parts you need before you start
- Floor jack and a pair of jack stands
- Metric socket set (most UTV hardware is metric, not SAE)
- Torque wrench sized for the arm's bolt range
- Anti-seize for the mounting hardware, especially on kits that see mud or sand
- Penetrating oil if the OEM bolts show any rust
Why installation time varies by guard
Not every kit takes the same per-side install time. The variables that add or cut time:
- Guard style — U-bolt clamps go on faster than weld-on brackets or bolt-through designs.
- Whether you're swapping bushings or ball joints at the same time since the arm is already exposed.
- Skid plate overlap — some front bumpers or skid plates need a bracket re-routed to clear the guard.
- Arm shape — tapered arms on some KRX and X3 trims fit differently than the straight tubes on older RZR models.
- Corrosion on OEM hardware — rusted bolts add time for penetrating oil and extraction.
“If the guard rubs at full droop, it's not protecting the arm — it's grinding through it.”
Do A-arm guards fit over stock A-arms without trimming?
Most purpose-built kits fit the stock arm without trimming since they're molded or cut to the exact tube diameter and mounting-hole spacing for a given model. Universal-fit clamp guards are the exception — check clearance against sway bar links and shocks before final torque.
Can you install A-arm guards without pulling the wheel?
You can start some designs with the wheel still mounted, but pulling the wheel is faster and safer since it gives full visual access to the mounting holes. Skipping that step is the most common reason guards end up cross-threaded or misaligned.
FAQ
Do I need to remove the A-arm to install a guard?
No, most A-arm guards clamp around the arm while it's still bolted to the vehicle. Only a handful of weld-on styles require pulling the arm off entirely.
What tools do I need to install UTV A-arm guards?
A floor jack, jack stands, a metric socket set, and a torque wrench cover most kits. Anti-seize and penetrating oil help on rusted OEM hardware.
Do A-arm guards fit all UTV models the same way?
No, guards are model-specific and matched to the arm shape and bolt pattern of vehicles like the Polaris RZR, Can-Am Maverick X3, and Kawasaki KRX. A guard built for one model rarely bolts straight onto another.
Can A-arm guards rub on suspension parts at full travel?
Yes, a poorly fit guard can contact ball joints or sway bar links at full compression or droop. Cycle the suspension by hand after install and before you drop it off the jack stands.
Should I replace ball joints or bushings when installing guards?
It's not required, but since the arm is already exposed, it's the easiest point in the year to inspect both and swap them if they're worn.
Are A-arm guards only for rock crawling?
No, they help in dune and desert riding too, where roost and buried rocks hit the arms just as hard as exposed rock in technical terrain.
Do A-arm guards need re-torquing after the first ride?
Yes, off-road vibration loosens mounting hardware faster than street use. Recheck torque after the first trail run in 2026 and periodically after that.
One last thing
The install mistake that causes comebacks isn't a loose bolt — it's skipping the full-travel check. Cycle the arm by hand through complete compression and droop before you drop the UTV off the stands; a guard that clears at ride height but rubs at full droop will chew through paint and crack within a season on rocky terrain.
