Installing a UTV bumper is a bolt-on job: pull the factory bumper or fascia, bolt the new mounting bracket to the existing frame points, hang the bumper on the bracket, and torque every fastener before you hit the trail. The catch most guides skip is wiring — a winch-mount bumper adds a routing step for the winch harness that a plain skid-style bumper never needs, and that step trips up more first-time installers than the bolt-on part ever does.
- Installing a UTV bumper is a bolt-on process using existing frame mounting points on nearly every RZR, Maverick X3, and KRX platform.
- 10mm, 13mm, and 17mm sockets cover most factory hardware, but always confirm bolt sizes against your specific model.
- Winch-ready bumpers add a wiring step that non-winch bumpers skip entirely — budget extra time for that alone.
- Double-tube bumpers are heavy enough that a second set of hands makes the install faster and safer.
- R1 Industries stocks bumper options by model so fitment isn't a guessing game before you start turning wrenches.
Why this matters
A bumper that's bolted on wrong doesn't just look bad — it flexes on impact, cracks mounting tabs, and can bend the frame horns underneath it. Off-road builds see real hits, whether that's a rock at low speed or a dune lip at 40 mph, and the bumper is the first thing absorbing that load. Fit and torque matter more here than on almost any other bolt-on part you'll add to a UTV, because a loose or mismatched bumper transfers the impact straight to whatever's behind it — usually the radiator or the frame rail.

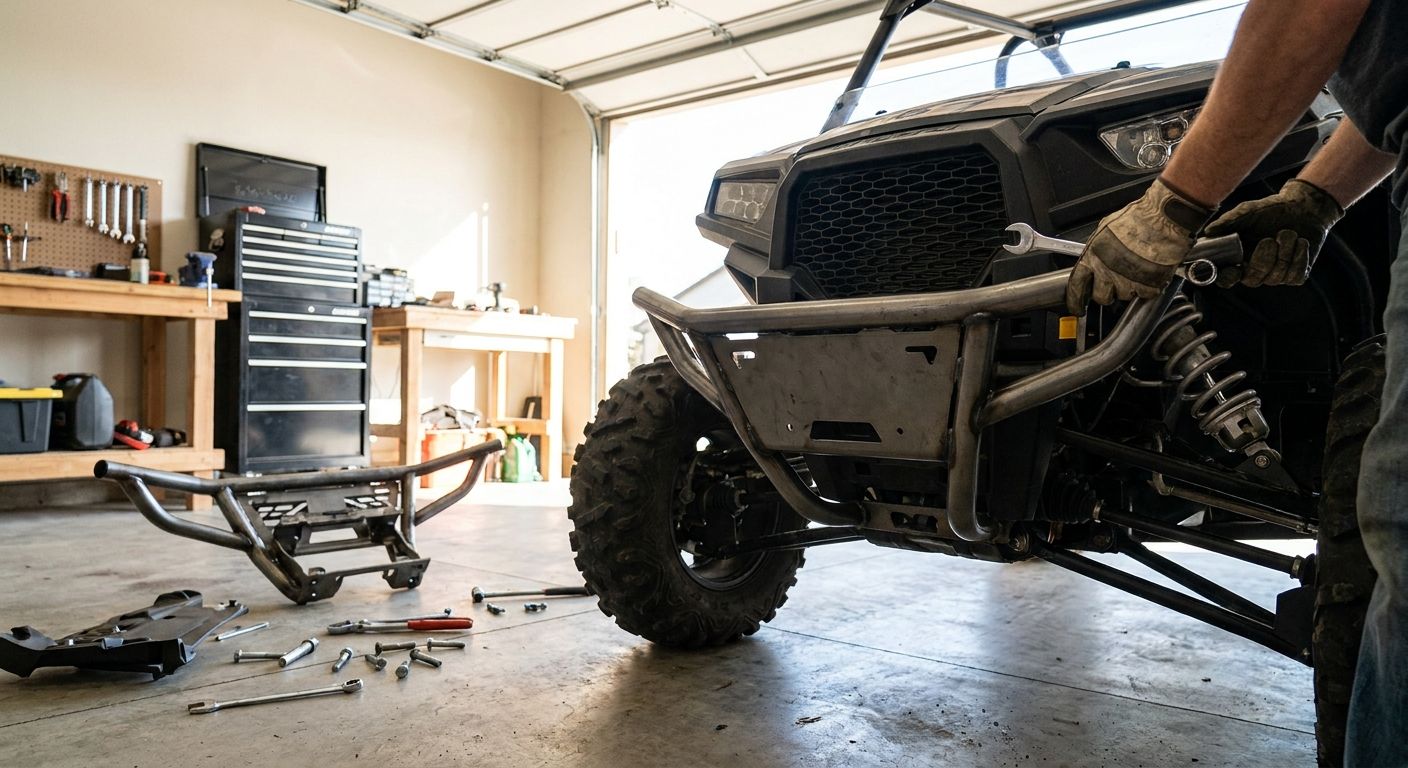

How to install a UTV bumper
Most bumper kits ship with the hardware needed for a stock frame, and the install follows the same sequence regardless of brand:
- Confirm fitment first. Match the kit to your exact year, trim, and model — a Polaris RZR Pro R bumper will not bolt to a Pro XP frame even though the vehicles look similar.
- Stage your tools. A socket set covering 10mm, 13mm, and 17mm handles most factory bolts, plus a torque wrench and a floor jack if you're pulling the front fascia.
- Remove the factory bumper or fascia panel. Support the panel as the last bolts come out — some fascias are held by clips that snap instead of unbolt.
- Test-fit the new bracket against the frame before torquing anything. Brackets should sit flush without forcing bolt holes into alignment.
- Bolt the bracket to the frame using the supplied hardware, hand-tight first, then torqued in sequence once every bolt is started.
- Hang the bumper on the bracket. Double-tube and winch-mount bumpers are heavy enough that a second person holding the bumper while you start the bolts saves a lot of frustration.
- Route winch wiring if the bumper is winch-ready. This is the step non-winch bumpers skip completely, and it's the one that eats the most install time.
- Torque everything to spec and recheck after the first ride. Vibration loosens hardware faster on off-road rigs than on street vehicles — a five-minute recheck after the first trail run catches anything that backed off.
Single-tube, double-tube, or winch-mount: which style installs easiest
Bumper style changes both the install and what the bumper does on the trail. Here's how the main styles compare:
| Bumper style | Install difficulty | Best for | Trade-off |
|---|---|---|---|
| Single-tube | Easiest — fewer mounting points, lighter to hold in place | Trail riders who want basic front protection without added weight | Less coverage on wide impacts |
| Double-tube | Moderate — heavier, benefits from a second set of hands | Desert and dune riders hitting higher speeds | Adds front-end weight |
| Winch-mount | Moderate to harder — same bolt-on process plus wiring | Anyone who winches out of mud, sand, or rock regularly | Wiring routing adds install time |
| Billet/machined | Moderate — precision-fit but still bolt-on | Builds prioritizing a finished, show-ready front end | Heavier than tube-style bumpers |
Verdict: a single-tube bumper is the fastest weekend install and the right call for trail-only riders — Buy. A winch-mount bumper is worth the extra wiring time if you ever run sand or mud solo — Buy. A double-tube bumper is the right pick for desert speed but skip it if you're not adding the weight budget for it — Hold unless you ride fast and rough.
Why installation time varies
A handful of factors decide whether your bumper install takes an afternoon or eats your whole Saturday:
- Winch wiring — bumpers with integrated winch mounts need harness routing that non-winch bumpers don't.
- Fascia removal — some UTV models require pulling more body panels than others to access mounting points.
- Bumper weight — double-tube and billet bumpers are heavier to hold steady while starting bolts.
- Model-specific bracket fitment — bumpers built for the exact trim bolt straight to factory holes; universal-fit kits sometimes need minor adjustment.
- Number of helpers — a second person cuts hold-and-align time significantly on heavier bumpers.
- Prior damage — a UTV that's already taken a hit may have a bent frame horn that needs straightening before a new bumper sits flush.
Do I need to drill my UTV frame to install a bumper?
No — most bolt-on bumpers use the factory frame mounting points already drilled at the factory, which is exactly why fitment by model and trim matters so much before you order. Universal-fit kits occasionally need a bracket adjustment, but drilling into the frame itself is rare on a properly matched bumper.
Can I install a UTV bumper without a winch already wired?
Yes — a non-winch bumper bolts on the same way as a winch-mount version, just without the harness routing step. If you add a winch later, you'll need a winch-ready bumper or a separate mounting plate designed for it.
How do I know if a bumper fits my UTV model?
Check the exact year, trim, and model listed on the bumper's product page before ordering — a Can-Am Maverick X3 bumper and a Polaris RZR bumper are never interchangeable even when the vehicles look similar side by side. R1 Industries lists bumpers by model for this reason, so matching fitment takes one lookup instead of a guessing game.
FAQ
What's the best UTV bumper for desert riding?
A double-tube front bumper is the better call for desert riding because it handles higher-speed impacts and hides a winch mount without adding a second bracket. Trail-only riders can go lighter with a single-tube style.
Is a winch-mount bumper better than a non-winch bumper?
A winch-mount bumper is better if you ever ride solo through sand, mud, or water crossings, since it gives you a recovery point built into the front end. If you never winch, the extra wiring step isn't worth it.
How long does it take to install a UTV bumper?
Installation time depends mostly on whether the bumper includes winch wiring and how many body panels need to come off first — bolt-on brackets themselves go fast once the fascia is clear.
Do UTV bumpers fit all models the same way?
No, bumper brackets are built around each model's specific frame mounting points, so a bumper made for a Polaris RZR Pro R will not bolt to a RZR Pro XP or a Can-Am Maverick X3.
Can I install a UTV bumper myself?
Yes, a bolt-on bumper is a driveway-level install with a basic socket set covering 10mm, 13mm, and 17mm sizes and a torque wrench. Winch-mount versions add a wiring step but no specialty tools.
Do I need a torque wrench to install a UTV bumper?
A torque wrench isn't strictly required, but it's the difference between hardware that stays tight over rough trail vibration and hardware that backs out after one ride. Recheck torque after the first outing either way.
What's the difference between a front bumper and a rear bumper on a UTV?
A front bumper protects the radiator, frame horns, and often carries a winch mount, while a rear bumper protects the bed or cargo area and typically skips winch integration entirely. Most builds prioritize the front bumper first.
One last thing
The part riders skip most often isn't the bumper install itself — it's the recheck. Off-road vibration loosens bolts faster than street driving ever will, and a bumper that was torqued correctly in the garage can back off half a turn after one hard trail run in 2026. Build a five-minute bolt check into your post-ride routine and you'll catch the problem before it becomes a bent bracket or a bumper that shifts on the next hit.
