Maverick X3 Rock Sliders: Best Setup for 2026 Trails

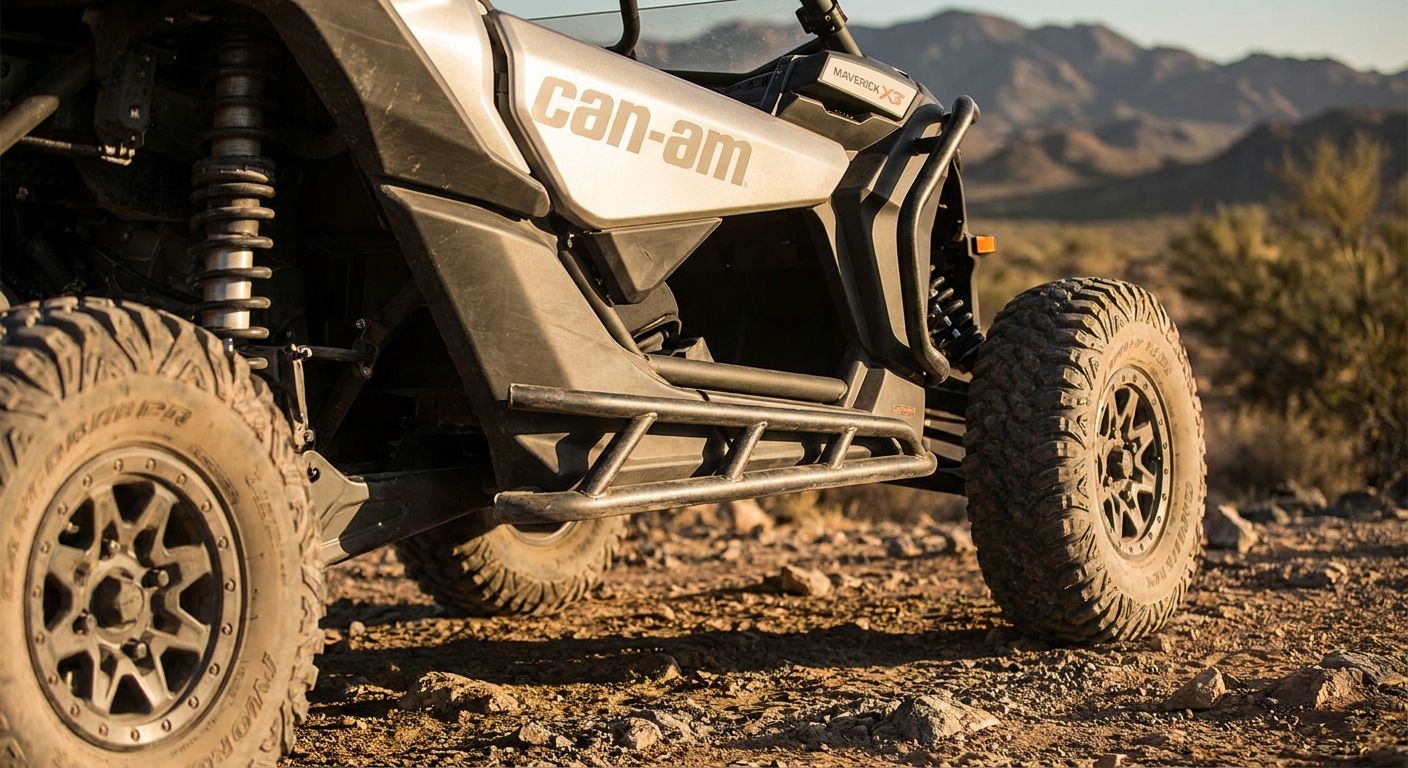

Maverick X3 rock sliders bolt along the rocker panel to protect the lower frame rail, floorboard, and cage base from rock strikes, ruts, and tip-overs on technical trail. The Can-Am Maverick X3's wide 64-inch or 72-inch stance and long wheelbase put the rocker area closer to obstacles than a narrower machine, and turbo trims add weight that makes a hard landing on a rock ledge more costly if the sill has no protection.

Why rock sliders matter for Maverick X3 owners

The Maverick X3's rocker panels sit low relative to its wheel travel, especially on Turbo and Turbo R builds running taller suspension and 30-inch-plus tires. That gap between ground clearance and body width means the sill takes the hit first when the machine slides sideways into a rock ledge or drops into a rut on a technical climb.

A bare rocker on the X3 dents or tears on contact with sharp rock, and repeated damage in that area compounds because it's structural to the lower cage mounts. Owners running the 4-seat XRS or Max chassis have a longer rocker span to protect than the 2-seat base model, which changes which kit actually fits.

Rock sliders on a Maverick X3 are not optional armor for anyone running rock-heavy trail systems or dune-to-rock transitions where clearance changes fast. Skip them and the first hard rock strike becomes a body panel and frame repair instead of a scuffed slider.

Update your rocker protection first

Start with the panel that's actually at risk before adding anything else to the build.

• Inspect factory rocker panels for existing dents or stress cracks before ordering sliders
• Confirm your chassis length (2-seat vs 4-seat/XRS) since rocker span differs
• Check tire diameter — taller tires reduce the effective gap sliders need to clear
• Note whether you're running Turbo, Turbo R, or Turbo RR, since ride height varies by trim
• Photograph mounting bolt locations under the rocker before shopping for a kit

Measure your frame and mounting points

Sliders that don't match the Maverick X3's factory bolt pattern either sit loose or require drilling into the frame rail, which most builders want to avoid.

• Measure bolt spacing along the factory rocker mount, not the aftermarket cage if one's installed
• Check clearance to the radius rods before ordering — misjudging this is the most common return reason
• Confirm the kit lists your specific X3 trim and seat count, not just "Can-Am Maverick"
• Verify tube diameter clears the lower A-arm pivot on turned wheels
• Check whether the kit needs the OEM rocker cover removed first

Heavy-duty radius rods built for the X3 sit close to this same mounting zone, so measure both together if you're upgrading suspension components at the same time as sliders.

Pick your material and tube diameter

Material choice is a tradeoff between weight and how the slider behaves on impact.

• Steel tube sliders absorb repeated rock strikes without denting through
• Aluminum sliders cut weight for dune and high-speed desert runs but dent rather than deflect on sharp edges
• Larger tube diameter (1.75" and up) holds up better on rock ledges than thin-wall tube
• Powder-coated finish resists chip and rust better than raw paint on steel kits
• Kick-out step designs double as a mounting point for boarding the cab, useful on taller Turbo R builds

At this point, buying a Maverick X3-specific bolt-on kit is the faster path than fabricating tube sliders from scratch — factory mounting points mean no drilling and no fitment guesswork.

Match sliders to your seat configuration

The 2-seat X3 and the 4-seat XRS or Max share a lot of parts, but rocker length is not one of them.

• Confirm the kit is listed for 2-seat or 4-seat/XRS specifically, not a universal "Maverick X3" label
• Check if the rear slider section extends to protect the rear cage leg on 4-seat builds
• Verify door hinge clearance if you're running half doors or a full cab enclosure
• Cross-check slider width against any wide fender flare kit already installed

Decide on flush sliders vs kick-out step designs

Flush sliders sit tight to the body and prioritize ground clearance; kick-out designs add a step surface and a bit more protection width.

• Flush sliders reduce snag risk on tight rock crawling lines
• Kick-out sliders give a stable step for entry and exit on lifted builds
• Kick-out designs add slight width, which matters if you're already near trail-width limits
• Rock crawling-focused builds generally favor flush; dune and mixed-terrain builds lean kick-out

Pair sliders with A-arm and underbody protection

Rock sliders protect the rocker, not the suspension arms or belly pan — those need separate coverage.

• Forward-offset A-arms built with integrated guarding add clearance and protection in one part
• A full skid plate closes the gap between sliders and the front bumper
• Radius rod guards prevent bent rods on the same hits that dent an unprotected rocker
• Check that slider brackets don't interfere with skid plate bolt locations before final torque

Install and torque to spec

A bolt-on kit that's installed loose defeats the point of running armor in the first place.

• Torque to the fastener spec listed in the kit's install sheet, not a generic UTV bolt chart
• Re-torque after the first trail ride once everything has settled
• Check for contact with exhaust routing on Turbo and Turbo R models before the first hot lap
• Inspect brackets for stress cracks after any hard rock strike, even if the slider itself looks fine

Comparison: rock slider options for the Maverick X3

Option	Best for	Key limitation
DIY tube fabrication	Owners with welding experience and an existing cage build	Inconsistent fitment, voids any factory bracket warranty
Bolt-on steel sliders	Rock crawling and low-speed technical trail	Adds noticeable weight on Turbo R and RR trims
Bolt-on aluminum sliders	Dune runs and high-speed desert where weight matters	Dents on sharp rock edges instead of deflecting
Cage-mounted armor kits	Full builds already running a cage brace or roof	Requires removing the lower cage brace to install

Bolt-on steel sliders sized for the specific X3 seat configuration are the right call for most rock-heavy trail riders in 2026 — they clear the radius rods, use factory mounting points, and hold up to repeated hits better than aluminum.

Common mistakes Maverick X3 owners make

• Buying a kit sized for the 2-seat X3 while running the 4-seat XRS or Max chassis — rocker span doesn't match and the rear cage leg goes unprotected
• Ignoring exhaust routing near the mid-mount slider bracket on Turbo R models, which can lead to heat discoloration or bracket warping
• Stacking sliders with a wide fender flare kit without checking total width, pushing the slider past the tire's outer edge on turned lock
• Skipping the belly skid plate because sliders are installed, leaving the actual undercarriage exposed on the same rock strikes sliders are meant to prevent
• Cross-shopping sliders built for the Polaris RZR cage — R1 Industries sees this often since RZR and Maverick X3 tube spacing and rocker mounting points are not interchangeable

FAQ

One last thing

The rocker isn't the only thing that fails on an unprotected Maverick X3 in rock terrain — the radius rod and lower A-arm pivot take the second hit right after the rocker on the same obstacle, which is why sliders and radius rod protection get bought as a pair more often than sliders alone. Budget for both in the same order instead of treating rocker armor as a standalone upgrade.
