The whip mount carries every load the pole creates while the vehicle accelerates, lands, turns and hits brush. Match the mount to the whip base, mounting surface and terrain instead of choosing on appearance alone.
Types of UTV Whip Mounts
| Mount type | Best use | Main check |
|---|---|---|
| Through-panel base | Strong metal tabs or reinforced mounting plates | Clearance below the hole and adequate material strength |
| Roll-bar clamp | Cages without a suitable flat tab | Exact cage-tube diameter and clamp orientation |
| Vehicle-specific bracket | Known factory or aftermarket mounting locations | Model, year, cage and bed compatibility |
| Quick-release base | Frequent removal for transport or storage | Electrical connection, debris resistance and base diameter |
| Spring base | Adding movement between a rigid mount and tall whip | Added height, oscillation and spring stiffness |
Quick Release vs. Fixed Mount
A fixed mount is simple but may require tools or wiring disconnection whenever the whip is removed. A quick release is valuable when the machine is trailered, stored under a low roof or regularly moves between riding configurations.

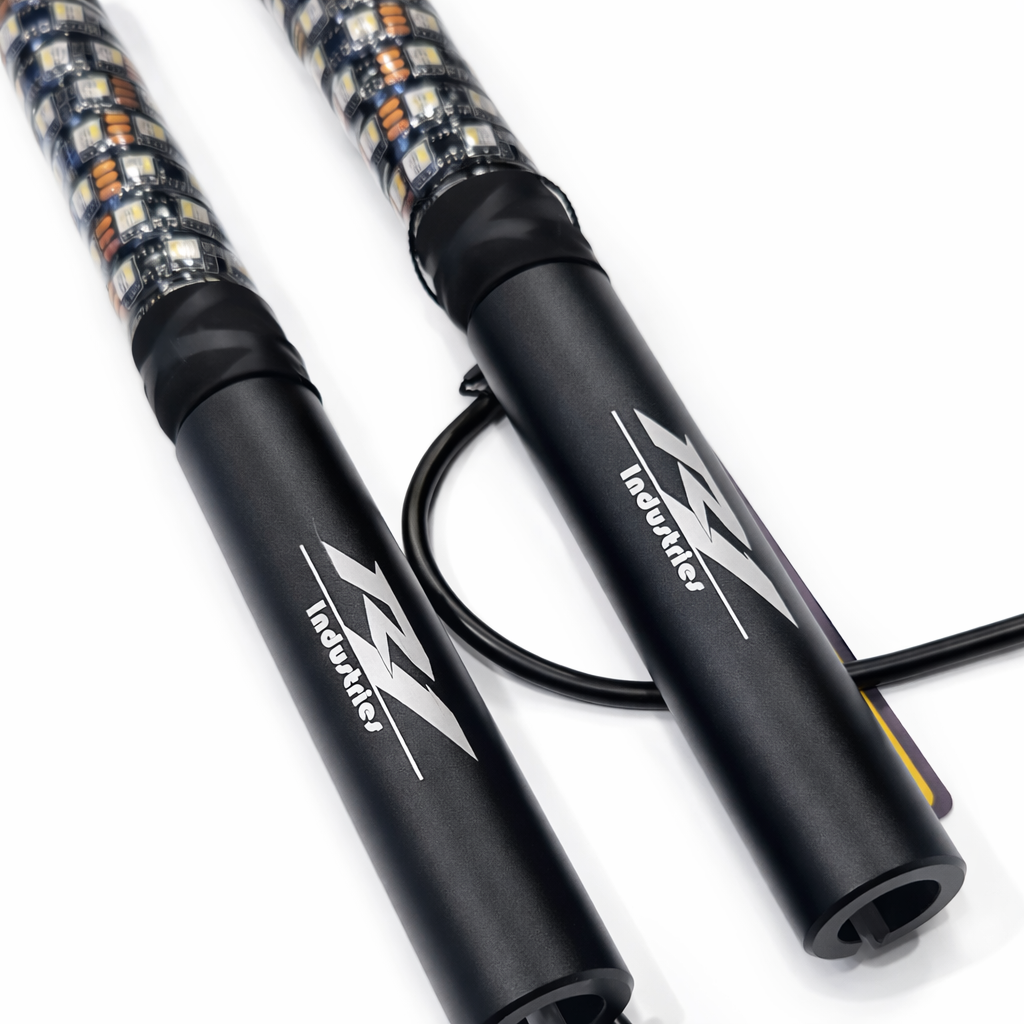

Inspect how the release handles dust, sand and mud. Exposed collars and small moving components can become harder to operate when contaminated. R1's Pro Series uses a push-down-and-twist release designed for quick tool-free removal.
Do You Need a Spring Mount?
A spring mount can reduce the sharp load transferred into a rigid bracket, but it also adds height and allows more movement. Tall whips on soft springs can oscillate substantially. A spring is an option—not an automatic requirement.
A spring may help when
- The mount is rigid and terrain is rough
- The whip is tall and sees repeated impacts
- The manufacturer approves the combination
Stay fixed when
- Added height creates a clearance problem
- The whip already has sufficient flexibility
- Movement could contact cargo or body panels
How to Choose a Mount
- Measure the whip-base thread or mounting diameter.
- Identify a structural surface or the exact cage-tube diameter.
- Check space below and around the mount through suspension and bed movement.
- Confirm the cable path and connector clearance.
- Choose fixed, spring or quick release based on removal frequency and terrain.
Installation Mistakes to Avoid
- Drilling thin plastic without a structural backing plate
- Clamping over a cage joint, taper or damaged powder coat
- Allowing the wire to carry the whip's mechanical load
- Mounting where the bed, roof or spare tire can hit the whip
- Ignoring the extra height created by a spring or adapter stack
- Failing to recheck mount torque after the first ride
Use the complete LED whip installation sequence after selecting the mount.
