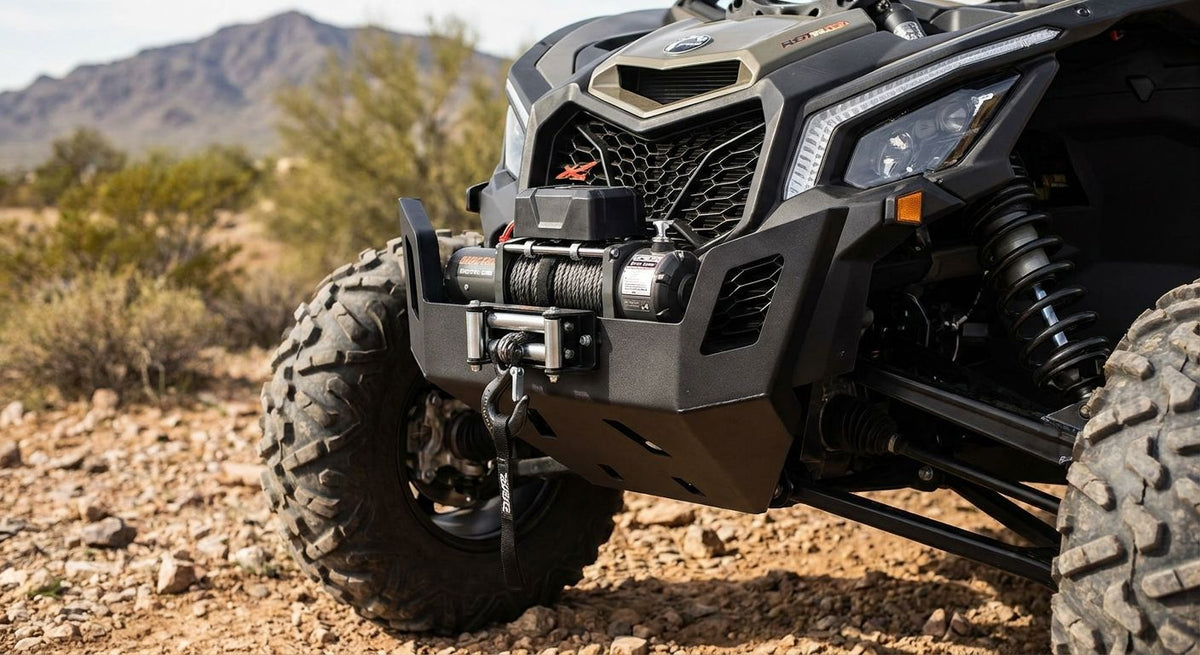

Can-Am Maverick X3 winch mounts are aftermarket plates or brackets that bolt to the front frame or bumper, letting you run a winch without drilling into structural tubing or blocking your fairlead. X3 owners deal with tighter front-end clearance than a RZR or Ranger because of the sport-tuned bumper and shock towers, so a mount built for a different platform rarely bolts up clean.
The segment that searches "maverick x3 winch mount" is almost always mid-build: they've already got a front bumper for their Can-Am Maverick X3 or are shopping one at the same time, because most X3 winch mounts are bumper-integrated rather than standalone.
- A Maverick X3 winch mount has to clear the fairlead and shock towers or it won't sit flush against the frame in 2026 builds.
- Bumper-integrated mounts are the most common option for X3 owners and pair directly with a front bumper swap.
- Standalone weld-on plates give more fairlead placement options but need a welder and frame prep.
- Skip universal mounts that aren't X3-specific; mismatched bolt patterns are the top install complaint.
- Torque and thread-lock every mounting bolt before the first pull. A loose mount fails under load, not at idle.
Why winch mounts matter for Maverick X3 owners
A winch does nothing for you if the plate it's bolted to flexes or cracks the first time the cable comes under tension. The Maverick X3's front frame geometry is narrower between the shock towers than most full-size UTVs, which is exactly why generic universal winch plates cause fitment headaches on this platform in 2026.
Most X3 owners aren't buying a winch mount in isolation. They pair it with a front bumper, and often with skid plates to protect the underbody once they start running remote trails where recovery becomes routine instead of occasional.
A Maverick X3 winch mount is only as good as the bumper and frame it's bolted to. That's the one sentence to remember before you buy anything.
How to choose and install a winch mount on your X3
Measure your bumper and fairlead clearance first
Before you order a mount, confirm what you're bolting it to and where the cable needs to exit.
- Check whether your current front bumper has an integrated winch tray or needs an add-on plate
- Measure fairlead opening height against your winch's roller or hawse fairlead
- Confirm shock tower clearance on both sides, since X3 towers sit closer to center than a RZR's
- Note whether you're running a stock or aftermarket bumper, because mounts aren't interchangeable between the two
Match the mount to your winch's bolt pattern
Winch manufacturers don't standardize bolt spacing across models, so the mount has to match your specific winch, not just your vehicle.
- Cross-check your winch's mounting bolt pattern against the plate's hole spacing
- Verify the mount accepts your fairlead type, roller or hawse, without spacer plates
- Confirm the plate is rated for your winch's weight, not just labeled universal fit
- Check for pre-drilled wiring pass-throughs so you're not drilling the mount yourself
Reinforce the front frame before you drill
Any mount that ties into the frame rather than the bumper needs backing plates, not just bolts through sheet metal.
- Use backing plates behind any hole drilled through frame tubing
- Run Grade-8 hardware minimum on load-bearing bolts, since stock hardware isn't rated for winch loads
- If you're running billet radius rods, confirm the mount doesn't interfere with rod clearance at full compression
- Inspect for stress cracks around existing bolt holes before adding new ones
Route your wiring away from heat and rocks
A winch mount without a wiring plan turns into a burned or shredded harness within a season.
- Keep power leads away from the exhaust and radiator
- Run wiring through the frame rail, not zip-tied along the exterior
- Use a weatherproof solenoid box mounted above splash height
- Leave slack at the fairlead so cable tension doesn't pull on the harness
Torque and thread-lock every mounting bolt
This is the step riders skip and the step that causes comebacks.
- Torque to the mount manufacturer's spec, not just snug
- Thread-lock every bolt exposed to vibration
- Re-torque after the first 50 miles of trail use
- Check bolts again after any hard hit to the front end
Test the mount under load before you trust it
Don't find out your mount flexes during an actual recovery.
- Do a controlled pull against a fixed anchor point before your first trip
- Watch the mount-to-frame junction for movement under tension, not just the cable
- Check for gaps opening between plate and bumper after the pull
- Confirm the fairlead didn't shift position
Protect the mount and front end from mud and debris
Once the winch is mounted, the front end takes more abuse, not less.
- Pair the mount with A-arm guards built for the Can-Am Maverick X3 if you're running technical terrain
- Keep the fairlead area clear of packed mud that hides cracked welds
- Inspect mount welds or bolt heads after mud runs, not just after rock crawling
- Rinse salt or dune sand out of the mount cavity after each ride
“If the winch mount flexes under load, it's not a mount, it's a hinge.”
Comparison: winch mount options for the Maverick X3
| Option | Best for | Mounting method | Key limitation |
|---|---|---|---|
| Bumper-integrated winch tray | Owners already swapping a front bumper | Bolts into the bumper's built-in winch tray | Locked into that bumper's fairlead position |
| Standalone weld-on plate | Builders who want a custom fairlead height | Welded directly to the front frame | Requires a welder and permanent frame modification |
| Bolt-on universal plate | Budget builds keeping the stock bumper | Bolts through existing bumper mounting points | Fitment varies, so confirm X3-specific hole spacing before buying |
| Hidden low-profile mount | Riders who want a clean front end with no visible tray | Recesses behind the bumper fascia | Less clearance for larger winch drums |
Bumper-integrated mounts win for most Maverick X3 builds in 2026 because they're engineered around a specific bumper's geometry instead of guessing at frame clearance. Buy one if you're already replacing the bumper. Skip the universal plate unless you've verified the hole spacing yourself.
Common mistakes Maverick X3 owners make with winch mounts
- Buying a RZR or Ranger mount and forcing the fit. The X3's shock tower spacing is narrower, and close-enough bolt patterns strip out under load.
- Skipping backing plates on frame-mounted brackets. Sheet metal alone stretches and cracks around the bolt holes within a season of hard pulls.
- Mounting the winch before checking fairlead height against the bumper opening. The cable rubs the bumper edge and frays faster than it should.
- Running stock hardware instead of Grade-8 bolts. Winch loads exceed what factory bumper hardware is rated for.
- Never load-testing the mount. The first real recovery shouldn't be the first time anyone checks whether the plate moves.
FAQ
What is the best winch mount for a Can-Am Maverick X3?
The best Maverick X3 winch mount depends on your bumper: bumper-integrated trays win for most 2026 builds because they are engineered around a specific bumper's fairlead position and frame clearance. Standalone weld-on plates work better for custom fairlead placement but require a welder.
Do I need a new bumper to install a winch mount on my X3?
Not always, but most winch mounts for the Maverick X3 are designed to integrate with a specific front bumper rather than the stock unit. Check whether your current bumper has a winch tray before buying a standalone plate.
Can I use a universal winch mount on a Maverick X3?
Universal plates can work, but the X3's shock tower spacing is tighter than a RZR or Ranger, so bolt pattern mismatches are common. Confirm X3-specific hole spacing before ordering.
How much weight can a Maverick X3 winch mount handle?
Capacity depends on the specific mount and winch pairing, so check the manufacturer's rated capacity rather than assuming any plate handles any winch. Mismatched capacity is a leading cause of mount failure under load.
Is it better to weld or bolt a winch mount to a Maverick X3?
Bolt-on mounts with backing plates work for most trail riders and keep the modification reversible. Weld-on plates suit builders who want a permanent custom fairlead height and have access to a welder.
Why does my winch cable rub on the bumper after installing a mount?
Cable rub usually means the fairlead height was not matched to the bumper opening before installation. Reposition the fairlead or move to a mount with an adjustable fairlead slot.
How often should I check my Maverick X3 winch mount bolts?
Re-torque bolts after the first 50 miles of trail use and inspect them again after any hard hit to the front end. Vibration loosens hardware faster on a UTV than on a truck.
One last thing
The mount fails at the frame junction long before the cable ever snaps, and that's the part riders miss. Watch for hairline gaps opening between the plate and bumper after a hard pull during the 2026 trail season. That gap is the early warning sign, not a frayed cable.
