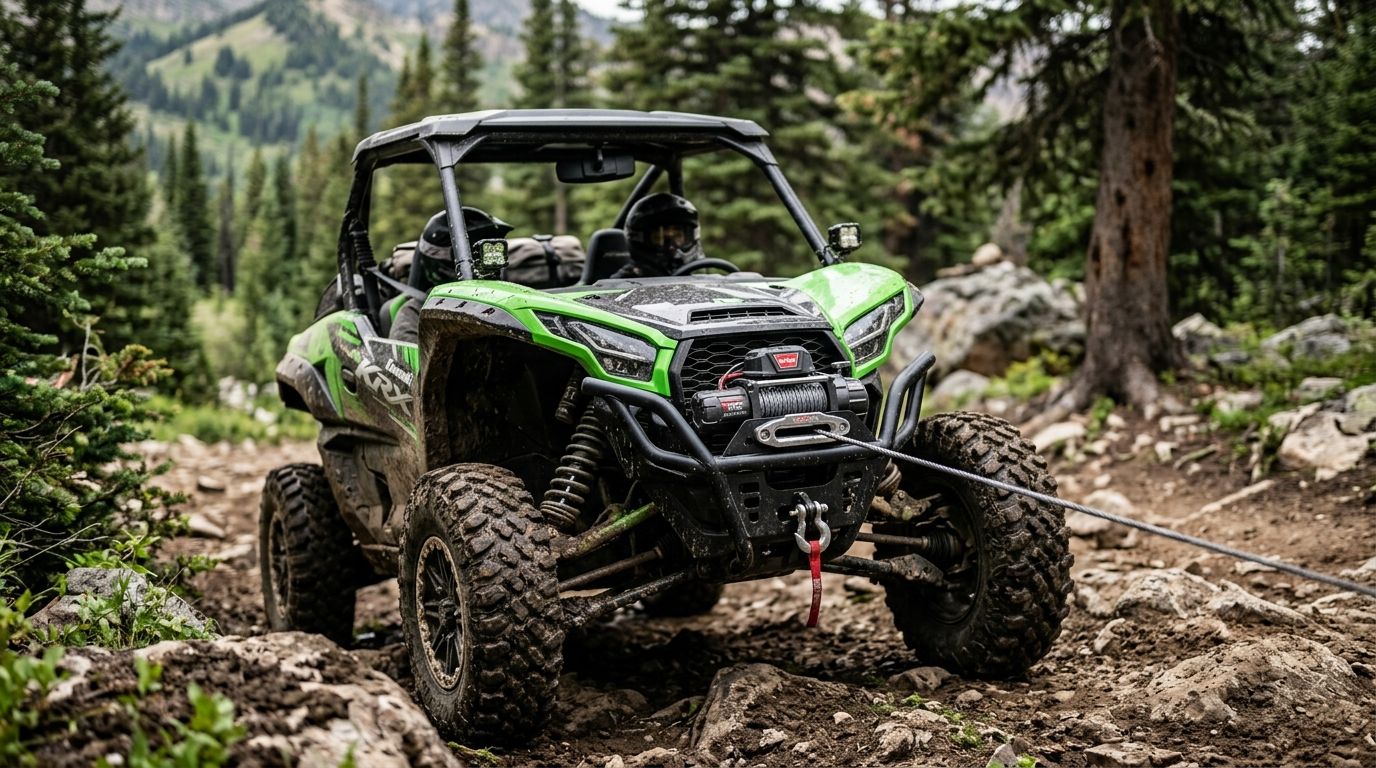

Kawasaki KRX winch mounts bolt a properly rated winch to the front bumper or frame so you can self-recover from mud, sand, or rock without waiting on a buddy's rig. KRX owners building a real recovery setup need a mount that clears the factory skid plate, lines up with the fairlead, and doesn't flex under a hard pull — generic UTV winch plates built for other platforms rarely hit all three.
- A dedicated winch mount for the Kawasaki KRX matches the bumper's tube diameter and bolt pattern instead of forcing a universal plate.
- Most UTV winches run 4,500 to 6,000 lb rated line pull, and the mount needs to handle that load in a straight pull, not just a static hang.
- Wiring gauge and fairlead alignment cause more winch mount failures on KRX builds in 2026 than the plate itself.
- Aftermarket winch-ready front bumpers for the Kawasaki KRX solve fitment faster than retrofitting a winch plate onto a stock bumper.
Why winch mount setups matter for Kawasaki KRX owners
The Kawasaki KRX is a heavier platform than most mid-size UTVs, and that weight matters the moment you're stuck nose-down in a wash. A winch mount that isn't rated for the pull angle you're actually using — off-axis, not straight-line — bends or tears loose exactly when you need it most.
KRX owners searching for winch mounts in 2026 usually fall into one of two camps: those retrofitting a mount onto the stock bumper, and those buying a front bumper for a Kawasaki KRX that already has a winch plate built in. Both work, but they solve different problems, and mixing up which one you need wastes money on brackets that don't fit.
Verdict: a winch-ready aftermarket front bumper beats a bolt-on winch plate for Kawasaki KRX builds that see regular recovery duty, because the plate is engineered into the bumper's load path instead of hanging off it.
Update your bumper before you add a winch plate
Most stock KRX bumpers were never designed to carry winch load. Before you buy any mount, confirm what you're bolting it to.
- Check the bumper tube diameter against the mount's clamp spec — KRX tubes vary between trim years.
- Inspect the factory bumper mounting bolts for stretch or corrosion before adding load.
- Measure fairlead height off the ground to avoid line drag on rocks.
- Confirm the mount doesn't block your factory skid plate or A-arm clearance.
- If the stock bumper is dented or cracked, replace it before mounting a winch to it.
Match your winch capacity to your KRX's actual weight
Winch capacity gets treated like a spec-sheet contest, but the number that matters is your KRX's loaded weight plus a safety margin, not the biggest number in stock.
- Add cargo, roll cage accessories, and passengers to base curb weight before sizing the winch.
- Rule of thumb across the UTV winch market: rated line pull should run at least 1.5x the vehicle's loaded weight.
- Most UTV winches sell in the 4,500 to 6,000 lb range — check the best UTV winches for trail recovery before locking in a mount, since the plate has to match the winch footprint.
- Synthetic rope reduces overall weight versus steel cable, which matters on a front-heavy KRX.
- Oversized winches strain the mount bolts more than they help — bigger isn't automatically safer.
Route and protect the wiring harness
A winch mount is only as good as the wiring feeding it. Undersized gauge or exposed runs cause more field failures than bent brackets.
- Run wire gauge rated for your winch's amp draw at full load, not idle draw.
- Keep the battery-to-winch run as short as the mount geometry allows.
- Use grommets anywhere the harness crosses metal edges near the bumper.
- Mount the solenoid box away from direct spray and mud kickback.
- Add a weatherproof disconnect near the mount for quick winter storage.
Add reinforcement bracing for rock crawling and drops
Straight-line pulls are the easy case. Off-angle pulls and repeated rock-crawling impacts are what actually stress a winch mount over a season.
- Gusset-plate reinforced mounts hold up better under side-load pulls than flat-plate designs.
- Pair the mount with rock sliders for the Kawasaki KRX if your recovery lines regularly run through rock gardens — the sliders keep the frame off the same terrain stressing the bumper.
- Check weld seams on the mount plate itself before your first season, not after.
- Torque-check mount bolts after the first 10 hours of use; they settle.
Weatherproof every connection before dune or mud season
Sand and mud kill winch electronics faster than rock does. A mount that's mechanically sound still fails if the solenoid corrodes.
- Dielectric grease on every terminal connection, reapplied each season.
- A sealed relay box beats an open-frame solenoid for KRX builds run in wet conditions.
- Rinse the mount and fairlead after mud runs — packed sediment traps moisture against the plate.
- Check the fairlead rollers for freeze-up before winter trail days.
Test the mount under load before you trust it on trail
Don't find out your winch mount flexes when you're stuck. Test it in a controlled setting first.
- Anchor to a fixed point and run a full-capacity pull in your driveway before your first trip.
- Watch the bumper mounting bolts for movement during the pull, not just the winch plate.
- Confirm the fairlead stays aligned with the cable under load — misalignment shows up fast.
- Re-torque everything after the test pull; even a good mount seats slightly on the first load.
Comparing winch mount options for the Kawasaki KRX
| Option | Best for | Key limitation |
|---|---|---|
| Winch-ready aftermarket front bumper | Owners building a full recovery setup from scratch | Requires removing the stock bumper entirely |
| Bolt-on winch plate for stock bumper | Owners who want to keep the factory bumper | Load runs through factory mounting points not designed for winch pull |
| Winch cradle/hoop mount | Builds prioritizing ground clearance and fairlead height | Adds width that can catch on tight trail sections |
| Universal receiver-style mount | Owners who swap winches between vehicles | Least rigid option under off-angle loads |
Verdict: for Kawasaki KRX owners doing regular recovery work in 2026, a winch-ready front bumper is the buy — the bolt-on plate is the hold option for owners not ready to replace a bumper yet.
Common mistakes Kawasaki KRX owners make with winch mounts
- Buying a universal mount without checking KRX-specific tube diameter — it fits loosely and flexes under the first real pull.
- Undersizing wire gauge for the run length — voltage drop weakens winch performance exactly when full power matters.
- Skipping fairlead alignment checks — a misaligned fairlead saws through synthetic rope in a single hard season.
- Adding winch weight without revisiting the front suspension setup — a heavier bumper and winch package sags the nose over time, and pairing the mount with suspension and lift kit upgrades keeps ride height and geometry correct under the added load.
- Never load-testing the mount before a trip — the first real pull shouldn't be the first test.
R1 Industries stocks winch-compatible bumpers and recovery gear built around Kawasaki KRX fitment specs, which cuts out the guesswork of matching a universal plate to a platform it wasn't designed for.
FAQ
What winch mount fits a Kawasaki KRX?
A winch mount for the Kawasaki KRX needs to match the bumper's tube diameter and bolt pattern for that trim year, since KRX bumpers vary between generations. A winch-ready aftermarket front bumper avoids the fitment guesswork of a universal plate.
How much winch capacity do I need for a KRX?
Most UTV winches on the market rate between 4,500 and 6,000 lb line pull, and the rule of thumb is at least 1.5x your KRX's loaded weight including cargo and passengers. Undersizing the winch strains the mount during off-angle pulls.
Is a winch-ready bumper better than a bolt-on winch plate?
A winch-ready front bumper is better for regular recovery use because the load path is engineered into the bumper itself, not bolted onto factory mounting points. A bolt-on plate works as a lower-cost option if you're not ready to replace the bumper.
Can I use a universal UTV winch mount on a Kawasaki KRX?
A universal mount can physically fit a Kawasaki KRX bumper but usually flexes more under off-angle load than a mount built specifically for the KRX's tube diameter. Match the mount to your bumper's exact spec before buying.
Does adding a winch mount affect KRX front suspension?
Yes — a winch, mount, and winch-ready bumper add meaningful weight to the front end, which can sag ride height over a season. Owners running heavier recovery setups often revisit spring rates to compensate.
What wire gauge do I need for a KRX winch mount?
Wire gauge should match your winch's amp draw at full load, not idle draw, and the run from battery to winch should stay as short as the mount geometry allows. Undersized gauge causes voltage drop that weakens winch pull exactly when you need full power.
How often should I check winch mount bolts on a KRX?
Re-torque winch mount bolts after the first 10 hours of use since new mounts settle, then check again each season. Skipping this after the first hard pull is one of the most common mount failures.
One last thing
Most winch mount failures on Kawasaki KRX builds trace back to the fairlead, not the plate — a misaligned fairlead saws through synthetic rope in one hard season even when the mount itself is solid. Check fairlead alignment under load, not just at rest, before you trust the setup on a real trail day in 2026.
