Take Unwanted Movement Out of the X3 Steering-Rack Mount

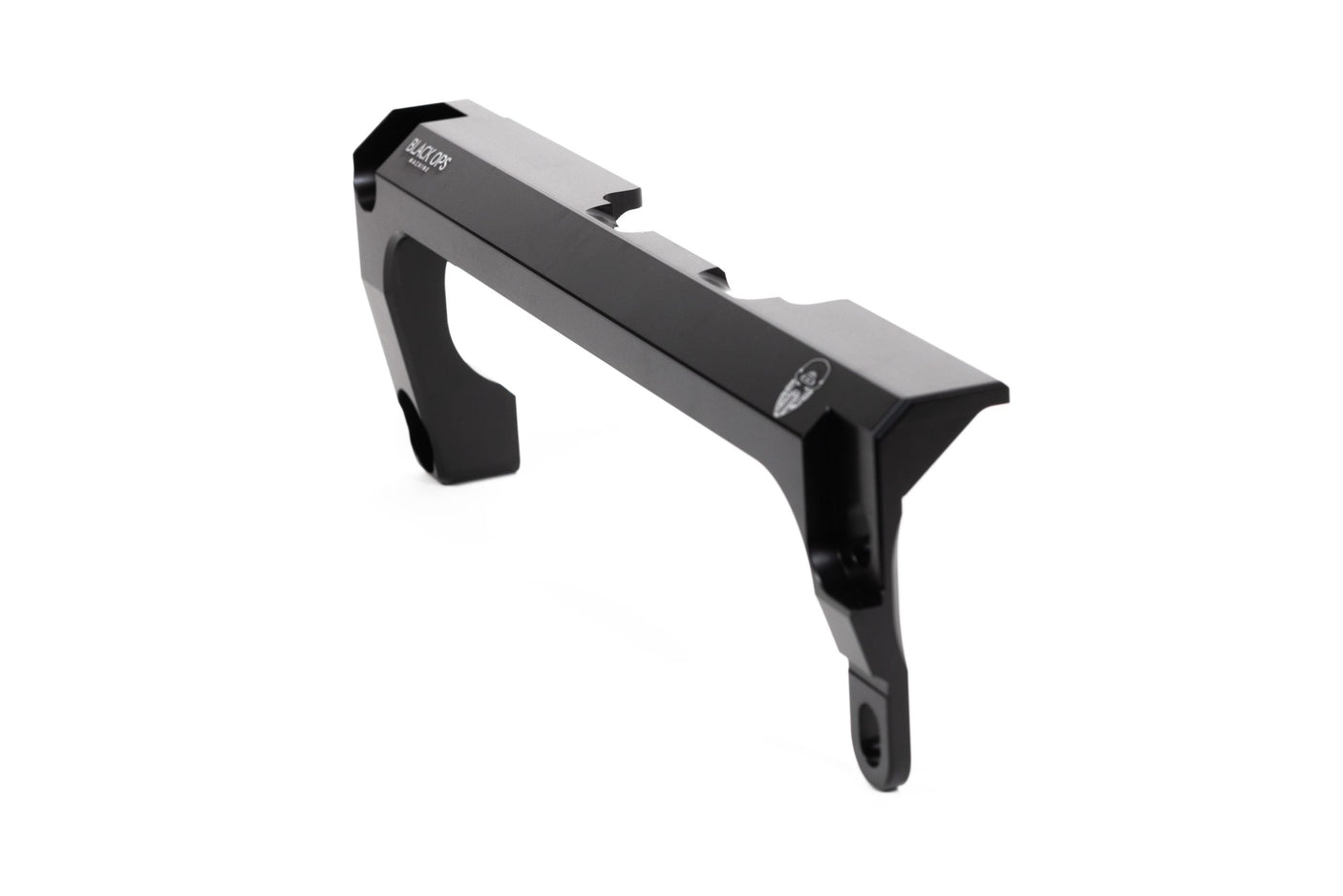

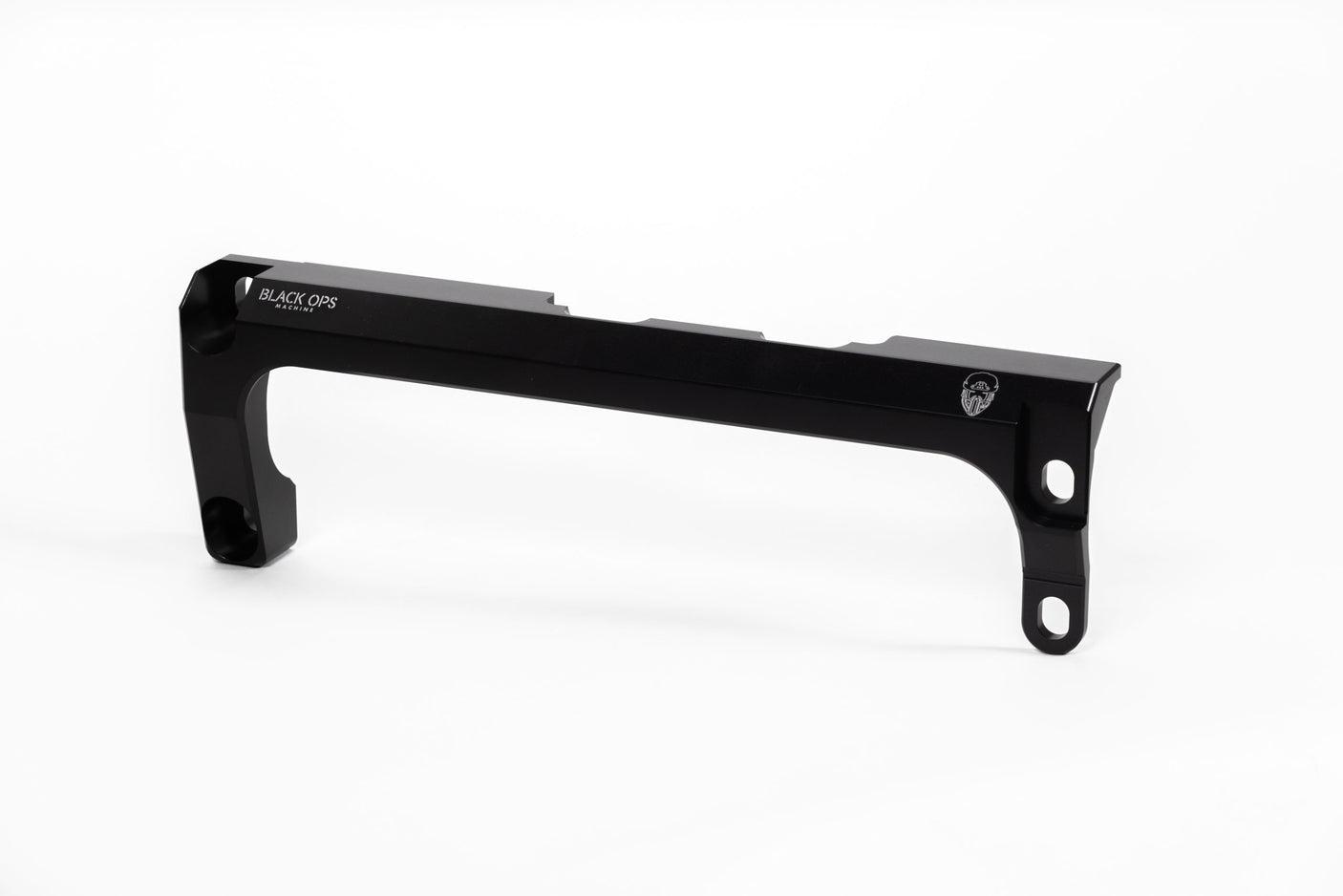

The Black Ops Machine X3 Rack Support braces the steering rack in a double-shear arrangement to reduce excess rack-system movement, improve steering response, and cut down the constant correction that can make a loose front end exhausting to drive.
The problem this support is designed to address
Steering input should move the wheels—not flex or shift the rack first. Black Ops Machine designed this bracket to support the X3 steering rack and reduce excess rack play and travel at the supported mounting area. The result can be a tighter connection between the steering wheel and front tires.
- Braces the Can-Am X3 steering-rack system
- Double-shear layout supports the rack from both sides
- Machined from durable 6061-T6 aluminum
- Black anodized finish
- Designed to improve response and steering feedback
- Can reduce the amount of corrective steering input caused by rack movement
- Sold as a complete support kit

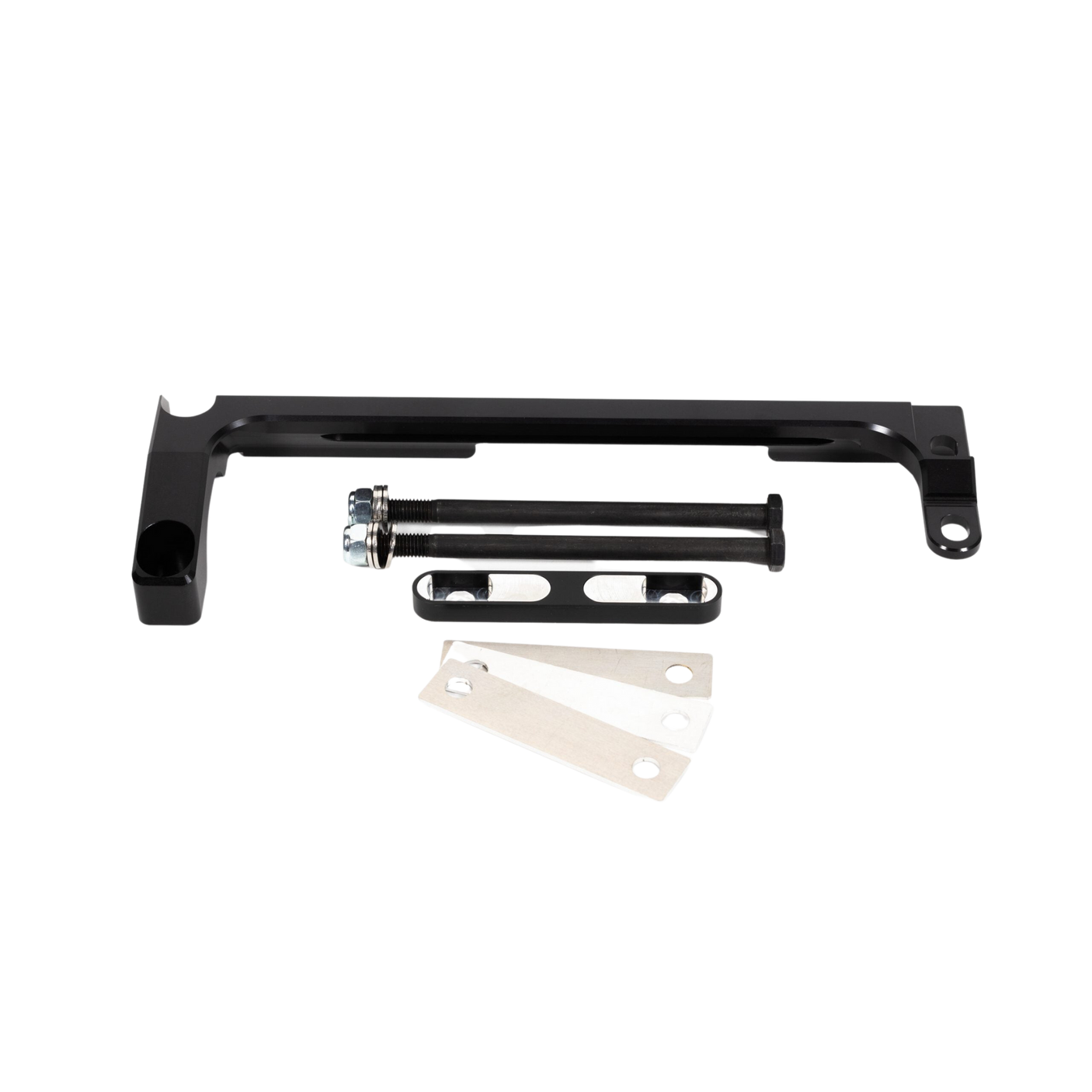

What comes in the kit
| Rack stabilizer | Black-anodized 6061-T6 aluminum support bracket. |
|---|---|
| Support bushing | The sliding interface that supports the rack while allowing normal steering movement. |
| Adjustment shims | Three shims used to establish the intended support fit. |
| Hardware | Two bolts with matching nuts and washers. |
Fitment must be confirmed by application
Can-Am Maverick X3 application
Black Ops Machine identifies SKU 05-20-00 as its Can-Am X3 Rack Support. The current manufacturer page does not publish a model-year range.
Why the old 2016–2023 range was removed
The Maverick X3 is generally sold as a 2017-and-newer platform, and Black Ops Machine’s current listing does not verify the old 2016–2023 range. Rather than repeat an unsupported cutoff, this page requires exact application confirmation.
V1, Gen 2, and Race Rack versions are not interchangeable names
Black Ops Machine sells multiple X3 rack-support products. Confirm that SKU 05-20-00 is the version intended for the rack and riding setup before ordering; do not select only from the words “X3 rack support.”
Check the whole steering system first
- Raise and support the machine safely before inspecting the front end
- Identify exactly where the movement occurs while an assistant moves the steering wheel
- Inspect inner and outer tie rods, ball joints, wheel bearings, rack mounts, steering shaft, and splines
- Replace damaged or worn components instead of using the support to hide another failure
- Follow the manufacturer’s installation and shim procedure
- Confirm the rack moves freely through the full steering range without binding
- Torque all hardware correctly and recheck it after the first ride
- Verify toe alignment after steering work
Common questions
Will this eliminate every source of steering play?
No. It is designed to reduce excess movement at the steering-rack support area. Play from tie rods, ball joints, wheel bearings, steering shafts, splines, rack wear, or alignment requires separate correction.
What does double shear mean?
Instead of supporting a loaded point from only one side, a double-shear arrangement supports it from both sides. That reduces leverage and unwanted deflection at the supported point.
Is this a complete replacement steering rack?
No. It is a support and stabilizer kit for the existing X3 rack system.
What is the bracket made from?
The manufacturer specifies machined 6061-T6 aluminum with a black anodized finish.
Does it include the bushing and hardware?
Yes. Black Ops Machine lists the stabilizer, one bushing, three shims, and two bolts with nuts and washers.
Can the support bushing wear?
It is a moving interface and should be inspected as part of normal steering maintenance. Black Ops Machine sells a replacement X3 Rack Support Bushing separately.
Will it make the X3 track perfectly straight?
It can improve steering response when rack-support movement is the problem. Tire pressure, toe, alignment, bent parts, worn joints, suspension setup, and terrain still affect tracking.
Is installation a substitute for alignment?
No. Inspect the steering system and verify toe alignment after completing steering work.
How do I know whether I need V1, Gen 2, or the Race Rack support?
Match the exact steering rack and intended use to the manufacturer’s current application. Contact R1 before ordering if the rack version or previous modifications are unknown.
Build the steering system as one system
Browse UTV steering racks and support components, explore Can-Am Maverick X3 parts, or ask R1 Industries to verify which rack support fits.
Fix the movement you can identify—not the problem you are guessing at
Inspect the front end, confirm the rack version, and use the Black Ops support when excess steering-rack movement is the source of the loose response.
Unsure which X3 rack support you need? Ask R1 before ordering.
