Kawasaki KRX 1000 Power Vision 3 ECU Tuner
Description
Description
Unlock the KRX 1000’s Calibration Without Removing the ECU
The Dynojet Power Vision 3 lets supported Kawasaki Teryx KRX 1000 owners flash compatible tunes through the diagnostic port, raise factory limits, monitor live engine data, record ride logs, and restore the stock calibration from one full-color device.
Control you can feel—and data you can use
Power Vision 3 writes a compatible calibration directly to the ECU; it is more than a plug-in gauge. After flashing, remove it or leave the full-color display connected for live channels and data logging.
- Compatible prebuilt tunes for supported stock and slip-on configurations
- Adjusted engine timing and drive-by-wire behavior where included in the tune
- Higher speed and rev limits on supported calibrations
- Lower cooling-fan settings and faster limp-mode behavior where supported
- Simultaneous throttle and brake capability
- Multiple tune storage and restore-to-stock capability
- Live gauges, supported diagnostic information, and ride logging
- Data review and compatible tune work through Dynojet Power Core software
How the process works
| 1. Confirm | Match the exact model and year below, then confirm that a tune supports the machine’s ECU strategy, fuel, and modifications. |
|---|---|

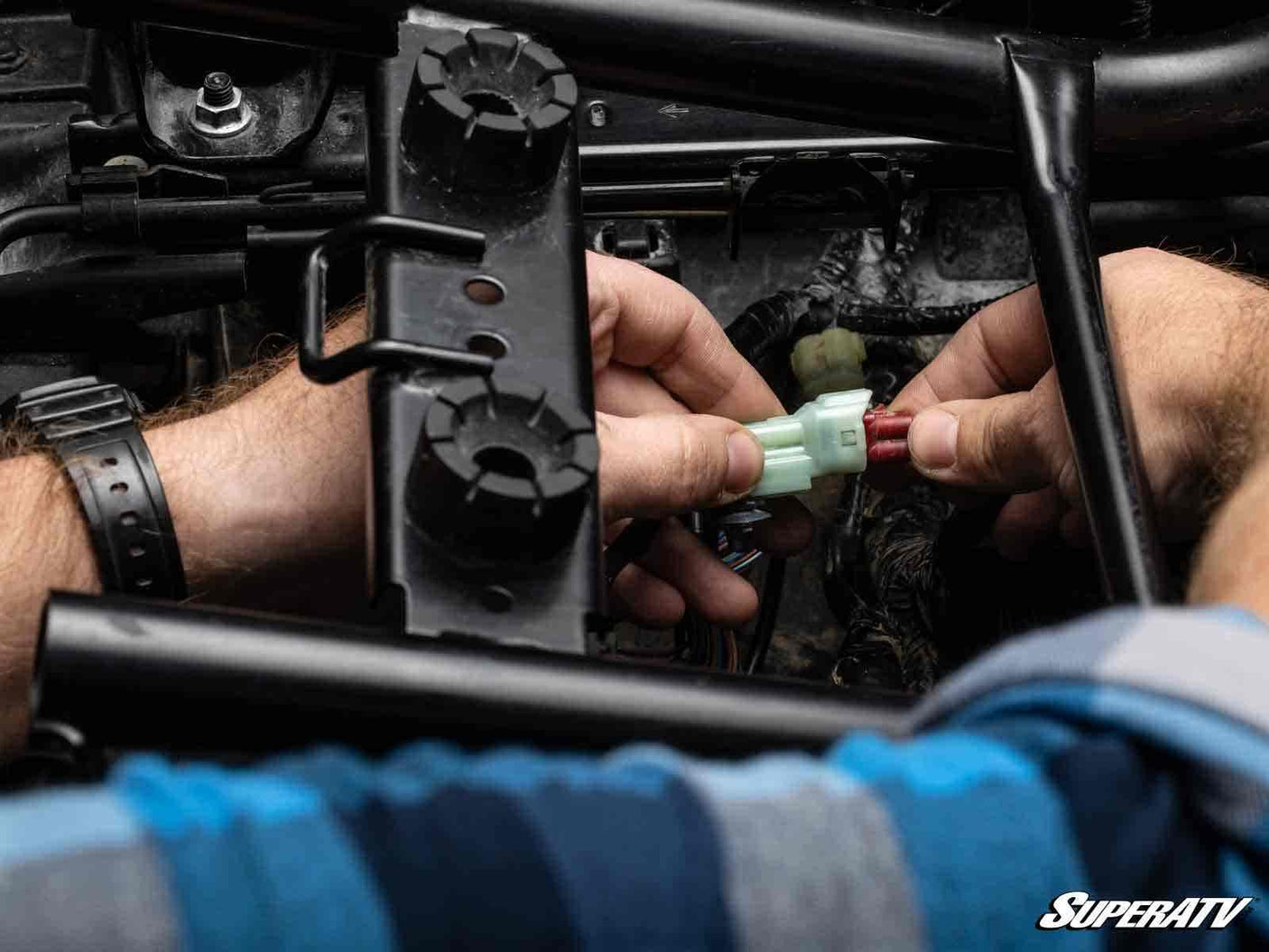

| 2. Connect | Plug the supplied connection into the Power Vision 3 and the KRX diagnostic port. |
| 3. Save | Read and retain the original calibration so the machine can be restored to stock. |
| 4. Flash | Select the correct tune, maintain stable battery voltage, and do not cycle the key or disconnect anything until flashing is complete. |
| 5. Ride and log | Remove the device afterward or leave it installed for gauges, diagnostic information, and data recording. |
Kawasaki Teryx KRX 1000 fitment
Manufacturer listings overlap clearly on the 2020–2024 applications below. Dynojet’s current database extends select KRF1000 applications through 2026, but the SuperATV consumer listing currently stops at 2024. Owners of 2025–2026 machines must confirm the exact model and ECU strategy before ordering.
KRX 1000 two-seat fitment
- Teryx KRX 1000: 2020–2024 clearly verified; select 2025–2026 applications require confirmation
- Teryx KRX 1000 Trail Edition: 2020–2024 clearly verified; select 2025–2026 applications require confirmation
- Teryx KRX 1000 Special Edition: 2021–2024
- Teryx KRX 1000 eS: 2021–2024 clearly verified; select 2025–2026 applications require confirmation
KRX 4 four-seat fitment
- Teryx KRX 4 1000 SE: 2023–2024
- Teryx KRX 4 1000 eS: 2023–2024 clearly verified; newer applications require confirmation
- Teryx KRX 4 1000 eS Special Edition: 2023–2024 clearly verified; newer applications require confirmation
Before flashing the ECU
- Verify the complete model, year, ECU strategy, fuel, and hardware configuration
- Choose a calibration designed for the actual intake and exhaust setup
- Start with a healthy battery and stable voltage
- Never cycle the key or disconnect the tuner during a flash
- Save and retain the stock calibration
- Verify that the selected tune complies with the rules where the KRX will be operated
- Use a Windows 10 or 11 computer for current Dynojet Power Core software
Pairing, returns, and warranty
This product carries a one-year manufacturer warranty through Dynojet. Dynojet processes manufacturer warranty claims under its warranty terms.
Common questions
Will this fit a 2025 or 2026 KRX 1000?
Dynojet’s current database lists select KRF1000 applications through 2026, while SuperATV’s consumer fitment currently stops at 2024. Confirm the complete model, ECU strategy, and available tune before ordering.
Will it fit a four-seat KRX 4?
Clearly verified manufacturer overlap covers select 2023–2024 KRX 4 trims. Newer KRX 4 applications require an exact fitment and tune-support check.
Will it fit a Kawasaki Teryx 800 or Teryx4?
No. Those are different engine and ECU platforms and are not included in this product’s fitment.
Is a specific horsepower increase guaranteed?
No. The manufacturers describe performance improvements, but the result depends on the ECU, selected tune, fuel, modifications, elevation, and engine condition.
Do I have to leave the tuner connected?
No. Remove it after flashing, or leave it connected when you want live gauges, diagnostic information, or data logging.
Can the KRX be returned to stock?
Yes. Power Vision 3 supports restoring the saved factory calibration when the correct process is followed.
Can I move it to another machine later?
Not as a fresh unpaired device. It pairs to the first ECU, so do not purchase it expecting unrestricted use across several vehicles.
Why does Dynojet show the base PV3-17-01 as superseded?
Dynojet’s direct catalog flags the base listing as replaced by an updated version, while SuperATV currently sells this application under SKU PV3-17-01SATV. Confirm current tune and ECU support before pairing; the superseded label does not justify assuming every year or ECU is compatible.
What computer does Power Core require?
Dynojet currently lists Windows 10 and Windows 11 support for Power Core software.
Build the rest of your KRX correctly
Browse Kawasaki KRX 1000 parts and accessories, or ask R1 Industries for a fitment and tune-support check before ordering.
Make the KRX respond the way your ride demands
Confirm the exact ECU, choose the correct calibration, protect the flashing process, and keep real operating data where you can see it.
Unsure about fitment or tune support? Ask R1 before ordering.
