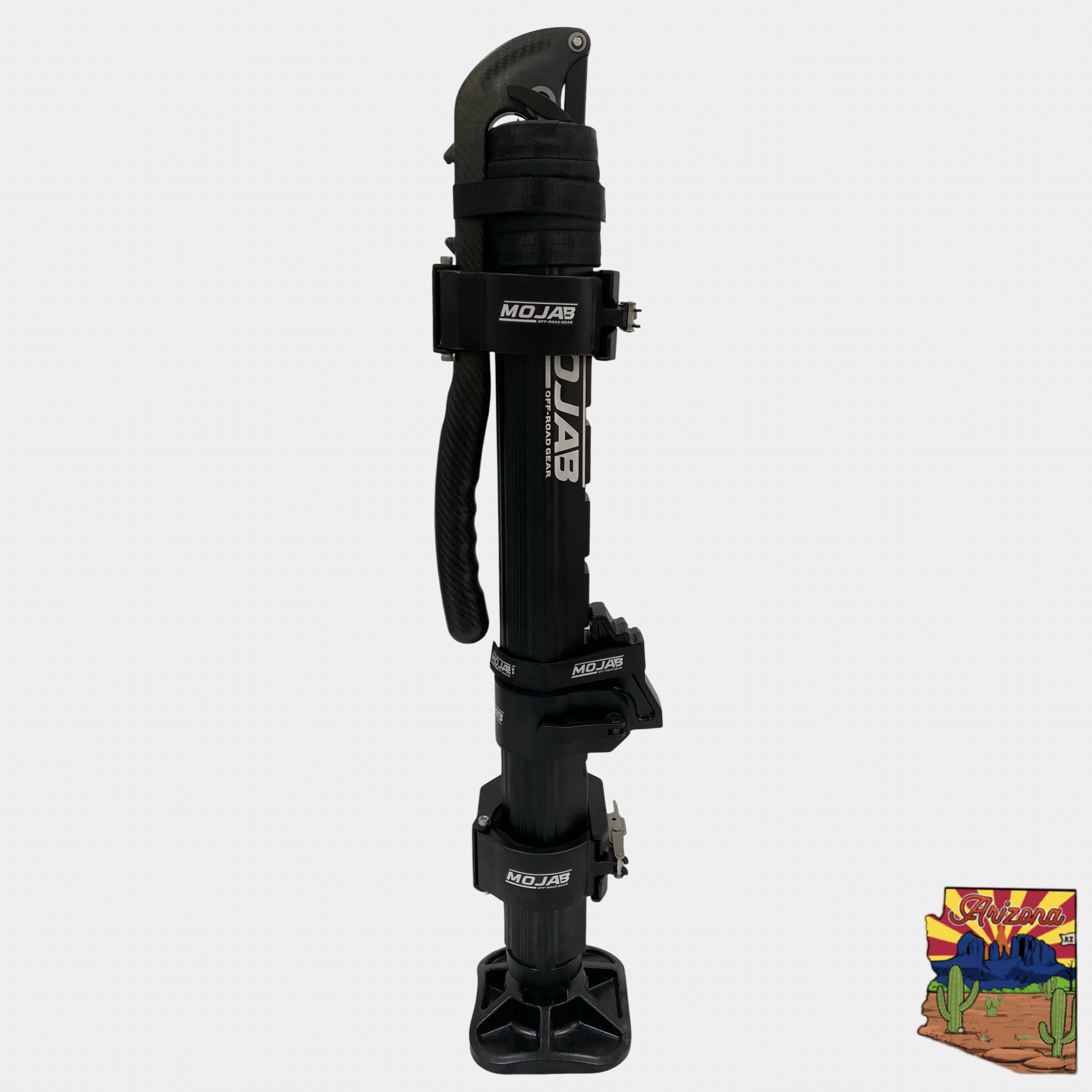

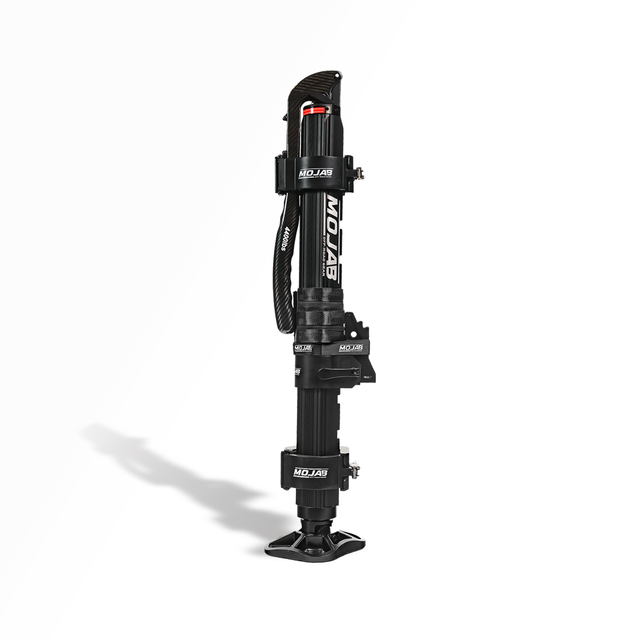

CarbonPro Hydraulic Jack with Mounting Clamps MLH 48''
1 / 11

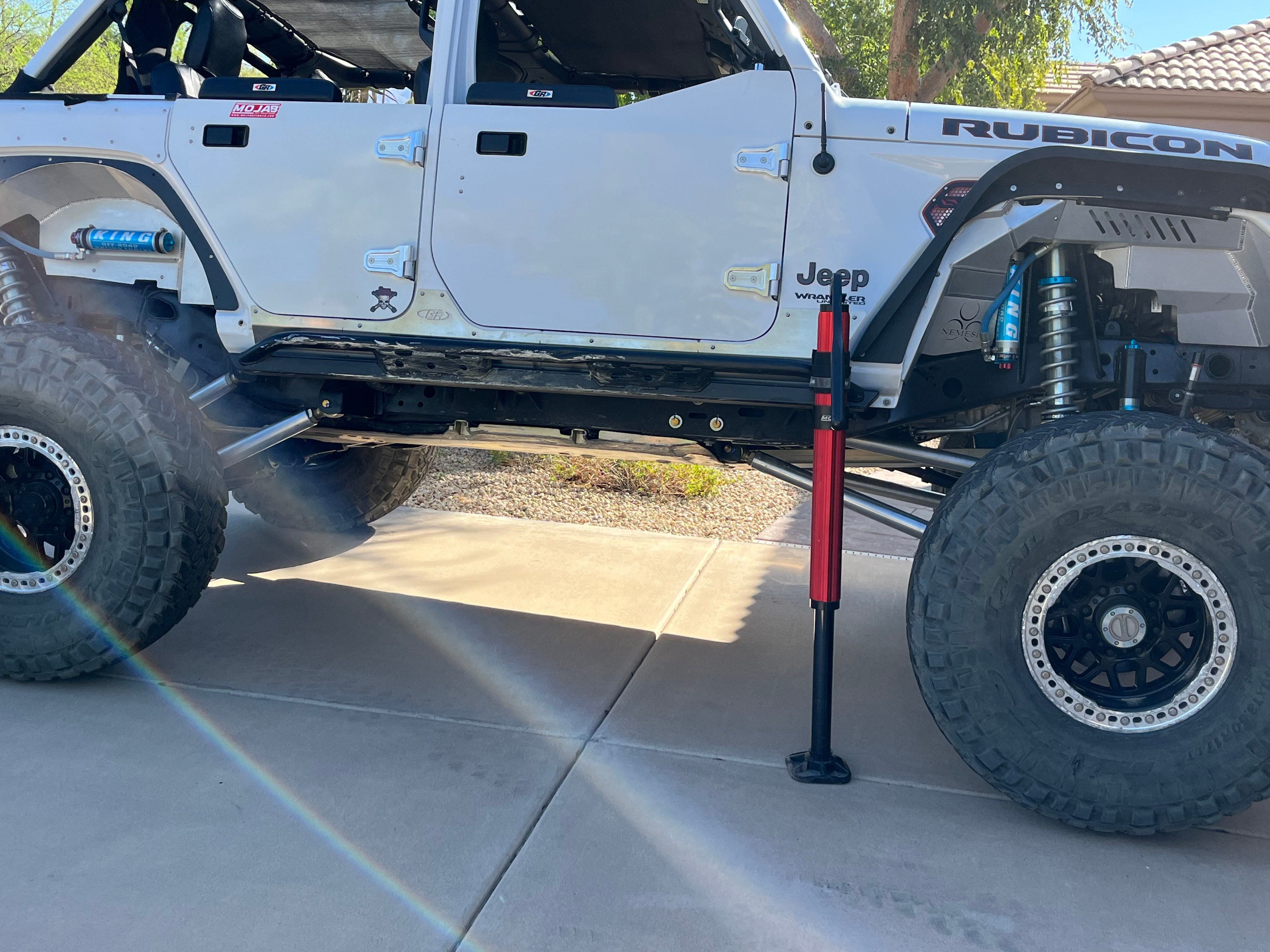

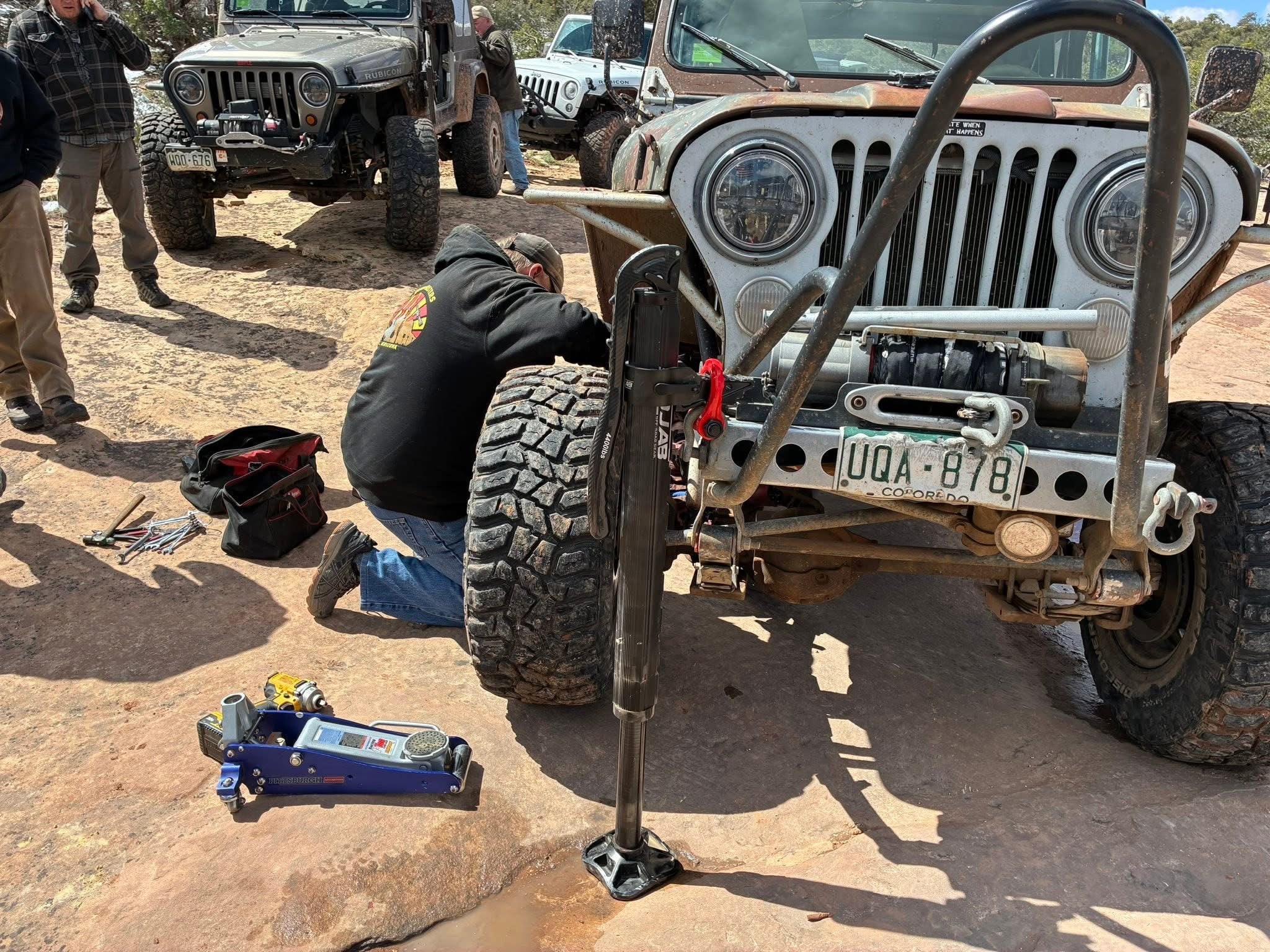

Manufacturer manual use limits: this jack is intended for off-road vehicle recovery, not vehicle maintenance or horizontal use. Use designated off-road jacking points on a flat, stable surface. Do not use the jack alone to support or stabilize a raised load, and never place any part of your body beneath a vehicle supported only by the jack. Read the linked Mojab manual before use.
CarbonPro Hydraulic Jack with Mounting Clamps MLH 48''
- Click here to download the manual
- Lightweight real carbon fiber handle construction
- Lockable air bleeder valve
- Fast and slow lowering functions
- Max. Lifting Height: 48''
- Travel: 21''
- Lifting Range: 6'' - 48''
- Compressed Height: 35''
- Extended Height: 56.3''
- Weight: 25.5 lbs
- Capacity discrepancy: the product page lists 4,500 lb; its linked Carbon Pro manual specifies 4,410 lb / 2,000 kg. Confirm the jack label and current manual before ordering or use; do not exceed the manual’s stated limit.
- Fluid: Hydraulic Mineral Oil
- Fluid Capacity: 1200ml
Take your lifting experience to the next level with the Ultimate Hydraulic Jack equipped with mounting clamps.
Experience effortless lifting with the Ultimate Hydraulic Jack. Powered by hydraulic technology, this jack enables smooth and efficient operation with minimal human force required. Say goodbye to strenuous lifting and let the hydraulic system do the work for you. With a simple pump of the handle, you can effortlessly raise heavy loads with ease. The hydraulic mechanism ensures precise control and stability, allowing you to perform the jack with confidence and ease. The linked Mojab manual specifies off-road vehicle recovery use; it is not a general-purpose machinery lift or a vehicle-maintenance jack. Upgrade to the Ultimate Hydraulic Jack and enjoy the convenience and efficiency of hydraulic lifting.

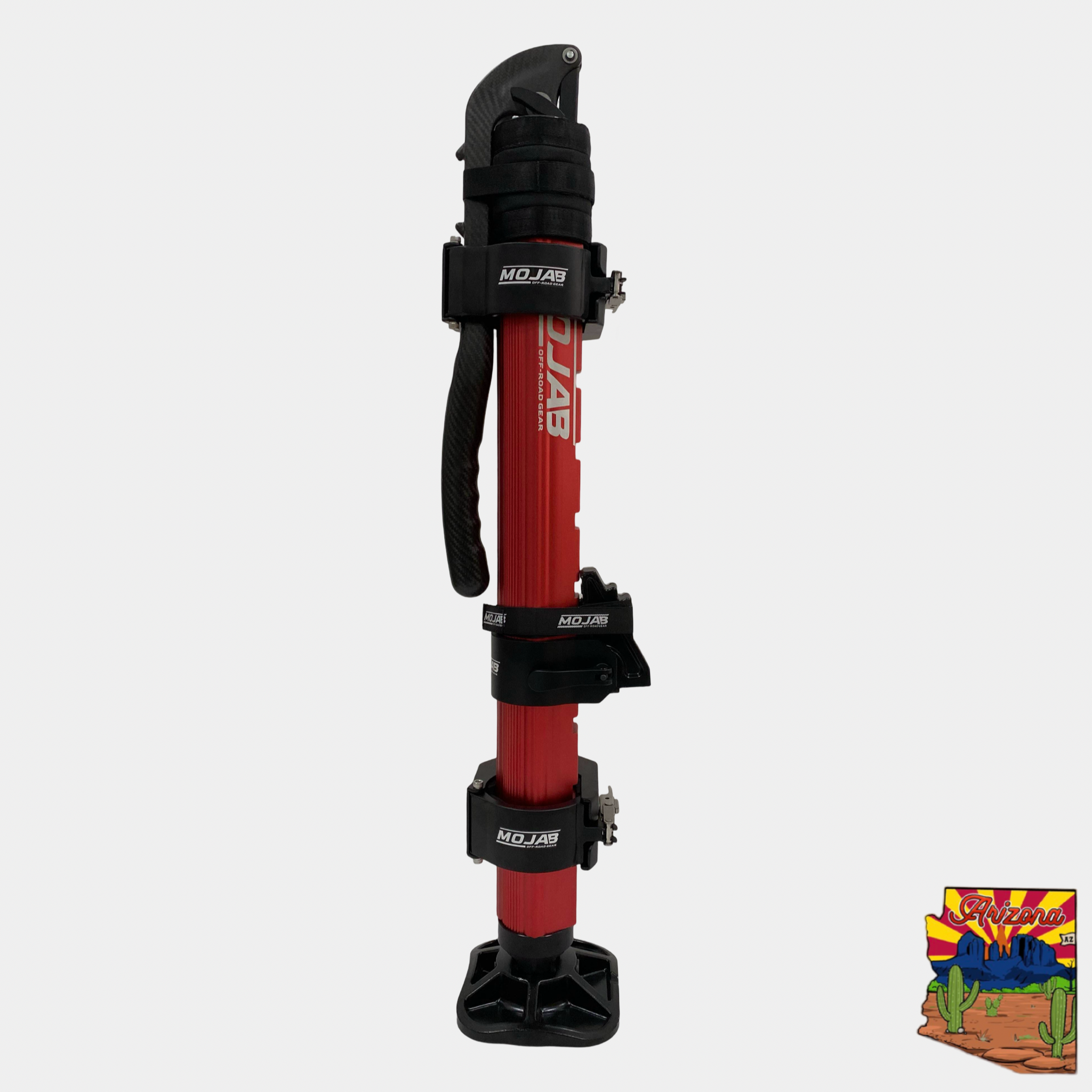

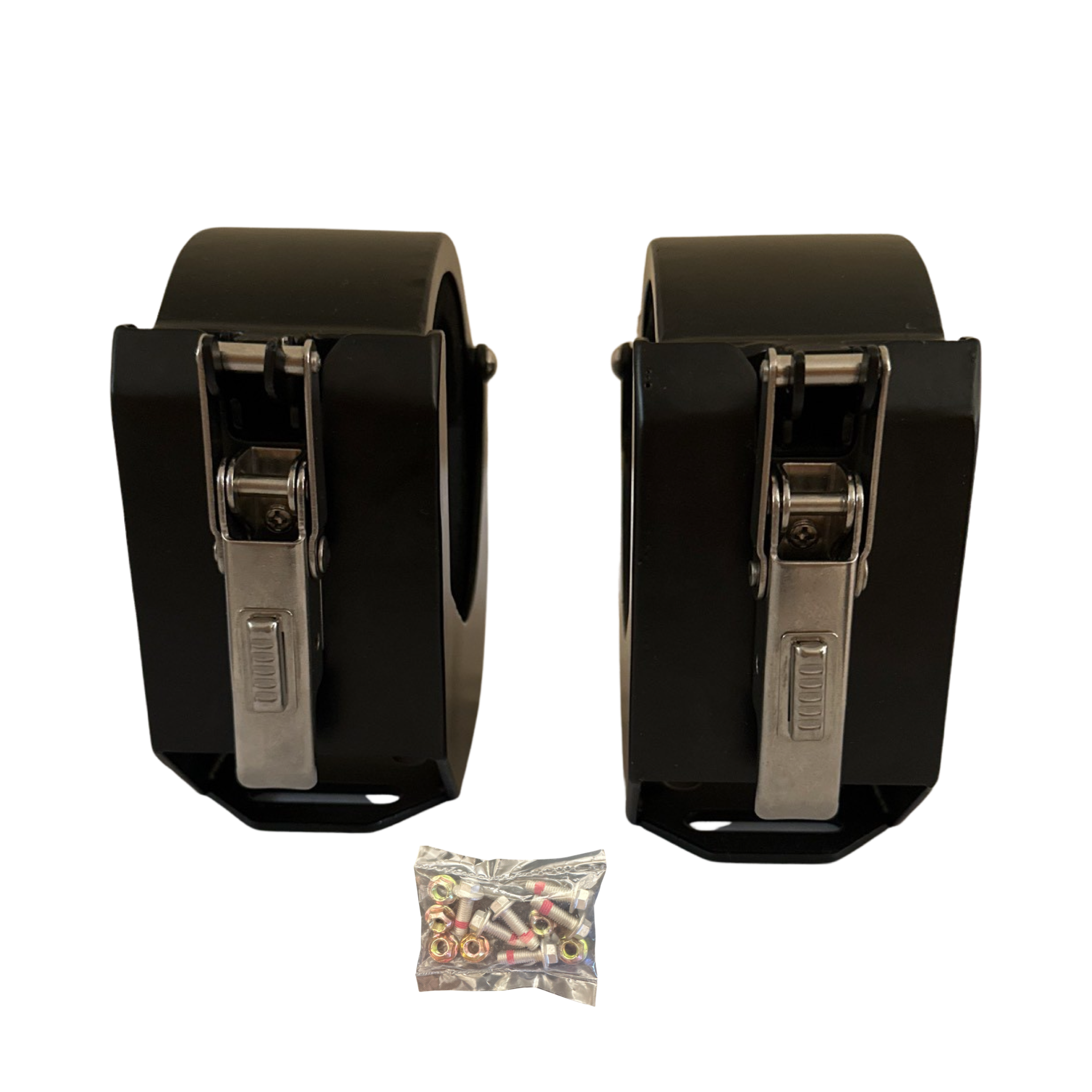

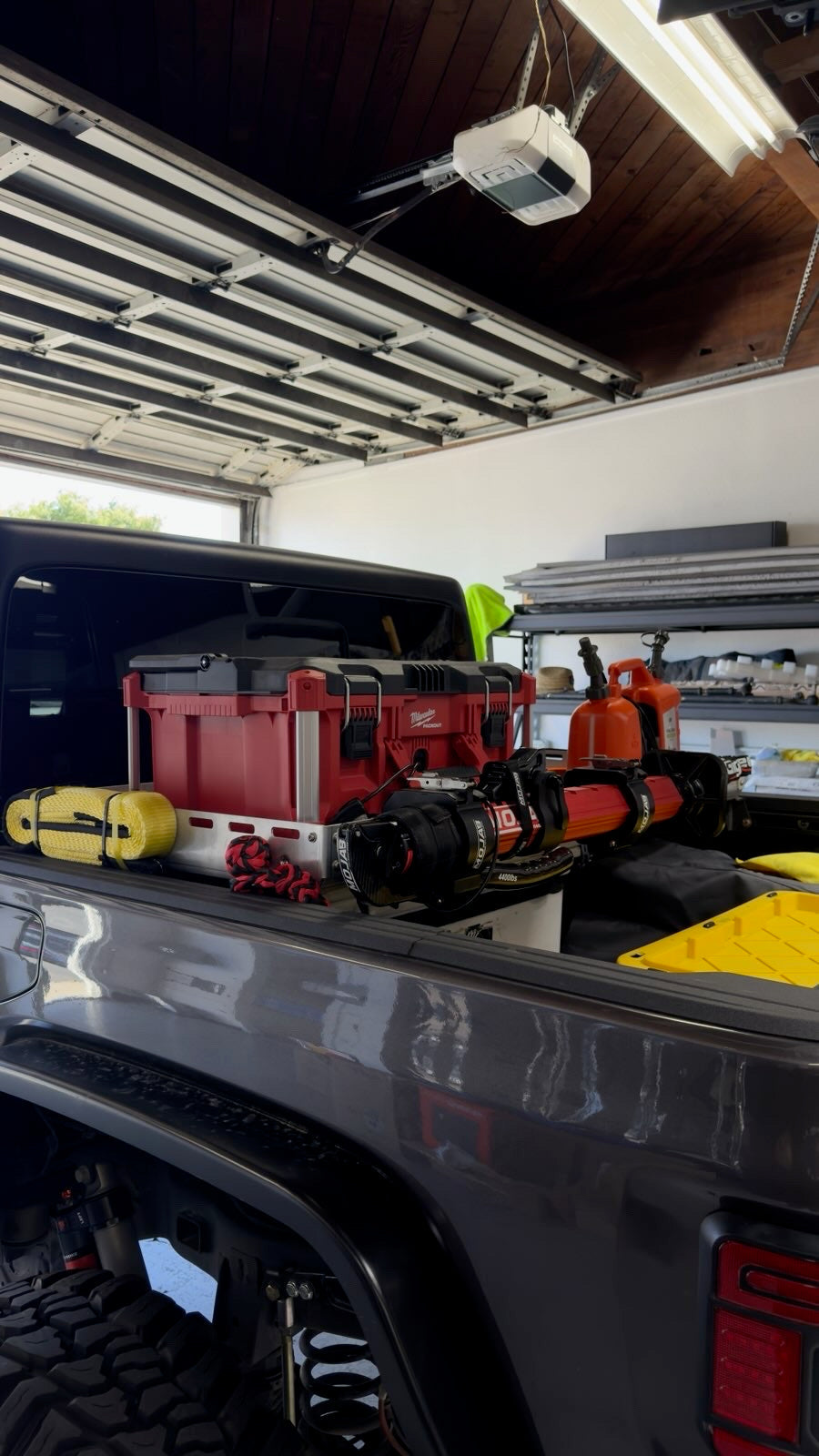

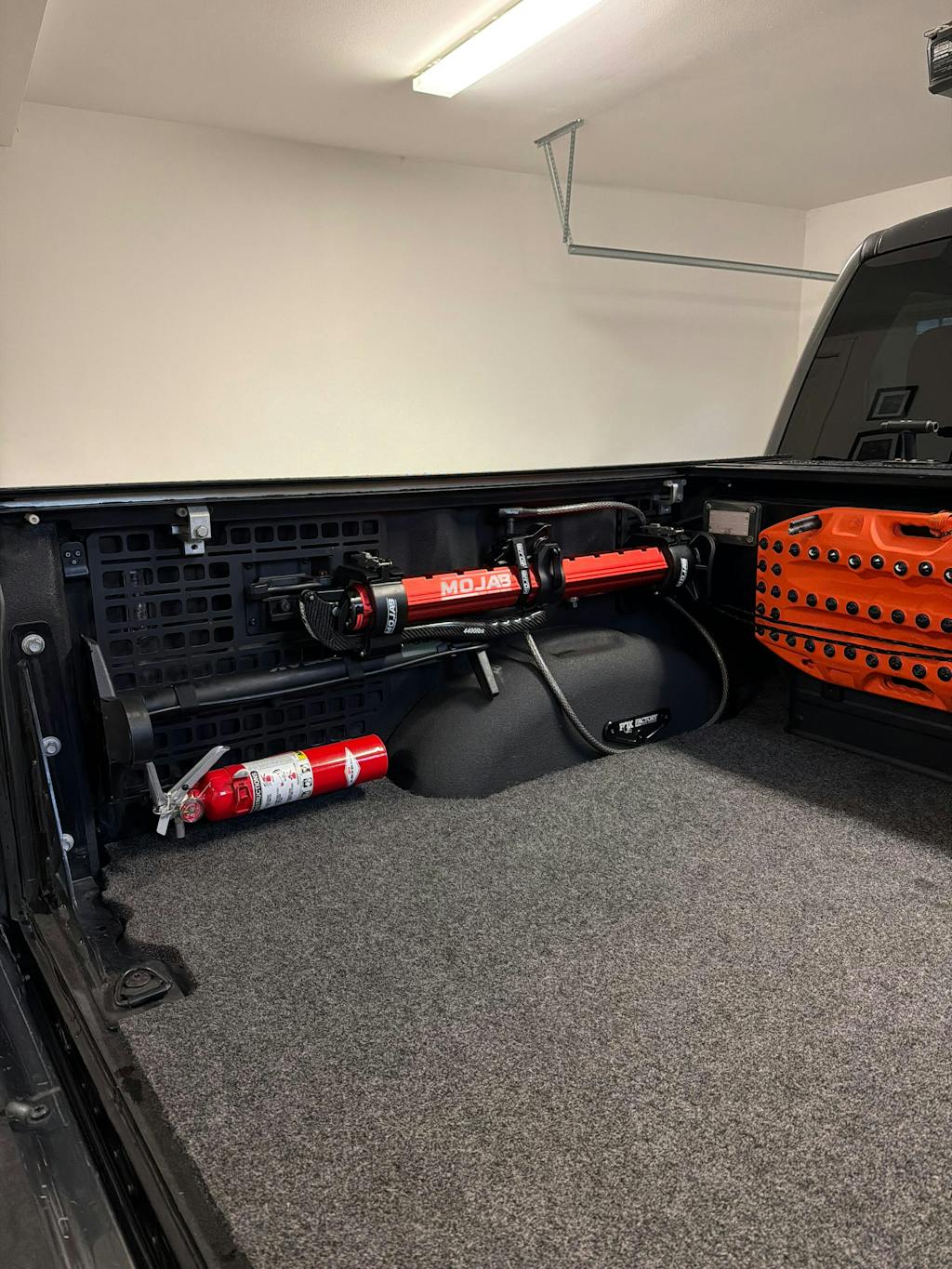

Enhance the stability and safety of your hydraulic jacks with these heavy-duty mounting clamps. Specifically designed for use with our hydraulic jacks, this set includes 2 durable clamps. The mounting clamps secure the jack for mounting and storage; they are not a substitute for rated supports under a lifted load. With their heavy-duty construction, these clamps are built to withstand demanding applications and provide long-lasting performance.

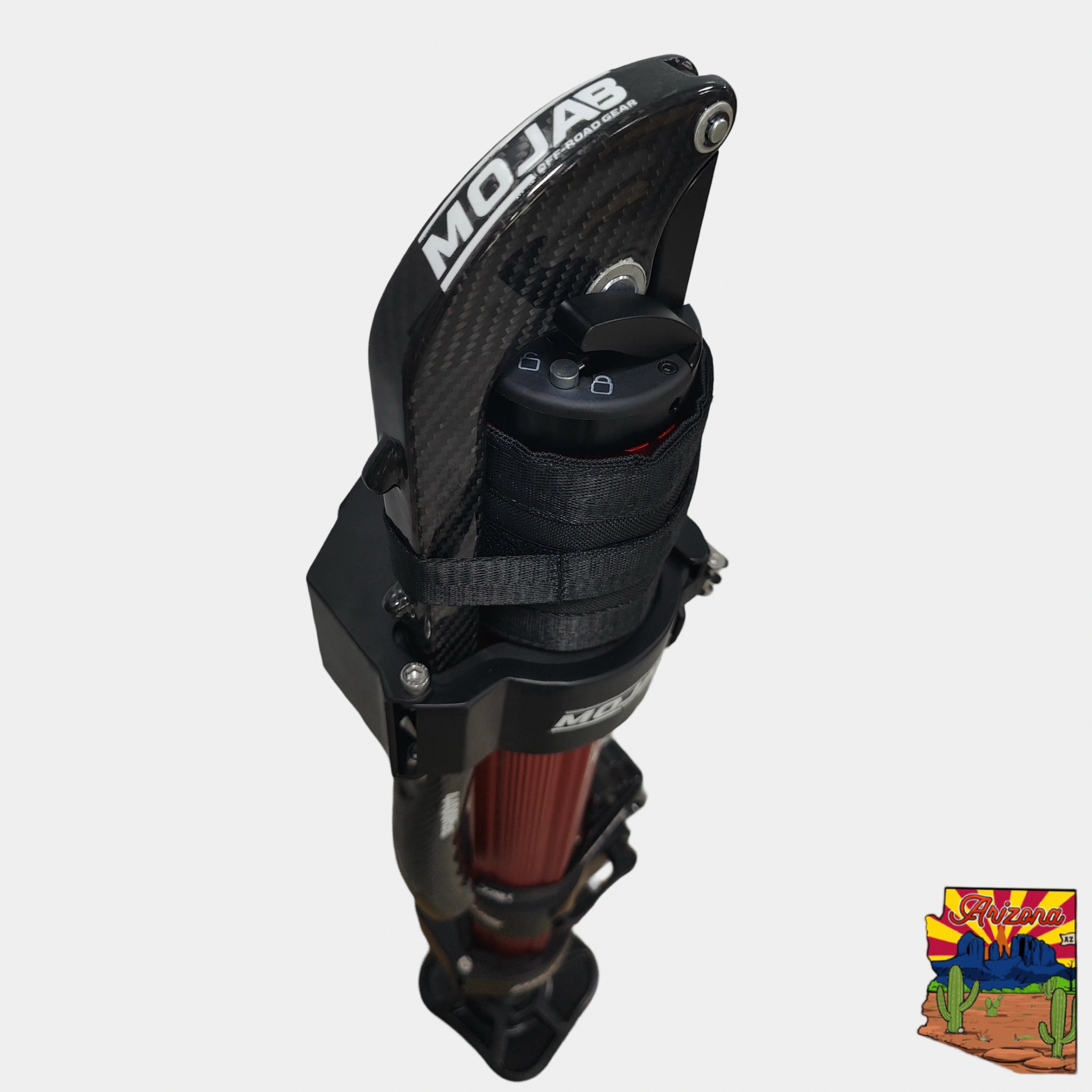

Note: The Carbon Pro Jack features a silver air bleeder valve located just underneath the black lowering lever. This valve has two positions: Lock and Unlock.
While the jack is mounted and in the stored position: Keep the valve in the Lock position.
When you start using the jack: Turn the valve to the Unlock position.
Fully compress the jack after use and store it in a dry place, away from moisture and water, to prevent the steel piston from rusting.
Coating Disclaimer:
Please note that the finish on the jack is not UV-resistant and may fade or discolor if exposed to direct sunlight for extended periods. The coating is not covered under warranty, as it is considered a cosmetic finish.For best results and to preserve the appearance of your jack, we recommend storing it in a shaded or covered area when not in use. Prolonged exposure to sun and harsh outdoor conditions may accelerate wear on the surface coating.
Air Bleeding Process:
The primary function of this valve is to bleed air from the system. To do this, turn the valve counterclockwise to unlock it, then push the valve down when there is no pressure behind the handle until you hear the air release. It's recommended to bleed the air out of the system every 7 to 8 cranks to allow the jack to equalize properly

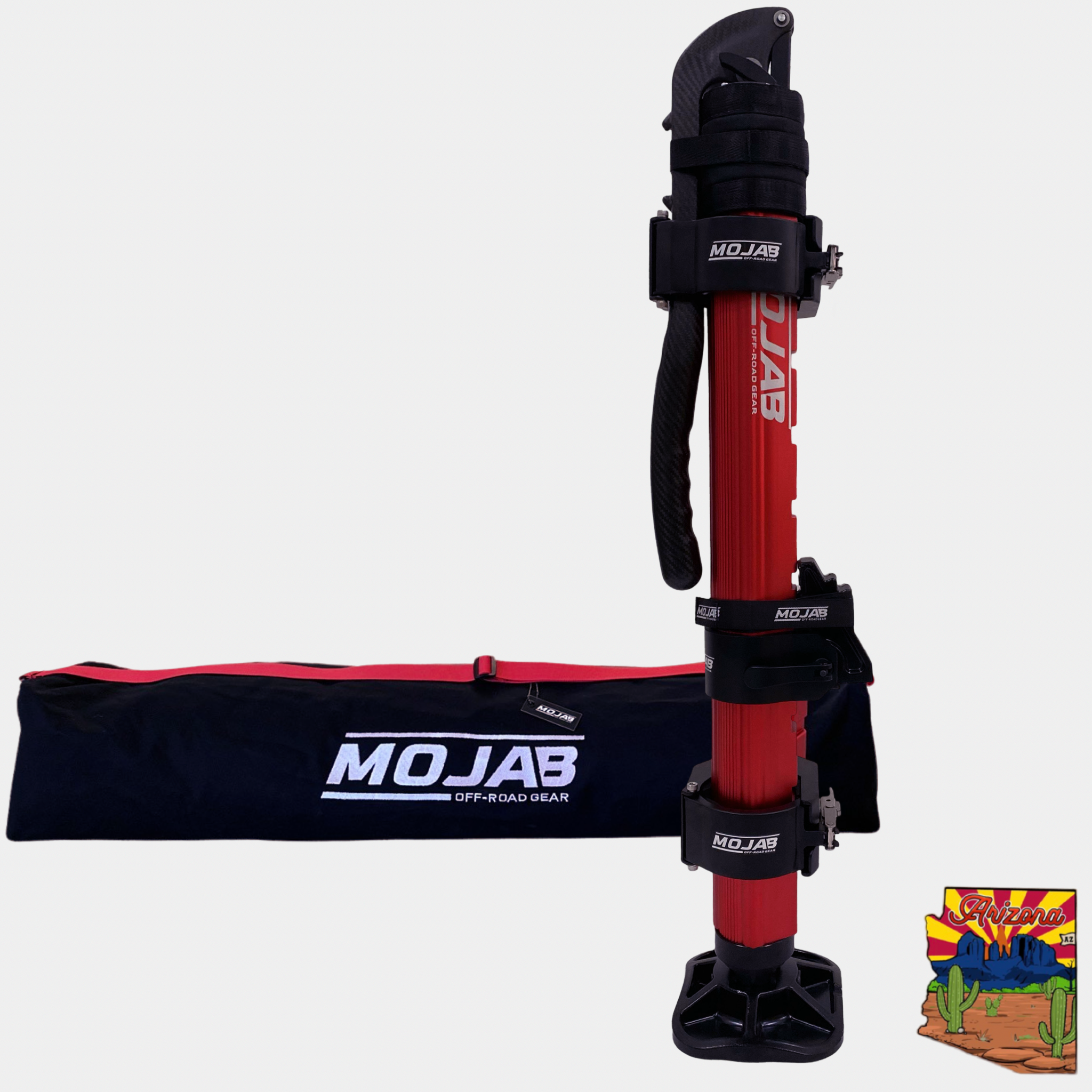

This kit includes the following:
- CarbonPro Hydraulic Jack
- Durable canvas storage bag
- 2 mounting clamps
Note: The clamp adapter is not included in this kit but can be purchased separately on our website.
SKU:
Black: CPHJC-B
Red: CPHJC-R
