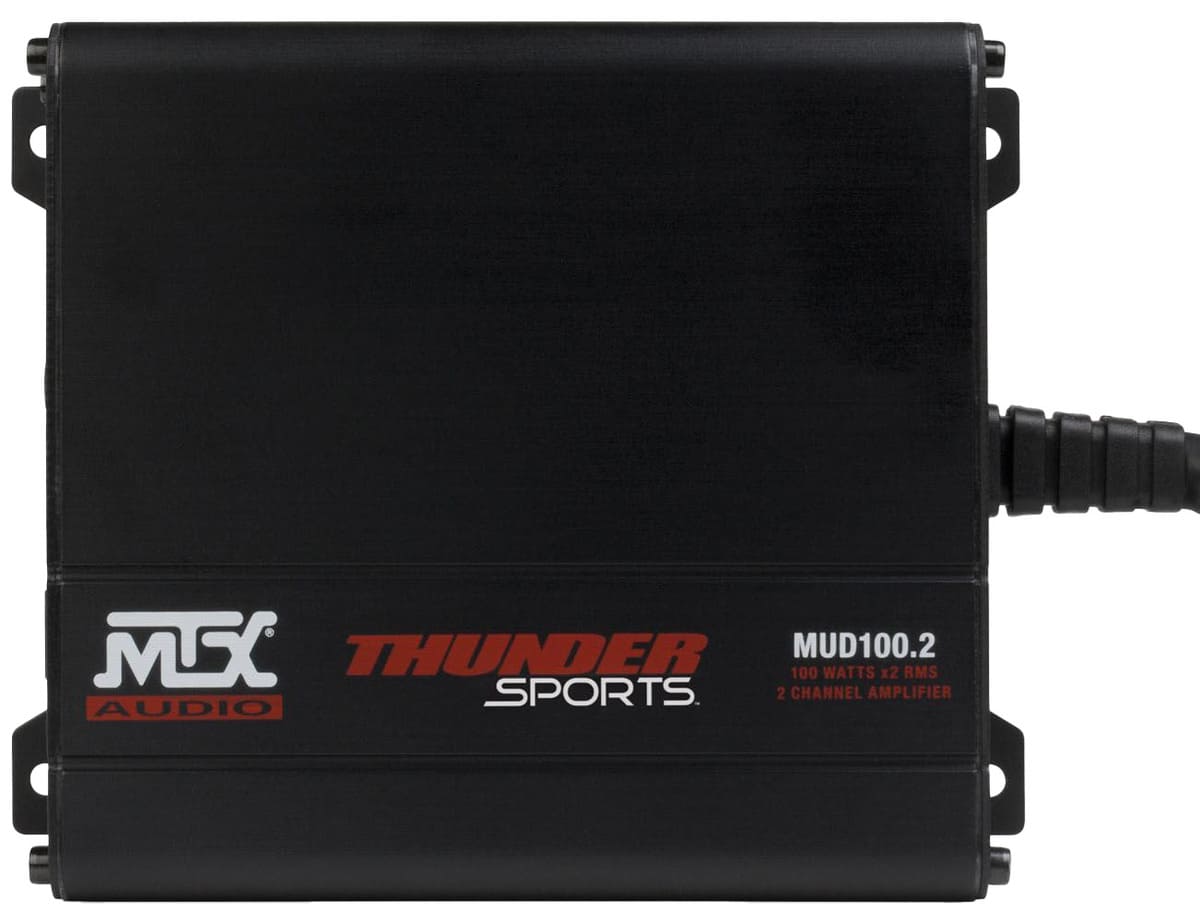

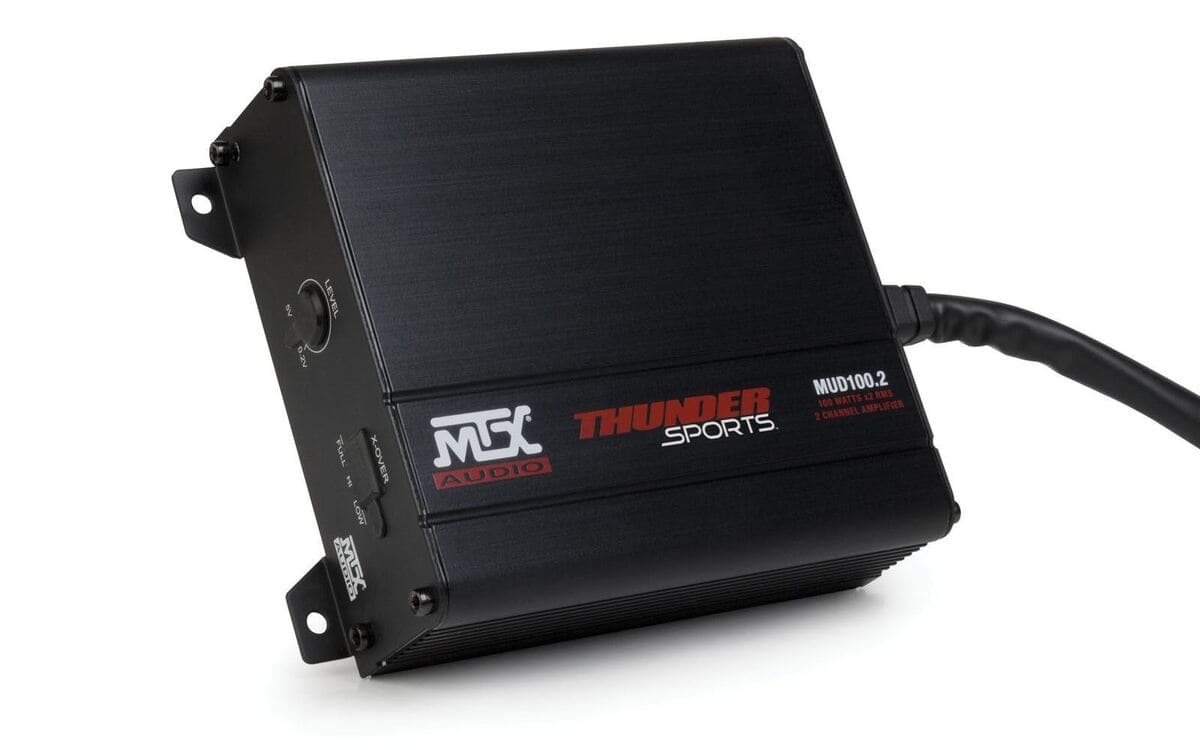

MTX MUD100-2 200W RMS 2-Channel UTV Amplifier

MTX MUD100-2 200W RMS 2-Channel Powersports Amplifier

The MTX MUD100-2 is a compact two-channel Class D amplifier built for powersports audio systems. It delivers up to 100 watts RMS per channel at 2 ohms and can also be bridged to power a compatible 4-ohm load.

Key Features

• 200 watts RMS total power at 2 ohms
• Full-range two-channel Class D topology
• 50W x 2 at 4 ohms
• 100W x 2 at 2 ohms
• 200W x 1 bridged at 4 ohms
• Conformal-coated circuit board helps resist moisture

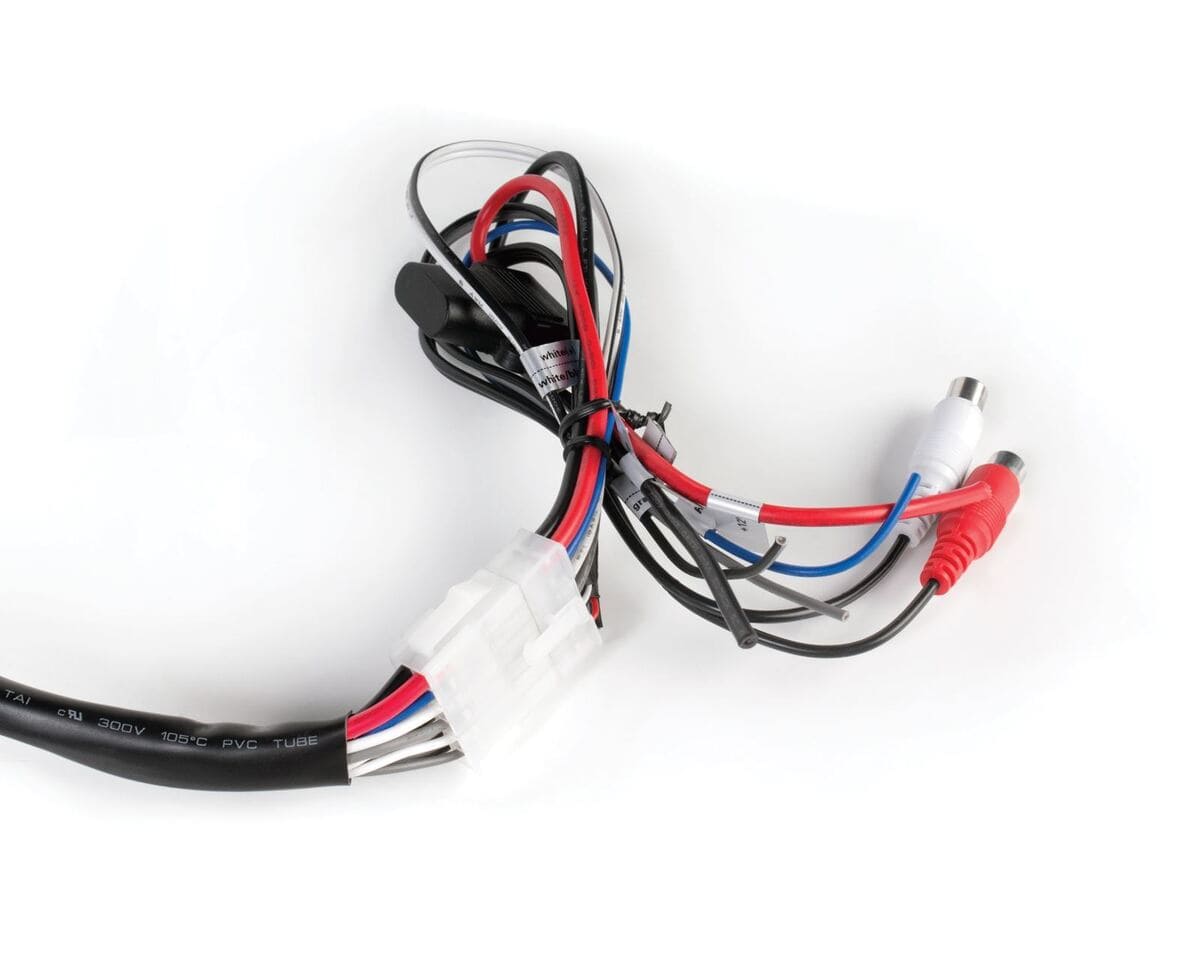

• Protective control covers and pigtail wiring

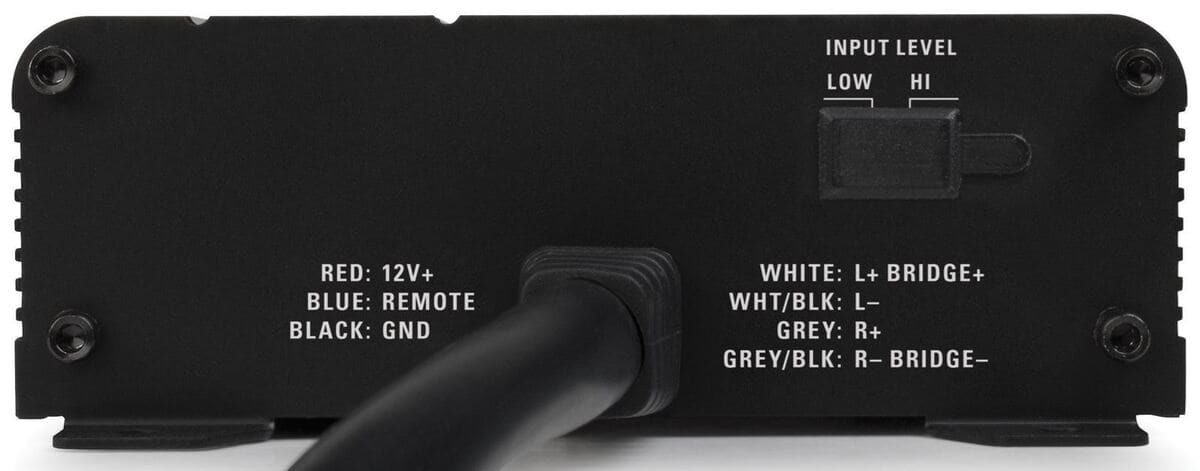

• High- and low-level inputs

Specs

• THD: less than 1.0%
• Frequency response: 20Hz–20kHz
• Crossover: fixed HPF/LPF at 80Hz, 12dB/octave
• Maximum sensitivity: 200mV
• Maximum input signal: 5V
• Dimensions: 4.22 x 5.72 x 1.86 inches
• SKU: MUD100-2

Application

The MUD100-2 is a universal powersports amplifier suitable for compatible UTV, sand rail, and motorcycle audio systems. Confirm impedance, speaker power requirements, wiring, mounting space, and source-unit connections before installation.
