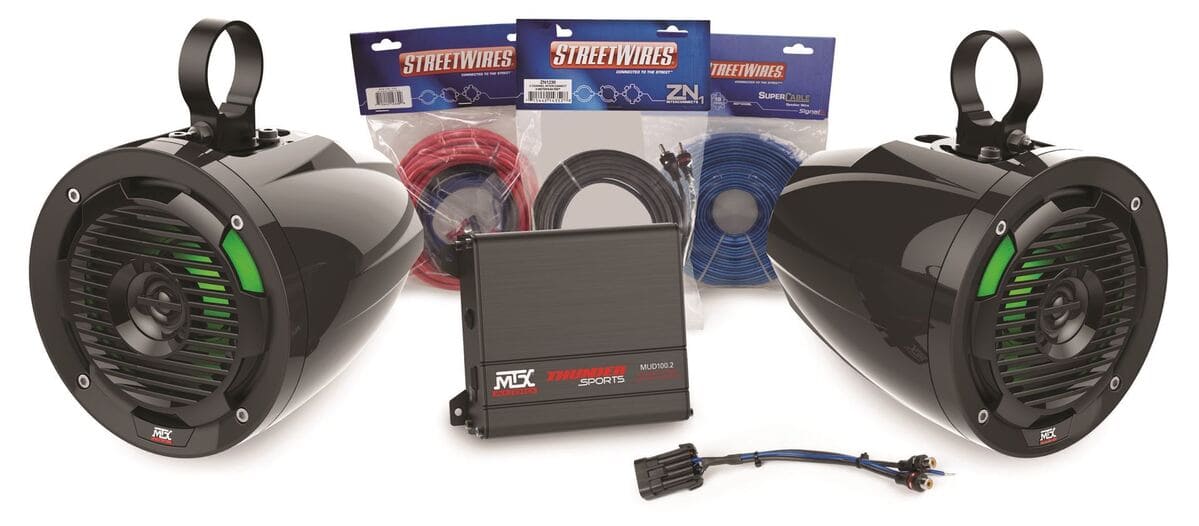

MTX Audio Polaris Universal Audio Package With Amplifier & 2 Roll Cage Speakers

MTX Audio Polaris Universal Audio Package With Amplifier & 2 Roll Cage Speakers

Upgrade your Polaris UTV with the UNI-1-PRCAA. This all-in-one system pairs seamlessly with RideCommand and includes a powerful amplifier, two rugged roll cage speakers, and all the wiring needed for an easy installation.

Seamless Ride command Integration: The UNI-1-PRCAA is designed for Polaris UTVs equipped with RideCommand. Featuring a direct plug-and-play connection, the included MUD100.2 amplifier connects securely to the Ride Command output via an OEM plug, ensuring easy installation and hassle-free integration.

Dynamic Sound: Powered by the compact MUD100.2 amplifier, this system drives two MUD65PL roll cage speakers with 100 watts RMS per channel. These weather-resistant speakers deliver rich, clear audio, so you can enjoy every beat and note as you ride.

Rugged Design: The system’s rugged construction is perfect for off-road conditions. The MUD65PL speakers feature an ABS impact-resistant grille with UV inhibitors, making them ideal for handling dirt, mud, and the harshest elements.

Complete Audio Package: Everything you need is included: amplifier, speakers, and all necessary wiring, including an integrated turn-on wire and stereo RCA cables for RideCommand. The setup is quick and effortless, delivering professional-grade audio in no time.

This package works with Polaris vehicles equipped with RideCommand and roll cages between 1.5" and 2" roll cages.

Features:

MUD100.2 Key Features:

• Compact Design Enables Installation Anywhere
• Conformal Coated Printed Circuit Board that Resists Moisture
• Fixed Crossovers
• High and Low Level Inputs
• 200-Watts RMS Power

MUD65PL Key Features:

• Weather Resistant 6.5" Speaker Pods
• Fits Bars with Diameters of 1.75", 1.85", and 2"
• Internal Crossover Network
• ABS Impact Resistant Grille with UV Inhibitor
• Integrated RGB Lighting
• Optional Remote Control and Wiring Harness Available for Custom Color Creation (MUDLEDC)

PRCAA Key Features:

• Direct Plug and Play Application
• OEM Connection to Ride Command Output
• Stereo RCA Connection from Ride Command to Amplifier
• Integrated Turn-on Wire for Amplifier

Wiring Included:

• PS1K-10 Power Kit for Connecting Amplifier to the Battery
• ZN1230 Stereo Cable for Connection of the PRCAA to the Amplifier
• SCP1850BL 18-Gauge Speaker Wire for Connecting MUD65PLs to Amplifier

Specifications:

• Amplifier:
• Description: 2-Channel
• 4Ω RMS Power Output: 50W x 2 Channels
• 2Ω RMS Power Output: 100W x 2 Channels
• 1Ω RMS Power Output: NA
• Topology: Full Range Class D
• THD: <1.0%
• Frequency Response: 20Hz - 20kHz
• Crossover: Fixed HPF/LPF @ 80Hz, 12dB/Oct
• Max Sensitivity: 200mV
• Maximum Input Signal: 5V
• Dimensions: 4.65" x 5.71" x 1.61"
• Speaker:
• Speaker Size: 6.5", 2-Way
• Sensitivity: 86dB
• Impedance: 86dB
• Frequency Response: 70Hz-20kHz
• Dimensions: 9.34" x 7.09" x 8.76"

Installation instructions:

• MTX007298-UNI-1-PRCAA-Wiring-Diagram.pdf
• MTX004785-MUD100-2-Owner's-Manual-RevB.pdf
• MTX005835-MUD65PL-Owners-Manual.pdf
