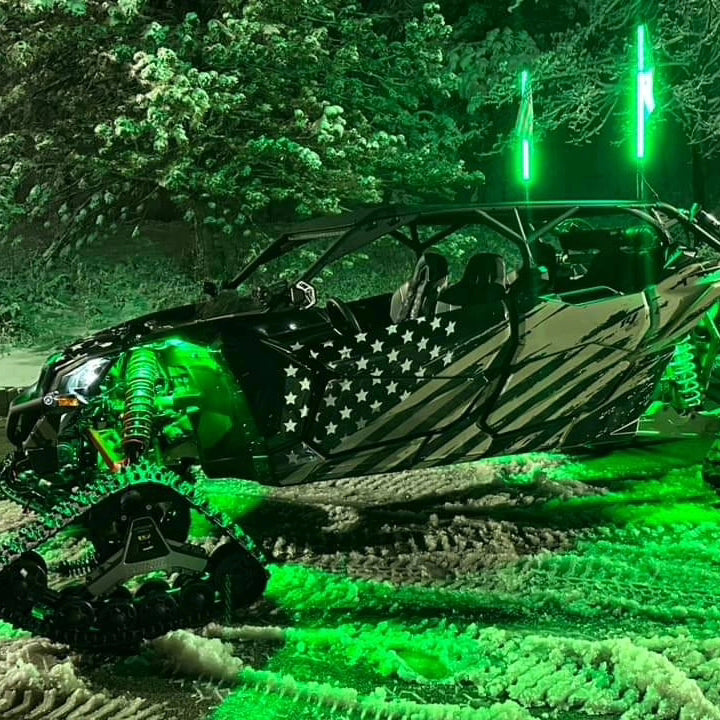

Can-Am Maverick X3 whip lights need a thoughtful mount and wire route because X3 builds often combine roofs, rear intrusion bars, spare-tire carriers, intercooler or exhaust heat and multiple electrical accessories. This guide explains how to choose a position, length and wiring plan for a clean two-whip installation. Exact hardware and power connections depend on model year, cage and accessories.
Best Can-Am X3 whip light mounting locations
Rear cage or intrusion-bar bracket
A clamp or vehicle-specific bracket on the rear cage can place the whips high and symmetrical. Confirm the cage-tube diameter and shape, and check that the bracket does not interfere with the roof, rear window or structural hardware. Do not loosen or replace critical cage fasteners without following the bracket and vehicle instructions.
Rear bed or accessory bracket
A lower bracket near the rear cargo area can create a cleaner cable route and keep the bases below the roof line. Check the spare tire, cargo box, cooler and body panels through their full range. A lower mount may favor a 3-foot or 4-foot whip.
Existing flag-mount location
Some X3 owners use a compatible flag or accessory mount. Verify the hole size, load rating and clearance for a quick-release base. A thin panel or decorative tab may not support the leverage of a tall whip during rough riding.
Choose the right X3 whip length
| Whip length | Best X3 use | Primary consideration |
|---|---|---|
| 2-foot Fatty | Tighter trails, high mounts and lower storage clearance | Compact profile; flags are not compatible on the R1 model |
| 3-foot | Mixed trail, desert and recreational riding | Balanced height for most builds |
| 4-foot | Dunes, desert and low rear mounts | More height and leverage at the base |
The X3 model alone does not decide whip length. Measure the planned base height, then add the quick-release, optional spring and whip. Compare that total with the garage, trailer and terrain where the vehicle is used.
Plan around heat
The rear of a Maverick X3 contains heat sources that demand careful routing. Keep the controller and harness away from exhaust and turbo-related heat, sharp shields and areas with limited airflow. Use existing protected chassis or cage routes where practical, and never let the loom rest on a hot component.
Can-Am X3 wiring steps
- Bench-test both whips, the controller, Bluetooth app, RF remote and rocker switch.
- Choose two strong, symmetrical mounting points.
- Select a protected controller location away from heat and direct spray.
- Measure both rear cable runs and the route to fused power and ground.
- Plan the switch route toward the dash without crossing steering or moving components.
- Disconnect the negative battery terminal before drilling or final connections.
- Install the bases and route protected loom with grommets at metal pass-throughs.
- Connect the controller to the specified fused 12-volt source and reliable ground.
- Reconnect power, test every control method and finish cable management.
Using an accessory bus or power distribution system
Many X3 builds use an accessory fuse block or bus to organize added lighting. Confirm the distribution system’s input, output and fuse capacity before adding another circuit. The LED whip harness should retain the protection and switching specified by its manufacturer. If you are unsure how the existing accessories are wired, have a qualified installer inspect the system.
Two-seat and MAX model cable length
A Maverick X3 MAX generally creates longer routes between rear mounts, the dash and power distribution. Measure every segment before choosing the controller location. An 8-foot compatible extension can solve a legitimate distance problem; it should not be used to route a cable loosely across heat or moving parts.
Spring mounts for a Can-Am X3
Spring mounts add movement at the whip base and may be useful with 4-foot whips or rough desert riding. They also add height and motion. Start with a structurally sound mounting bracket, correct hardware and a tight installation, then choose a spring based on terrain and total height.
Quick releases for trailers and garages
A quick-release base is especially useful when the X3 enters an enclosed trailer or low garage. Measure the vehicle with every accessory installed. Remove the whips before transport when clearance or wind load is a concern, and keep exposed connectors clean and protected.
Common Can-Am X3 whip light mistakes
- Mounting near exhaust or turbo heat without checking temperatures
- Routing across a rear panel, bed or spare-tire carrier that moves
- Using a cage clamp that does not match the tube size or profile
- Connecting to an unidentified circuit without checking capacity
- Skipping a grommet where the harness passes through metal
- Mounting the controller where it cannot be inspected or serviced
- Forgetting extra cable distance on a MAX four-seat model
Recommended Can-Am X3 whip light package
R1 Industries Pro Series LED Light Whips can be used on a Maverick X3 with a secure compatible mount and 12-volt connection. The pair includes Bluetooth and RF remote control, IP67-rated whips, quick-release bases, a plug-and-play harness and rocker switch. Select 2-foot Fatty, 3-foot or 4-foot models and add spring mounts or 8-foot extensions when the measured installation calls for them.
X3 pre-order checklist
- Exact Maverick X3 model, model year and two-seat or MAX configuration
- Cage-tube size or vehicle-specific bracket compatibility
- Roof, rear panel, spare-tire and cargo clearance
- Distance from mount to controller and controller to power
- Controller protection from heat and direct spray
- Available fused accessory capacity
- Total height for trailer, garage and riding terrain
Frequently asked questions
Will universal LED whip lights fit a Can-Am X3?
They can when the vehicle has a compatible structural mount and 12-volt wiring path. The bracket, cable length and exact installation remain vehicle-specific.
What size whips are best for a Maverick X3?
Three-foot whips suit many mixed-use builds. Choose 2-foot Fatty for tighter clearance or 4-foot for open terrain and lower mounts. Measure total installed height first.
Where should I mount the controller?
Use a protected, serviceable location away from exhaust and turbo heat, moving parts and direct spray. Both whip leads should reach without tension.
Do X3 MAX models need extensions?
Some do, depending on controller and power location. Measure the route before ordering rather than assuming based on seat count alone.
