Polaris RZR whip lights can be mounted and wired cleanly on two-seat and four-seat machines when you plan around the cage, roof, spare tire and electrical accessories already installed. This guide covers placement, length and wiring considerations for RZR XP 1000, Pro XP, Turbo S, RS1 and related RZR builds. Exact brackets and power connections vary by model year and configuration.
Watch: R1 LED Light Whip Installation
This R1 Industries installation video shows the mounting and wiring process on a Polaris RZR. Use it with the written measurements, power checks and safety steps below.
Best RZR whip light mounting locations
Rear cage crossbar
A rear cage crossbar is a common location because it places the whips high and keeps them clear of much of the cargo area. Use a bracket designed for the cage-tube diameter and profile. Measure roof overhang, rear window panels and harness routes before choosing the final spot.
Rear bed or frame bracket
A lower rear bracket can keep the base away from roof panels and create a clean wire route toward the chassis. Because the mounting point is lower, a 3-foot or 4-foot whip may be the better visual fit. Confirm the dump bed, spare tire and cargo still move without contacting the lights or cables.
Vehicle-specific flag or accessory bracket
A purpose-built bracket can reduce drilling and spread the load better than thin plastic. Confirm the bracket is intended for your exact RZR cage or frame location and that its mounting hole matches the whip base.
How to choose RZR whip length
| Whip length | RZR use case | Watch for |
|---|---|---|
| 2-foot Fatty | Wooded trails, high cage mounts and lower storage clearance | Compact installed height |
| 3-foot | Most mixed trail and recreational RZR builds | Balanced height and leverage |
| 4-foot | Dunes, open desert and low rear mounting points | Trailer clearance and stronger load at the base |
Measure from the ground to the mounting surface, then add the base, optional spring and whip length. Compare the total with your garage door and trailer. Use the full LED whip size guide if you are deciding between two sizes.
RZR wiring plan
Many RZR owners already run light bars, rock lights, radios, pumps or heated accessories. Treat the whips as another fused circuit and verify the accessory system has capacity. Depending on the model and existing build, power may come from a vehicle accessory terminal, bus bar or battery-connected harness. Follow Polaris service information and the lighting manufacturer’s instructions.
- Test the whip pair, controller, Bluetooth app, RF remote and switch before installation.
- Choose a protected controller location with access to both rear cable runs.
- Measure the route from each whip base to the controller.
- Plan switch wiring through an existing protected path toward the dash.
- Keep loom away from clutch and exhaust heat, driveshafts, steering and suspension movement.
- Use grommets at metal pass-throughs and secure the harness without crushing it.
- Connect to the specified fused power source and a reliable ground.
- Test again before final cable management.
Two-seat vs four-seat RZR considerations
A four-seat RZR can require a longer route between the rear mounting points, controller, dash and power source. Measure instead of assuming the included leads will reach. Compatible 8-foot extensions can help on longer builds, but use extensions designed for the exact controller and connectors.
On both configurations, account for roof kits, rear panels, storage boxes and spare-tire carriers. Open and move every component through its normal range before drilling.
Do RZR whip lights need spring mounts?
Spring mounts are optional. They add controlled movement at the base and may be useful for 4-foot whips or rough terrain. They also increase total height. The primary mount still needs to be strong, correctly sized and firmly secured.
Quick-release bases and transport
Quick releases let you remove the whips while leaving the mounted base and wiring in place. This is useful for an enclosed trailer, low garage, storage cover or maintenance. Disconnect power before servicing the base, keep the connector clean and reinstall any protective cap supplied with the system.
Common RZR installation mistakes
- Mounting where the roof, rear panel or bed contacts the whip base
- Using a universal clamp without confirming the cage-tube size or profile
- Routing wires near clutch or exhaust heat
- Adding the lights to an already overloaded accessory circuit
- Stretching a cable instead of adding a compatible extension
- Ignoring trailer height until after drilling
- Securing the controller where it receives direct spray or cannot be serviced
Recommended RZR whip light package

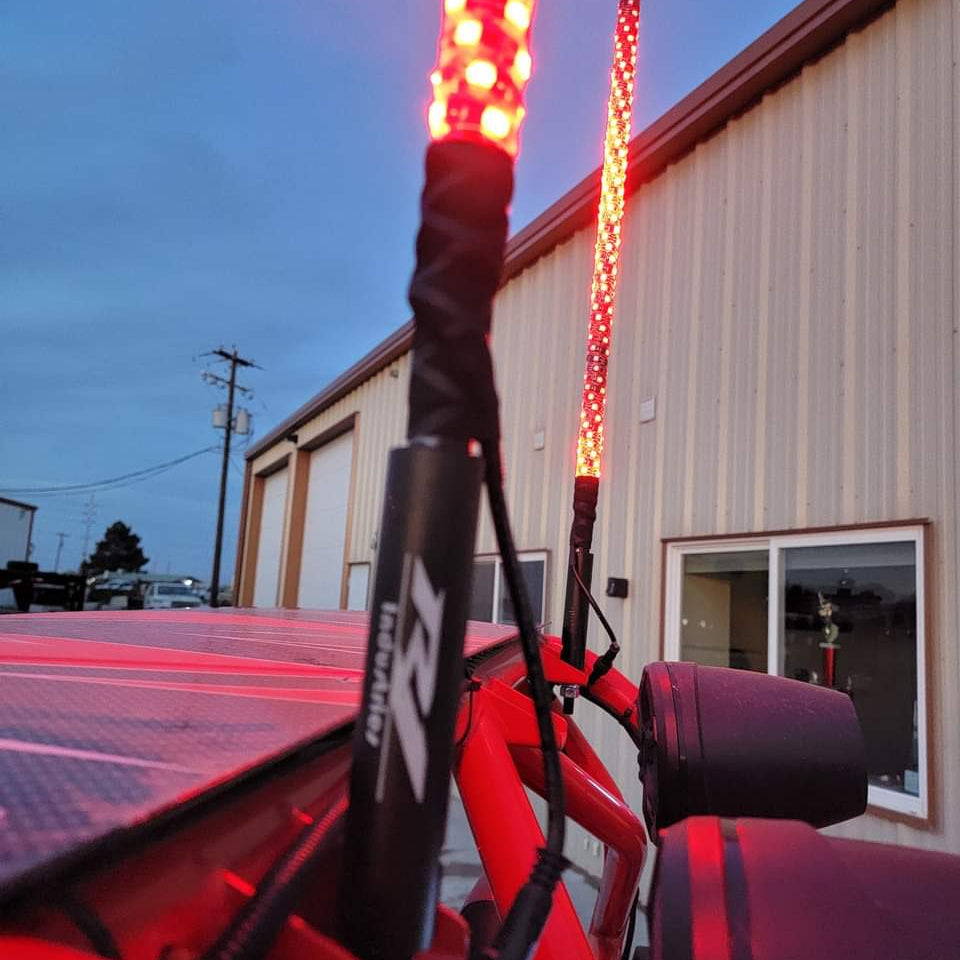

R1 Industries Pro Series LED Light Whips fit a wide range of Polaris RZR builds with a suitable mounting bracket and 12-volt connection. The pair includes Bluetooth app control, an RF remote, IP67-rated whips, plug-and-play wiring, a rocker switch and quick-release bases. Choose 2-foot Fatty, 3-foot or 4-foot models, then add spring mounts or 8-foot extensions if your installation needs them.
RZR pre-order checklist
- Exact model, year and two-seat or four-seat configuration
- Cage-tube size and shape at the planned mount
- Available structural mounting surface
- Total height with roof, base, spring and whip
- Controller-to-whip and controller-to-power cable distances
- Dash switch opening or switch-panel compatibility
- Available fused accessory capacity
Frequently asked questions
Will universal LED whips fit every Polaris RZR?
The electrical system and whip base can be universal, but the bracket and route are not. Confirm your exact cage, body panels, mounting hole and cable distances.
Where should the controller go on a RZR?
Choose a protected, serviceable location away from heat and direct spray, with practical cable routes to both whip bases and the power source.
Are 3-foot or 4-foot whips better for a RZR?
Three-foot whips are a balanced choice for mixed riding. Four-foot whips suit open terrain or lower mounts. Installed height and clearance are more important than model name alone.
Can I use an existing dash switch opening?
Often, but switch dimensions and wiring vary. Confirm the included rocker switch or use a compatible vehicle-specific adapter without altering the harness incorrectly.
